AUTOMATIC DRIVE POSITIONER CONTROL UNIT

ECU DIAGNOSIS

AUTOMATIC DRIVE POSITIONER CONTROL UNIT

Reference Value

INFOID:0000000000960531

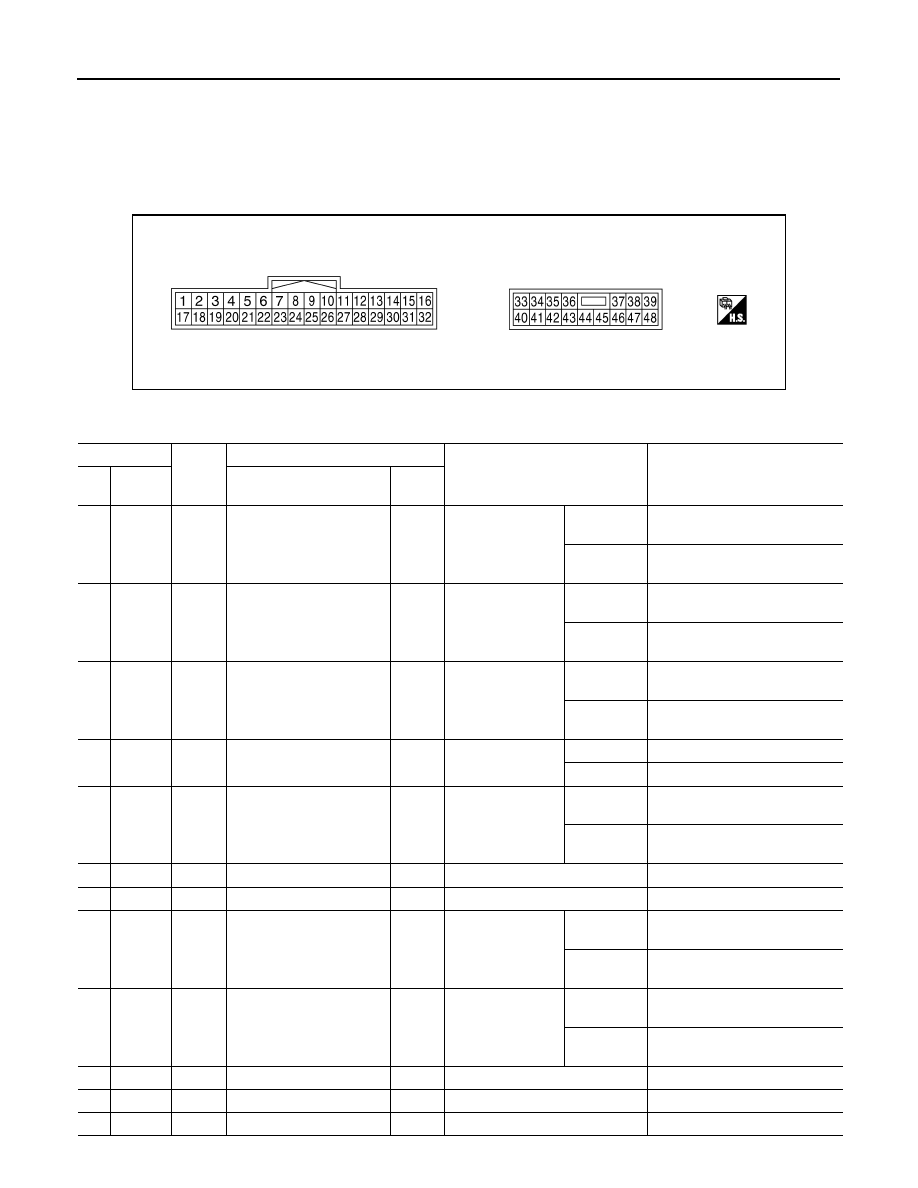

TERMINAL LAYOUT

PHYSICAL VALUES

JMJIA0199ZZ

Terminal No.

Wire

color

Description

Condition

Voltage (V)

(Approx.)

+

-

Signal name

Input/

Output

1

Ground

Y

Tilt switch up signal

Input

Tilt switch

Operate
(up)

0

Other than
above

5

11

Ground

GR

Telescopic switch forward
signal

Input

Telescopic switch

Operate
(forward)

0

Other than
above

5

17

Ground

W

Tilt switch down signal

Input

Tilt switch

Operate
(down)

0

Other than
above

5

23

Ground

P

Telescopic sensor signal

Input

Telescopic position

Top

0.8

Bottom

3.4

27

Ground

G

Telescopic switch back-
ward signal

Input

Telescopic switch

Operate
(backward)

0

Other than
above

5

33

Ground

W

Sensor power supply

Input

—

5

34

Ground

R

Power source (Fuse)

Input

—

Battery voltage

35

Ground

L

Tilt motor up output signal

Output

Steering tilt

Operate
(up)

Battery voltage

Other than
above

0

36

Ground

GR

Telescopic motor forward
output signal

Output

Steering telescopic

Operate
(forward)

Battery voltage

Other than
above

0

39

Ground

W

Power source (C/B)

—

Battery voltage

40

Ground

B

Ground

—

—

0

41

Ground

Y

Sensor ground

—

—

0

AUTOMATIC DRIVE POSITIONER CONTROL UNIT

SE-57

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

42

Ground

O

Tilt motor down output sig-
nal

Output

Steering tilt

Operate
(down)

Battery voltage

Other than
above

0

44

Ground

G

Telescopic motor backward
output signal

Output

Steering telescopic

Operate
(backward)

Battery voltage

Other than
above

0

48

Ground

B

Ground

—

—

0

Terminal No.

Wire

color

Description

Condition

Voltage (V)

(Approx.)

+

-

Signal name

Input/

Output

SE-58

< ECU DIAGNOSIS >

AUTOMATIC DRIVE POSITIONER CONTROL UNIT

Wiring Diagram— TILT AND TELESCOPIC SYSTEM —

INFOID:0000000000960532

JCJWA0008GB
