PWO-6

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000000963856

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SRS section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

PWO

CIGARETTE LIGHTER

PWO-7

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ON-VEHICLE REPAIR

CIGARETTE LIGHTER

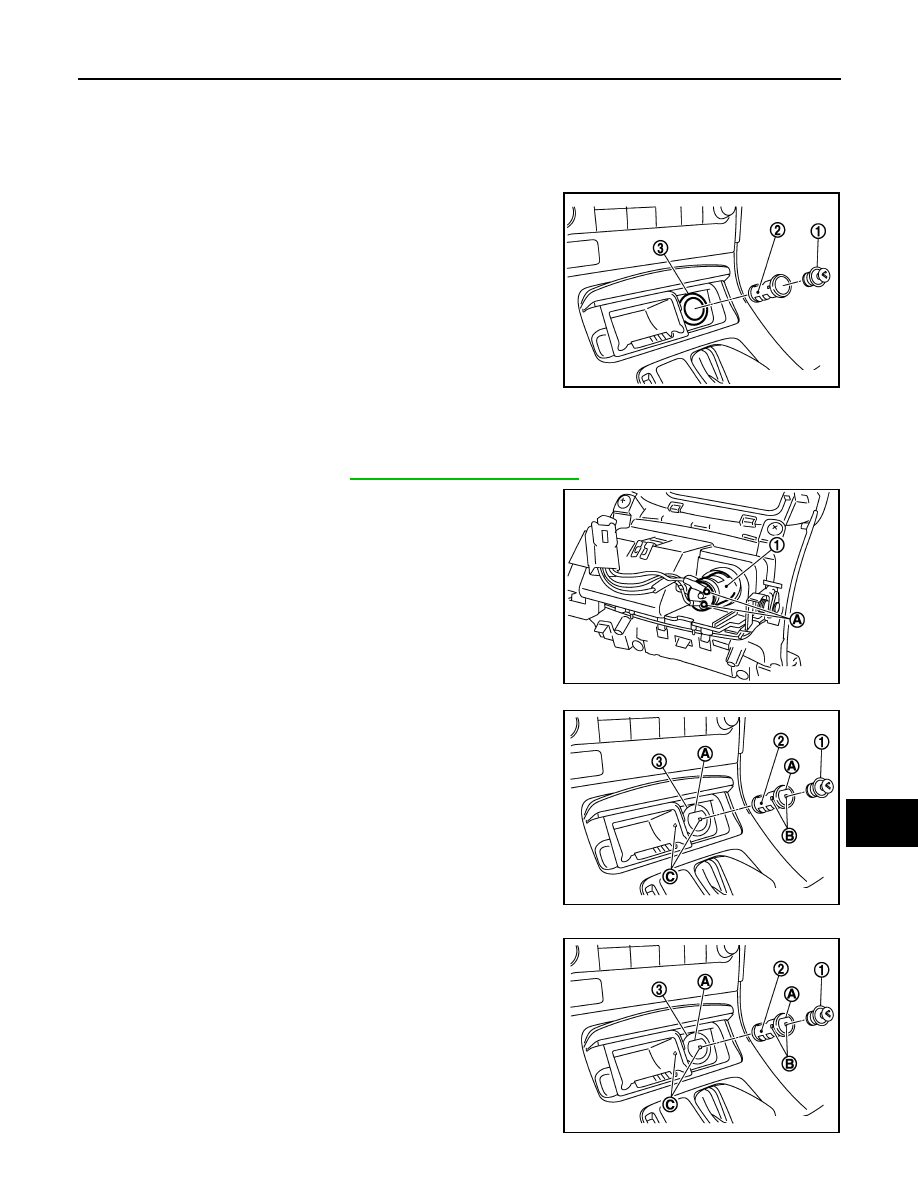

Exploded View

INFOID:0000000000963857

Removal and Installation

INFOID:0000000000963858

REMOVAL

1.

Remove console finisher. Refer to

IP-12, "Removal and Installation"

.

2.

Remove screws (A) from reverse side cigarette lighter socket
(1).

3.

Pull out cigarette lighter (1).

4.

Pull out the cigarette lighter socket (2) by pushing the cigarette
lighter ring pawl (C) from the cigarette lighter socket hole
(square).

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

1

: Cigarette lighter

2

: Cigarette lighter socket

3

: Cigarette lighter ring

JPLIA0097ZZ

JPLIA0096ZZ

3

: Cigarette lighter ring

A

: Cut out

B

: Hole (square)

JPLIA0108ZZ

1

: Cigarette lighter

2

: Cigarette lighter socket

3

: Cigarette lighter ring

A

: Cut out

B

: Hole (square)

C

:  Pawl

JPLIA0108ZZ

PWO-8

< ON-VEHICLE REPAIR >

CIGARETTE LIGHTER

Align the cigarette lighter socket and cigarette lighter ring cut out.

PWO

POWER SOCKET

PWO-9

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

POWER SOCKET

Exploded View

INFOID:0000000000963859

Removal and Installation

INFOID:0000000000963860

REMOVAL

1.

Remove rear upper console assembly. Refer to

IP-26, "Disassembly and Assembly"

.

2.

Disconnect power socket connector (A).

3.

Pull out the Inner socket (2) by pushing the ring pawl (B) from
the Inner socket hole (square).

4.

Remove ring (1) from console box while pressing pawls.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

Align the Inner socket and the ring cut out.

1

:  Ring

2

: Inner socket

JPLIA0098ZZ

C

: Cut out

D

: Hole (square)

JPLIA0109ZZ

1

:  Ring

2

: Inner socket

A

: Power socket connector

B

:  Pawl

C

: Cut out

D

: Hole (square)

JPLIA0109ZZ
