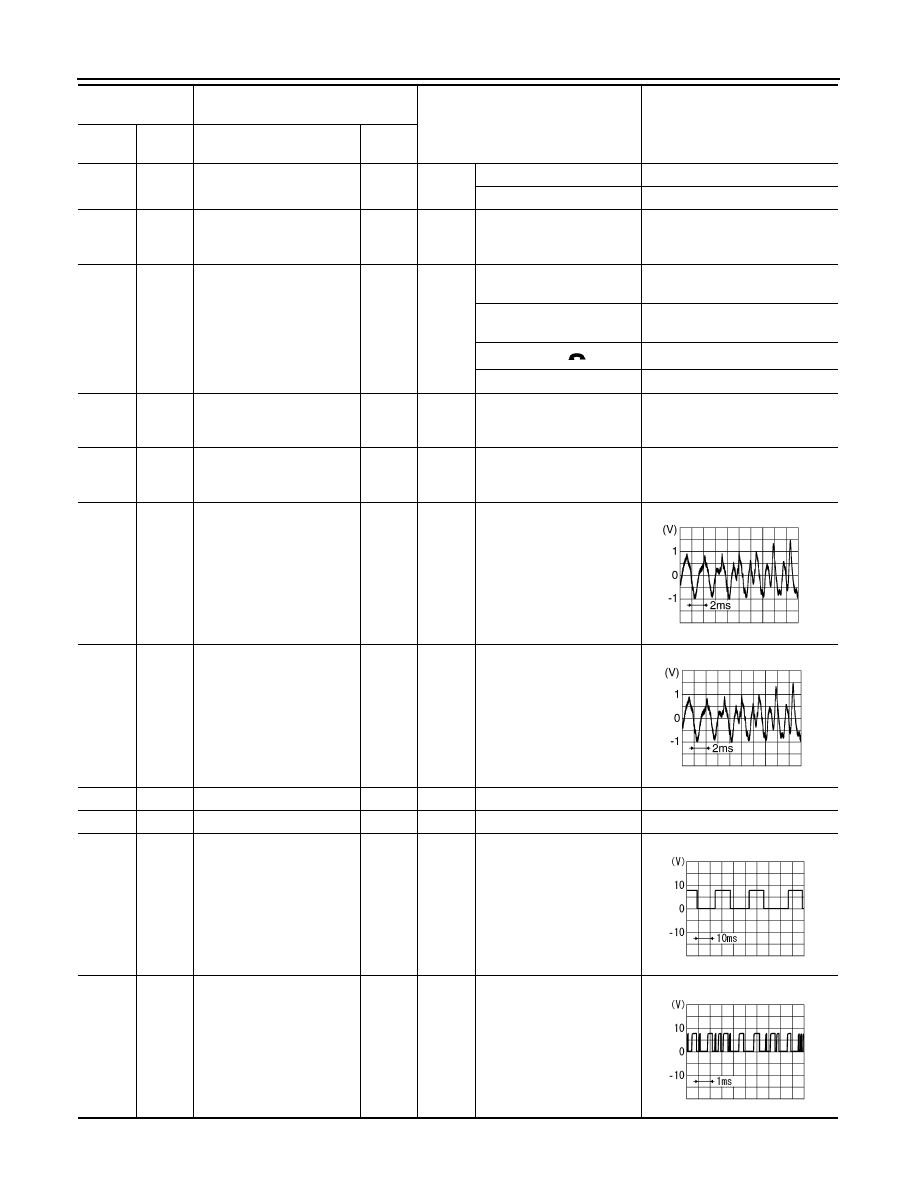

Infiniti G35 (V35) Sedan. Manual - part 104

AV-188

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

AV CONTROL UNIT

9

(R)

Ground

Illumination signal

Input

OFF

Lighting switch is OFF.

0 V

Lighting switch is ON.

12 V

15

(B)

Ground

Steering switch signal GND

—

Ignition

switch

ON

—

0  V

16

(L)

15

(B)

Steering switch signal B

Input

Ignition

switch

ON

Keep pressing VOL DOWN
switch.

0 V

Keep pressing VOL UP
switch.

0.7 V

Keep pressing

 switch.

1.3 V

Except for above.

3.3 V

19

(Y)

Ground

Battery power supply

Input

Ignition

switch

OFF

—

Battery voltage

20

(B)

Ground

GND

—

Ignition

switch

ON

—

0  V

22

(B)

21

(W)

Satellite radio sound signal
LH

Input

Ignition

switch

ON

When satellite radio mode
is selected

24

(G)

23

(R)

Satellite radio sound signal
RH

Input

Ignition

switch

ON

When satellite radio mode
is selected

25

—

Shield

—

—

—

—

26

—

Shield

—

—

—

—

28

(W)

Ground

Request signal
(SAT

→

CONT)

Input

Ignition

switch

ON

When satellite radio mode
is selected

29

(B)

Ground

Communication signal
(SAT

→

CONT)

Input

Ignition

switch

ON

When satellite radio mode
is selected

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIB3609E

SKIB3609E

SKIA9299J

SKIA9300J

AV

AV CONTROL UNIT

AV-189

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

30

(R)

Ground

Communication signal
(CONT

→

SAT)

Output

Ignition

switch

ON

When satellite radio mode
is selected

33

—

FM sub

Input

—

—

—

34

—

AM–FM main

Input

—

—

—

35

Ground

Antenna amp. ON signal

Output

Ignition

switch

ACC

—

12  V

36

(SB)

Ground

AUX image signal

Output

Ignition

switch

ON

When AUX mode is select-
ed

37

(V)

Ground

AUX image ground

—

Ignition

switch

ON

—

0  V

38

(P)

Ground

RGB signal (B: blue)

Output

Ignition

switch

ON

Start confirmation/adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum Bar” on
DISPLAY DIAGNOSIS
screen.

39

(L)

Ground

RGB signal (G: green)

Output

Ignition

switch

ON

Start confirmation/adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum Bar” on
DISPLAY DIAGNOSIS
screen.

40

(G)

Ground

RGB signal (R: red)

Output

Ignition

switch

ON

Start confirmation/adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum Bar” on
DISPLAY DIAGNOSIS
screen.

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIA9301J

SKIB2251J

SKIB2237J

SKIB2236J

SKIB2238J

AV-190

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

AV CONTROL UNIT

41

(W)

Ground

RGB synchronizing signal

Output

Ignition

switch

ON

—

42

—

Shield

—

—

—

—

43

(B)

Ground

RGB area (YS) signal

Output

Ignition

switch

ON

RGB image

5 V

AUX image

44

(BR)

Ground

Communication signal
(DISP

→

CONT)

Input

Ignition

switch

ON

When adjusting display-
brightness.

45

(R)

Ground

Horizontal synchronizing
(HP) signal

Input

Ignition

switch

ON

—

46

(LG)

Ground

Signal GND

—

Ignition

switch

ON

—

0  V

47

(O)

Ground

Signal VCC

Output

Ignition

switch

ACC

—

9  V

49

(Y)

—

Composite synchronizing
signal GND

—

Ignition

switch

ON

—

0  V

50

—

Shield

—

—

—

—

55

—

Shield

—

—

—

—

56

(Y)

Ground

Communication signal
(CONT

→

DISP)

Output

Ignition

switch

ON

When adjusting display-
brightness.

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIB3603E

PKIB4948J

PKIB5039J

SKIB3601E

PKIB5039J

AV

AV CONTROL UNIT

AV-191

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

57

(G)

Ground

Vertical synchronizing (VP)
signal

Input

Ignition

switch

On

—

58

(BR)

Ground

Inverter GND

—

Ignition

switch

ON

—

0  V

59

(Y)

Ground

Inverter VCC

Output

Ignition

switch

ACC

—

9  V

66

(G)

Ground

AUX image signal

Input

Ignition

switch

ON

When AUX mode is select-
ed

73

—

Shield

—

—

—

—

74

(R)

Ground

AUX image signal GND

—

Ignition

switch

ON

—

0  V

80

(L)

79

(P)

TEL voice signal

Input

Ignition

switch

ON

During voice guide output

with the

 switch pressed

81

—

Shield

—

—

—

85

(B)

Ground

GND

—

Ignition

switch

ON

—

0  V

86

(L)

—

CAN–H

Input/

Output

—

—

—

87

(P)

—

CAN–L

Input/

Output

—

—

—

88

(G)

—

AV communication signal
(H)

Input/

Output

—

—

—

89

(R)

—

AV communication signal
(L)

Input/

Output

—

—

—

90

(L)

—

AV communication signal
(H)

Input/

Output

—

—

—

91

(P)

—

AV communication signal
(L)

Input/

Output

—

—

—

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIB3598E

SKIB2251J

SKIB3609E
