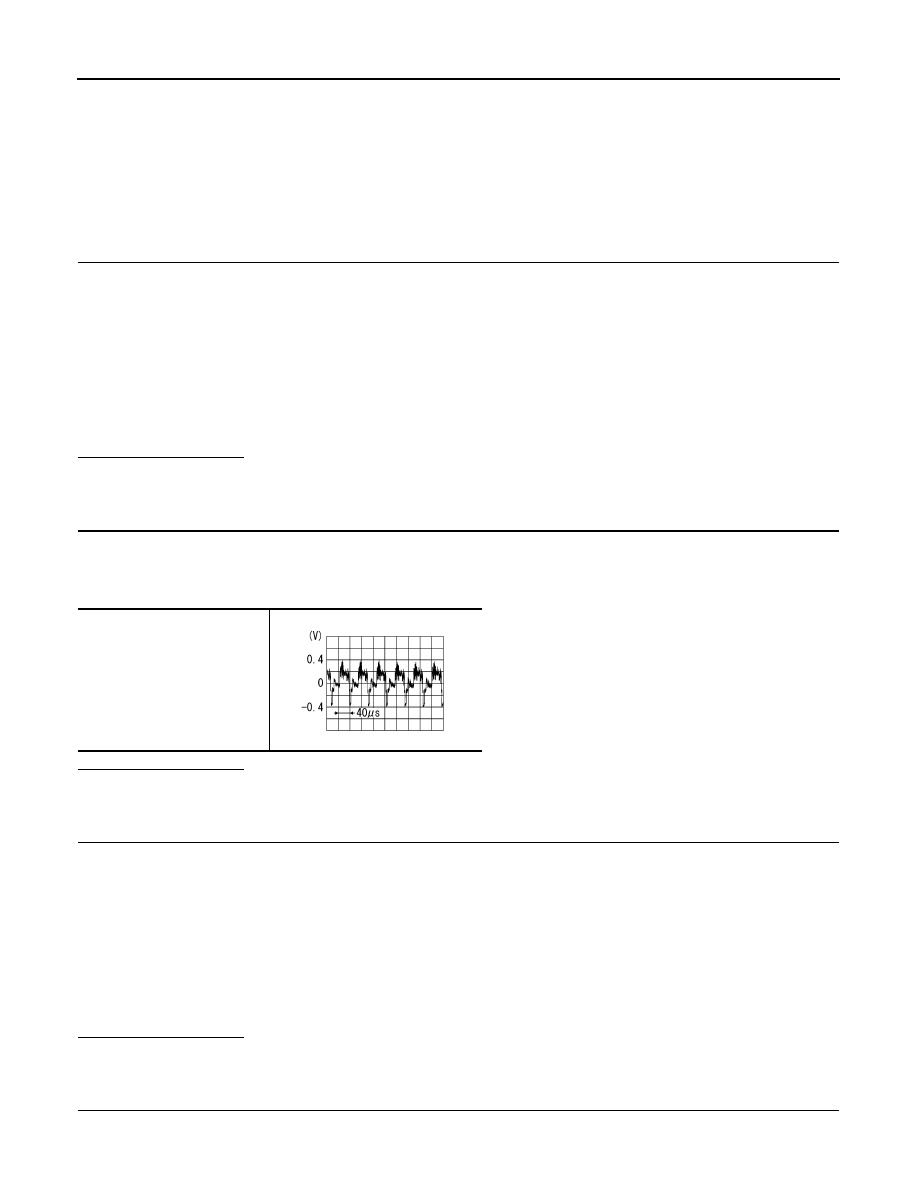

Infiniti G35 (V35) Sedan. Manual - part 100

AV-172

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

HORIZONTAL SYNCHRONIZING (HP) SIGNAL CIRCUIT

HORIZONTAL SYNCHRONIZING (HP) SIGNAL CIRCUIT

Description

INFOID:0000000000964675

In composite image (AUX image, camera image), transmit the vertical synchronizing (VP) signal and horizon-
tal synchronizing (HP) signal from display unit to AV control unit so as to synchronize the RGB images dis-
played with AV control unit such as the image quality adjusting menu, etc.

Diagnosis Procedure

INFOID:0000000000964676

1.

CHECK CONTINUITY HORIZONTAL SYNCHRONIZING (HP) SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect display unit connector and AV control unit connector.

3.

Check continuity between display unit harness connector terminal 8 and AV control unit harness connec-
tor terminal 45.

4.

Check continuity between display unit harness connector terminal 8 and ground.

Is inspection result OK?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK HORIZONTAL SYNCHRONIZING (HP) SIGNAL

1.

Connect display unit connector and AV control unit connector.

2.

Turn ignition switch ON.

3.

Check signal between display unit harness connector terminal 8 and ground.

Is inspection result OK?

YES

>> Replace AV control unit.

NO

>> Replace Display unit.

8 - 45

: Continuity should exist.

8 - Ground

: Continuity should not exist.

8 - Ground

SKIB3601E

AV

VERTICAL SYNCHRONIZING (VP) SIGNAL CIRCUIT

AV-173

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

VERTICAL SYNCHRONIZING (VP) SIGNAL CIRCUIT

Description

INFOID:0000000000964677

In composite image (AUX image, camera image), transmit the vertical synchronizing (VP) signal and horizon-
tal synchronizing (HP) signal from display unit to AV control unit so as to synchronize the RGB images dis-
played with AV control unit such as the image quality adjusting menu, etc.

Diagnosis Procedure

INFOID:0000000000964678

1.

CHECK CONTINUITY VERTICAL SINCHRONIZING (VP) SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect display unit connector and AV control unit connector.

3.

Check continuity between display unit harness connector terminal 20 and AV control unit harness connec-
tor terminal 57.

4.

Check continuity between display unit harness connector terminal 20 and ground.

Is inspection result OK?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK VERTICAL SINCHRONIZING (VP) SIGNAL

1.

Connect display unit connector and AV control unit connector.

2.

Turn ignition switch ON.

3.

Check signal between display unit harness connector terminal 20 and ground.

Is inspection result OK?

YES

>> Replace AV control unit.

NO

>> Replace Display unit.

20 - 57

: Continuity should exist.

20 - Ground

: Continuity should not exist.

20 - Ground

SKIB3598E

AV-174

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

AUX IMAGE SIGNAL CIRCUIT

AUX IMAGE SIGNAL CIRCUIT

Description

INFOID:0000000000964679

• Transmits the image signal of AUX device from auxiliary input jacks to AV control unit.
• AV control unit transmits the image signal that is inputted to the display unit.

Diagnosis Procedure

INFOID:0000000000964680

1.

CHECK CONTINUITY AUX IMAGE SIGNAL CIRCUIT (AUX INPUT JACKS AND AV CONTROL UNIT)

1.

Turn ignition switch OFF.

2.

Disconnect auxiliary input jacks connector and AV control unit connector.

3.

Check continuity between auxiliary input jacks harness connector terminal 7 and AV control unit harness
connector terminal 66.

4.

Check continuity between auxiliary input jacks harness connector terminal 7 and ground.

Is inspection result OK?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK AUX IMAGE SIGNAL (AUX INPUT JACKS TO AV CONTROL UNIT)

1.

Connect display unit connector and AV control unit connector.

2.

Turn ignition switch ON.

3.

Check signal between auxiliary input jacks harness connector terminal 7 and ground.

Is inspection result OK?

YES

>> GO TO 3.

NO

>> Check that there is no malfunction in the external device.

3.

CHECK CONTINUITY AUX IMAGE SIGNAL CIRCUIT (AV CONTROL UNIT AND DISPLAY UNIT)

1.

Turn ignition switch OFF.

2.

Disconnect auxiliary input jacks connector and AV control unit connector.

3.

Check continuity between display unit harness connector terminal 15 and AV control unit harness connec-
tor terminal 36.

4.

Check continuity between display unit harness connector terminal 15 and ground.

Is inspection result OK?

YES

>> GO TO 4.

NO

>> Repair harness or connector.

4.

CHECK AUX IMAGE SIGNAL

1.

Connect AV control unit connector and display unit connector.

7 - 66

: Continuity should exist.

7 - Ground

: Continuity should not exist.

7 - Ground

SKIB2251J

15 - 36

: Continuity should exist.

15 - Ground

: Continuity should not exist.

AV

AUX IMAGE SIGNAL CIRCUIT

AV-175

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

2.

Turn ignition switch ON.

3.

Check signal between display unit harness connector terminal 15 and ground.

Is inspection result OK?

YES

>> Replace display unit.

NO

>> Replace AV control unit.

15 - Ground

:

SKIB2251J
