Infiniti G35 (V35) Sedan. Manual - part 85

AV-112

< ON-VEHICLE REPAIR >

[BASE AUDIO WITHOUT NAVIGATION]

DISPLAY UNIT

DISPLAY UNIT

Exploded View

INFOID:0000000000964599

Refer to

IP-11, "Exploded View"

.

Removal and Installation

INFOID:0000000000964600

REMOVAL

1.

Remove cluster lid C. Refer to

IP-11, "Exploded View"

.

2.

Remove display unit with bracket as a single unit.

INSTALLATION

Installation is the reverse order of removal.

AV

FRONT DOOR SPEAKER

AV-113

< ON-VEHICLE REPAIR >

[BASE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

FRONT DOOR SPEAKER

Exploded View

INFOID:0000000000964601

Removal and Installation

INFOID:0000000000964602

REMOVAL

1.

Remove front door finisher. Refer to

INT-10, "Exploded View"

.

2.

Remove the front door speaker from speaker bracket.

INSTALLATION

Installation is the reverse order of removal.

JSNIA0164ZZ

1.

Front door speaker

2.

Speaker bracket

AV-114

< ON-VEHICLE REPAIR >

[BASE AUDIO WITHOUT NAVIGATION]

REAR DOOR SPEAKER

REAR DOOR SPEAKER

Exploded View

INFOID:0000000000964603

Removal and Installation

INFOID:0000000000964604

REMOVAL

1.

Remove rear door finisher. Refer to

INT-10, "Exploded View"

.

2.

Remove rear door speaker from rear door.

INSTALLATION

Installation is the reverse order of removal.

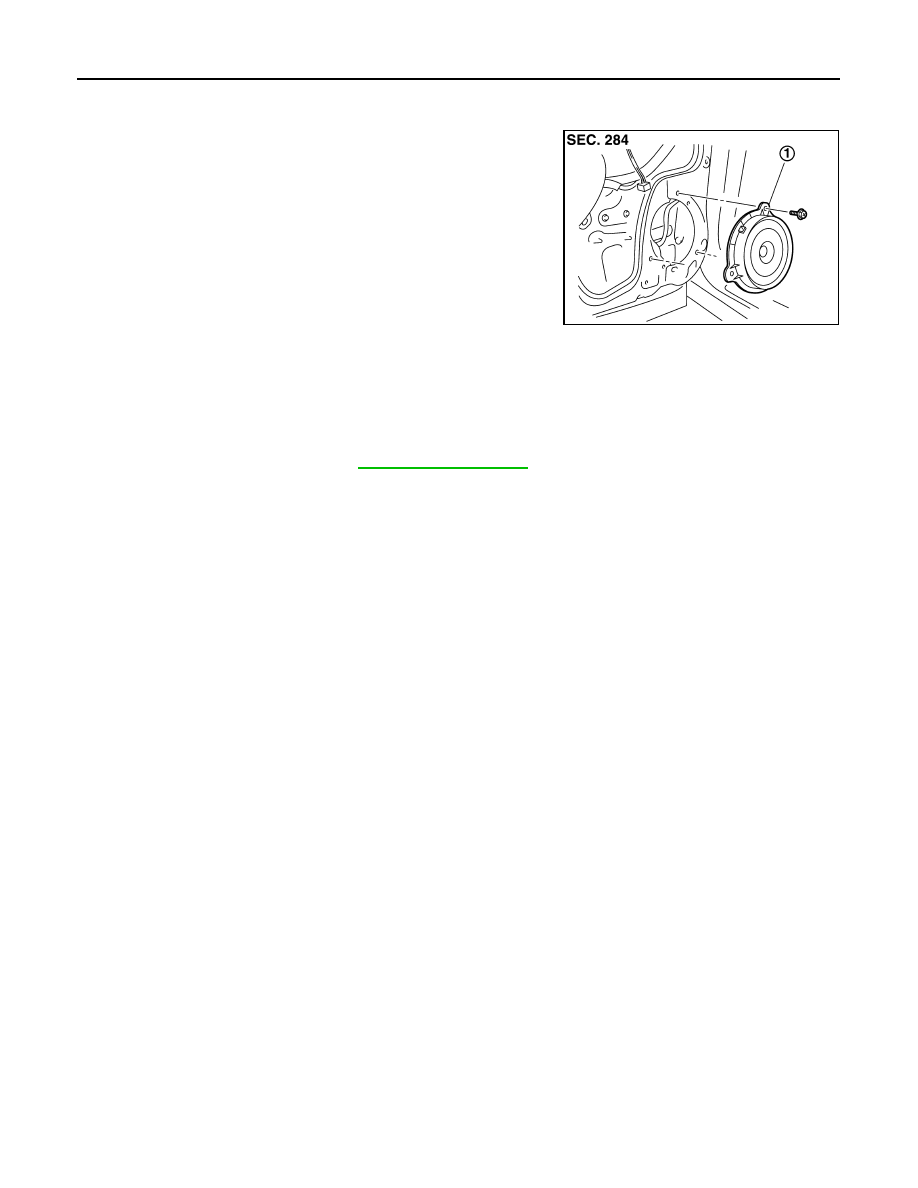

JSNIA0165ZZ

1.

Rear door speaker

AV

TWEETER

AV-115

< ON-VEHICLE REPAIR >

[BASE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

TWEETER

Exploded View

INFOID:0000000000964605

Removal and Installation

INFOID:0000000000964606

REMOVAL

1.

Remove front door finisher. Refer to

INT-10, "Exploded View"

.

2.

Remove the tweeter from the front door finisher.

INSTALLATION

Installation is the reverse order of removal.

JSNIA0166ZZ

1.

Door finisher

2.

Tweeter
