AV-10

< BASIC INSPECTION >

[BASE AUDIO WITHOUT NAVIGATION]

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000000964519

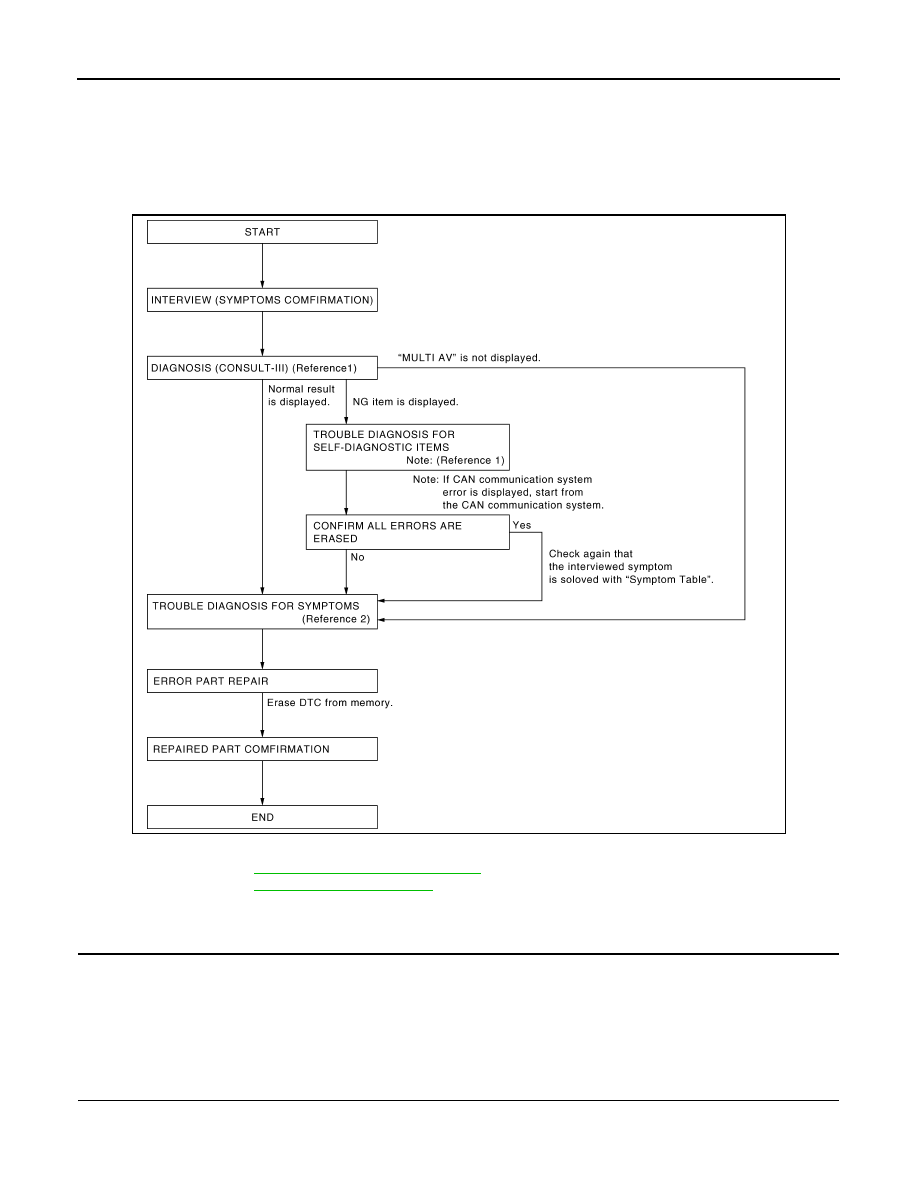

OVERALL SEQUENCE

• Reference 1··· Refer to

AV-26, "CONSULT - III Function"

.

• Reference 2··· Refer to

AV-105, "Symptom Table"

DETAILED FLOW

1.

CHECK SYMPTOM

Check the malfunction symptoms by performing the following items.
• Interview the customer to obtain the malfunction information (conditions and environment when the malfunc-

tion occurred).

• Check the symptom.

>> GO TO 2.

2.

SELF-DIAGNOSIS (CONSULT-III)

1.

Connect CONSULT-III and perform a self-diagnosis for “MULTI AV”.
NOTE:

JSNIA0039GB

AV

DIAGNOSIS AND REPAIR WORKFLOW

AV-11

< BASIC INSPECTION >

[BASE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

Skip to step 4 of the diagnosis procedure if “MULTI AV” is not displayed.

2.

Check that any DTC No. is displayed in the self-diagnosis results.

Is any DTC No. displayed?

YES

>> GO TO 3.

NO

>> GO TO 4.

3.

CHECK SELF-DIAGNOSIS RESULTS (CONSULT-III)

1.

Check the DTC No. indicated in the self-diagnosis results.

2.

Perform the relevant diagnosis referring to the DTC Index. Refer to

AV-76, "DTC Index"

.

NOTE:
Start with the diagnosis for the CAN communication system if “CAN COMM CIRCUIT [U1000] and CONTROL
UNIT CAN [U1010]” is displayed.

>> GO TO 5.

4.

PERFORM DIAGNOSIS BY SYMPTOM

Perform the relevant diagnosis referring to the diagnosis chart by symptom. Refer to

AV-105, "Symptom

.

>> GO TO 5.

5.

REPAIR OR REPLACE MALFUNCTIONING PARTS

Repair or replace the identified malfunctioning parts.
NOTE:
Erase the stored self-diagnosis results after repairing or replacing the relevant components if any DTC No. has
been indicated in the self-diagnosis results.

>> GO TO 6.

6.

CHECK AFTER REPAIR

1.

Perform a self-diagnosis for “MULTI AV” with CONSULT-III after repairing or replacing the malfunctioning
parts.

2.

Check that any DTC No. is displayed in the self-diagnosis results.

Is any DTC No. displayed?

YES

>> GO TO 3.

NO

>> GO TO 7.

7.

FINAL CHECK

Perform the operation check that the malfunction symptom is solved or any other symptoms are present.

No symptoms?

YES

>> INSPECTION END

NO

>> GO TO 4.
