Infiniti G35 (V35) Sedan. Manual - part 56

ADP-218

< ON-VEHICLE REPAIR >

AUTOMATIC DRIVE POSITIONER CONTROL UNIT

AUTOMATIC DRIVE POSITIONER CONTROL UNIT

Exploded View

INFOID:0000000000960777

Refer to

IP-11, "Exploded View"

.

Removal and Installation

INFOID:0000000000960778

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.
1.

Remove the battery negative terminal.

2.

Remove the instrument driver lower panel. Refer to

IP-12,

"Removal and Installation"

.

3.

Remove the screws (A).

4.

Remove automatic drive positioner control unit (1).

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Clamp the harness in position.
NOTE:
After installing the driver seat, perform additional service when removing battery negative terminal. Refer to

ADP-8, "ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Description"

.

JMJIA0198ZZ

SEAT MEMORY SWITCH

ADP-219

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

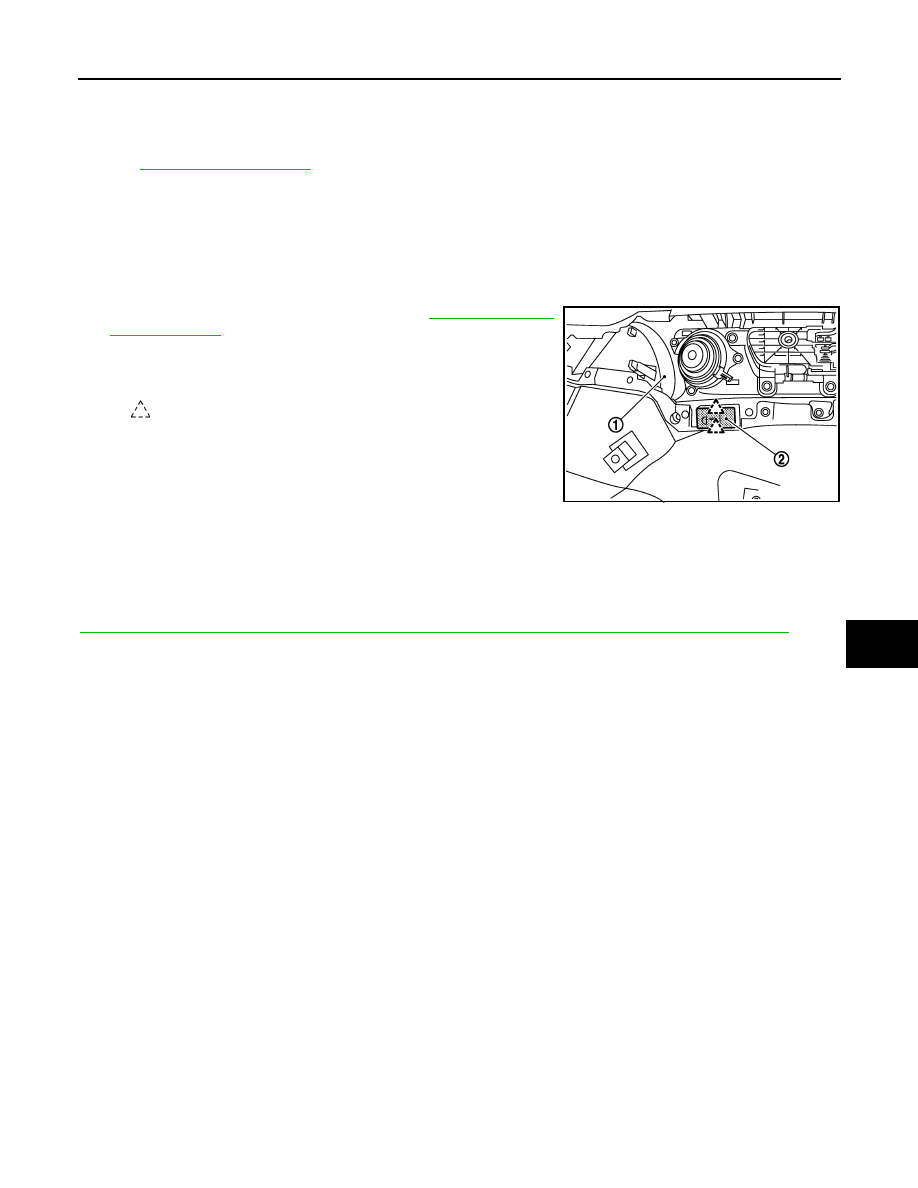

SEAT MEMORY SWITCH

Exploded View

INFOID:0000000000960779

Refer to

INT-10, "Exploded View"

.

Removal and Installation

INFOID:0000000000960780

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.
1.

Disconnect battery negative terminal.

2.

Remove the front door finisher (1). Refer to

INT-10, "Removal

and Installation"

.

3.

Press pawls and remove seat memory switch (2) from front door
finisher (1).

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Clamp the harness in position.
NOTE:
After installing the driver seat, perform additional service when removing battery negative terminal. Refer to

ADP-8, "ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Description"

.

:

Pawl

JMJIA0197ZZ

ADP-220

< ON-VEHICLE REPAIR >

POWER SEAT SWITCH

POWER SEAT SWITCH

Exploded View

INFOID:0000000000960781

Refer to

SE-92, "Exploded View"

.

Removal and Installation

INFOID:0000000000960782

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

1.

Remove the seat cushion outer finisher (1). Refer to

SE-96,

"Disassembly and Assembly"

.

2.

Remove the screws (A).

3.

Remove the power seat switch (2) from the seat cushion outer
finisher (1).

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Clamp the harness in position.
NOTE:
After installing the driver seat, perform additional service when removing battery negative terminal. Refer to

ADP-8, "ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Description"

.

JMJIA0319JP

SIDE SUPPORT SWITCH

ADP-221

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

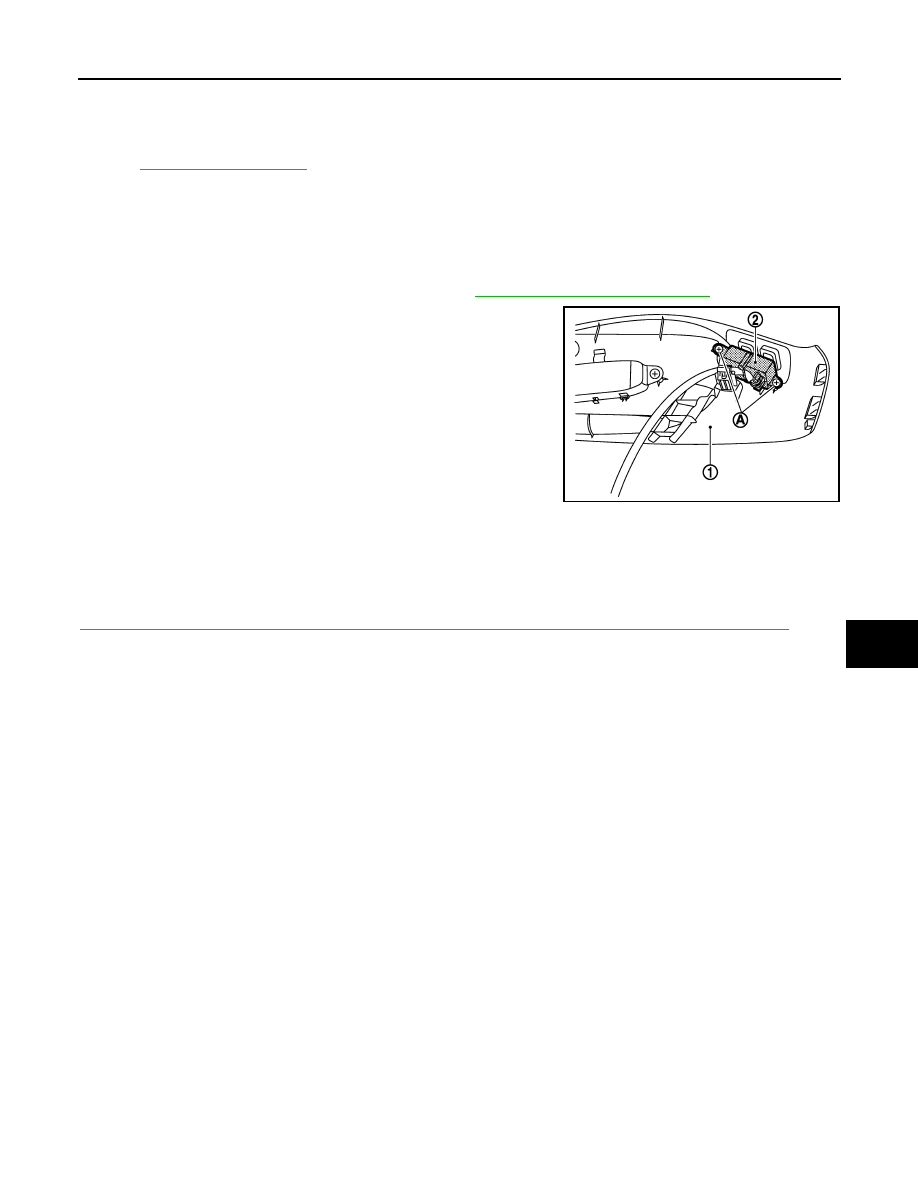

SIDE SUPPORT SWITCH

Exploded View

INFOID:0000000000960783

Refer to

SE-92, "Exploded View"

.

Removal and Installation

INFOID:0000000000960784

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.
1.

Remove the seat cushion outer finisher (1). Refer to

SE-95, "Removal and Installation"

.

2.

Remove the screws (A).

3.

Remove side support switch (2) from the seat cushion outer fin-
isher.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Clamp the harness in position.
NOTE:
After installing the driver seat, perform additional service when removing battery negative terminal. Refer to

ADP-8, "ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Description"

.

JMJIA0192ZZ
