Infiniti G35 (V35). Manual - part 771

SRS-46

FRONT PASSENGER AIR BAG MODULE

FRONT PASSENGER AIR BAG MODULE

PFP:K8515

Removal and Installation

NHS00020

REMOVAL

CAUTION:

●

Before servicing SRS, turn ignition switch OFF, disconnect both battery cables and wait at least 3
minutes.

●

Always work from the side of front passenger air bag module.

●

Do not use air tools or electric tools for servicing.

1.

Remove instrument panel & pad. Refer to

IP-10, "INSTRUMENT PANEL ASSEMBLY"

 .

2.

Remove hex bolt, then remove front passenger air bag module.

CAUTION:

●

Always place front passenger air bag module with deployment side facing upward.

●

Do not insert any foreign objects (screwdriver, etc.) into front passenger air bag module.

●

Do not disassemble front passenger air bag module.

●

Do not use old bolts after removal; replace with new bolts.

●

Replace front passenger air bag module if it has been
dropped or sustained an impact.

●

Do not expose the front passenger air bag module to tem-
peratures exceeding 90

°

C (194

°

F).

●

Do not allow oil, grease or water to come in contact with the
front passenger air bag module.

●

After front passenger air bag module inflates, the instru-
ment panel assembly should be replaced.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

●

Always work from the side of or under front passenger air bag module.

●

After the work is completed, perform self-diagnosis to make sure no malfunction is detected.
Refer to

SRS-20, "SRS Operation Check"

 .

Hex bolt (M8)

:

24.5 N·m (2.5 kg-m, 18 ft-lb)

Fixing bolt (M6)

:

6 N·m (0.6 kg-m, 53 in-lb)

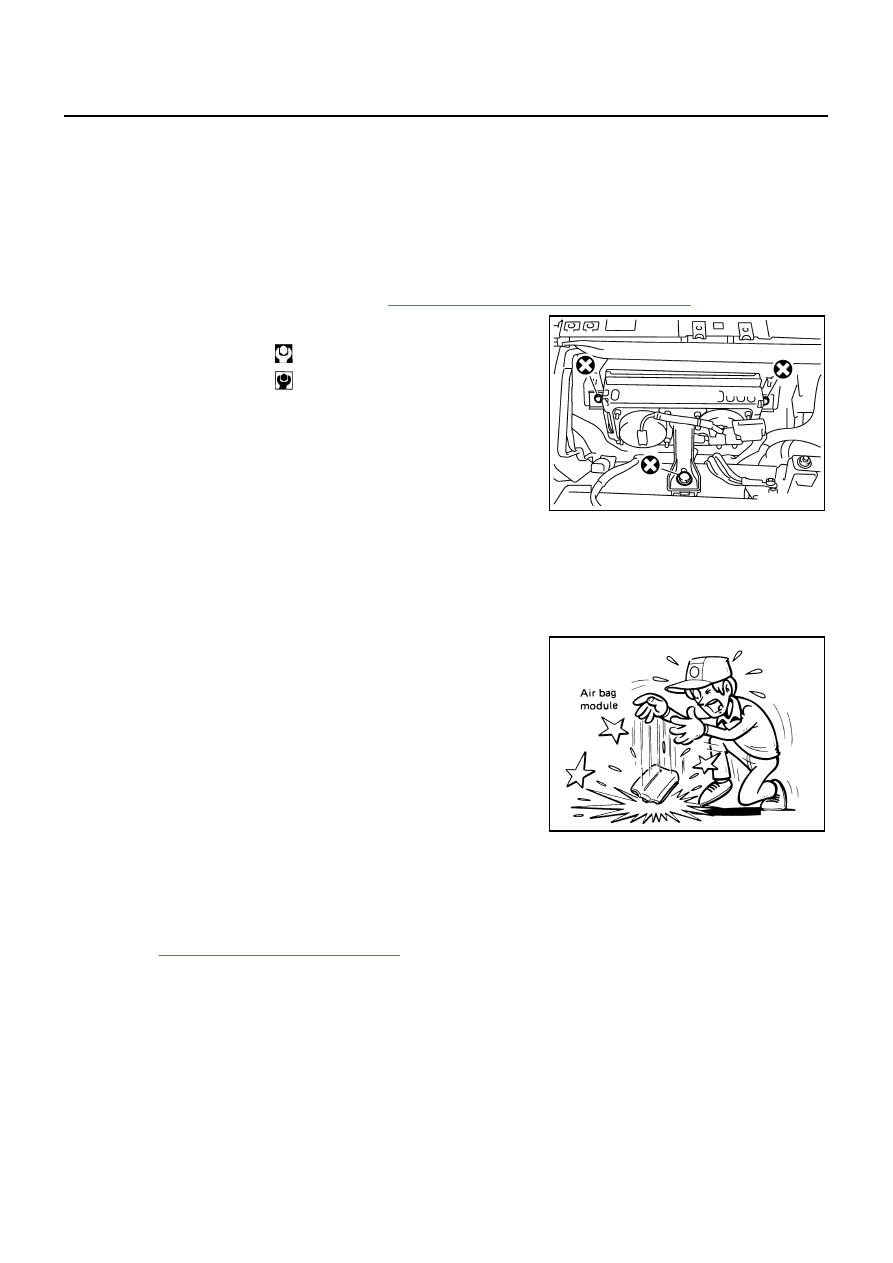

PHIA0929E

SBF814E

SIDE CURTAIN AIR BAG MODULE

SRS-47

C

D

E

F

G

I

J

K

L

M

A

B

SRS

SIDE CURTAIN AIR BAG MODULE

PFP:985P0

Removal and Installation

NHS00021

REMOVAL

CAUTION:

●

Before servicing SRS, turn ignition switch OFF, disconnect both battery cables and wait at least 3
minutes.

●

Do not use air tools or electric tools for servicing.

1.

Remove headlining. Refer to

EI-36, "Removal and Installation"

 .

2.

Disconnect side curtain air bag connector.

3.

Remove side curtain air bag module fixing bolts, and remove the side curtain air bag module.

CAUTION:

●

Always place the side curtain air bag module with the warn-
ing label facing upward.

●

Do not disassemble side curtain air bag module.

●

Do not insert any foreign objects (screwdriver, etc.) into air
bag module connector.

●

Replace side curtain air bag module if it has been dropped
or sustained an impact.

●

Do not expose the air bag module to temperatures exceed-
ing 90

°

C (194

°

F).

●

Do not allow oil, grease or water to come in contact with the
side curtain air bag module.

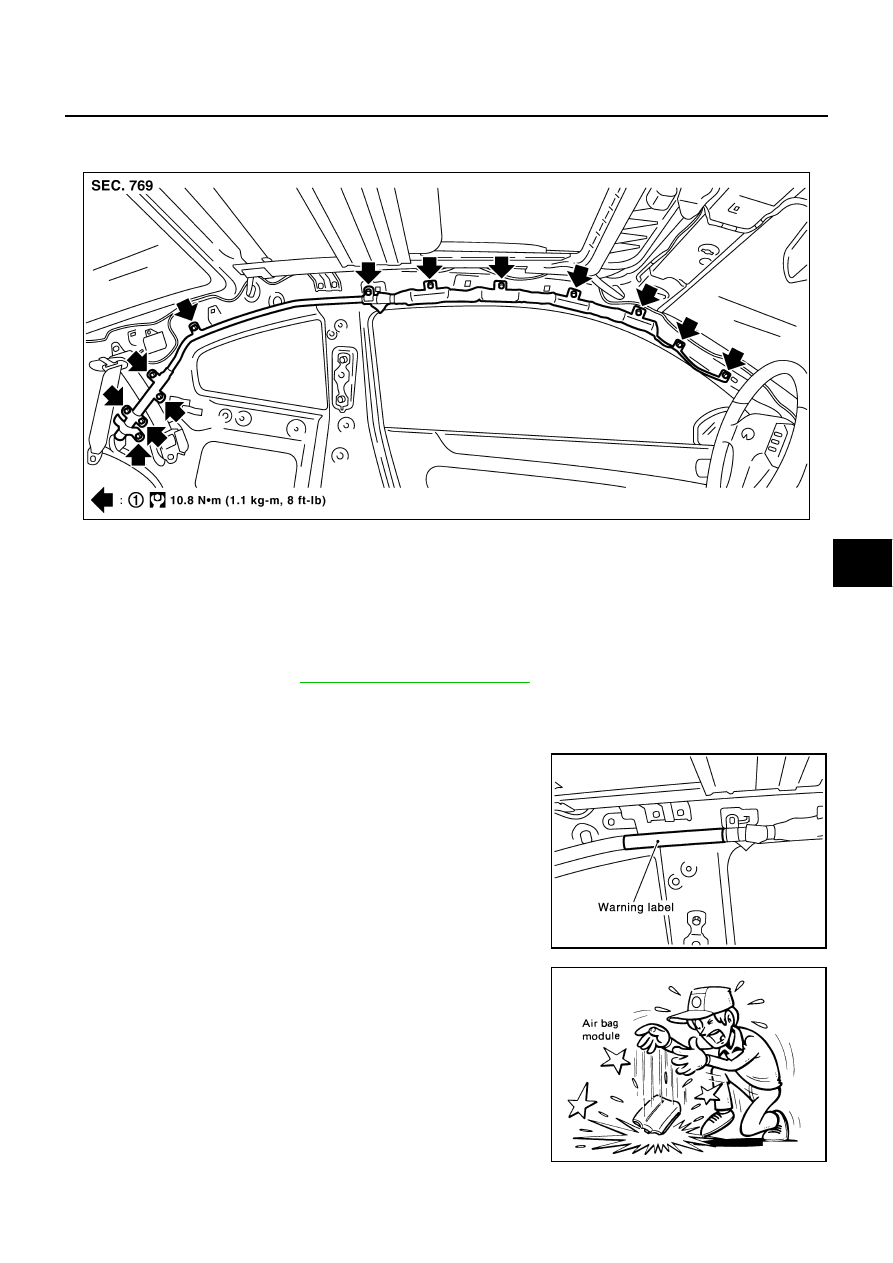

PHIA0662E

1.

Bolt

PHIA0230E

SBF814E

SRS-48

SIDE CURTAIN AIR BAG MODULE

INSTALLATION

Install in the reverse order of removal.

CAUTION:

●

Always work from the side of the side curtain air bag module.

●

After replacement of side curtain air bag module, perform self-diagnosis to make sure that no mal-
function is detected. Refer to

SRS-20, "SRS Operation Check"

 .

CRASH ZONE SENSOR

SRS-49

C

D

E

F

G

I

J

K

L

M

A

B

SRS

CRASH ZONE SENSOR

PFP:98531

Removal and Installation

NHS00022

REMOVAL

CAUTION:

●

Before servicing SRS, turn ignition switch OFF, disconnect both battery cables and wait at least 3
minutes.

●

Do not use air tools or electric tools for servicing.

1.

Remove crash zone sensor connector.

2.

Remove crash zone sensor fixing nuts.

CAUTION:

●

Replace crash zone sensor if it has been dropped or sustained an impact.

●

Do not disassemble crash zone sensor.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

●

Check crash zone sensor for proper installation.

●

After the work is complete, perform self-diagnosis to make sure that no malfunction is detected.
Refer to

SRS-20, "SRS Operation Check"

 .

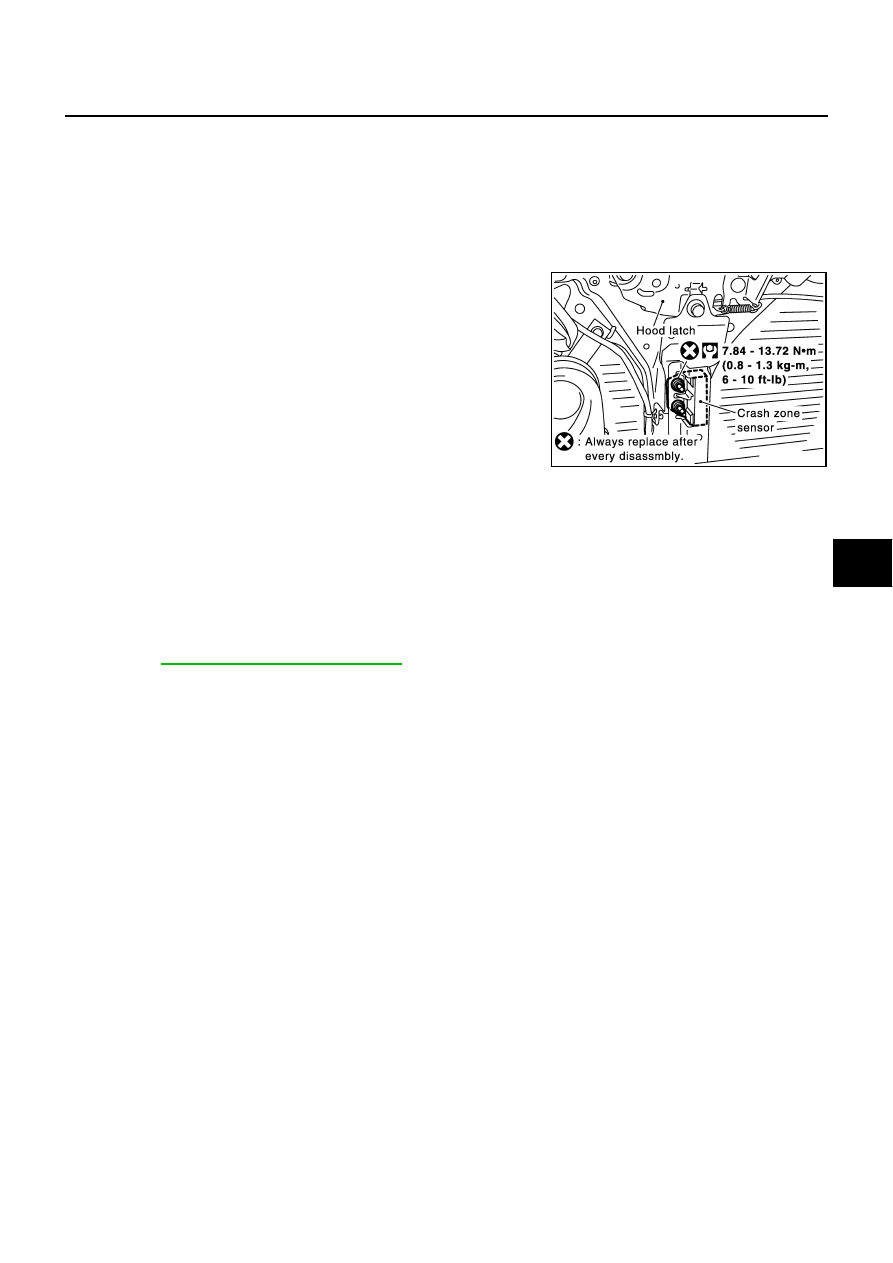

PHIA0225E
