LT-40

DAYTIME LIGHT SYSTEM

TKWM4012E

DAYTIME LIGHT SYSTEM

LT-41

C

D

E

F

G

H

I

J

L

M

A

B

LT

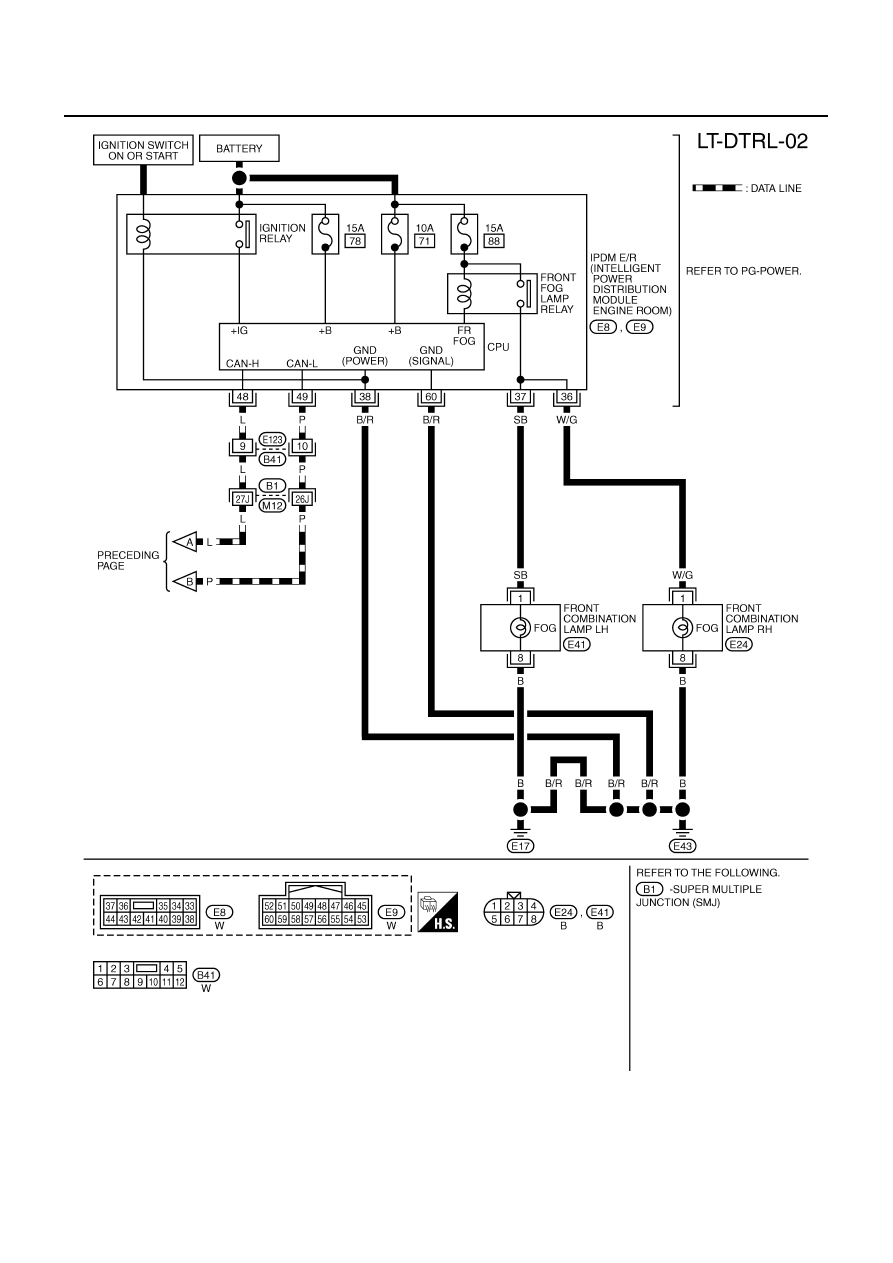

TKWM3451E

LT-42

DAYTIME LIGHT SYSTEM

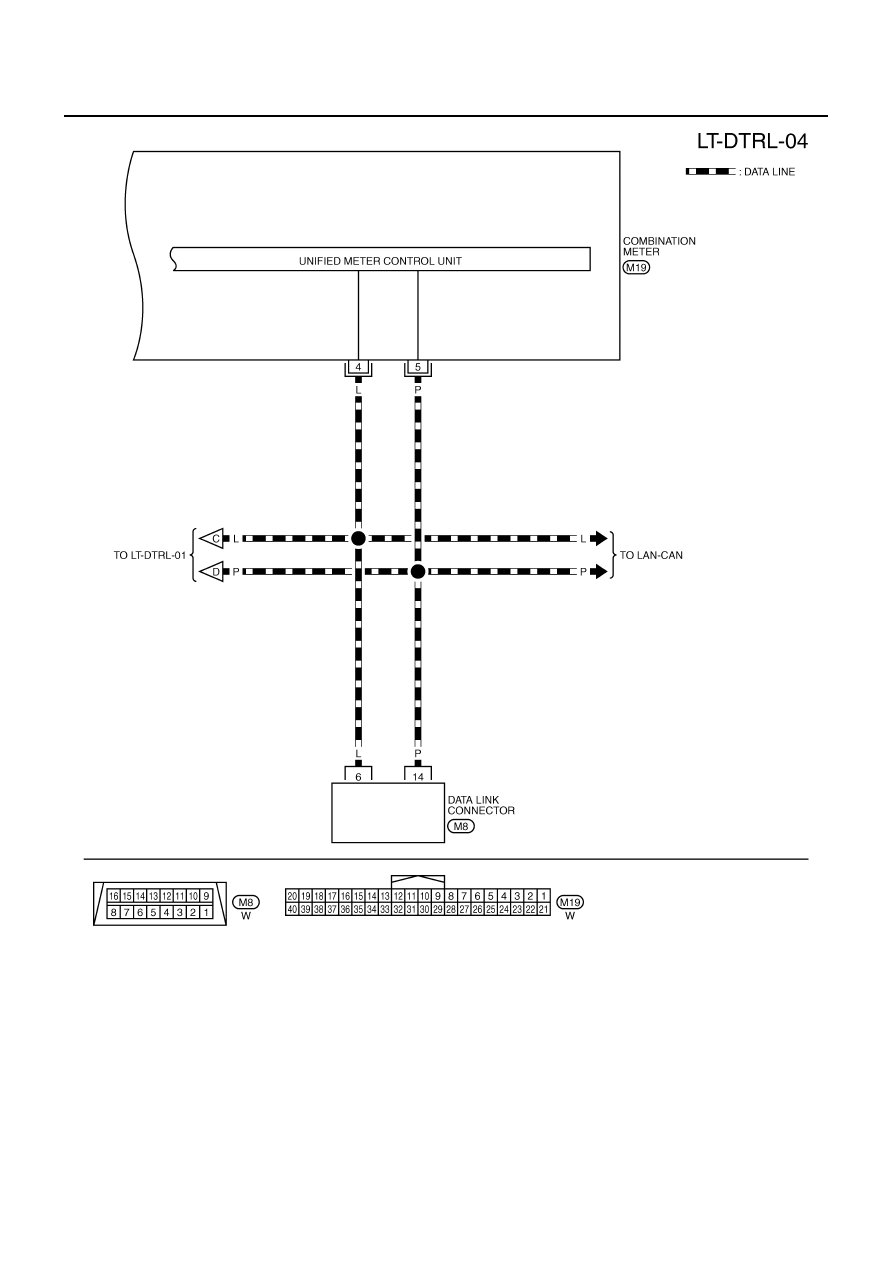

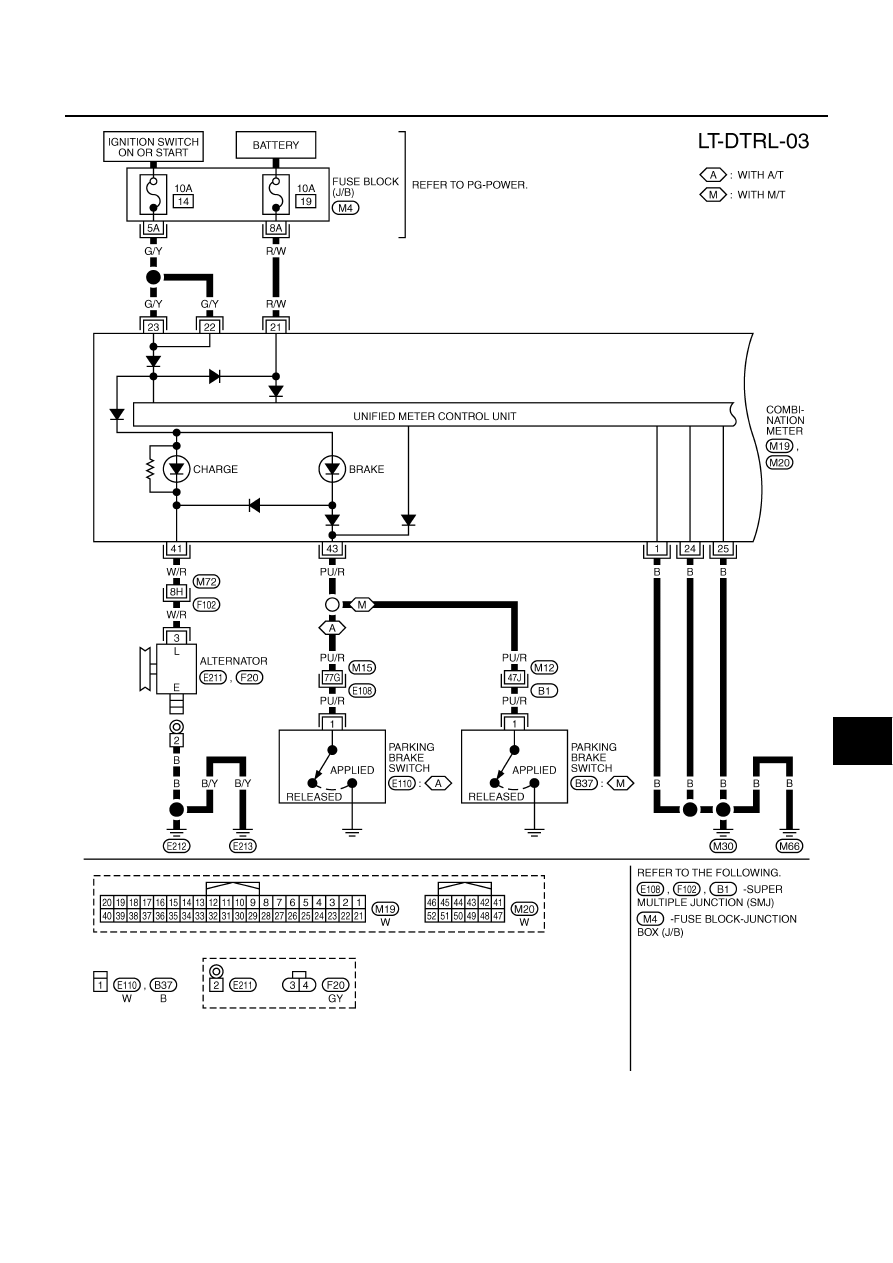

TKWM3452E

DAYTIME LIGHT SYSTEM

LT-43

C

D

E

F

G

H

I

J

L

M

A

B

LT

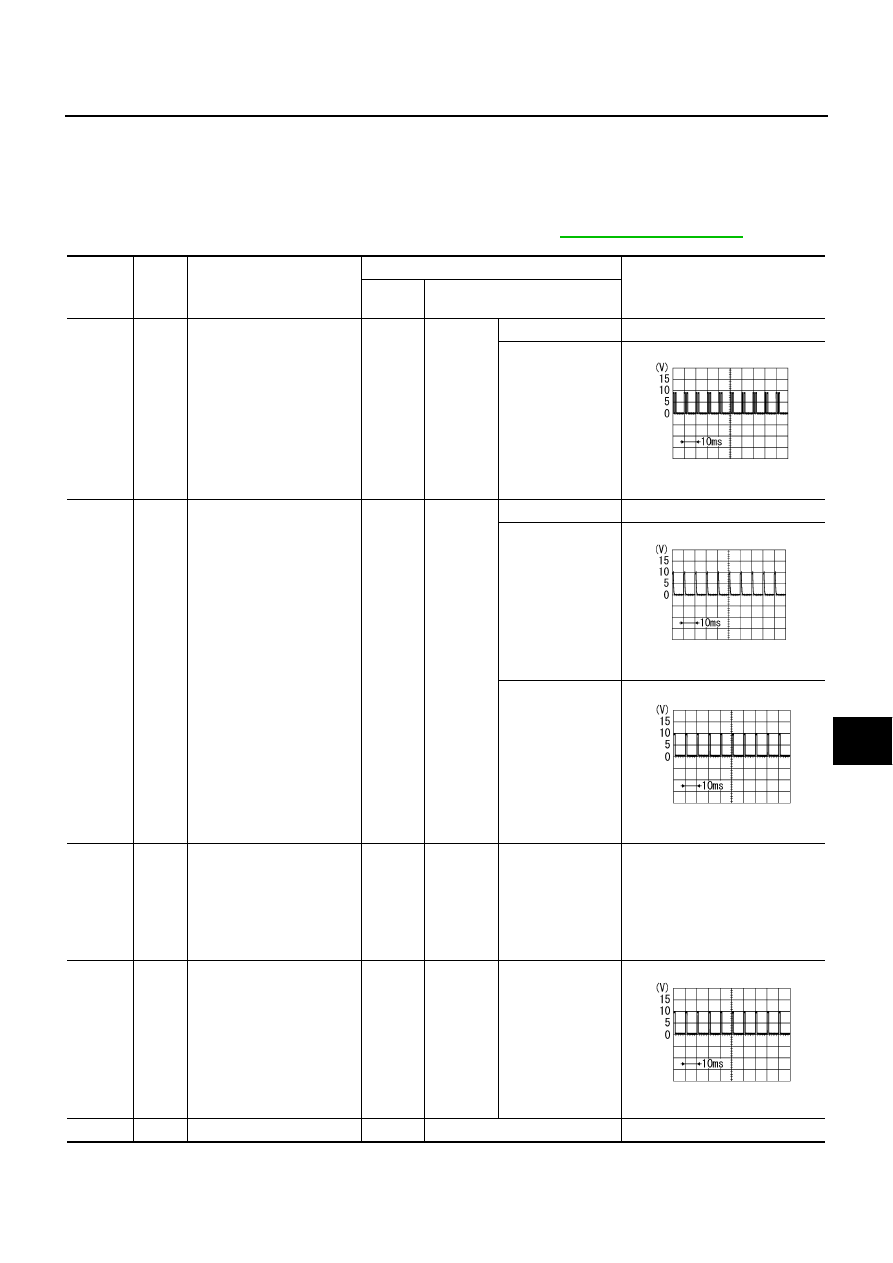

Terminals and Reference Values for BCM

NKS0027M

CAUTION:

●

Check combination switch system terminal waveform under the loaded condition with lighting
switch, turn signal switch and wiper switch OFF not to be fluctuated by overloaded.

●

Turn wiper dial position to 4 except when checking waveform or voltage of wiper dial position.
Wiper dial position can be confirmed on CONSULT-II. Refer to

LT-17, "DATA MONITOR"

 .

Terminal

No.

Wire

color

Signal name

Measuring condition

Reference value

Ignition

switch

Operation or condition

2

G/R

Combination switch input 5

ON

Lighting,
turn, wiper
switch
(Wiper
intermit-
tent dial
position 4)

OFF

Approx. 0 V

Lighting switch
2ND

Approx. 2.0 V

3

G

Combination switch input 4

ON

Lighting,
turn, wiper
switch
(Wiper
intermit-
tent dial
position 4)

OFF

Approx. 0 V

Front fog lamp
switch (Operate
only front fog lamp
switch)

Approx. 0.8 V

Any of the condi-
tions below

●

Lighting switch
2ND

●

Lighting switch
PASSING
(Operates only
PASSING
switch)

Approx. 1.0 V

4

W/L

Combination switch input 3

ON

Lighting,
turn, wiper
switch
(Wiper
intermit-
tent dial
position 4)

OFF

Approx. 0 V

Any of the condi-
tions below

●

Lighting switch
AUTO

Approx. 1.0 V

11

LG

Ignition switch (ACC)

ACC

—

Battery voltage

PKIB4953J

PKIB4955J

PKIB4959J

PKIB4959J
