Infiniti G35 (V35). Manual - part 522

HOW TO USE THIS MANUAL

GI-13

C

D

E

F

G

H

I

J

K

L

M

B

GI

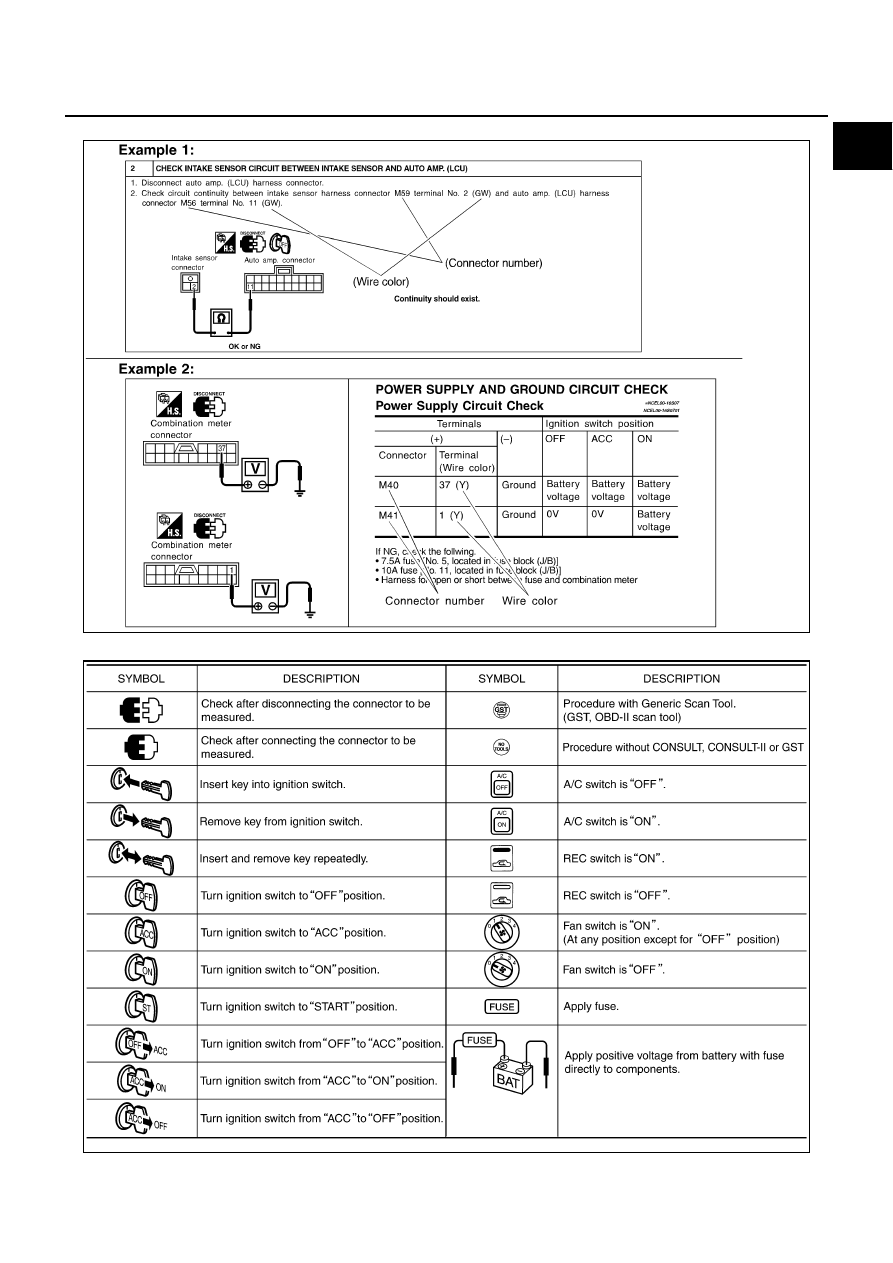

TYPE 2: Harness Wire Color and Connector Number are Shown in Text

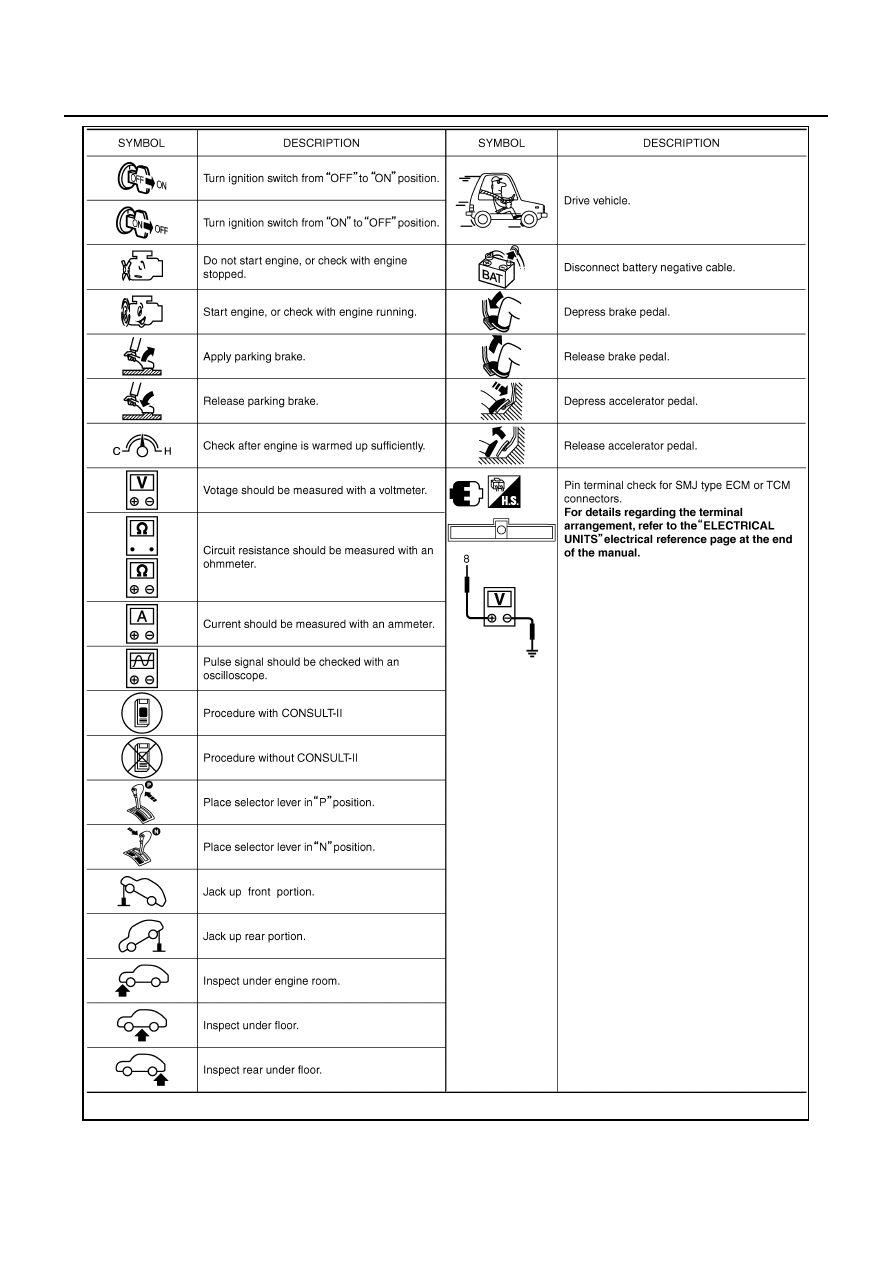

KEY TO SYMBOLS SIGNIFYING MEASUREMENTS OR PROCEDURES

SGI144A

SAIA0750E

GI-14

HOW TO USE THIS MANUAL

SAIA0751E

HOW TO USE THIS MANUAL

GI-15

C

D

E

F

G

H

I

J

K

L

M

B

GI

How to Read Wiring Diagrams

NAS0001P

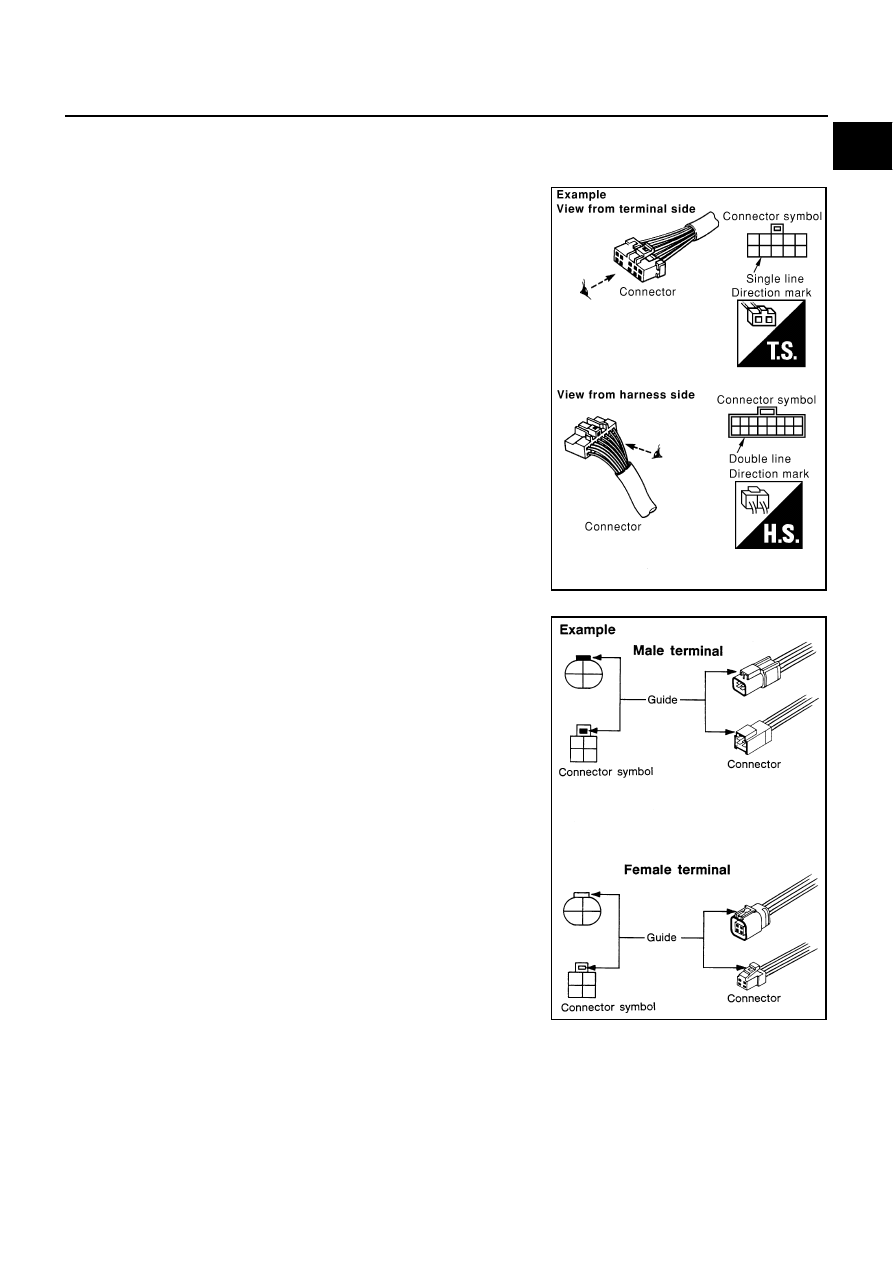

CONNECTOR SYMBOLS

Most of connector symbols in wiring diagrams are shown from the terminal side.

●

Connector symbols shown from the terminal side are enclosed
by a single line and followed by the direction mark.

●

Connector symbols shown from the harness side are enclosed
by a double line and followed by the direction mark.

●

Certain systems and components, especially those related to
OBD, may use a new style slide-locking type harness connector.
For description and how to disconnect, refer to PG section,
“Description”, “HARNESS CONNECTOR”.

●

Male and female terminals
Connector guides for male terminals are shown in black and
female terminals in white in wiring diagrams.

SAIA0257E

SGI363

GI-16

HOW TO USE THIS MANUAL

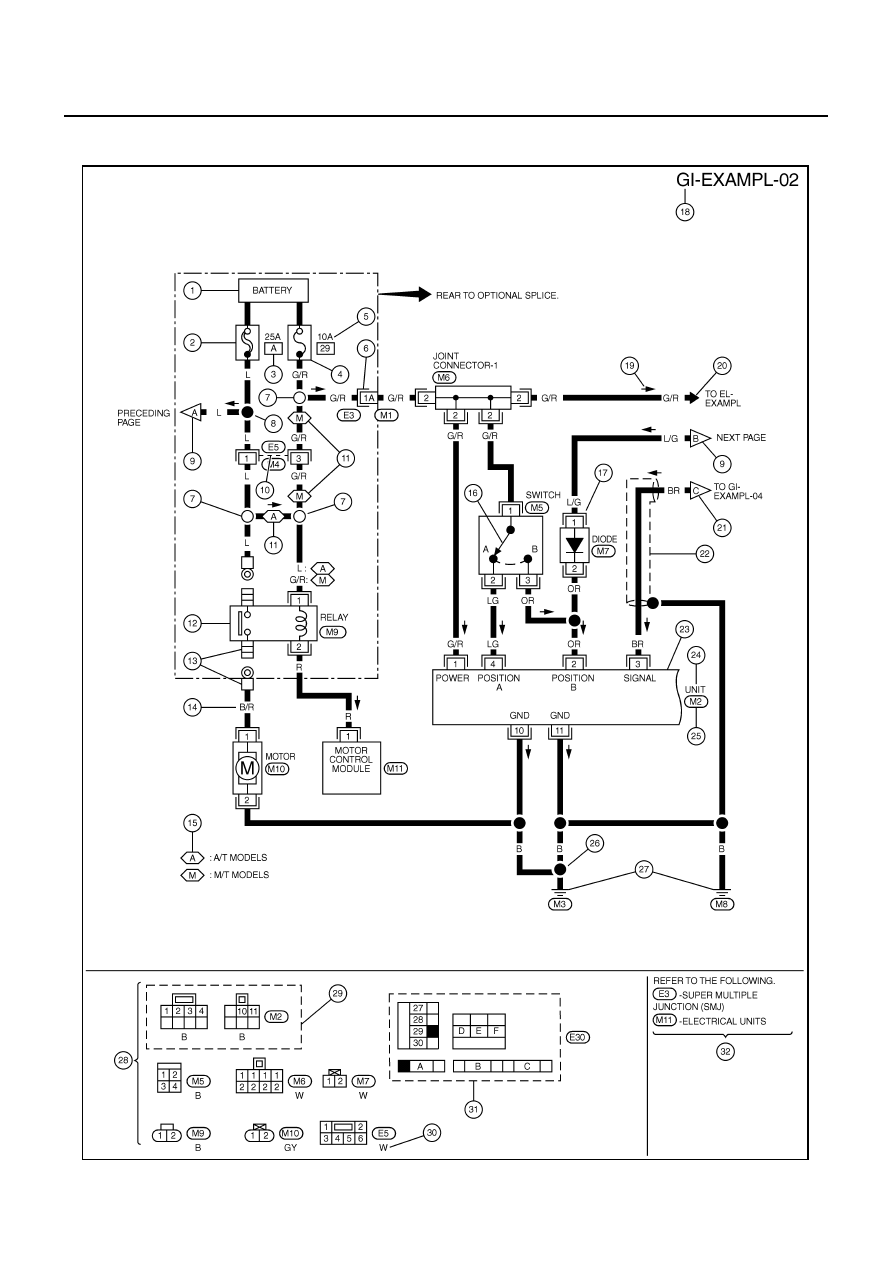

SAMPLE/WIRING DIAGRAM - EXAMPL -

●

For detail, refer to following “DESCRIPTION”.

SGI091A
