EVAPORATIVE EMISSION SYSTEM

EC-37

C

D

E

F

G

H

I

J

K

L

M

A

EC

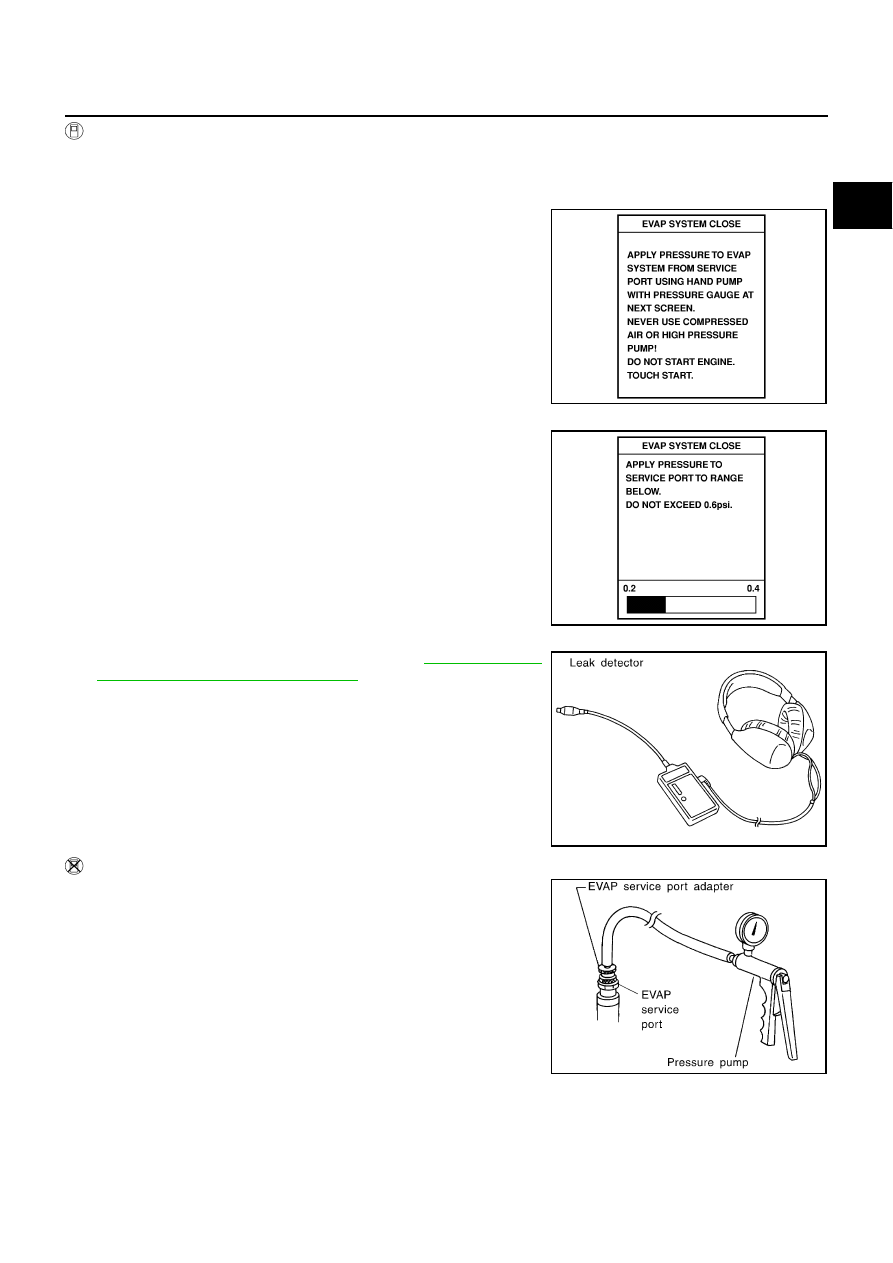

 WITH CONSULT-II

1.

Attach the EVAP service port adapter securely to the EVAP service port.

2.

Also attach the pressure pump and hose to the EVAP service port adapter.

3.

Turn ignition switch ON.

4.

Select the “EVAP SYSTEM CLOSE” of “WORK SUPPORT
MODE” with CONSULT-II.

5.

Touch “START”. A bar graph (Pressure indicating display) will
appear on the screen.

6.

Apply positive pressure to the EVAP system until the pressure
indicator reaches the middle of the bar graph.

7.

Remove EVAP service port adapter and hose with pressure
pump.

8.

Locate the leak using a leak detector. Refer to

EC-33, "EVAPO-

RATIVE EMISSION LINE DRAWING"

 .

 WITHOUT CONSULT-II

1.

Attach the EVAP service port adapter securely to the EVAP ser-
vice port.

2.

Also attach the pressure pump with pressure gauge to the EVAP
service port adapter.

PEF838U

PEF917U

SEF200U

SEF462UA

EC-38

EVAPORATIVE EMISSION SYSTEM

3.

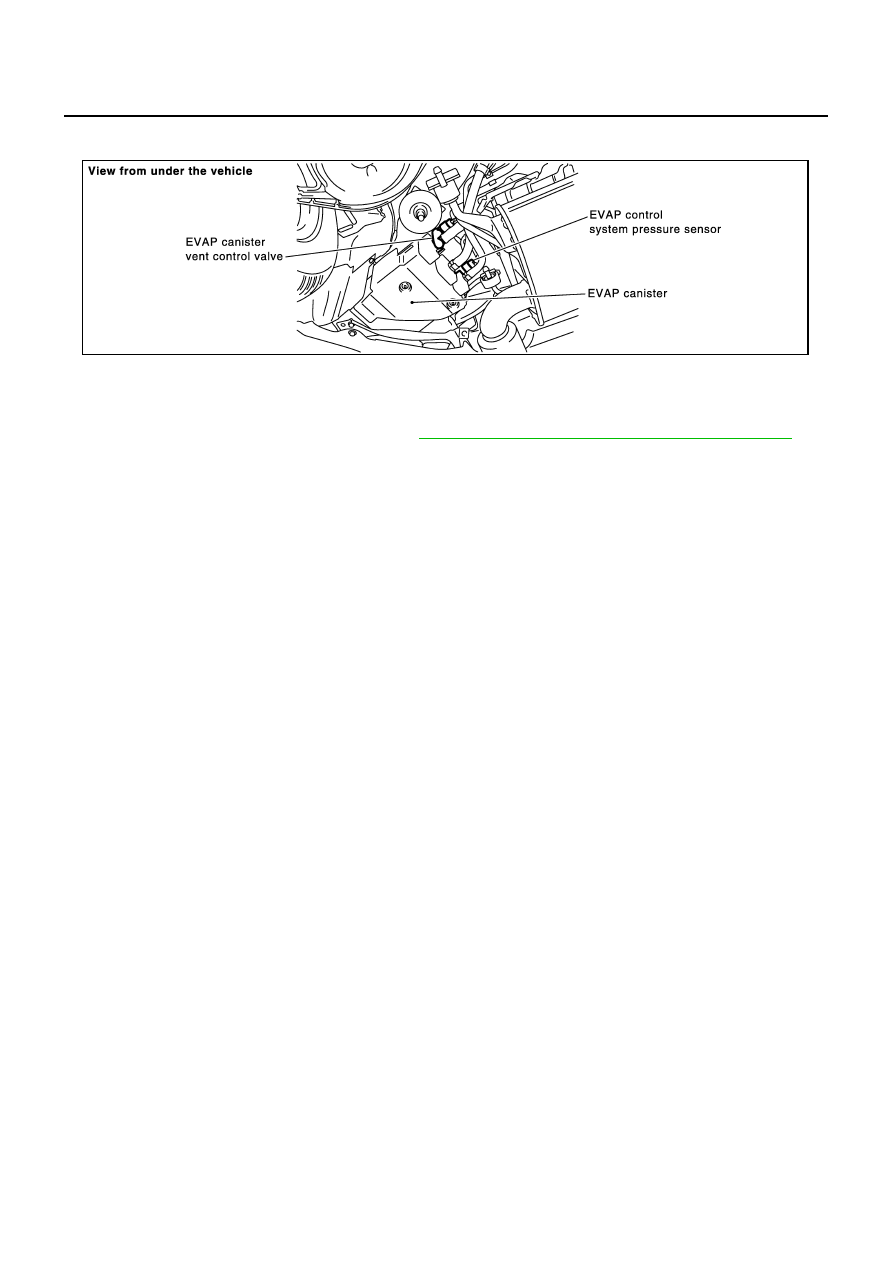

Apply battery voltage between the terminals of EVAP canister vent control valve to make a closed EVAP
system.

4.

To locate the leak, deliver positive pressure to the EVAP system until pressure gauge points reach 1.38 to
2.76 kPa (0.014 to 0.028 kg/cm

2

 , 0.2 to 0.4 psi).

5.

Remove EVAP service port adapter and hose with pressure pump.

6.

Locate the leak using a leak detector. Refer to

EC-33, "EVAPORATIVE EMISSION LINE DRAWING"

 .

PBIB1086E

ON BOARD REFUELING VAPOR RECOVERY (ORVR)

EC-39

C

D

E

F

G

H

I

J

K

L

M

A

EC

ON BOARD REFUELING VAPOR RECOVERY (ORVR)

PFP:00032

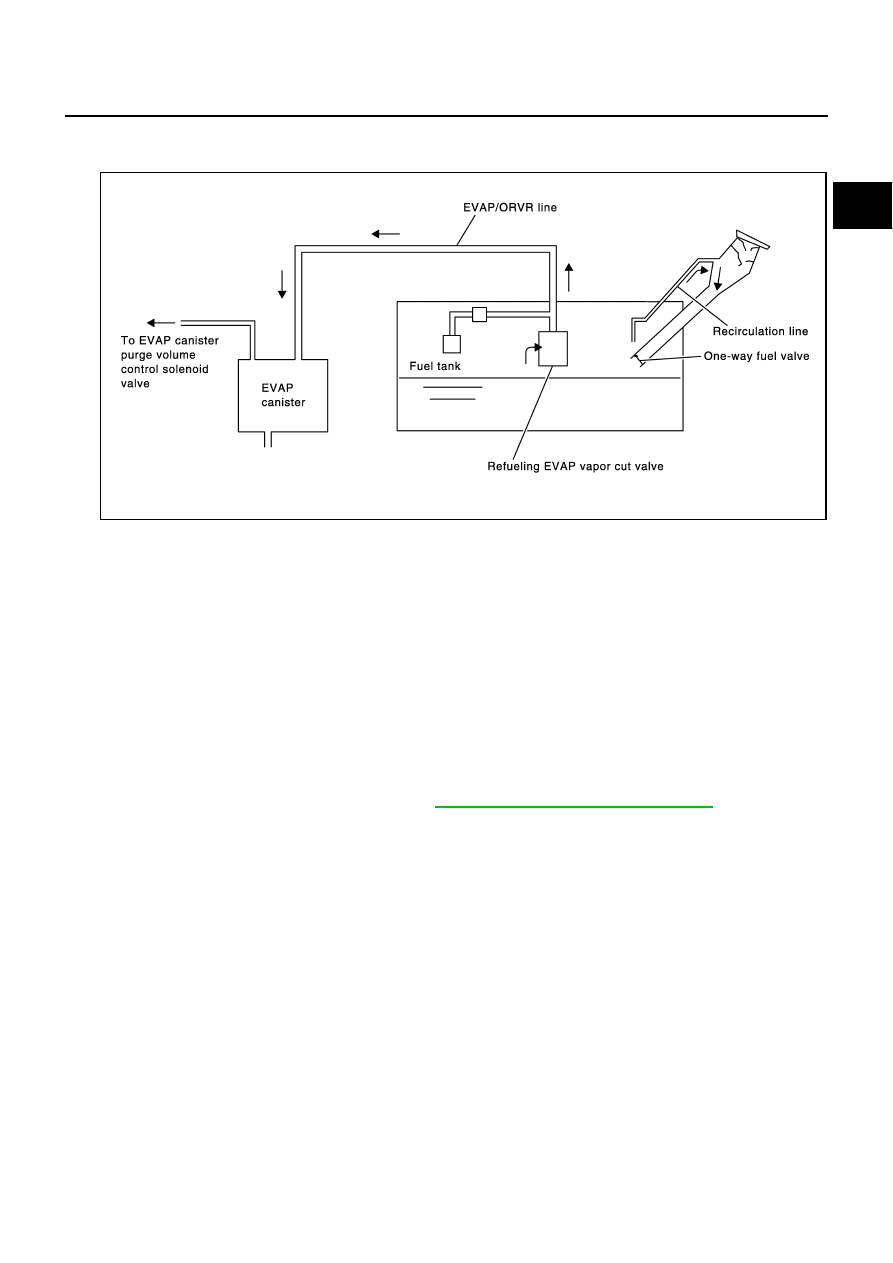

System Description

NBS000MQ

From the beginning of refueling, the air and vapor inside the fuel tank go through refueling EVAP vapor cut
valve and EVAP/ORVR line to the EVAP canister. The vapor is absorbed by the EVAP canister and the air is
released to the atmosphere.
When the refueling has reached the full level of the fuel tank, the refueling EVAP vapor cut valve is closed and
refueling is stopped because of auto shut-off. The vapor which was absorbed by the EVAP canister is purged
during driving.

WARNING:

When conducting inspections below, be sure to observe the following:

●

Put a “CAUTION: FLAMMABLE” sign in workshop.

●

Do not smoke while servicing fuel system. Keep open flames and sparks away from work area.

●

Be sure to furnish the workshop with a CO

2

  fire extinguisher.

CAUTION:

●

Before removing fuel line parts, carry out the following procedures:

–

Put drained fuel in an explosion-proof container and put lid on securely.

–

Release fuel pressure from fuel line. Refer to

EC-81, "FUEL PRESSURE RELEASE"

 .

–

Disconnect battery ground cable.

●

Always replace O-ring when the fuel gauge retainer is removed.

●

Do not kink or twist hose and tube when they are installed.

●

Do not tighten hose and clamps excessively to avoid damaging hoses.

●

After installation, run engine and check for fuel leaks at connection.

●

Do not attempt to top off the fuel tank after the fuel pump nozzle shuts off automatically.
Continued refueling may cause fuel overflow, resulting in fuel spray and possibly a fire.

PBIB1068E

EC-40

ON BOARD REFUELING VAPOR RECOVERY (ORVR)

Diagnostic Procedure

NBS000MR

SYMPTOM: FUEL ODOR FROM EVAP CANISTER IS STRONG.

1.

CHECK EVAP CANISTER

1.

Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor
attached.

2.

Weigh the EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor
attached.
The weight should be less than 2.2 kg (4.9 lb).

OK or NG

OK

>> GO TO 2.

NG

>> GO TO 3.

2.

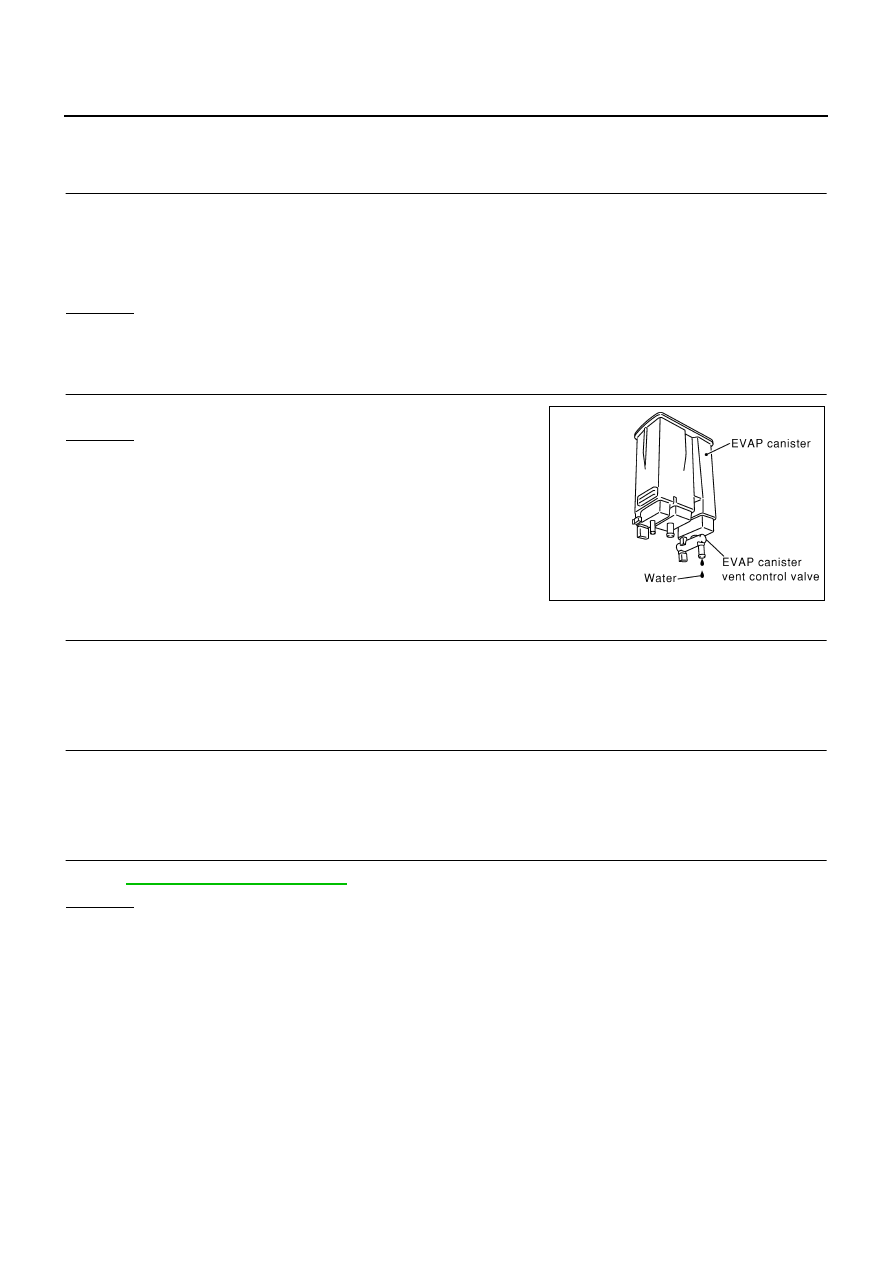

CHECK IF EVAP CANISTER SATURATED WITH WATER

Does water drain from the EVAP canister?
Yes or No

Yes

>> GO TO 3.

No

>> GO TO 5.

3.

REPLACE EVAP CANISTER

Replace EVAP canister with a new one.

>> GO TO 4.

4.

DETECT MALFUNCTIONING PART

Check the EVAP hose between EVAP canister and vehicle frame for clogging or poor connection.

>> Repair or replace EVAP hose.

5.

CHECK REFUELING EVAP VAPOR CUT VALVE

Refer to

EC-42, "Component Inspection"

 .

OK or NG

OK

>> INSPECTION END

NG

>> Replace refueling EVAP vapor cut valve with fuel tank.
