VDC/TCS/ABS ACTUATOR

BRC-61

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

VDC/TCS/ABS ACTUATOR

PFP:47660

Removal and Installation

NFS0007S

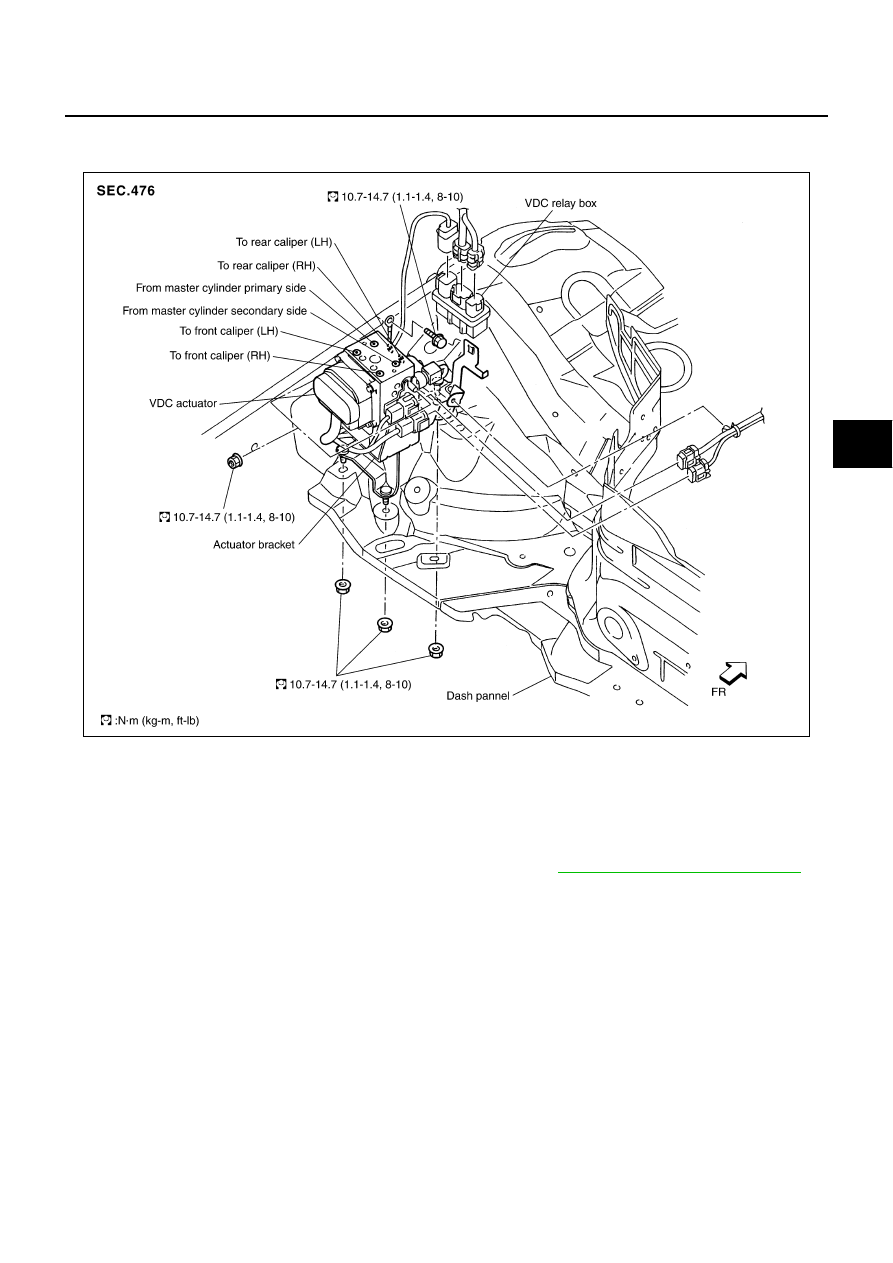

Pay attention to the following when removing VDC actuator.

CAUTION:

●

Before servicing, disconnect the battery cable from the negative terminal.

●

To remove brake tube, use a flare nut wrench to prevent flare nuts and brake tube from being dam-
aged. To install, use a flare nut crowfoot and torque wrench (commercial service tool).

●

Do not remove and install VDC actuator by holding harness.

●

After work is completed, bleed air from brake piping. Refer to

BR-10, "Bleeding Brake System"

 .

●

Be sure to securely connect the battery cable to the negative terminal.

SFIA2748E

BRC-62

[VDC/TCS/ABS]

G-SENSOR

G-SENSOR

PFP:47930

Removal and Installation

NFS0007T

REMOVAL
A/T Models

1.

Remove center console. Refer to

IP-15, "(Y) Center Console

Assembly"

 .

2.

Disconnect harness connector.

3.

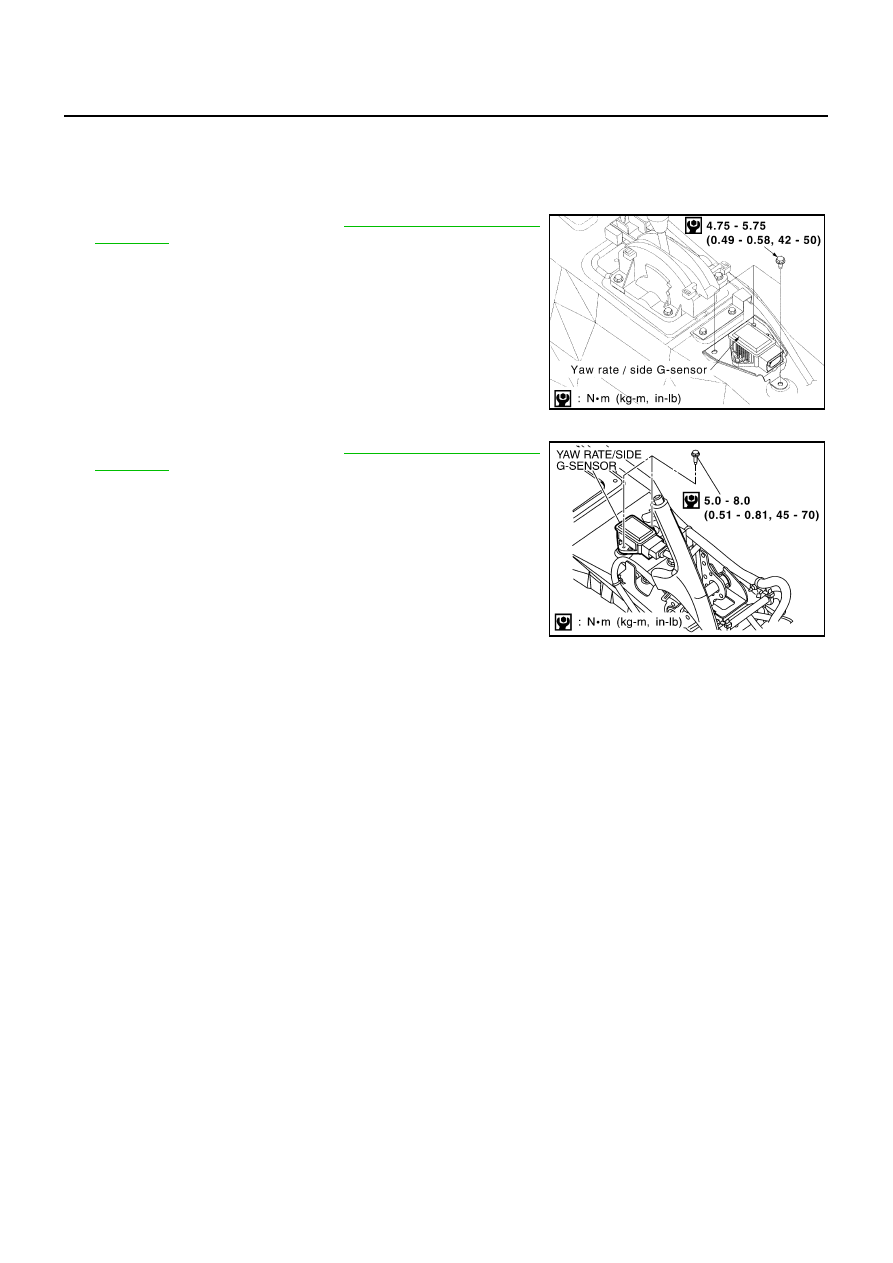

Remove installation bolts. Remove yaw rate/side G sensor.

CAUTION:

●

Do not drop or strike yaw rate/side G sensor, because it has
little endurance to impact.

●

Do not use power tool etc., because yaw rate/side G sensor
is sensitive for the impact.

M/T Models

1.

Remove center console. Refer to

IP-15, "(Y) Center Console

Assembly"

 .

2.

Disconnect harness connector.

3.

Remove installation bolts. Remove yaw rate/side G sensor.

CAUTION:

●

Do not drop or strike yaw rate/side G sensor, because it has
little endurance to impact.

●

Do not use power tool etc., because yaw rate/side G sensor
is sensitive for the impact.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

●

Do not drop or strike yaw rate/side G sensor, because it has little endurance to impact.

●

Do not use power tool etc., because yaw rate/side G sensor is weak for the impact.

SFIA0703E

SFIA0934E

STEERING ANGLE SENSOR

BRC-63

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

STEERING ANGLE SENSOR

PFP:25554

Removal and Installation

NFS0007U

REMOVAL

1.

Remove spiral cable assembly. Refer to

SRS-44, "SPIRAL CABLE"

 .

2.

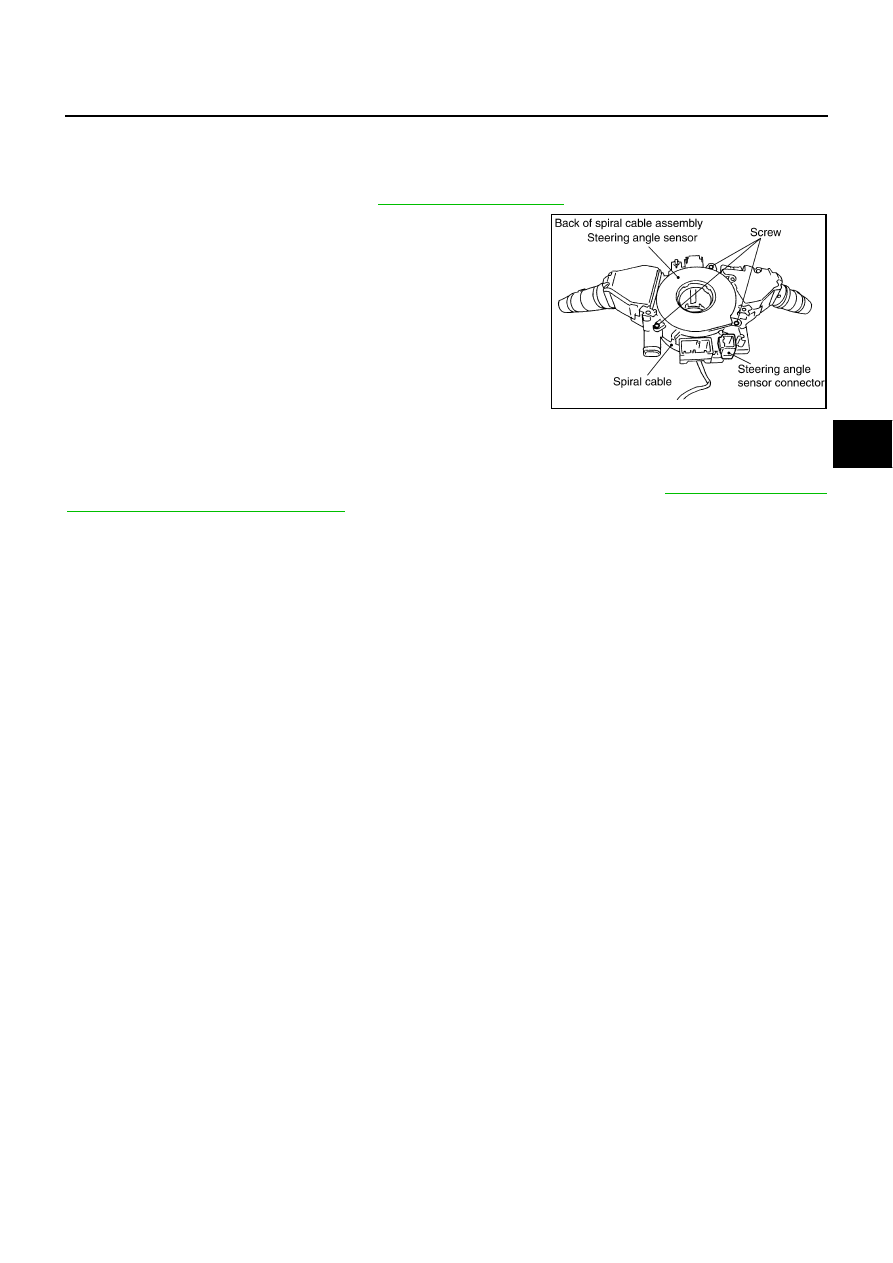

Remove steering angle sensor from spiral cable assembly.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:
After work, make sure to adjust neutral position of steering angle sensor. Refer to

BRC-6, "Adjustment of

Steering Angle Sensor Neutral Position"

 .

SFIA1404E

BRC-64

[VDC/TCS/ABS]

STEERING ANGLE SENSOR
