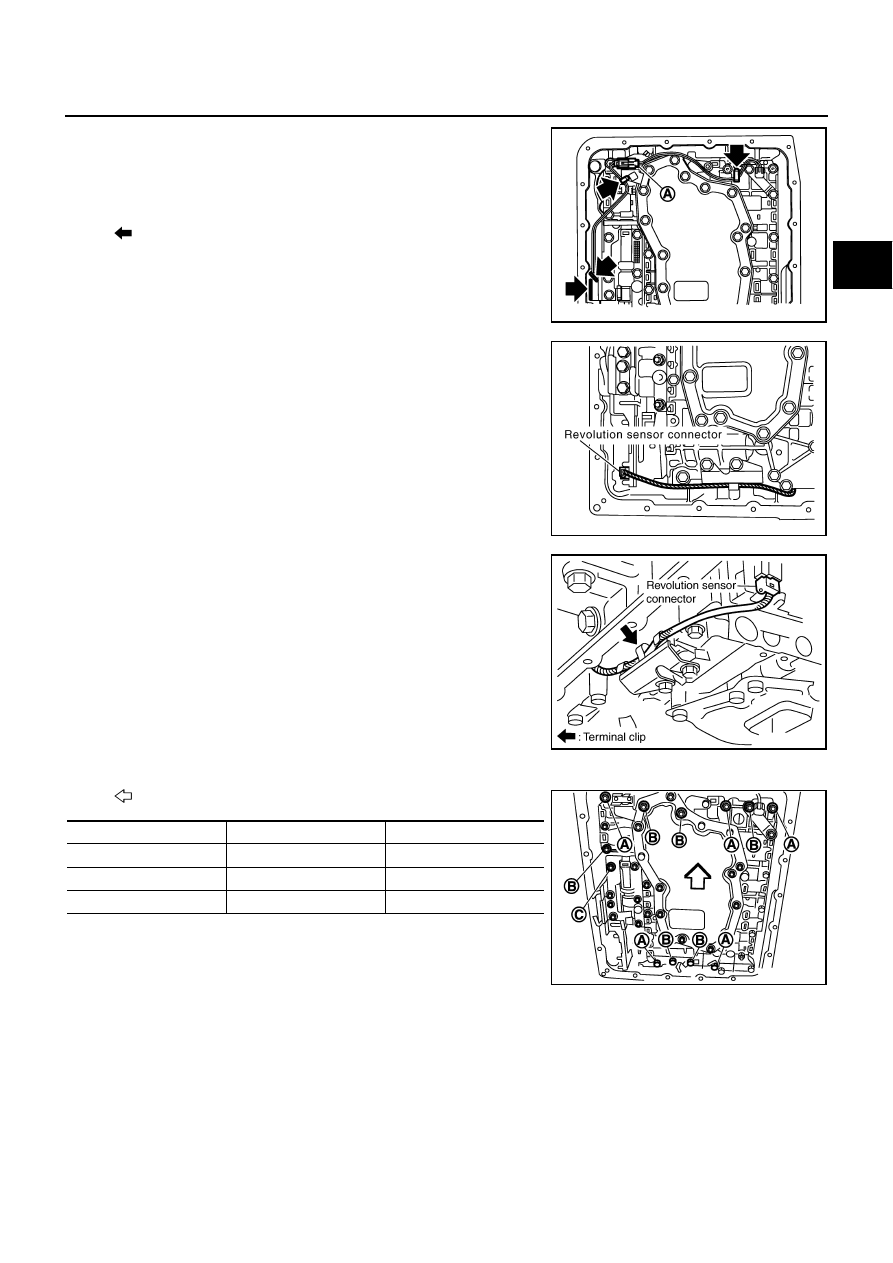

ON-VEHICLE SERVICE

AT-227

D

E

F

G

H

I

J

K

L

M

A

B

AT

11. Disconnect A/T fluid temperature sensor 2 connector (A).

CAUTION:

Be careful not to damage connector.

12. Straighten terminal clips to free terminal cord assembly and A/T

fluid temperature sensor 2 harness.

●

: Terminal clip (4)

13. Disconnect revolution sensor connector.

CAUTION:

Be careful not to damage connector.

14. Straighten terminal clip to free revolution sensor harness.

15. Remove bolts A, B and C from control valve with TCM.

●

: Vehicle front

SCIA8124E

SCIA7524E

SCIA7525E

Bolt symbol

Length mm (in)

Number of bolts

A

42 (1.65)

5

B

55 (2.17)

6

C

40 (1.57)

1

SCIA8074E

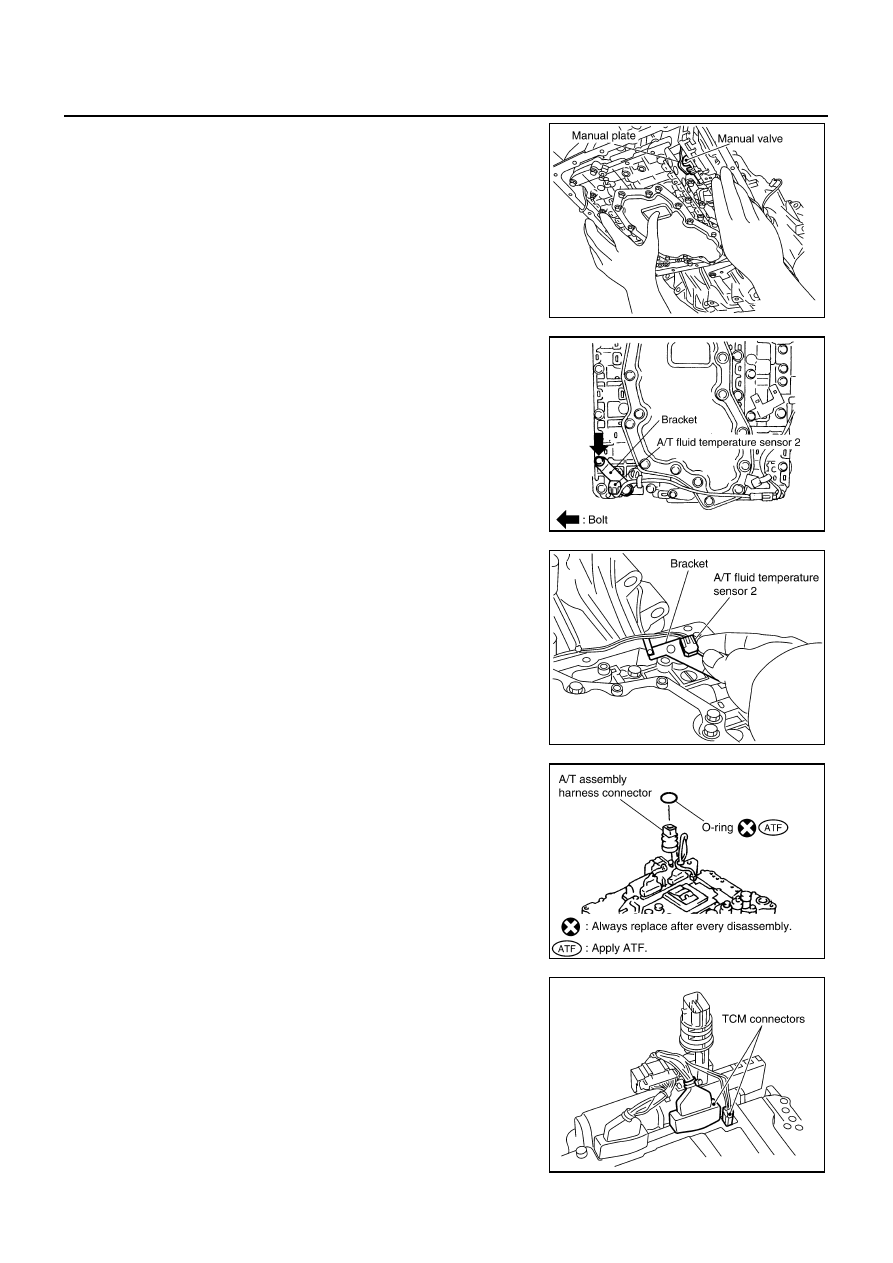

AT-228

ON-VEHICLE SERVICE

16. Remove control valve with TCM from transmission case.

CAUTION:

When removing, be careful with the manual valve notch and
manual plate height. Remove it vertically.

17. Remove A/T fluid temperature sensor 2 with bracket from con-

trol valve with TCM.

18. Remove bracket from A/T fluid temperature sensor 2.

19. Remove O-ring from A/T assembly harness connector.

20. Disconnect TCM connectors.

CAUTION:

Be careful not to damage connectors.

SCIA5142E

SCIA5301E

SCIA5264E

SCIA5155E

SCIA5447E

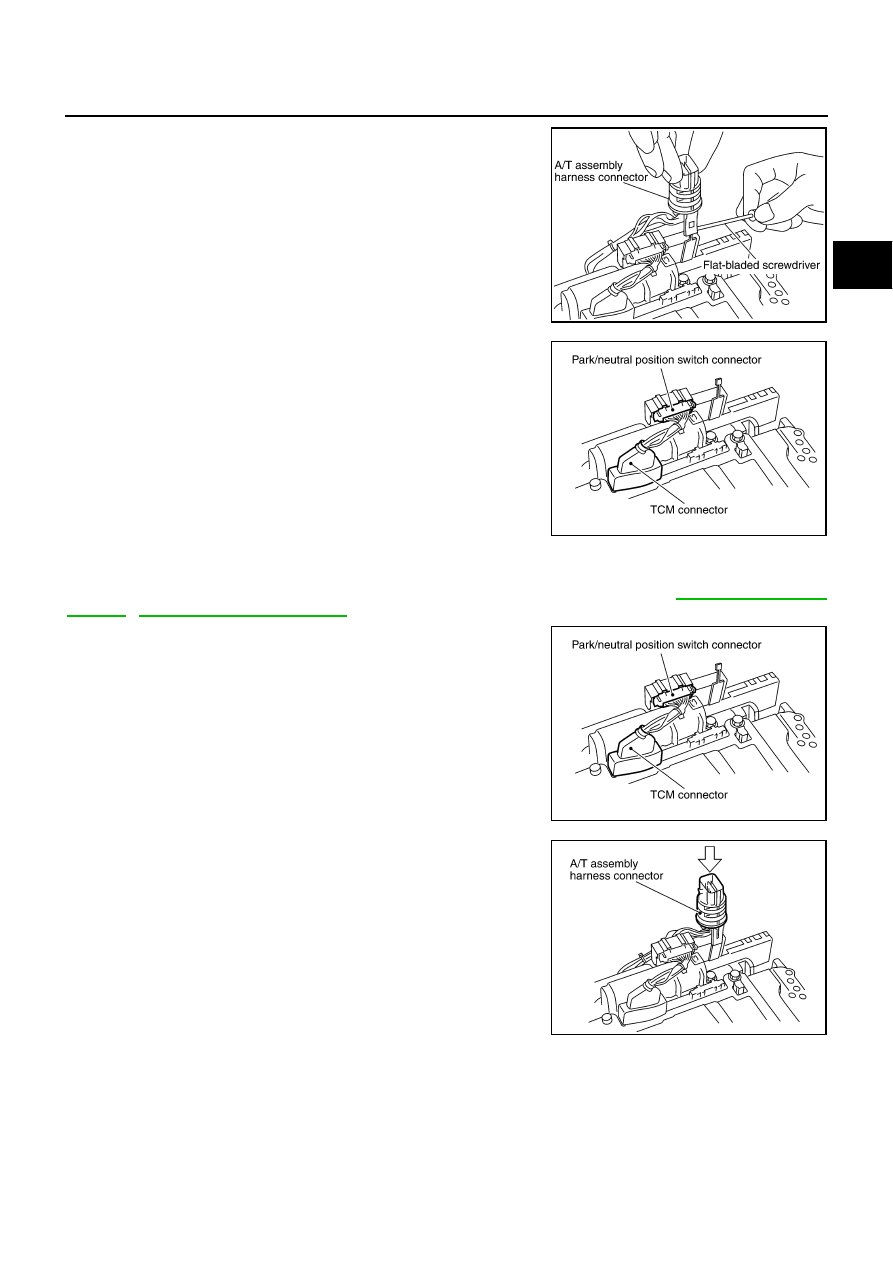

ON-VEHICLE SERVICE

AT-229

D

E

F

G

H

I

J

K

L

M

A

B

AT

21. Remove A/T assembly harness connector from control valve

with TCM using a flat-bladed screwdriver.

22. Disconnect TCM connector and park/neutral position switch

connector.

CAUTION:

Be careful not to damage connectors.

Installation

CAUTION:

After completing installation, check A/T fluid leakage and A/T fluid level. Refer to

AT-12, "Changing A/

T Fluid"

 ,

AT-12, "Checking A/T Fluid"

 .

1.

Connect TCM connector and park/neutral position switch con-
nector.

2.

Install A/T assembly harness connector from control valve with
TCM.

SCIA5448E

SCIA5449E

SCIA5449E

SCIA5450E

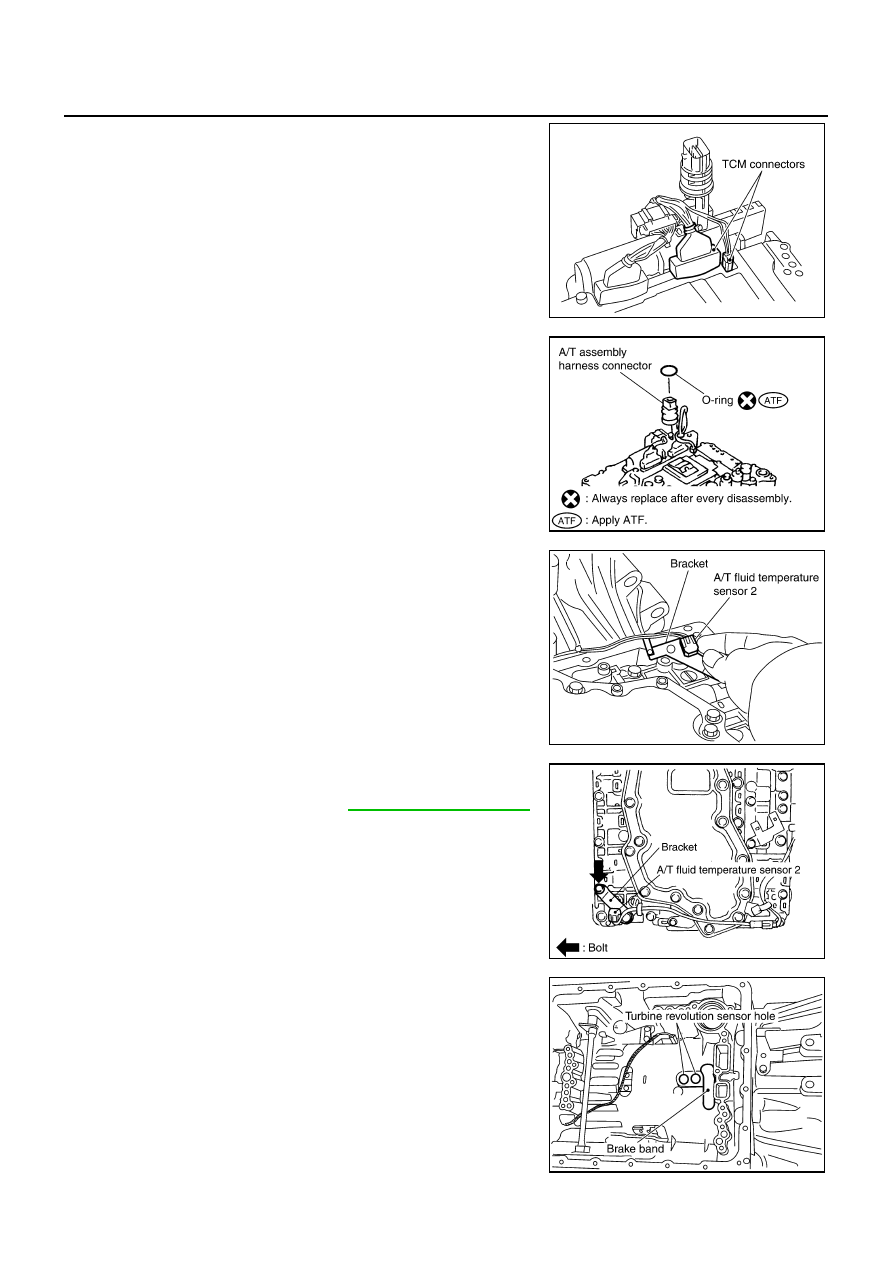

AT-230

ON-VEHICLE SERVICE

3.

Connect TCM connectors.

4.

Install O-ring in A/T assembly harness connector.

CAUTION:

●

Do not reuse O-ring.

●

Apply ATF to O-ring.

5.

Install A/T fluid temperature sensor 2 to bracket.

6.

Install A/T fluid temperature sensor 2 (with bracket) in control
valve with TCM, and then tighten A/T fluid temperature sensor 2
bolt to the specified torque. Refer to

AT-225, "COMPONENTS"

 .

CAUTION:

Adjust bolt hole of bracket to bolt hole of control valve with
TCM.

7.

Install control valve with TCM in transmission case.

CAUTION:

●

Make sure that turbine revolution sensor securely installs
turbine revolution sensor hole.

●

Hang down revolution sensor harness toward outside so
as not to disturb installation of control valve with TCM.

●

Adjust A/T assembly harness connector of control valve
with TCM to terminal hole of transmission case.

SCIA5447E

SCIA5155E

SCIA5264E

SCIA5301E

SCIA5034E
