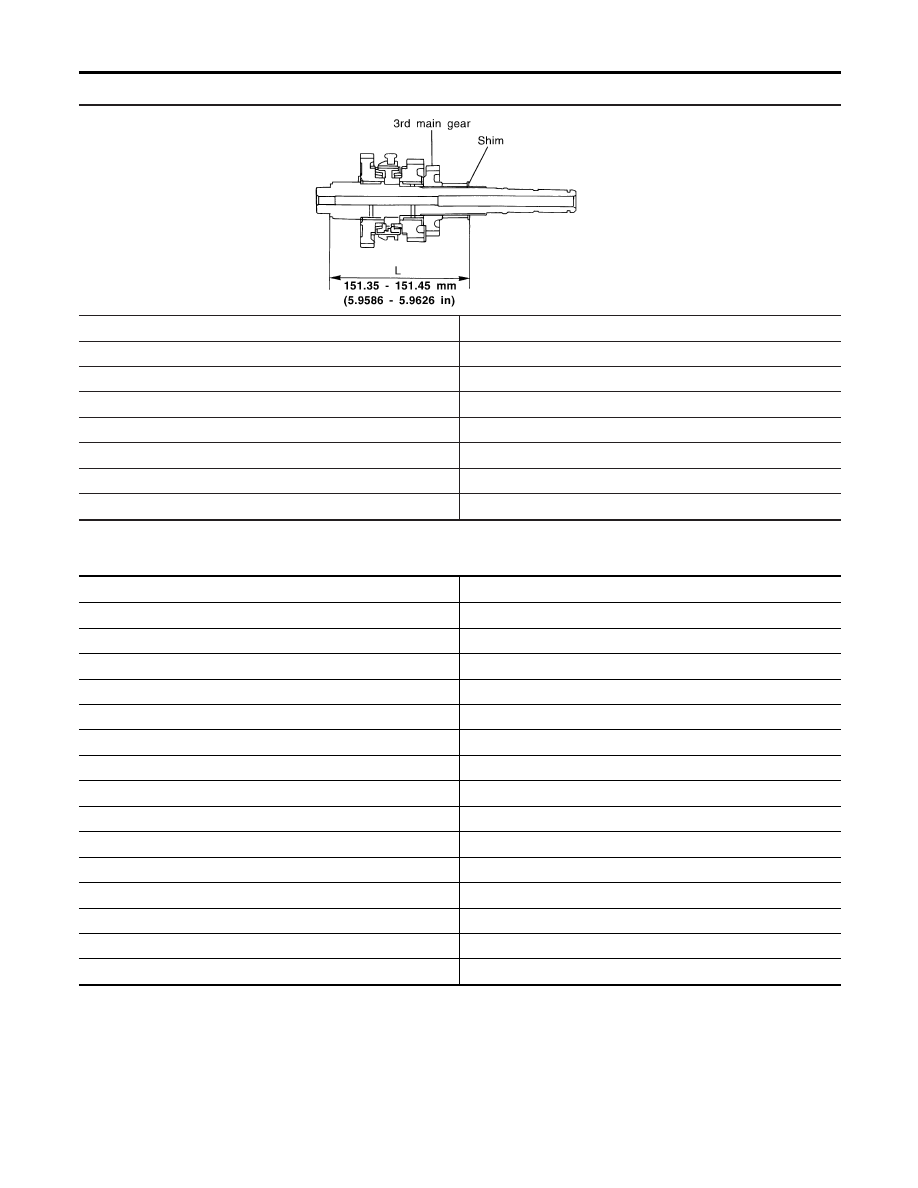

Gear End Play NCMT0025 Unit: mm (in) Gear End play 1st main gear 0.18 - 0.31 (0.0071 - 0.0122) 2nd main gear 5th main gear Reverse main gear 3rd input gear 4th input gear 0.17 - 0.44 (0.0067 - 0.0173) Clearance Between Baulk Ring and Gear NCMT0026 3RD, 4TH, 5TH, REVERSE BAULK RING NCMT0026S01 Unit: mm (in) Standard Wear limit 3rd 0.90 - 1.45 (0.0354 - 0.0571) 0.7 (0.028) 4th 5th Reverse 0.9 - 1.35 (0.0354 - 0.0531) 1ST AND 2ND BAULK RING NCMT0026S02 Unit: mm (in) SMT906D Dimension Standard Wear limit A 0.6 - 0.8 (0.024 - 0.031) 0.2 (0.008) B 0.6 - 1.1 (0.024 - 0.043) Available Snap Rings NCMT0028 SNAP RING NCMT0028S04 End play 0.05 - 0.25 mm (0.0020 - 0.0098 in) Thickness Part number* 1.45 mm (0.0571 in) 32204-6J000 1.55 mm (0.0610 in) 32204-6J001 1.65 mm (0.0650 in) 32204-6J002 1.75 mm (0.0689 in) 32204-6J003 1.85 mm (0.0728 in) 32204-6J004 *: Always check with the parts department for the latest information. GI MA EM LC EC FE CL AT AX SU BR ST RS BT HA SC EL IDX SERVICE DATA AND SPECIFICATIONS (SDS) Gear End Play MT-57 |
