Infiniti G20 (P11). Manual - part 443





RHA056GA

DIAGNOSTIC PROCEDURE

NCHA0106

SYMPTOM: Intake sensor circuit is open or shorted. (

or

is indicated on auto amp. as a result of conducting Self-

diagnosis STEP 2.)

1

CHECK INTAKE SENSOR CIRCUIT BETWEEN INTAKE SENSOR AND BODY GROUND

Disconnect intake sensor harness connector.
Do approx. 5 volts exist between intake sensor harness terminal No. 2 and body ground?

RHA495GB

Yes or No

Yes

©

GO TO 2.

No

©

GO TO 4.

2

CHECK INTAKE SENSOR CIRCUIT BETWEEN INTAKE SENSOR AND AUTO AMP. (LCU)

1. Disconnect auto amp. (LCU) harness connector.
2. Check circuit continuity between intake sensor harness terminal No. 2 and auto amp. (LCU) harness terminal No. 11.

Continuity should exist.

RHA496GB

OK or NG

OK

©

GO TO 3.

NG

©

Repair harness or connector.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

SC

EL

IDX

TROUBLE DIAGNOSES

AUTO

Intake Sensor Circuit (Cont’d)

HA-103

3

CHECK INTAKE SENSOR

Refer to HA-102.

OK or NG

OK

©

1. Replace auto amp.
2. Go to self-diagnosis step-by-step procedure (HA-32) and perform self-diagnosis

STEP-2.
Confirm that code No. 20 is displayed.

NG

©

1. Replace intake sensor.
2. Go to self-diagnosis step-by-step procedure (HA-32) and perform self-diagnosis

STEP-2.
Confirm that code No. 20 is displayed.

4

CHECK INTAKE SENSOR CIRCUIT BETWEEN AMBIENT SENSOR AND AUTO AMP. (LCU)

1. Disconnect auto amp. (LCU) harness connector.
2. Check circuit continuity between intake sensor harness terminal No. 1 and auto amp. (LCU) harness terminal No. 1.

Continuity should exist.

RHA497GB

OK or NG

OK

©

1. Replace auto amp.
2. Go to self-diagnosis step-by-step procedure (HA-32) and perform self-diagnosis

STEP-2.
Confirm that code No. 20 is displayed.

NG

©

Repair harness or connector.

Air Mix Door Motor PBR Circuit

DIAGNOSTIC PROCEDURE

NCHA0050

For description of mode door motor and air mix door motor circuit,
refer to HA-50.
SYMPTOM: If PBR circuit is open or shorted. (−

or

is

indicated on auto amp. as a result of conducting Self-diagno-
sis STEP 2.)
Perform diagnostic procedure for mode door motor and air
mix door motor. Refer to HA-50.

TROUBLE DIAGNOSES

AUTO

Intake Sensor Circuit (Cont’d)

HA-104

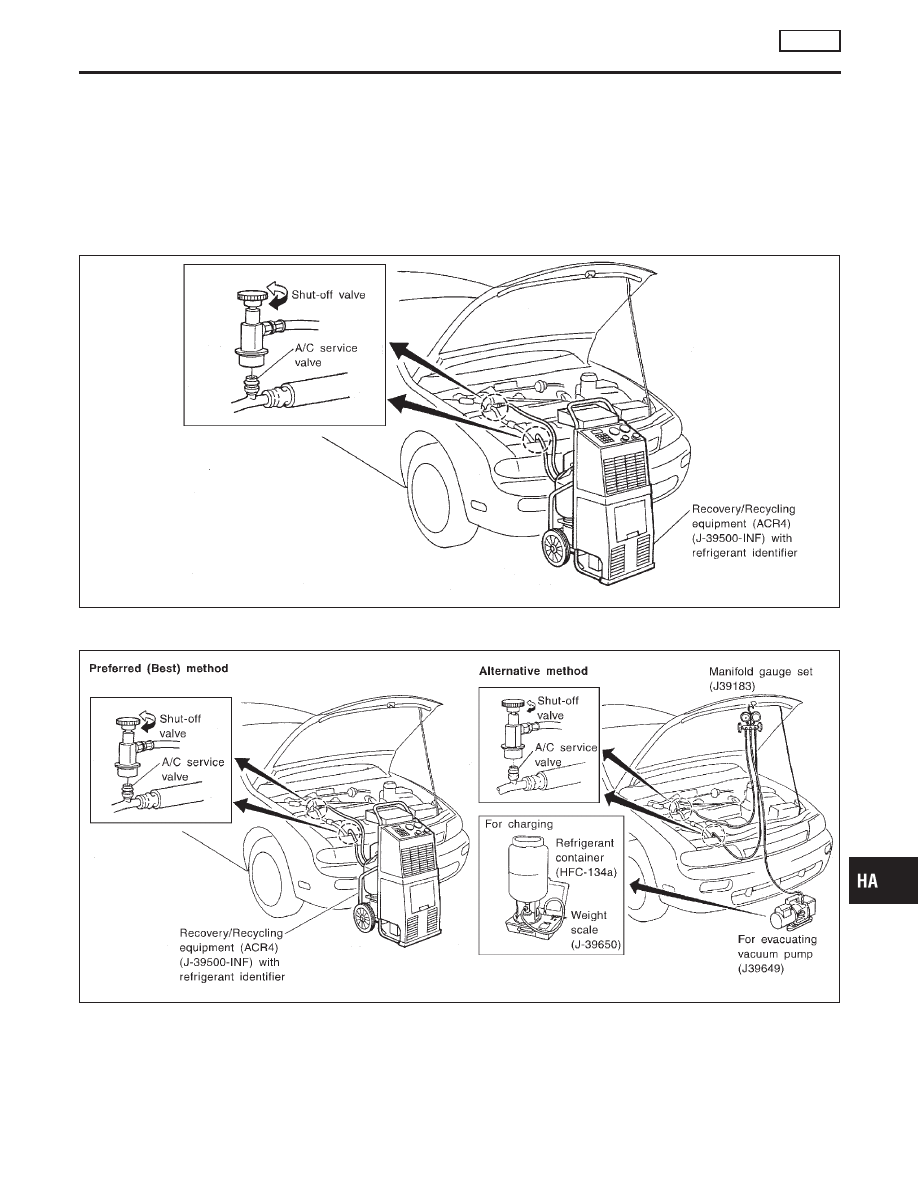

HFC-134a (R-134a) Service Procedure

NCHA0070

SETTING OF SERVICE TOOLS AND EQUIPMENT

NCHA0070S01

Discharging Refrigerant

NCHA0070S0101

WARNING:

Avoid breathing A/C refrigerant and lubricant vapor or mist. Exposure may irritate eyes, nose and
throat. Remove HFC-134a (R-134a) from A/C system using certified service equipment meeting require-
ments of SAE J2210 (R-134a recycling equipment) or J2209 (R-134a recovery equipment). If acciden-
tal system discharge occurs, ventilate work area before resuming service. Additional health and safety
information may be obtained from refrigerant and lubricant manufacturers.

SHA179FA

Evacuating System and Charging Refrigerant

NCHA0070S0102

SHA180FA

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

SC

EL

IDX

SERVICE PROCEDURE

AUTO

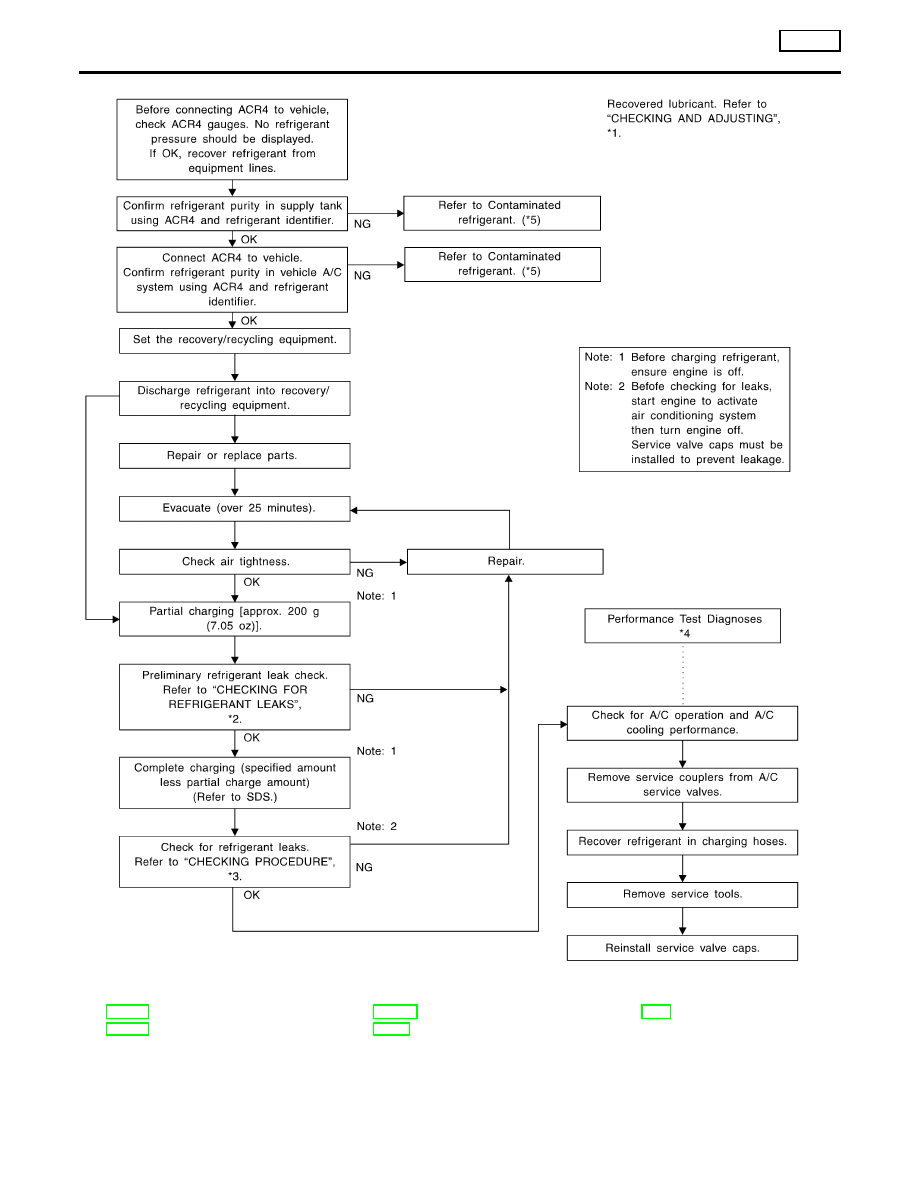

HFC-134a (R-134a) Service Procedure

HA-105

SHA251FA

*1: HA-107
*2: HA-118

*3: HA-120
*4: HA-81

*5: HA-3

SERVICE PROCEDURE

AUTO

HFC-134a (R-134a) Service Procedure (Cont’d)

HA-106
