BEM010

7.

Apply a continuous bead of liquid gasket to front cover.
Also apply liquid gasket to matching surface to cylinder head
gasket.

I

Use Genuine RTV silicone sealant part No. 999MP-A7007
or equivalent.
Be sure to install new front oil seal in the right direction.
Refer to “OIL SEAL”, EM-28.

SEM721E

8.

Install oil pump drive spacer.

9.

Install front cover.

SEM042G

I

Wipe off excessive liquid gasket.

SEM287G

10. Install cylinder head outside bolts.

SEM040G

11. Install RH engine mounting and bracket.
12. Install generator bracket and generator.
13. Install A/C compressor bracket and compressor.

GI

MA

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

TIMING CHAIN

Installation (Cont’d)

EM-25

SEM073D

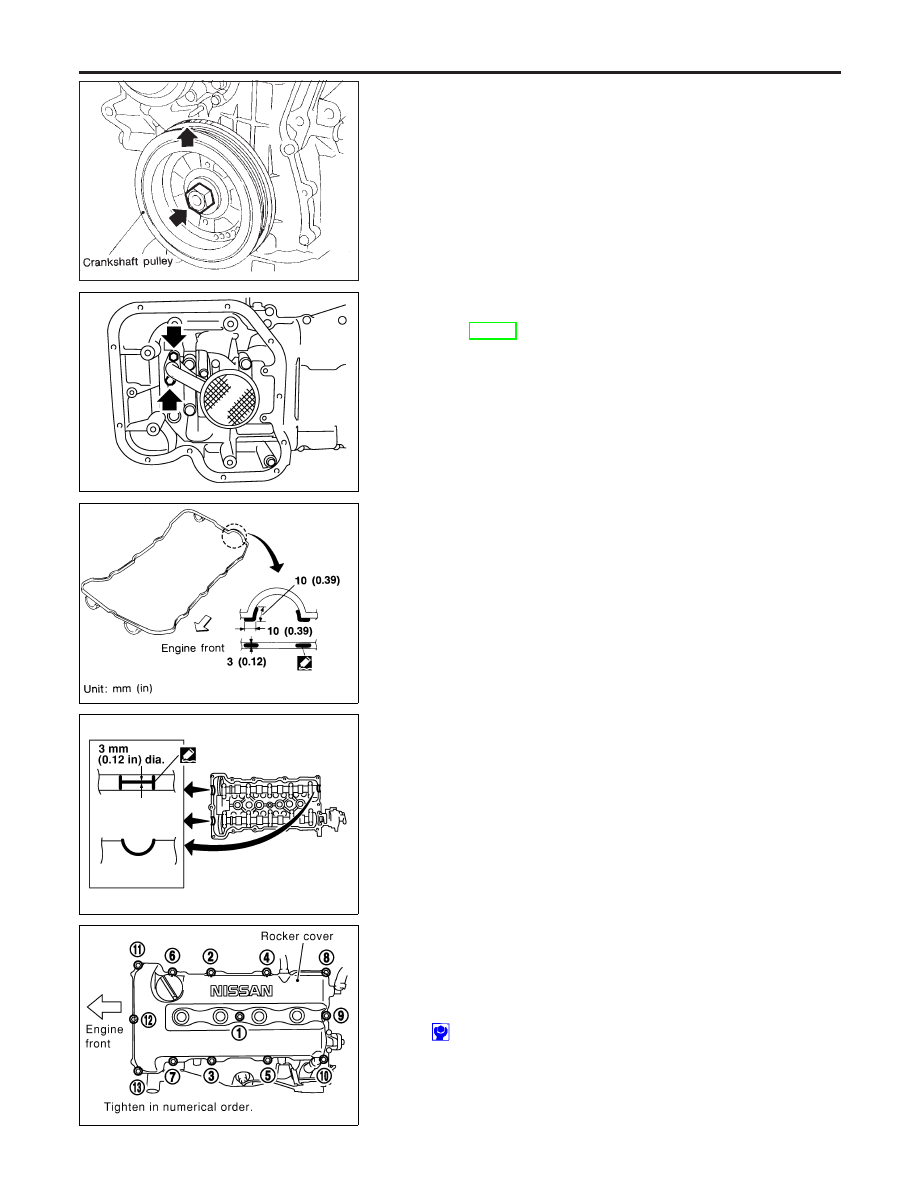

14. Install crankshaft pulley.
15. Set No. 1 piston at TDC of its compression stroke.

SEM038G

16. Install oil strainer.
17. Install oil pans.

Refer to EM-16.

BEM006

SEM051G

18. Remove old liquid gasket from mating surfaces of rocker cover

and cylinder head.

19. Apply a continuous bead of liquid gasket to rocker cover gas-

ket and cylinder head as shown in the illustrations.

I

Use Genuine RTV silicone sealant Part No. 999MP-A7007
or equivalent.

SEM052G

20. Install rocker cover and oil separator.

I

Be sure to install washers between bolts and rocker cover.

I

Tightening procedure

STEP 1: Tighten bolts 1 - 10 - 11 - 13 - 8 in that order.
STEP 2: Tighten bolts 1 - 13 in that order.

: 8 - 10 N·m (0.8 - 1.0 kg-m, 69 - 87 in-lb)

21. Install the following parts:

I

Spark plugs and leads

I

Water pump pulley and drive belts.

TIMING CHAIN

Installation (Cont’d)

EM-26

For adjusting drive belt deflection, refer to MA-13, “Checking
Drive Belts”.

I

Front RH wheel

I

Engine under cover

22. Connect the following:

I

Vacuum hoses

I

Wire harnesses and connectors

GI

MA

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

TIMING CHAIN

Installation (Cont’d)

EM-27

SEM077D

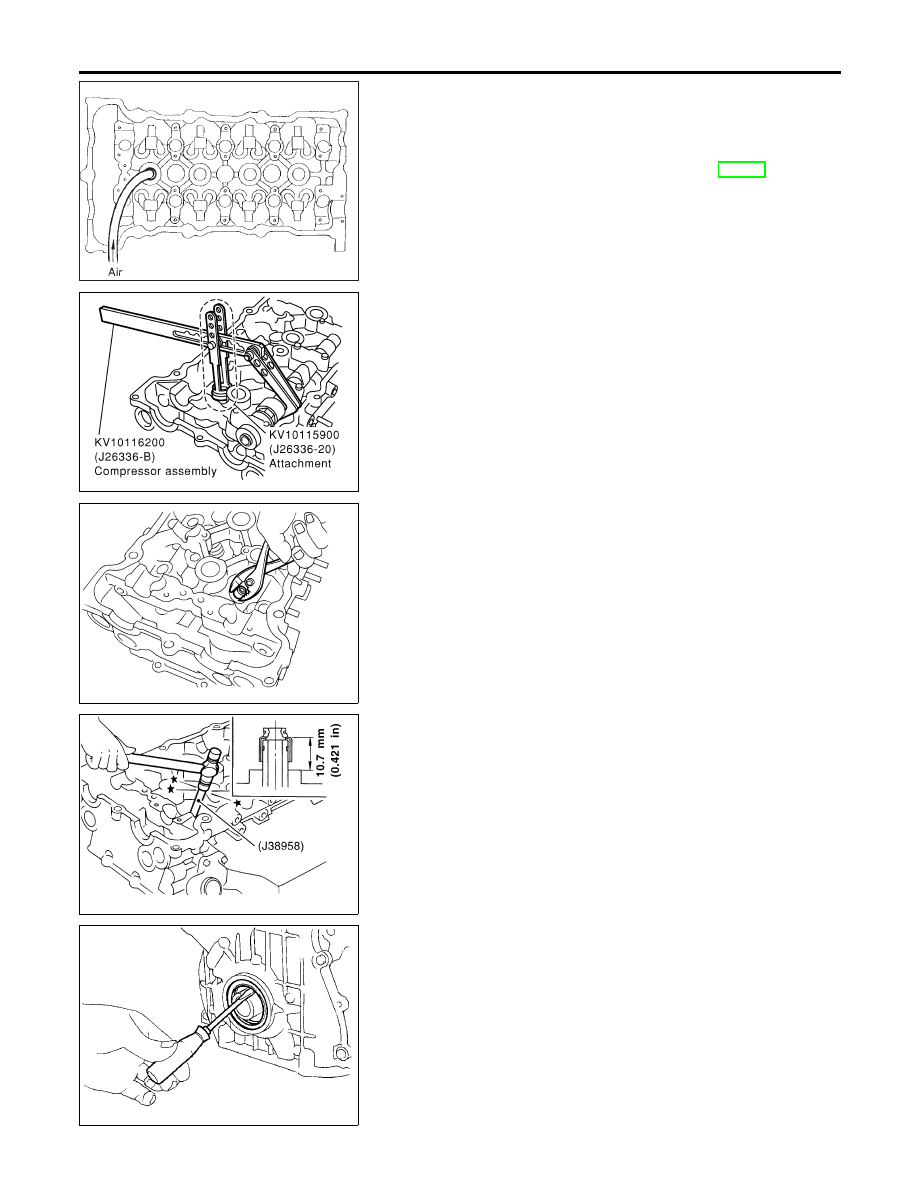

Replacement

NCEM0015

VALVE OIL SEAL

NCEM0015S01

1.

Remove accelerator wire.

2.

Remove rocker cover.

3.

Remove camshafts and sprockets. Refer to EM-20.

4.

Remove spark plugs.

5.

Install air hose adapter into spark plug hole and apply air
pressure to hold valves in place. Apply a pressure of 490 kPa
(5 kg/cm

2

, 71 psi).

6.

Remove rocker arm, rocker arm guide and shim.

SEM053G

7.

Remove valve spring with Tool. Temporarily install camshaft as
shown.

Piston concerned should be set at TDC to prevent valve from
falling.

SEM054G

8.

Remove valve oil seal with a suitable tool.

SEM055G

9.

Apply new engine oil to new valve oil seal and install it with
Tool.

SEM997C

FRONT OIL SEAL

NCEM0015S02

1.

Remove the following parts:

I

Engine under cover

I

Front RH wheel and engine side cover

I

Drive belts

I

Crankshaft pulley

2.

Remove front oil seal.

Be careful not to scratch front cover.

OIL SEAL

Replacement

EM-28
