ELECTRICAL UNITS LOCATION

Passenger Compartment (Cont’d)

EL-273

How to Read Harness Layout

NCEL0131

SEL252V

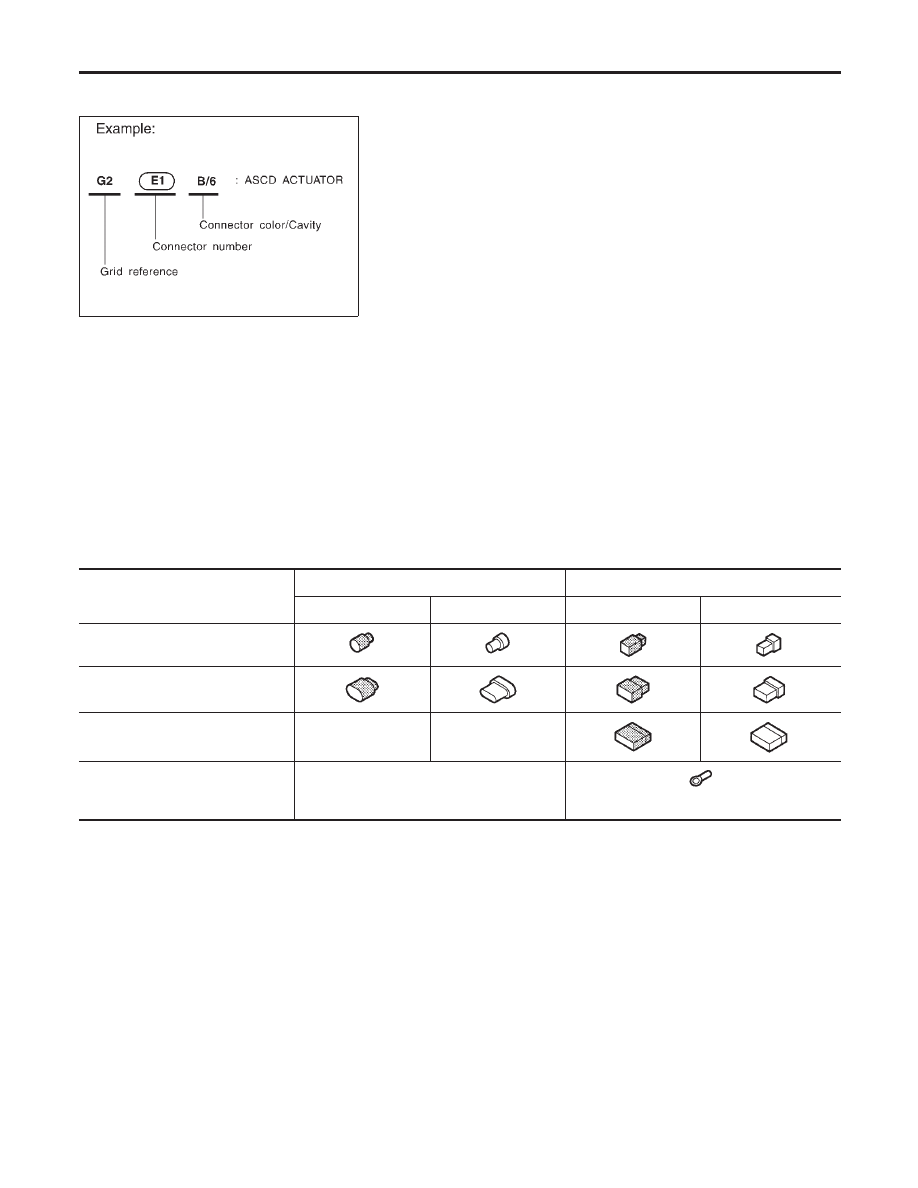

The following Harness Layouts use a map style grid to help locate connectors on the drawings:

I

Main Harness

I

Engine Room Harness (Engine Compartment)

TO USE THE GRID REFERENCE

NCEL0131S01

1. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the drawing, find the crossing of the grid reference letter column and number row.
4. Find the connector number in the crossing zone.
5. Follow the line (if used) to the connector.

CONNECTOR SYMBOL

NCEL0131S02

Main symbols of connector (in Harness Layout) are indicated in the below.

Connector type

Water proof type

Standard type

Male

Female

Male

Female

I

Cavity: Less than 4

I

Relay connector

I

Cavity: From 5 to 8

I

Cavity: More than 9

—

—

I

Ground terminal etc.

—

HARNESS LAYOUT

How to Read Harness Layout

EL-274

Outline

NCEL0132

CEL952

NOTE:
For detailed ground distribution information, refer to “Ground Distribution”, “GROUND”, EL-18.
