Infiniti G20 (P11). Manual - part 328





Wiring Diagram — METER —

NCEL0045

TEL845B

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

METERS AND GAUGES

Wiring Diagram — METER —

EL-89

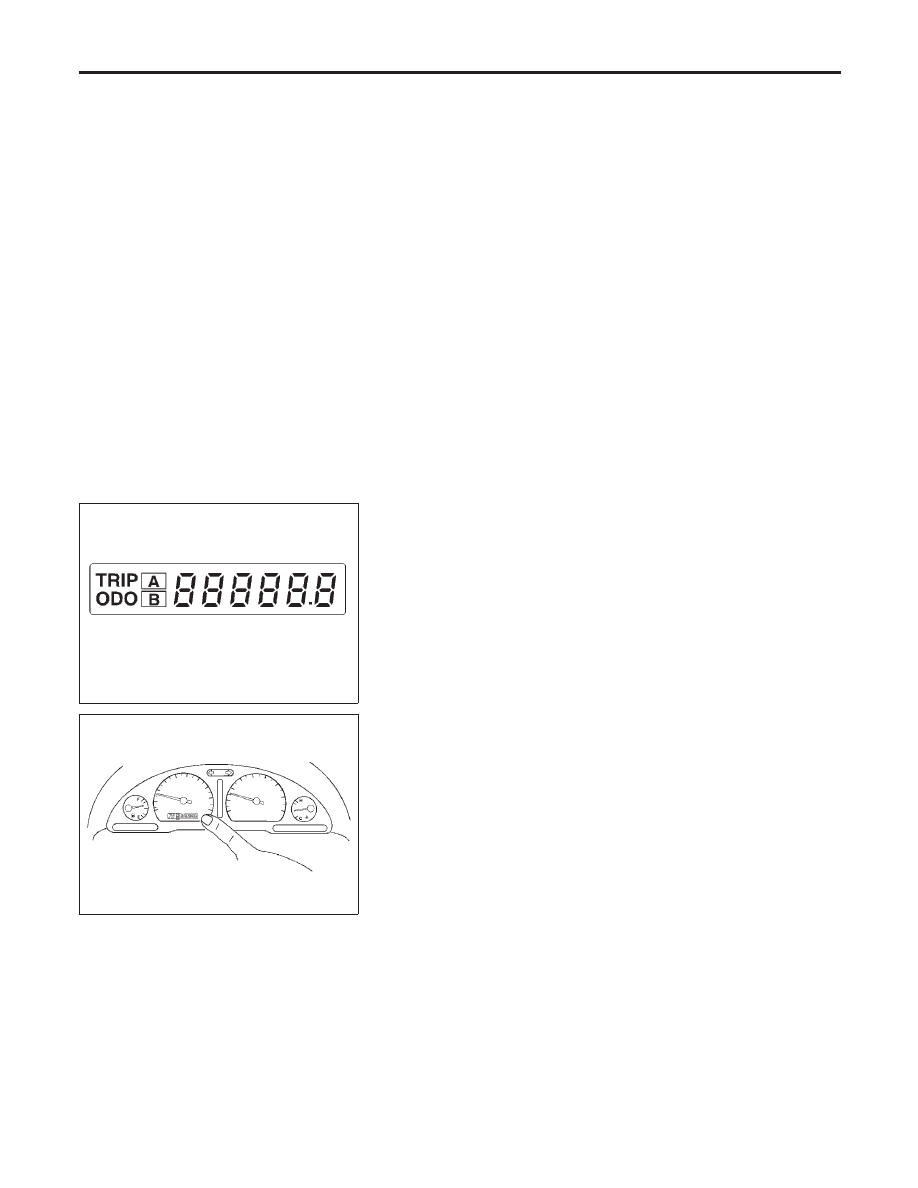

Meter/Gauge Operation and Odo/Trip Meter
Segment Check in Diagnosis Mode

NCEL0151

DIAGNOSIS FUNCTION

NCEL0151S01

I

Odo/trip meter segment can be checked in diagnosis mode.

I

Meters/gauges can be checked in diagnosis mode.

HOW TO ALTERNATE DIAGNOSIS MODE

NCEL0151S02

1.

Turn ignition switch to ON and change odo/trip meter to “TRIP
A” or “TRIP B”.

2.

Turn ignition switch to OFF.

3.

Turn ignition switch to ON when pushing odo/trip meter switch.

4.

Confirm that trip meter indicates “000.0”.

5.

Push odo/trip meter switch more than three times within 5
seconds.

SEL110V

6.

All odo/trip meter segments should be turned on.

NOTE:
If some segments are not turned on, speedometer (unified meter
control unit) with odo/trip meter should be replaced.

At this point, the unified control meter is turned to diagnosis
mode.

SEL111V

7.

Push odo/trip meter switch. Indication of each meter/gauge
should be as shown left during pushing odo/trip meter switch
if it is no malfunctioning.

NOTE:
It takes about 1 minute for indication of fuel gauge to become
stable.

METERS AND GAUGES

Meter/Gauge Operation and Odo/Trip Meter Segment Check in Diagnosis Mode

EL-90

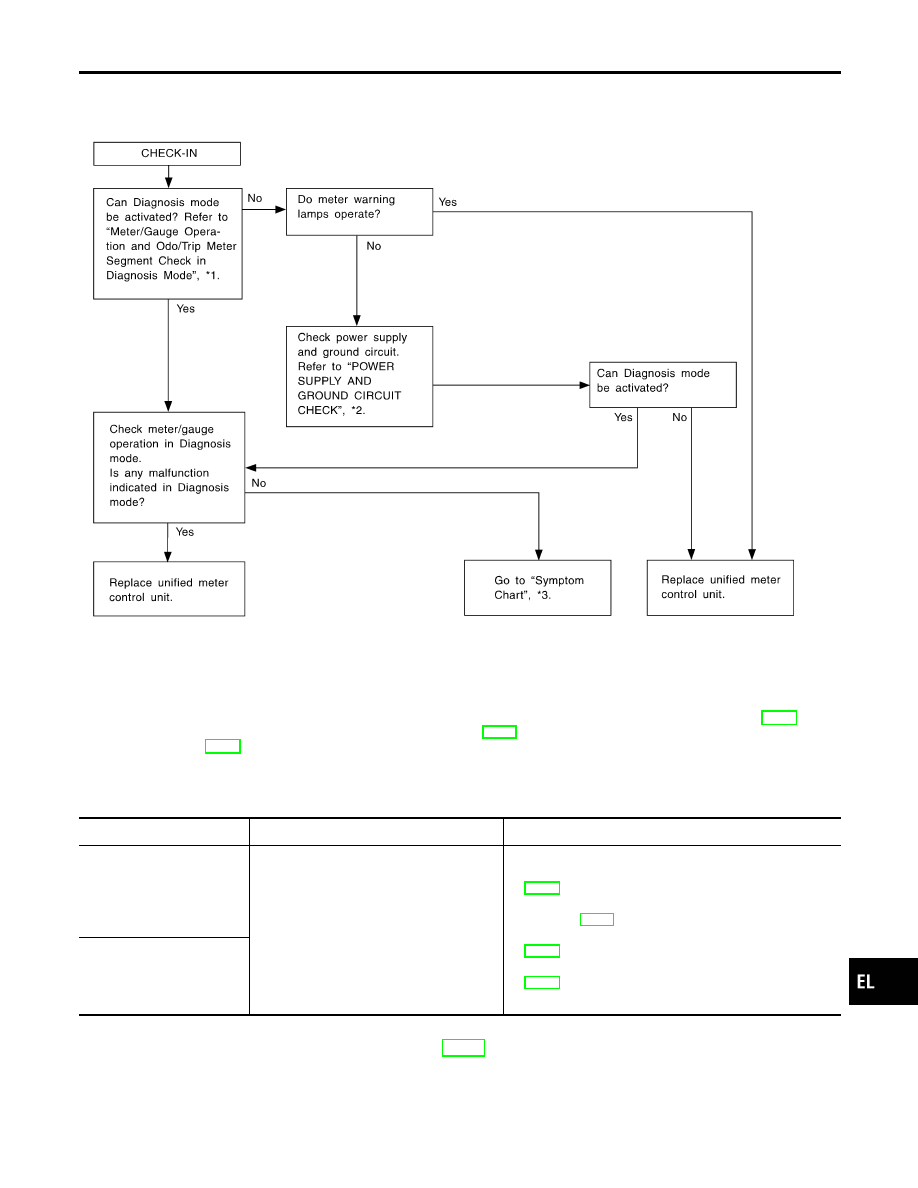

Trouble Diagnoses

NCEL0198

PRELIMINARY CHECK

NCEL0198S01

SEL269Y

*1: Meter/Gauge Operation and Odo/

Trip Meter Segment Check in
Diagnosis Mode (EL-90)

*2: POWER SUPPLY AND GROUND

CIRCUIT CHECK (EL-92)

*3: SYMPTOM CHART (EL-91)

SYMPTOM CHART

NCEL0198S02

Symptom

Possible causes

Repair order

One of speedometer/
tachometer/fuel gauge/
water temp. gauge is mal-
functioning.

1. Sensor signal

- Vehicle speed signal
- Engine revolution signal
- Fuel gauge
- Water temp. gauge

2. Unified meter control unit

1. Check the sensor for malfunctioning meter/gauge.

INSPECTION/VEHICLE SPEED SENSOR (Refer to
EL-93.)
INSPECTION/ENGINE REVOLUTION SIGNAL
(Refer to EL-94.)
INSPECTION/FUEL LEVEL SENSOR UNIT (Refer to
EL-95.)
INSPECTION/THERMAL TRANSMITTER (Refer to
EL-96.)

2. Replace unified meter control unit.

Multiple meter/gauge are
malfunctioning. (except
odo/trip meter)

Before starting trouble diagnoses below, perform PRELIMINARY
CHECK, EL-91.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

METERS AND GAUGES

Trouble Diagnoses

EL-91

SEL179WC

POWER SUPPLY AND GROUND CIRCUIT CHECK

=NCEL0198S03

Power Supply Circuit Check

NCEL0198S0301

Terminals

Ignition switch position

(+)

(−)

OFF

ACC

ON

Connector

Terminal

(wire color)

M40

66 (P)

Ground

Battery
voltage

Battery
voltage

Battery
voltage

M40

62 (Y)

Ground

0V

0V

Battery
voltage

If NG, check the following.

I

7.5A fuse [No. 5, located in fuse block (J/B)]

I

10A fuse [No. 11, located in fuse block (J/B)]

I

Harness for open or short between fuse and combination
meter

SEL180WC

Ground Circuit Check

NCEL0198S0302

Terminals

Continuity

(+)

(−)

Connector

Terminal

(wire color)

M40

59 (B)

Ground

Yes

METERS AND GAUGES

Trouble Diagnoses (Cont’d)

EL-92
