Infiniti G20 (P11). Manual - part 224





PROCEDURE B

=NCEC0511S02

1

CHECK COOLING FAN POWER SUPPLY CIRCUIT

1. Turn ignition switch “OFF”.
2. Disconnect cooling fan relays-2 and -3.
3. Turn ignition switch “ON”.
4. Check voltage between cooling fan relays-2 and -3 terminals 1, 3 and ground with CONSULT-II or tester.

SEF593X

OK or NG

OK

©

GO TO 3.

NG

©

GO TO 2.

2

DETECT MALFUNCTIONING PART

Check the following.

I

Harness for open or short between cooling fan relays-2 and -3 and fuse

I

Harness for open or short between cooling fan relays-2 and -3 and fusible link

©

Repair harness or connectors.

3

CHECK COOLING FAN MOTOR CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch “OFF”.
2. Disconnect cooling fan motor-1 harness connector and cooling fan motor-2 harness connector.
3. Check harness continuity between cooling fan relay-2 terminal 5 and cooling fan motor-1 terminal 2, cooling fan relay-2

terminal 6 and cooling fan motor-1 terminal 3, cooling fan relay-2 terminal 7 and body ground. Refer to Wiring Diagram.

Continuity should exist.

4. Also check harness for short to ground and short to power.
5. Check harness continuity between cooling fan relay-3 terminal 5 and cooling fan motor-2 terminal 2, cooling fan relay-3

terminal 6 and cooling fan motor-2 terminal 3, cooling fan relay-3 terminal 7 and body ground. Refer to Wiring Diagram.

Continuity should exist.

6. Also check harness for short to ground and short to power.

OK or NG

OK

©

GO TO 4.

NG

©

Repair open circuit or short to ground or short to power in harness or connectors.

4

CHECK COOLING FAN OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 12 and cooling fan relay-2 terminal 2, cooling fan relay-3 terminal 2.

Refer to Wiring Diagram.

Continuity should exist.

3. Also check harness for short to ground and short to power.

OK or NG

OK

©

GO TO 6.

NG

©

GO TO 5.

GI

MA

EM

LC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0217 COOLANT OVERTEMPERATURE ENRICHMENT PROTECTION

Diagnostic Procedure (A/T Models) (Cont’d)

EC-307

5

DETECT MALFUNCTIONING PART

Check the following.

I

Harness connectors E75, M6

I

Harness connectors M49, F23

I

Harness for open or short between cooling fan relays-2 and -3 and ECM

©

Repair open circuit or short to ground or short to power in harness or connectors.

6

CHECK COOLING FAN RELAYS-2 AND -3

Check continuity between cooling fan relay-2, -3 terminals 3 and 5, 6 and 7 under the following conditions.

SEF591X

OK or NG

OK

©

GO TO 7.

NG

©

Replace cooling fan relays.

7

CHECK COOLING FAN MOTORS-1 AND -2

Supply battery voltage between the following terminals and check operation.

SEF937X

OK or NG

OK

©

GO TO 8.

NG

©

Replace cooling fan motors.

8

CHECK INTERMITTENT INCIDENT

Perform “TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT”, EC-146.

©

INSPECTION END

DTC P0217 COOLANT OVERTEMPERATURE ENRICHMENT PROTECTION

Diagnostic Procedure (A/T Models) (Cont’d)

EC-308

Diagnostic Procedure (M/T Models)

NCEC0672

1

INSPECTION START

Do you have CONSULT-II?

Yes or No

Yes

©

GO TO 2.

No

©

GO TO 4.

2

CHECK COOLING FAN LOW SPEED OPERATION

With CONSULT-II

1. Disconnect cooling fan relay-2.

SEC573C

2. Turn ignition switch “ON”.
3. Perform “COOLING FAN” in “ACTIVE TEST” mode with CONSULT-II.

SEF784Z

4. Make sure that cooling fans-1 and -2 operate at low speed.

OK or NG

OK

©

GO TO 3.

NG

©

Check cooling fan low speed control circuit. (Go to PROCEDURE A, EC-315.)

GI

MA

EM

LC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0217 COOLANT OVERTEMPERATURE ENRICHMENT PROTECTION

Diagnostic Procedure (M/T Models)

EC-309

3

CHECK COOLING FAN HIGH SPEED OPERATION

With CONSULT-II

1. Turn ignition switch “OFF”.
2. Reconnect cooling fan relay-2.
3. Turn ignition switch “ON”.

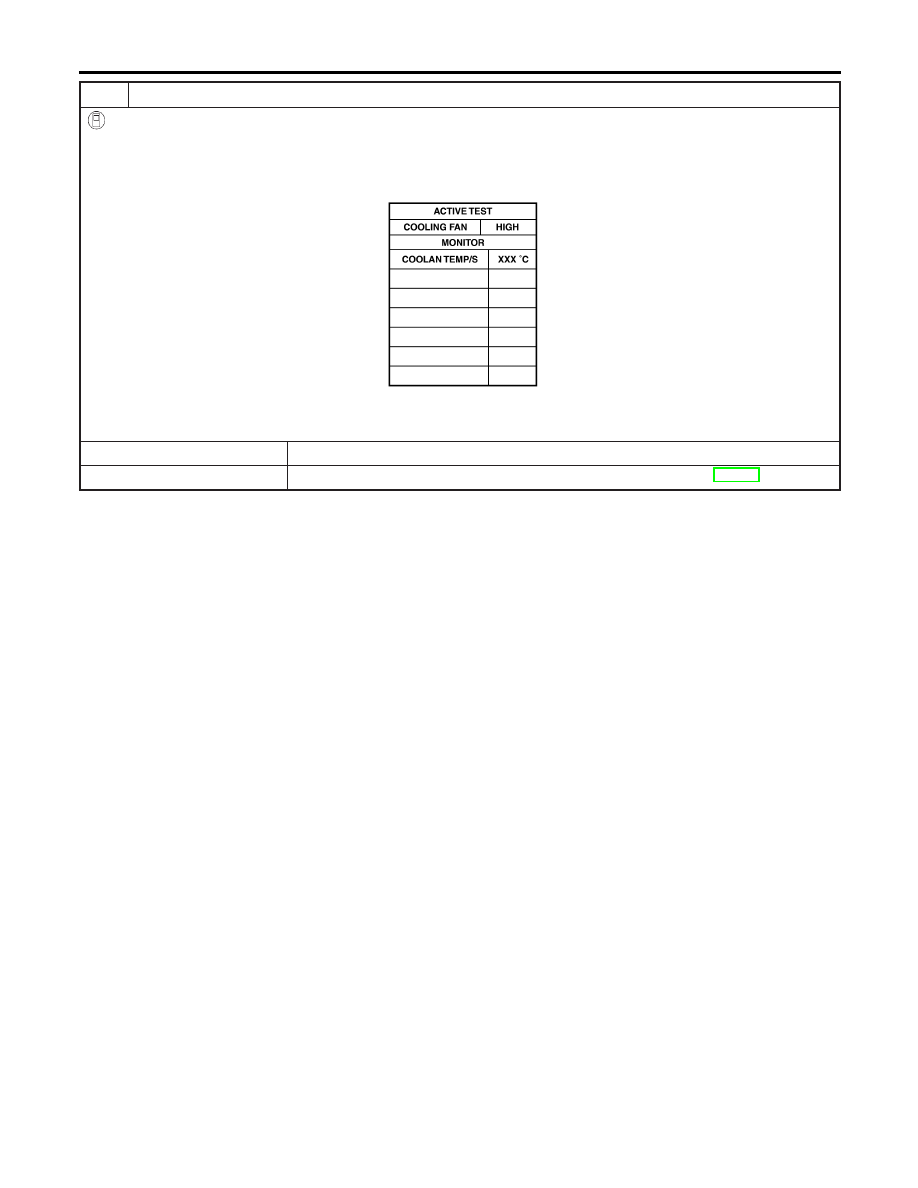

4. Perform “COOLING FAN” in “ACTIVE TEST” mode with CONSULT-II.

SEF785Z

5. Make sure that cooling fan-1 operate at higher speed than low speed and cooling fan-2 operate at low speed.

OK or NG

OK

©

GO TO 6.

NG

©

Check cooling fan high speed control circuit. (Go to PROCEDURE B, EC-319.)

DTC P0217 COOLANT OVERTEMPERATURE ENRICHMENT PROTECTION

Diagnostic Procedure (M/T Models) (Cont’d)

EC-310
