Infiniti G20 (P11). Manual - part 214





Description

NCEC0180

SYSTEM DESCRIPTION

NCEC0180S01

Sensor

Input Signal to ECM

ECM func-

tion

Actuator

Camshaft position sensor

Engine speed

Heated
oxygen
sensor 2
heater
(rear) con-
trol

Heated oxygen sensor 2 heater
(rear)

The ECM performs ON/OFF control of the heated oxygen sensor 2 heater (rear) corresponding to the engine
speed.

OPERATION

NCEC0180S02

Engine speed rpm

Heated oxygen sensor 2 heater (rear)

Above 3,600

OFF

Below 3,600

ON

CONSULT-II Reference Value in Data Monitor
Mode

NCEC0181

Specification data are reference values.

MONITOR ITEM

CONDITION

SPECIFICATION

HO2S2 HTR (B1)

I

Ignition switch: ON (Engine stopped)

I

Engine speed: Above 3,600 rpm

OFF

I

Engine speed: Below 3,600 rpm [After driving for 2 minutes at a
speed of 70 km/h (43 MPH) or more]

ON

ECM Terminals and Reference Value

NCEC0182

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM’s transistor. Use a ground other than ECM terminals, such as the ground.

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

3

R/Y

Heated oxygen sensor 2
heater (rear)

[Engine is running]

I

Engine speed is below 3,600 rpm

I

After driving for 2 minutes at a speed of 70 km/h
(43 MPH) or more

0 - 1.0V

[Ignition switch “ON”]

I

Engine stopped

[Engine is running]

I

Engine speed is above 3,600 rpm

BATTERY VOLTAGE
(11 - 14V)

On Board Diagnosis Logic

NCEC0183

DTC No.

Malfunction is detected when ...

Check Items (Possible Cause)

P0141

I

The current amperage in the heated oxygen sensor 2
heater (rear) circuit is out of the normal range.
[An improper voltage drop signal is sent to ECM through
the heated oxygen sensor 2 heater (rear).]

I

Harness or connectors
[The heated oxygen sensor 2 heater (rear) circuit
is open or shorted.]

I

Heated oxygen sensor 2 heater (rear)

GI

MA

EM

LC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0141 HEATED OXYGEN SENSOR 2 HEATER (REAR)

Description

EC-267

DTC Confirmation Procedure

NCEC0184

NOTE:
If “DTC Confirmation Procedure ” has been previously conducted,
always turn ignition switch “OFF” and wait at least 10 seconds
before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that bat-
tery voltage is in between 10.5V and 16V at idle.

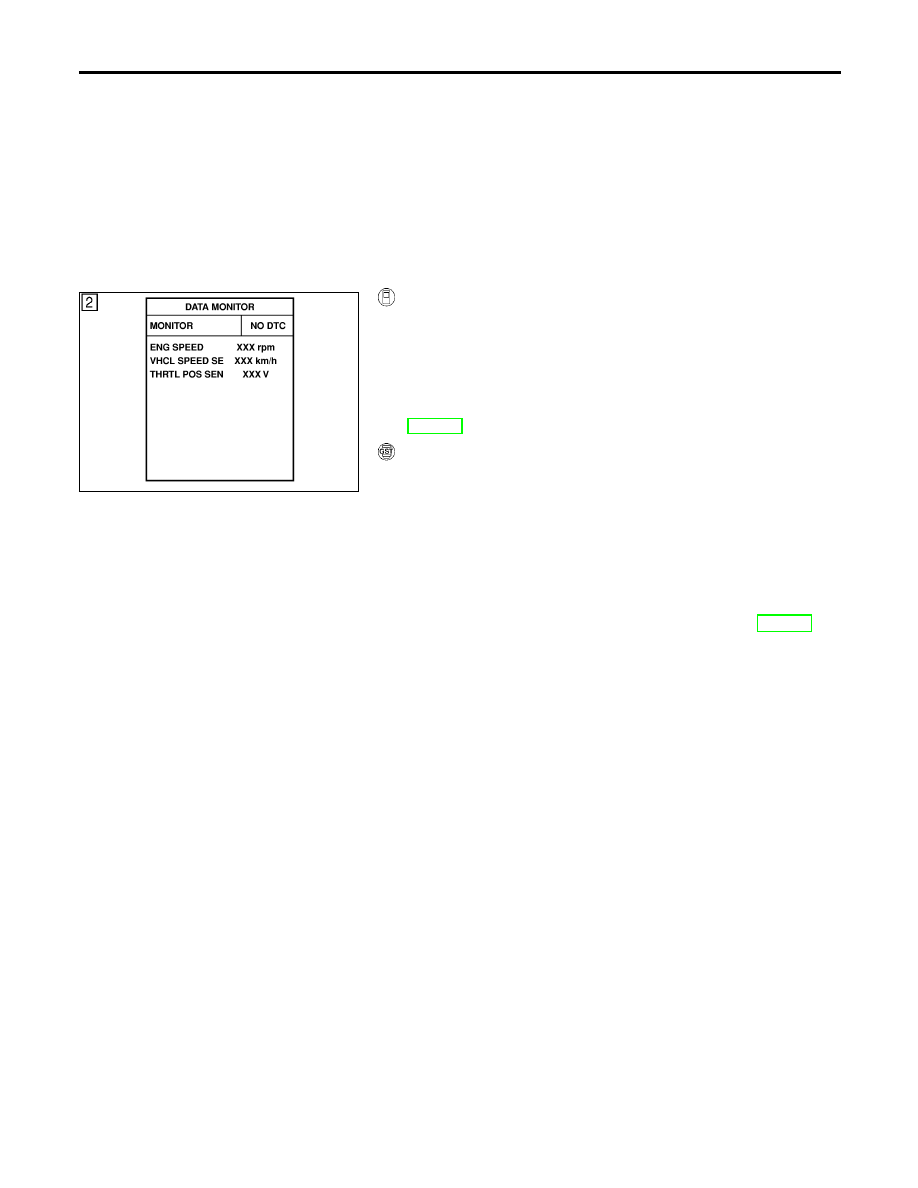

SEF175Y

With CONSULT-II

1)

Turn ignition switch “ON” and select “DATA MONITOR” mode
with CONSULT-II.

2)

Start engine and drive vehicle at a speed of more than 70 km/h
(43 MPH) for 2 consecutive minutes.

3)

Stop vehicle and let engine idle for at least 6 seconds.

4)

If 1st trip DTC is detected, go to “Diagnostic Procedure”,
EC-270.

With GST

1)

Start engine and drive vehicle at a speed of more than 70 km/h
(43 MPH) for 2 consecutive minutes.

2)

Stop vehicle and let engine idle for at least 6 seconds.

3)

Turn ignition switch “OFF” and wait at least 10 seconds.

4)

Start engine and drive vehicle at a speed of more than 70 km/h
(43 MPH) for 2 consecutive minutes.

5)

Stop vehicle and let engine idle for at least 6 seconds.

6)

Select “MODE 3” with GST.

7)

If DTC is detected, go to “Diagnostic Procedure”, EC-270.

When using GST, “DTC Confirmation Procedure” should be
performed twice as much as when using CONSULT-II because
GST cannot display MODE 7 (1st trip DTC) concerning this
diagnosis. Therefore, using CONSULT-II is recommended.

DTC P0141 HEATED OXYGEN SENSOR 2 HEATER (REAR)

DTC Confirmation Procedure

EC-268

Wiring Diagram

NCEC0185

TEC840

GI

MA

EM

LC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0141 HEATED OXYGEN SENSOR 2 HEATER (REAR)

Wiring Diagram

EC-269

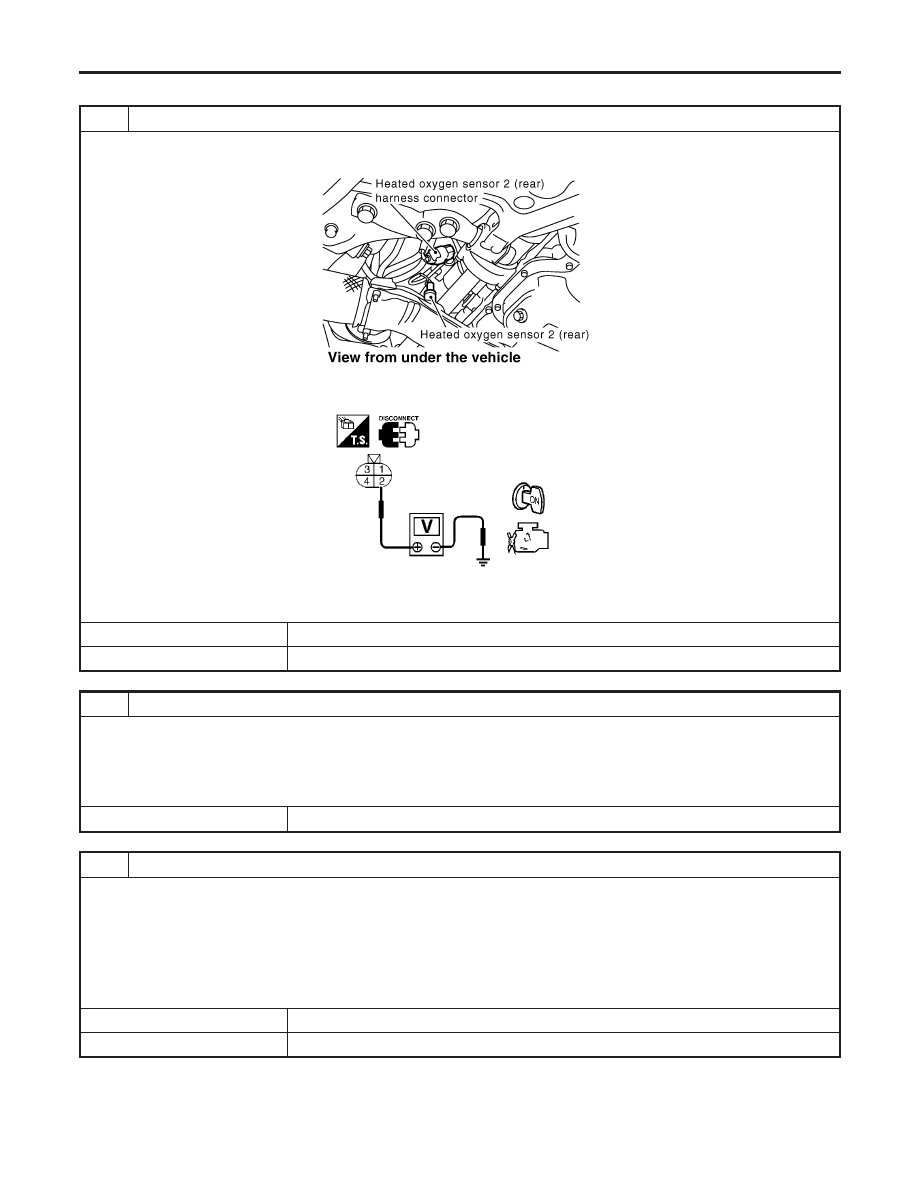

Diagnostic Procedure

NCEC0186

1

CHECK POWER SUPPLY

1. Turn ignition switch “OFF”.
2. Disconnect heated oxygen sensor 2 (rear) harness connector.

SEF918Z

3. Turn ignition switch “ON”.
4. Check voltage between HO2S2 terminal 2 and ground.

SEF218W

Voltage: Battery voltage

OK or NG

OK

©

GO TO 3.

NG

©

GO TO 2.

2

DETECT MALFUNCTIONING PART

Check the following.

I

Harness connectors M62, F24

I

Fuse block (J/B) connector M2

I

10A fuse

I

Harness for open or short between heated oxygen sensor 2 (rear) and fuse

©

Repair harness or connectors.

3

CHECK OUTPUT SIGNAL CIRCUIT

1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check harness continuity between HO2S2 terminal 3 and ECM terminal 3.

Refer to Wiring Diagram.

Continuity should exist.

4. Also check harness for short to ground and short to power.

OK or NG

OK

©

GO TO 4.

NG

©

Repair open circuit or short to ground or short to power in harness or connectors.

DTC P0141 HEATED OXYGEN SENSOR 2 HEATER (REAR)

Diagnostic Procedure

EC-270
