Infiniti G20 (P11). Manual - part 108





SBR451D

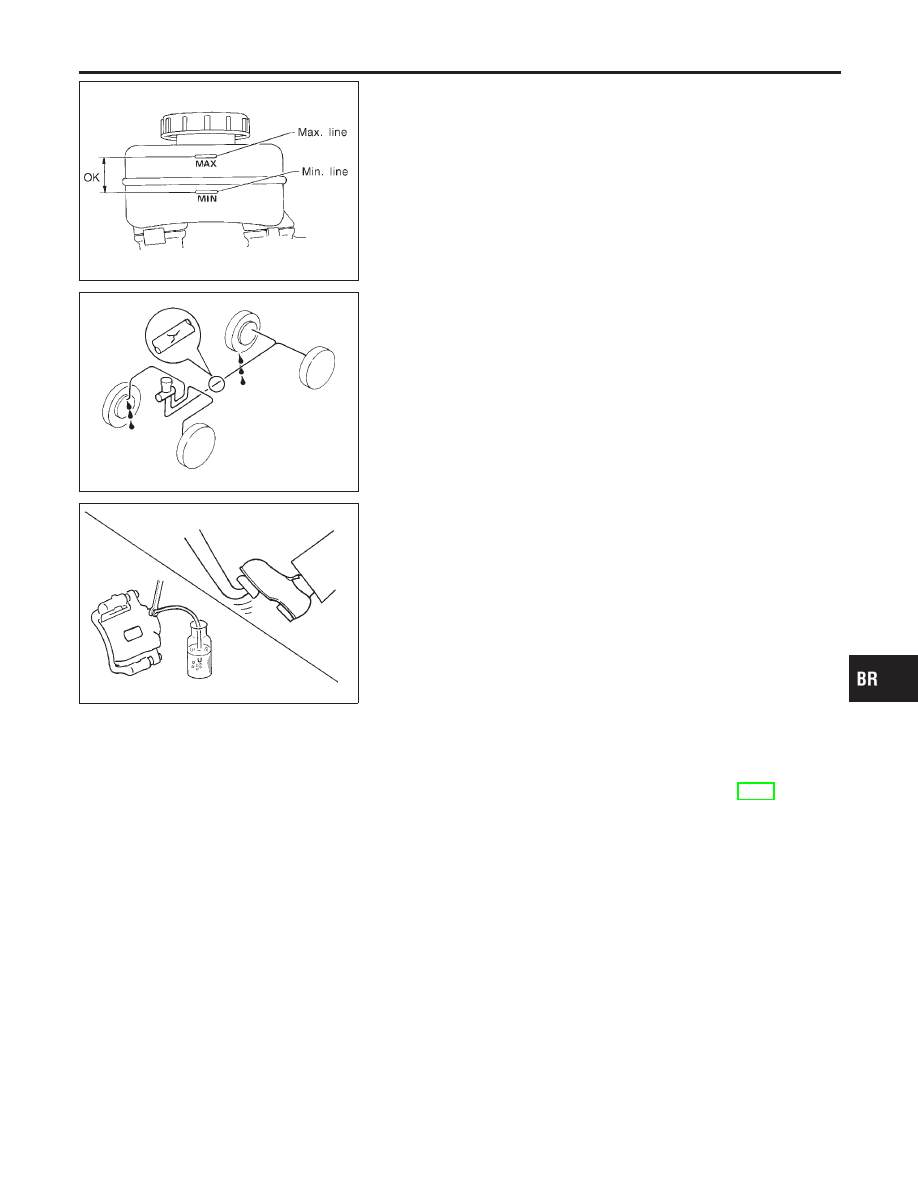

Checking Brake Fluid Level

NCBR0006

I

Check fluid level in reservoir tank. It should be between Max
and Min lines on reservoir tank.

I

If fluid level is extremely low, check brake system for leaks.

I

Release parking brake lever and see if brake warning lamp
goes off. If not, check brake system for leaks.

SBR389C

Checking Brake Line

NCBR0007

CAUTION:

If leakage occurs around joints, retighten or, if necessary,
replace damaged parts.
1.

Check brake lines (tubes and hoses) for cracks, deterioration
or other damage. Replace any damaged parts.

2.

Check for oil leakage by fully depressing brake pedal while
engine is running.

SBR419C

Changing Brake Fluid

NCBR0008

CAUTION:

I

Refill with new brake fluid “DOT 3”.

I

Always keep fluid level higher than minimum line on res-
ervoir tank.

I

Never reuse drained brake fluid.

I

Be careful not to splash brake fluid on painted areas; it
may cause paint damage. If brake fluid is splashed on
painted areas, wash it away with water immediately.

1.

Clean inside of reservoir tank, and refill with new brake fluid.

2.

Connect a vinyl tube to each air bleeder valve.

3.

Drain brake fluid from each air bleeder valve by depressing
brake pedal.

4.

Refill until brake fluid comes out of each air bleeder valve.
Use same procedure as in bleeding hydraulic system to refill
brake fluid. Refer to “Bleeding Brake System”, BR-8.

Brake Burnishing Procedure

NCBR0036

Burnish the brake contact surfaces according to the following pro-
cedure after refinishing or replacing drums or rotors, after replac-
ing pads or linings, or if a soft pedal occurs at very low mileage.

CAUTION:

Only perform this procedure under safe road and traffic con-
ditions. Use extreme caution.
1.

Drive the vehicle on a straight smooth road at 50 km/h (31
MPH).

2.

Use medium brake pedal/foot effort to bring the vehicle to a
complete stop from 50 km/h (31 MPH). Adjust brake pedal/foot

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

ST

RS

BT

HA

SC

EL

IDX

ON-VEHICLE SERVICE

Checking Brake Fluid Level

BR-7

pressure such that vehicle stopping time equals 3 to 5 sec-
onds.

3.

To cool the brake system, drive the vehicle at 50 km/h (31
MPH) for 1 minute without stopping.

4.

Repeat steps 1 to 3, 10 times or more to complete the burnish-
ing procedure.

SBR995

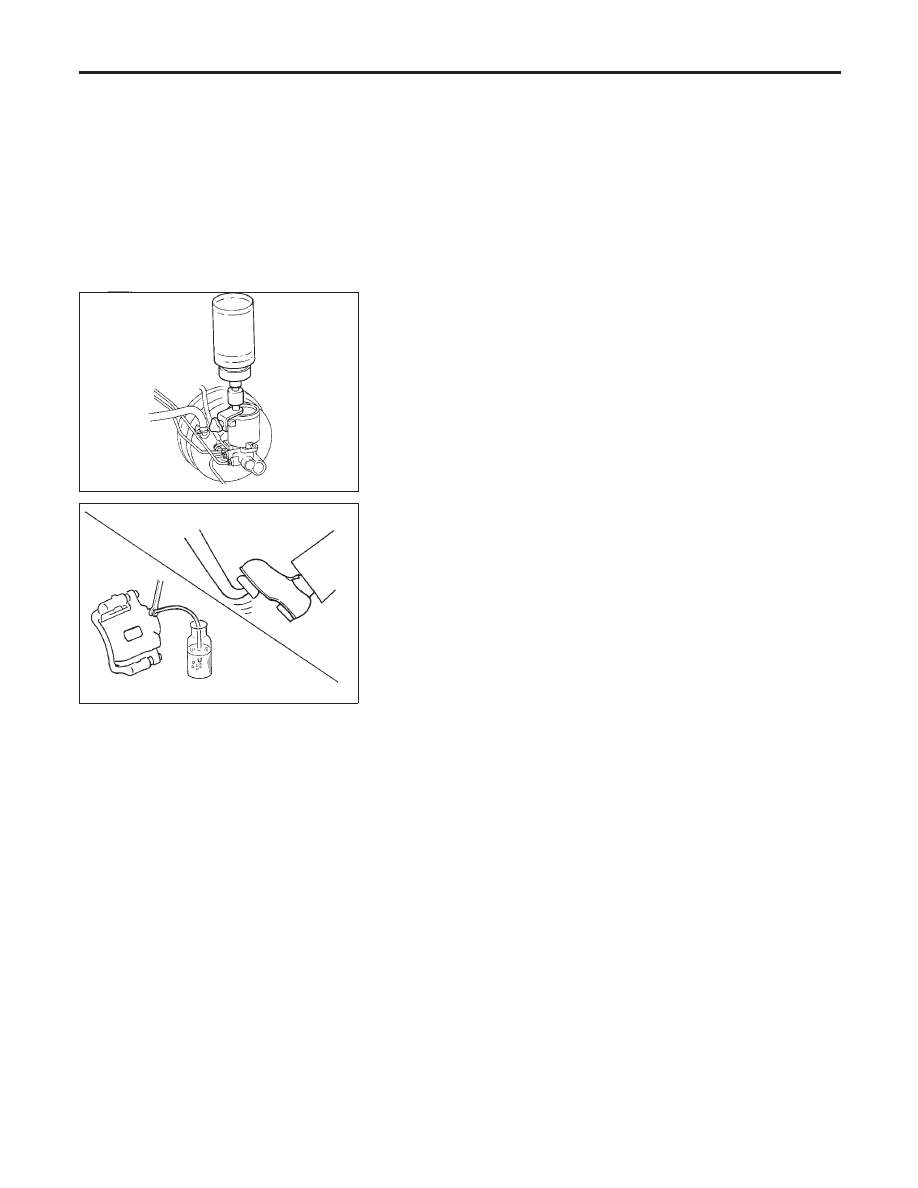

Bleeding Brake System

NCBR0009

CAUTION:

I

Carefully monitor brake fluid level at master cylinder dur-
ing bleeding operation.

I

Fill reservoir with new brake fluid “DOT 3”. Make sure it is
full at all times while bleeding air out of system.

I

Place a container under master cylinder to avoid spillage
of brake fluid.

I

For models with ABS, turn ignition switch OFF and dis-
connect ABS actuator connectors or battery ground cable.

SBR419C

I

Bleed air in the following order.
Right rear brake

,

Left front brake

,

Left rear brake

,

Right

front brake

1.

Connect a transparent vinyl tube to air bleeder valve.

2.

Fully depress brake pedal several times.

3.

With brake pedal depressed, open air bleeder valve to release
air.

4.

Close air bleeder valve.

5.

Release brake pedal slowly.

6.

Repeat steps 2. through 5. until clear brake fluid comes out of
air bleeder valve.

ON-VEHICLE SERVICE

Brake Burnishing Procedure (Cont’d)

BR-8

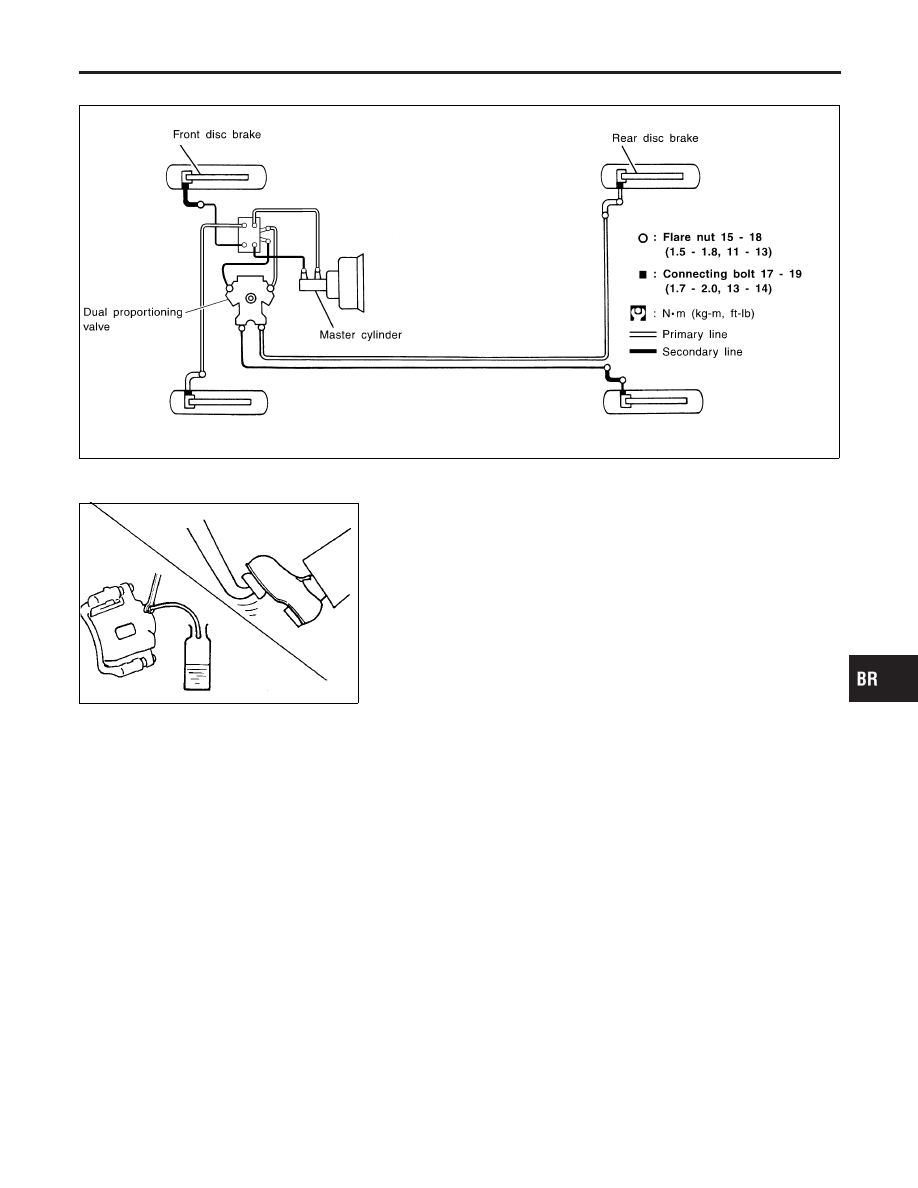

Hydraulic Circuit

NCBR0010

SBR322EB

SBR992

Removal

NCBR0011

CAUTION:

I

Be careful not to splash brake fluid on painted areas; it
may cause paint damage. If brake fluid is splashed on
painted areas, wash it away with water immediately.

I

All hoses must be free from excessive bending, twisting
and pulling.

1.

Connect vinyl tube to air bleeder valve.

2.

Drain brake fluid from each air bleeder valve by depressing
brake pedal.

3.

Remove flare nut connecting brake tube and hose, then with-
draw lock spring.

4.

Cover openings to prevent entrance of dirt whenever discon-
necting brake line.

Inspection

NCBR0012

Check brake lines (tubes and hoses) for cracks, deterioration or
other damage. Replace any damaged parts.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

ST

RS

BT

HA

SC

EL

IDX

BRAKE HYDRAULIC LINE

Hydraulic Circuit

BR-9

SBR686C

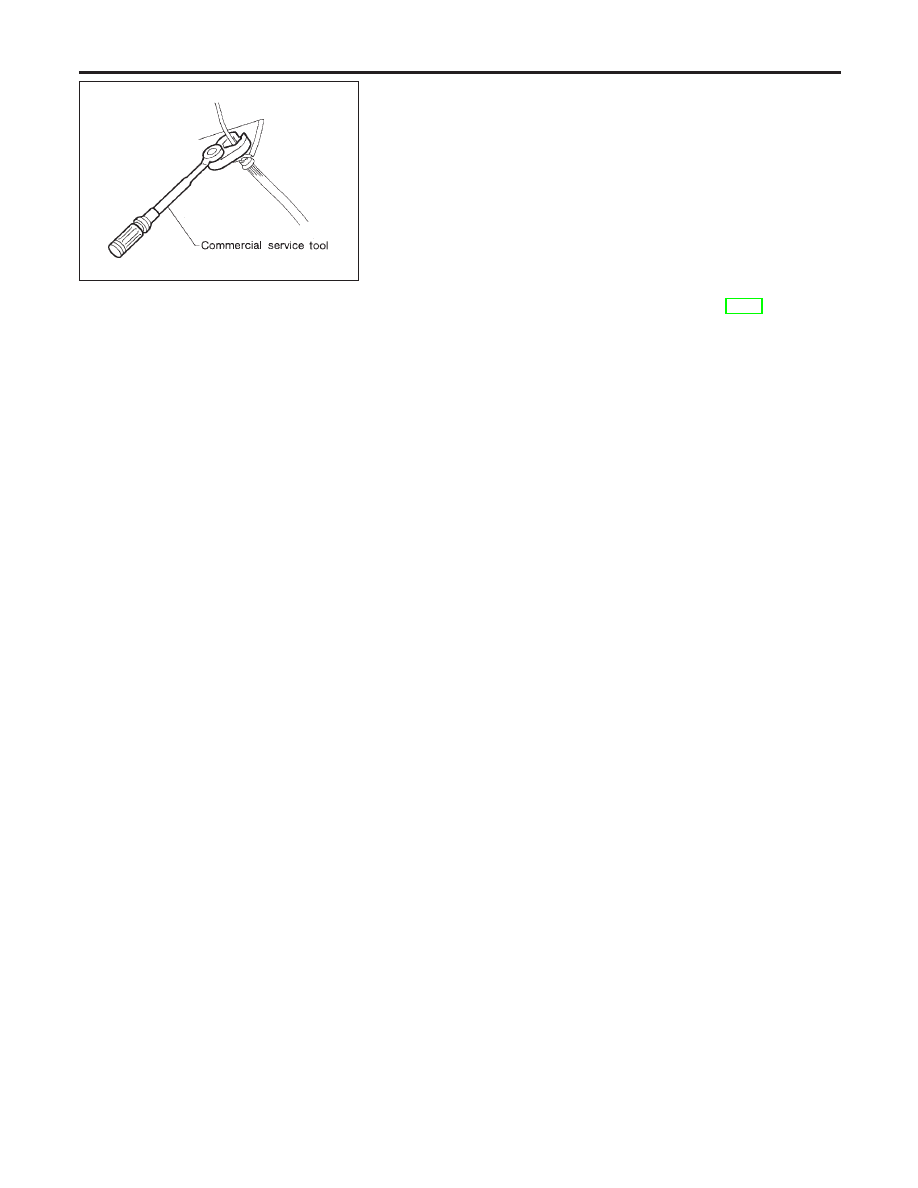

Installation

NCBR0013

CAUTION:

I

Refill with new brake fluid “DOT 3”.

I

Never reuse drained brake fluid.

1.

Tighten all flare nuts and connecting bolts.

Specification:

Flare nut

15 - 18 N·m (1.5 - 1.8 kg-m, 11 - 13 ft-lb)

Connecting bolt

17 - 19 N·m (1.7 - 2.0 kg-m, 13 - 14 ft-lb)

2.

Refill until new brake fluid comes out of each air bleeder valve.

3.

Bleed air. Refer to “Bleeding Brake System”, BR-8.

BRAKE HYDRAULIC LINE

Installation

BR-10
