Infiniti G20 (P11). Manual - part 97





SAT405D

3.

Install O-ring on differential oil port of transmission case.

4.

Install converter housing on transmission case.

I

Apply locking sealant to mating surface of converter
housing.

Bolt

Length mm (in)

A

32.8 (1.291)

B

40 (1.57)

SAT406DA

5.

Install accumulator piston.

a.

Check contact surface of accumulator piston for damage.

SAT407DA

b.

Install O-rings on accumulator piston.

I

Apply ATF to O-rings.

Accumulator piston O-rings:

Refer to SDS, AT-399.

SAT878J

c.

Install accumulator pistons and return springs on transmission
case.

I

Apply ATF to inner surface of transmission case.

Return springs:

Refer to SDS, AT-399.

GI

MA

EM

LC

EC

FE

CL

MT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

ASSEMBLY

Assembly (4) (Cont’d)

AT-385

SAT021D

SAT022D

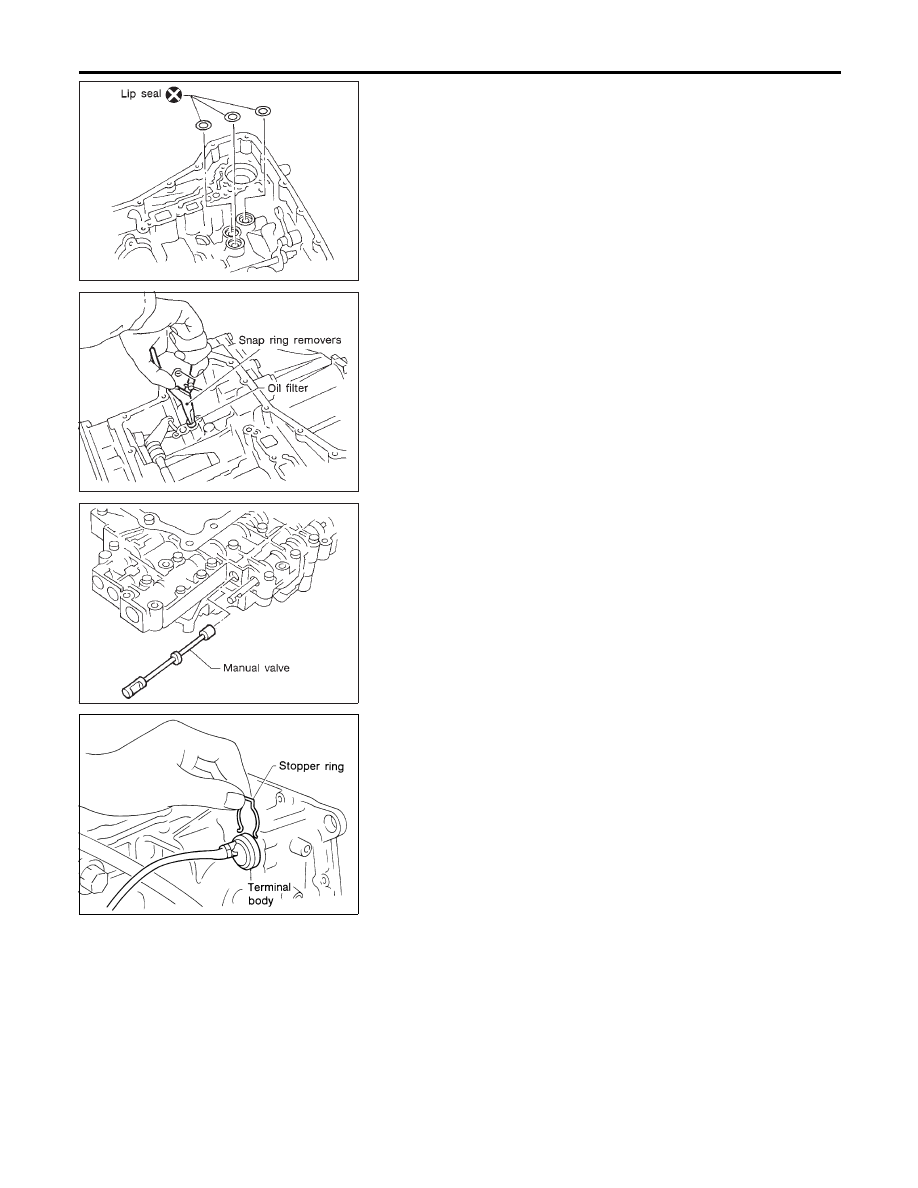

6.

Install lip seals for band servo oil holes on transmission case.

I

Apply petroleum jelly to lip seals.

SAT017D

7.

Install control valve assembly.

a.

Insert manual valve into control valve assembly.

I

Apply ATF to manual valve.

AAT261A

b.

Pass solenoid harness through transmission case and install
terminal body on transmission case by pushing it.

c.

Install stopper ring to terminal body.

ASSEMBLY

Assembly (4) (Cont’d)

AT-386

AAT260A

d.

Tighten bolts Aand C.

: 7 - 9 N·m (0.7 - 0.9 kg-m, 61 - 78 in-lb)

Bolt length, number and location

Bolt symbol

A

B

C

Bolt length “



40.0 mm

(1.575 in)

33.0 mm

(1.299 in)

43.5 mm

(1.713 in)

Number of bolts

5

6

2

SAT418D

8.

Install oil pan.

a.

Attach magnet to oil pan.

SAT128E

b.

Install new oil pan gasket on transmission case.

c.

Install oil pan on transmission case.

I

Always replace oil pan bolts as they are self-sealing bolts.

I

Tighten the four bolts in a criss-cross pattern to prevent
dislocation of gasket.

d.

Tighten drain plug to specified torque.

SAT023JB

9.

Install PNP switch.

a.

Set manual shaft in “P” position.

b.

Temporarily install PNP switch on manual shaft.

c.

Move selector lever to “N” position.

GI

MA

EM

LC

EC

FE

CL

MT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

ASSEMBLY

Assembly (4) (Cont’d)

AT-387

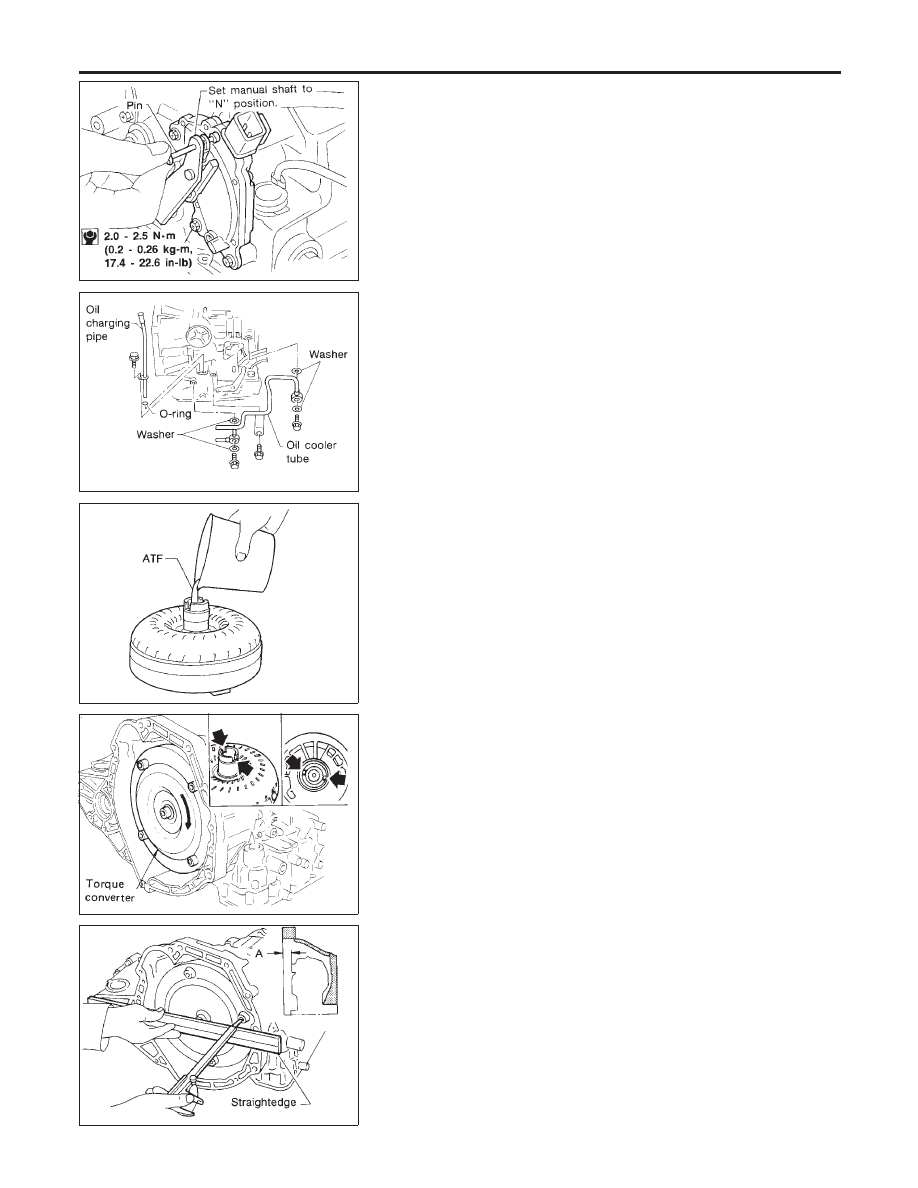

SAT426DB

d.

Use a 4 mm (0.157 in) pin for this adjustment.

1)

Insert the pin straight into the manual shaft adjustment hole.

2)

Rotate PNP switch until the pin can also be inserted straight
into hole in PNP switch.

e.

Tighten PNP switch fixing bolts.

f.

Remove pin from adjustment hole after adjusting PNP switch.

SAT586H

10. Install oil charging pipe and oil cooler tube to transmission

case.

SAT428DA

11. Install torque converter.
a.

Pour ATF into torque converter.

I

Approximately 1 liter (1-1/8 US qt, 7/8 Imp qt) of fluid is
required for a new torque converter.

I

When reusing old torque converter, add the same amount
of fluid as was drained.

SAT429D

b.

Install torque converter while aligning notches of torque con-
verter with notches of oil pump.

SAT430D

c.

Measure distance “A” to check that torque converter is in
proper position.

Distance “A”:

15.9 mm (0.626 in) or more

ASSEMBLY

Assembly (4) (Cont’d)

AT-388
