Infiniti G20 (P11). Manual - part 80





SAT073F

c.

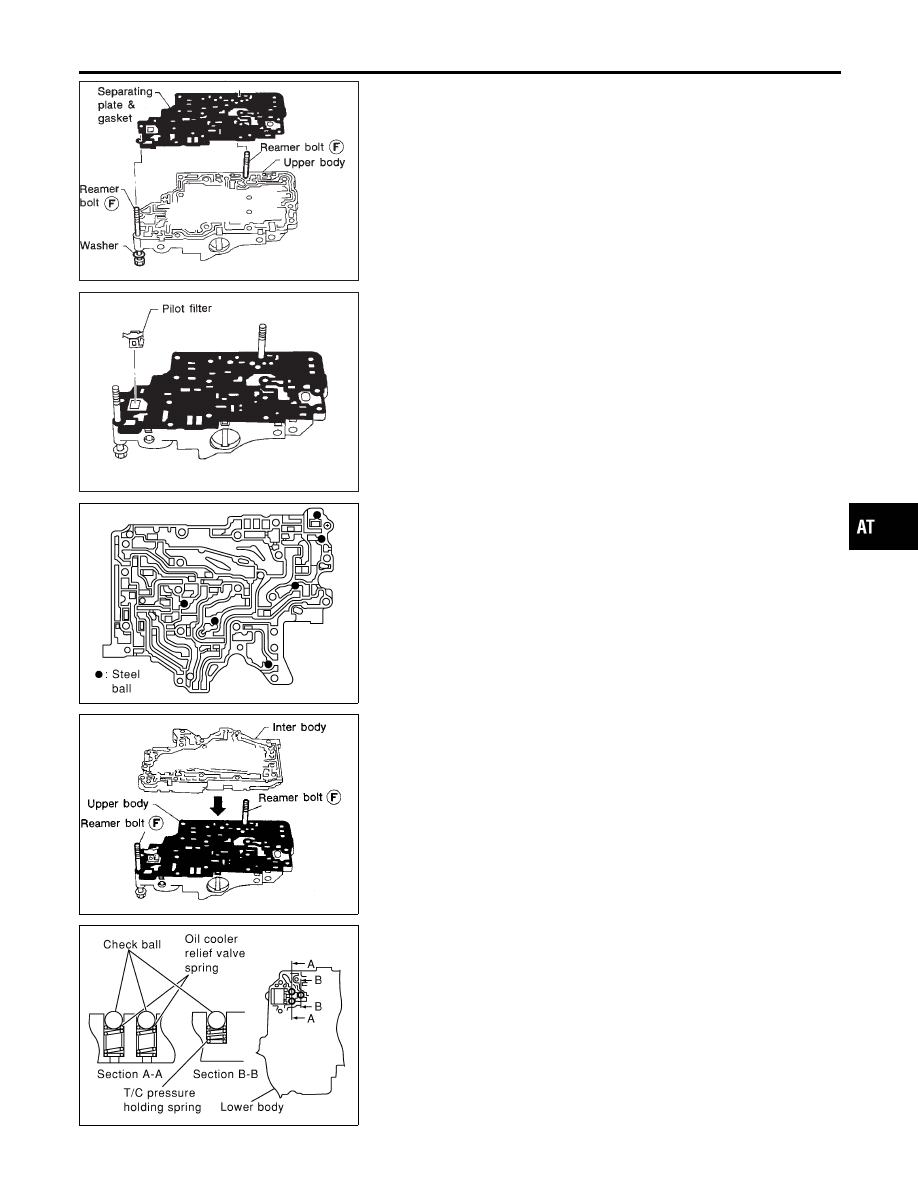

Install reamer bolts from bottom of upper body. Using reamer
bolts as guides, install separating plate and gaskets as a seat.

SAT074F

d.

Install pilot filter.

SAT870J

e.

Place inter body as shown in the illustration. Install steel balls
in their proper positions.

SAT076F

f.

Install inter body on upper body using reamer bolts as
guides.

I

Be careful not to dislocate or drop steel balls.

SAT873J

g.

Install check balls, oil cooler relief valve springs and T/C pres-
sure holding spring in their proper positions in lower body.

GI

MA

EM

LC

EC

FE

CL

MT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

REPAIR FOR COMPONENT PARTS

Control Valve Assembly (Cont’d)

AT-317

SAT077F

h.

Install lower separating gasket, inner separating gasket and
lower separating plate in order shown in the illustration.

SAT078F

i.

Install bolts from bottom of lower body. Using bolt as
guides, install separating plate and gaskets as a set.

j.

Install support plates on lower body.

AAT536

k.

Install lower body on inter body using reamer bolts as guides
and tighten reamer bolts slightly.

SAT317G

2.

Install O-rings to solenoid valves and terminal body.

I

Apply ATF to O-rings.

3.

Install and tighten bolts.

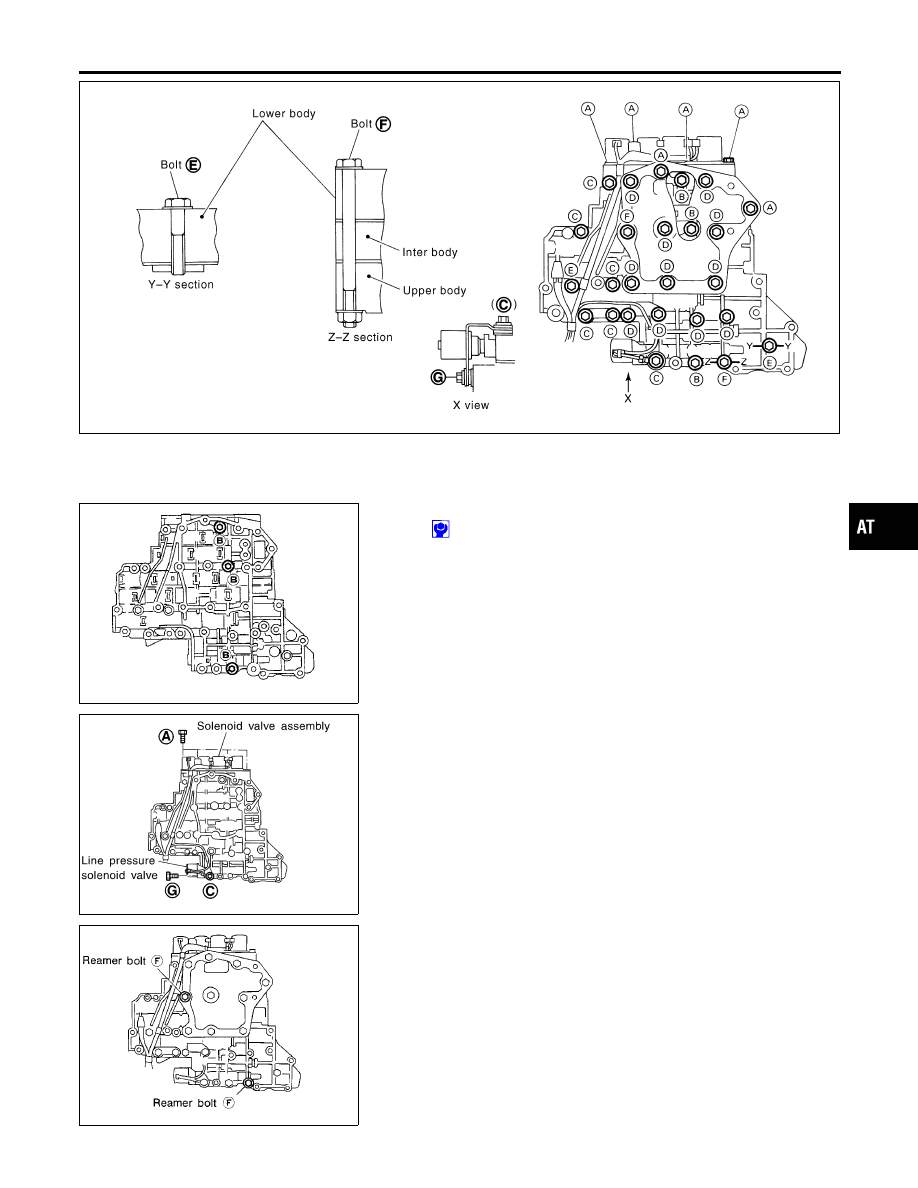

Bolt length, number and location:

Bolt symbol

A

B

C

D

E

F

G

Bolt length “



13.5 mm

(0.531 in)

58.0 mm

(2.283 in)

44.0 mm

(1.732 in)

66.0 mm

(2.598 in)

33.0 mm

(1.299 in)

78.0 mm

(3.071 in)

18.0 mm

(0.709 in)

Number of bolts

6

3

6

11

2

2

1

F: Reamer bolt with nut

REPAIR FOR COMPONENT PARTS

Control Valve Assembly (Cont’d)

AT-318

SAT869J

SAT081F

a.

Install and tighten bolts to specified torque.

: 7 - 9 N·m (0.7 - 0.9 kg-m, 61 - 78 in-lb)

SAT316GA

b.

Install solenoid valve assembly and line pressure solenoid
valve to lower body.

SAT323G

c.

Remove reamer bolts and set oil strainer on control valve
assembly.

d.

Reinstall reamer bolts from lower body side.

GI

MA

EM

LC

EC

FE

CL

MT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

REPAIR FOR COMPONENT PARTS

Control Valve Assembly (Cont’d)

AT-319

SAT083F

e.

Tighten bolts ACand to specified torque.

: 7 - 9 N·m (0.7 - 0.9 kg-m, 61 - 78 in-lb)

SAT084FA

f.

Tighten bolts to specified torque.

: 3.4 - 4.4 N·m (0.35 - 0.45 kg-m, 30.4 - 39.1 in-lb)

REPAIR FOR COMPONENT PARTS

Control Valve Assembly (Cont’d)

AT-320
