BODY REPAIR

33

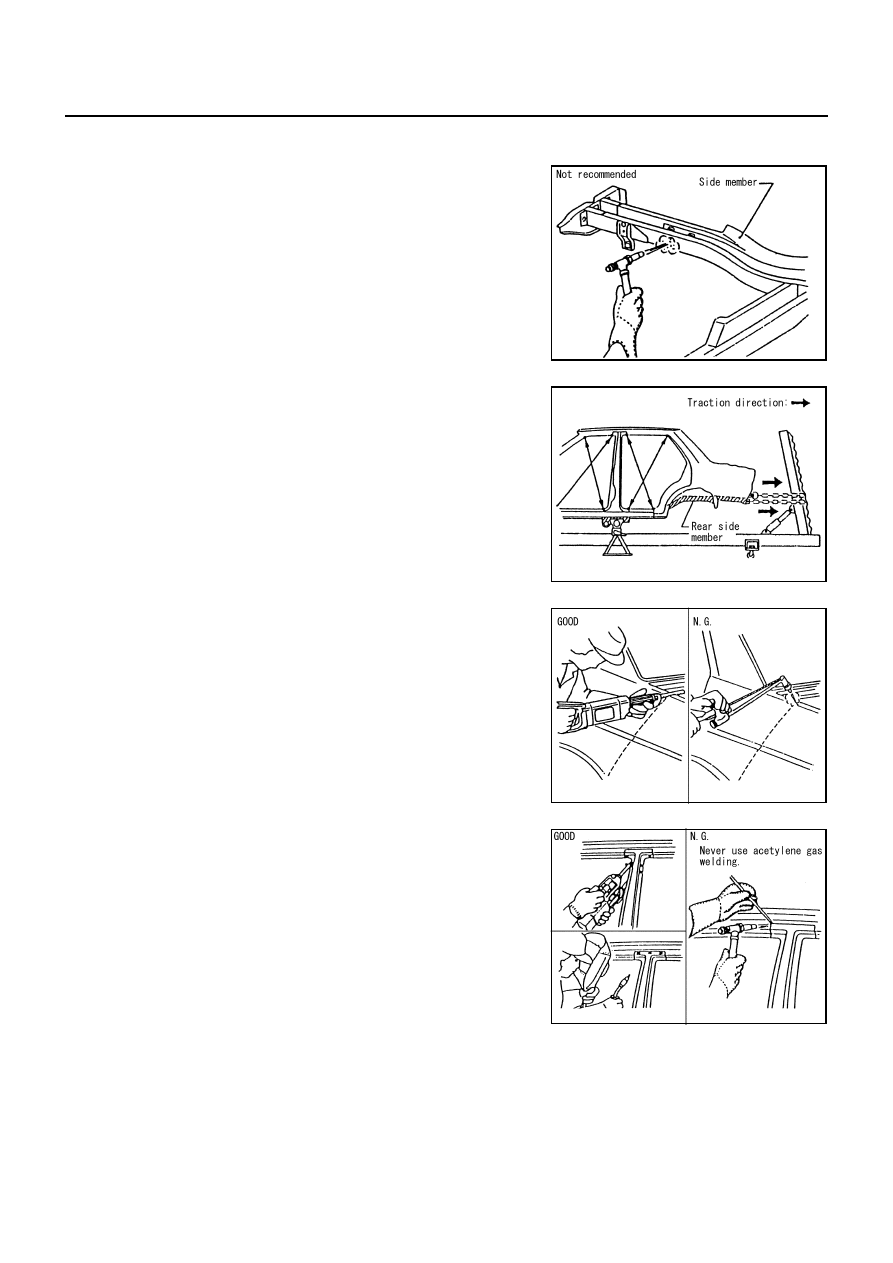

Read the Following Precautions When Repairing HSS:

1.

Additional points to consider

The repair of reinforcements (such as side members) by heat-
ing is not recommended since it may weaken the component.
When heating is unavoidable, do not heat HSS parts above
550

°

C (1,022

°

F).

Verify heating temperature with a thermometer.
(Crayon-type and other similar type thermometer are appro-
priate.)

When straightening body panels, use caution in pulling any
HSS panel. Because HSS is very strong, pulling may cause
deformation in adjacent portions of the body. In this case,
increase the number of measuring points, and carefully pull
the HSS panel.

When cutting HSS panels, avoid gas (torch) cutting if possi-
ble. Instead, use a saw to avoid weakening surrounding areas
due to heat. If gas (torch) cutting is unavoidable, allow a mini-
mum margin of 50 mm (1.97in).

When welding HSS panels, use spot welding whenever possi-
ble in order to minimize weakening surrounding areas due to
heat.
If spot welding is impossible, use M.I.G. welding. Do not use
gas (torch) welding because it is inferior in welding strength.

PIIA0115E

PIIA0116E

PIIA0117E

PIIA0144E

34

BODY REPAIR



The spot weld on HSS panels is harder than that of an ordi-
nary steel panel.
Therefore, when cutting spot welds on a HSS panel, use a
low speed high torque drill (1,000 to 1,200 rpm) to increase
drill bit durability and facilitate the operation.

2.

Precautions in spot welding HSS
This work should be performed under standard working condi-
tions. Always note the following when spot welding HSS:

The electrode tip diameter must be sized properly according
to the metal thickness.

The panel surfaces must fit flush to each other, leaving no
gaps.

Follow the specifications for the proper welding pitch.

Unit:mm

PIIA0145E

PIIA0146E

PIIA0147E

Thickness (t)

Minimum pitch (l)

0.6 (0.024)
0.8 (0.031)
1.0 (0.039)
1.2 (0.047)
1.6 (0.063)
1.8 (0.071)

10 (0.39) or over
12 (0.47) or over
18 (0.71) or over
20 (0.79) or over
27 (1.06) or over
31 (1.22) or over

PIIA0148E

BODY REPAIR

35



Foam Repair

BIS002KL

During factory body assembly, foam insulators are installed in certain body panels and locations around the
vehicle. Use the following procedure(s) to replace any factory-installed foam insulators.

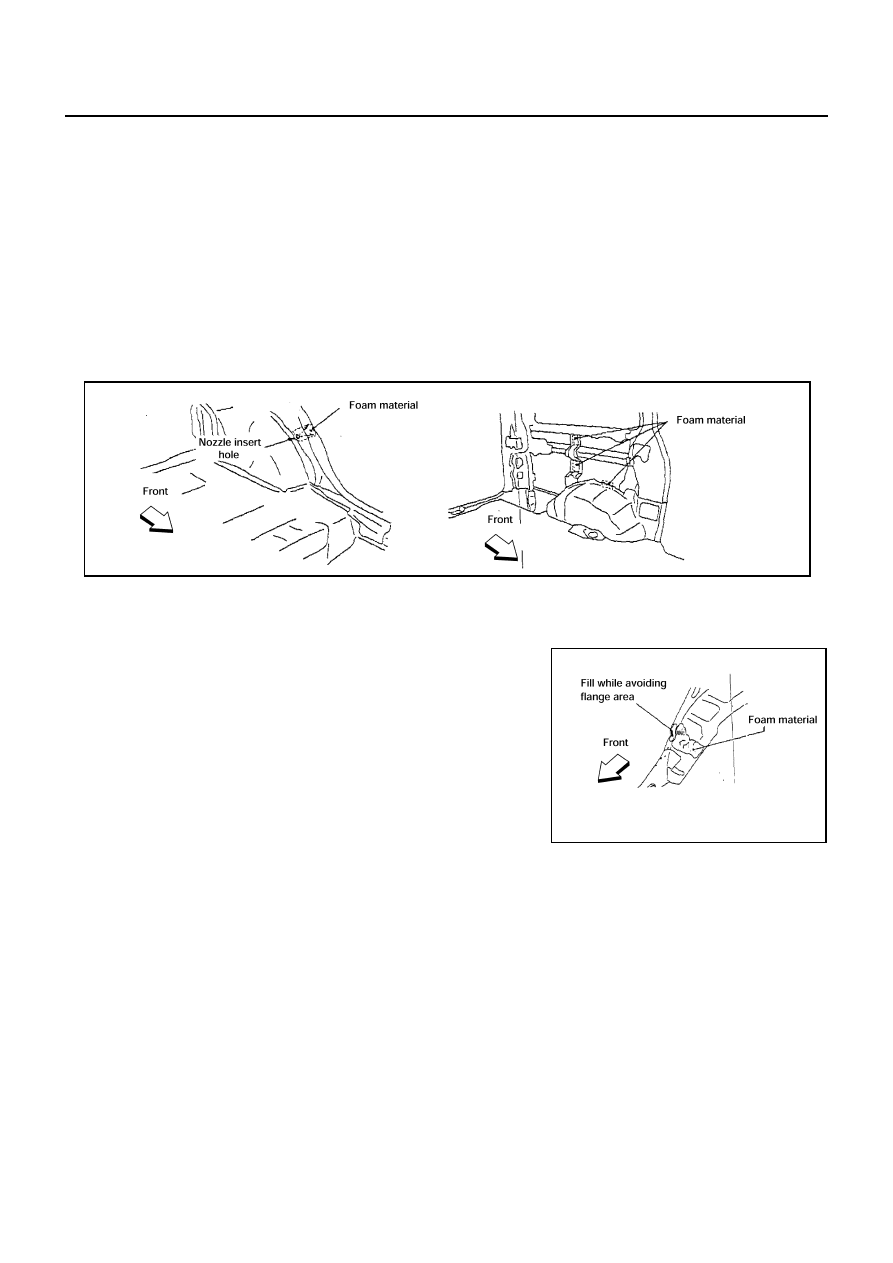

URETHANE FOAM APPLICATIONS

Use commercially available spray foam for sealant (foam material) repair of material used on vehicle. Read
instructions on product for fill procedures.

1.

Fill procedures after installation of service part.

Remove foam material remaining on vehicle side.

Clean area in which foam was removed.

Install service part.

Insert nozzle into hole near fill area and fill foam material or fill in enough to close gap with the service
part.

2.

Fill procedures before installation of service part.

Remove foam material remaining on vehicle side.

Clean area in which foam was removed.

Fill foam material on wheelhouse outer side.
NOTE:
Fill in enough to close gap with service part while avoiding
flange area.

Install service part.

NOTE:
Refer to label for information on working times.

LIIA1081E

LIIA1082E

36

BODY REPAIR



Replacement Operations

BIS002GJ

DESCRIPTION

This section is prepared for technicians who have attained a high level of skill and experience in repairing col-
lision-damaged vehicles and also use modern service tools and equipment. Persons unfamiliar with body
repair techniques should not attempt to repair collision-damaged vehicles by using this section.

Technicians are also encouraged to read Body Repair Manual (Fundamentals) in order to ensure that the orig-
inal functions and quality of the vehicle can be maintained. The Body Repair Manual (Fundamentals) contains
additional information, including cautions and warning, that are not including in this manual. Technicians
should refer to both manuals to ensure proper repairs.

Please note that these information are prepared for worldwide usage, and as such, certain procedures might
not apply in some regions or countries.
