BODY REPAIR

5



BODY EXTERIOR PAINT COLOR

2S: Solid + Clear,

2P: 2-Coat pearl,

3P: 3-Coat pearl,

M: Metallic,

3M: 3-Coat Metallic,

FPM: Iron oxide pearl,



RPM: Multi flex color,

TM: Micro titanium metallic,

PM: Pearl metallic

Component

Color code

BA50

BBW9

BC16

BKH3

BK23

BK32

BWV2

Description

Orange

Dark

Blue

Grayish

Brown

Black

Silver

Yellowish

Silver

Silver

Paint type

M

2P

PM

2S

M

TM

M

Hard clear coat

×

×

×

×

-

-

-

1 Bumper

fascia

Body color

BA50

BBW9

BC16

BKH3

BK23

BK32

BWV2

2 Bumper

finisher

Black

G01-1 G01-1 G01-1 G01-1 G01-1 G01-1 G01-1

3 Front grille

Chromium-
plate + Color
clear coat

Cr2p

Cr2p

Cr2p

Cr2p

Cr2p

Cr2p

Cr2p

4 Door out-

side
mirror

Hous-
ing

Body color

BA50

BBW9

BC16

BKH3

BK23

BK32

BWV2

Base

Black

G01-2 G01-2 G01-2 G01-2 G01-2 G01-2 G01-2

5 Door out-

side han-
dle

Chromium-
plate

Cr2p

Cr2p

Cr2p

Cr2p

Cr2p

Cr2p

Cr2p

6 Fuel filler

lid

Body color

BA50

BBW9

BC16

BKH3

BK23

BK32

BWV2

7 Rear

spoiler

Body color

BA50

BBW9

BC16

BKH3

BK23

BK32

BWV2

8 Back door

Body color

BA50

BBW9

BC16

BKH3

BK23

BK32

BWV2

SIIA2248E

6

BODY REPAIR



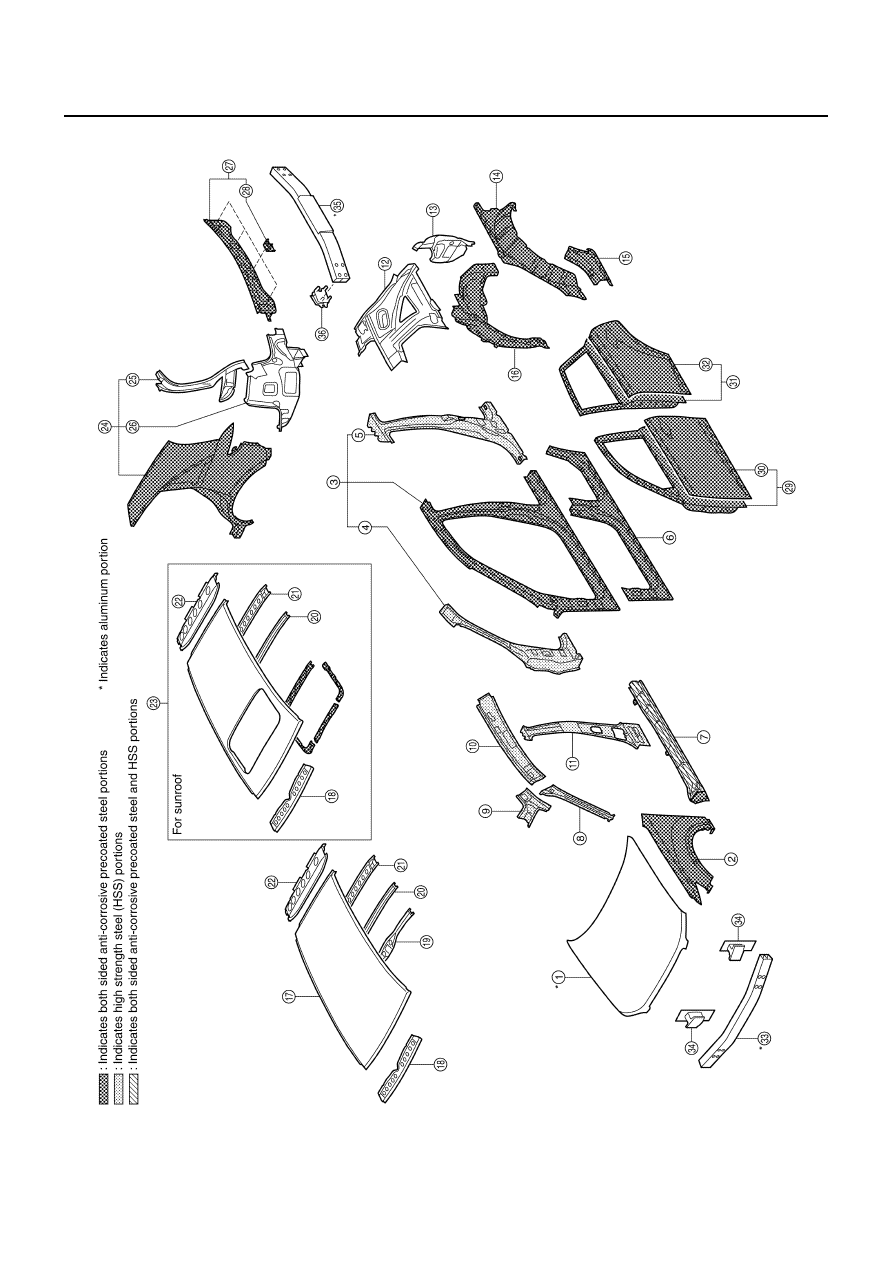

Body Component Parts

BIS002GC

UNDERBODY COMPONENT PARTS

SIIA2386E

BODY REPAIR

7



1.

Hoodledge assembly

16. Rear floor rear

2.

Upper front hoodledge

17. Rear floor seat belt anchor reinforcement

3.

Hoodledge reinforcement

18. Rear floor side

4.

Upper hoodledge

19. Spare tire clamp bracket

5.

Upper dash extension

20. Front side member

6.

Upper dash crossmember assembly

21. Front side member rear reinforcement

7.

Upper dash assembly

22. Front side member front extension

8.

Front cowl top assembly

23. Front side member closing plate

9.

Lower dash

24. Front side member outrigger assembly (RH&LH)

10. Front floor center

25. Front crossmember

11. Front floor

26. 2ND rear crossmember

12. Front floor reinforcement

27. Rear side member assembly

13. Inner sill

28. Rear side member extension

14. Lower rear seat crossmember

29. Rear center crossmember assembly

15. Rear floor front

30. Rear end crossmember assembly

8

BODY REPAIR



BODY COMPONENT PARTS

SIIA2387E
