SIDE CURTAIN AIR BAG MODULE

SIDE CURTAIN AIR BAG MODULE

Removal and Installation

INFOID:0000000001327767

WARNING:

• Before servicing SRS, turn ignition switch OFF, disconnect both battery cables and wait at least 3

minutes.

• Always work from the side of the side curtain air bag module.
• Do not use air tools or electric tools for servicing.

REMOVAL

1.

Remove headlining. Refer to

EI-43, "Component Parts Location"

.

2.

Disconnect side curtain air bag connector.
NOTE:
• For installing / removing side curtain air bag module connec-

tor, insert thin screwdriver wrapped in tape into notch, lift lock
and remove connector.

• Install connector with lock raised, and push lock into connec-

tor.

• After installing the connector, make sure that the lock is

pushed securely into it.

3.

Remove side curtain air bag module fixing bolts, and then remove the side curtain air bag module.

CAUTION:

• Always place the side curtain air bag module with the warning

label facing upward.

• Do not disassemble side curtain air bag module.
• Do not insert any foreign objects (screwdriver, etc.) into air

bag module connector.

1. Side curtain air bag Inflator

2. Side curtain air bag

3. Bolt

4. Assist grip bracket

5. Bolt (There is no torque control)

PHIA0656E

PHIA0953J

PHIA0317E

SIDE CURTAIN AIR BAG MODULE

SRS-41

< SERVICE INFORMATION >

C

D

E

F

G

I

J

K

L

M

A

B

SRS

N

O

P

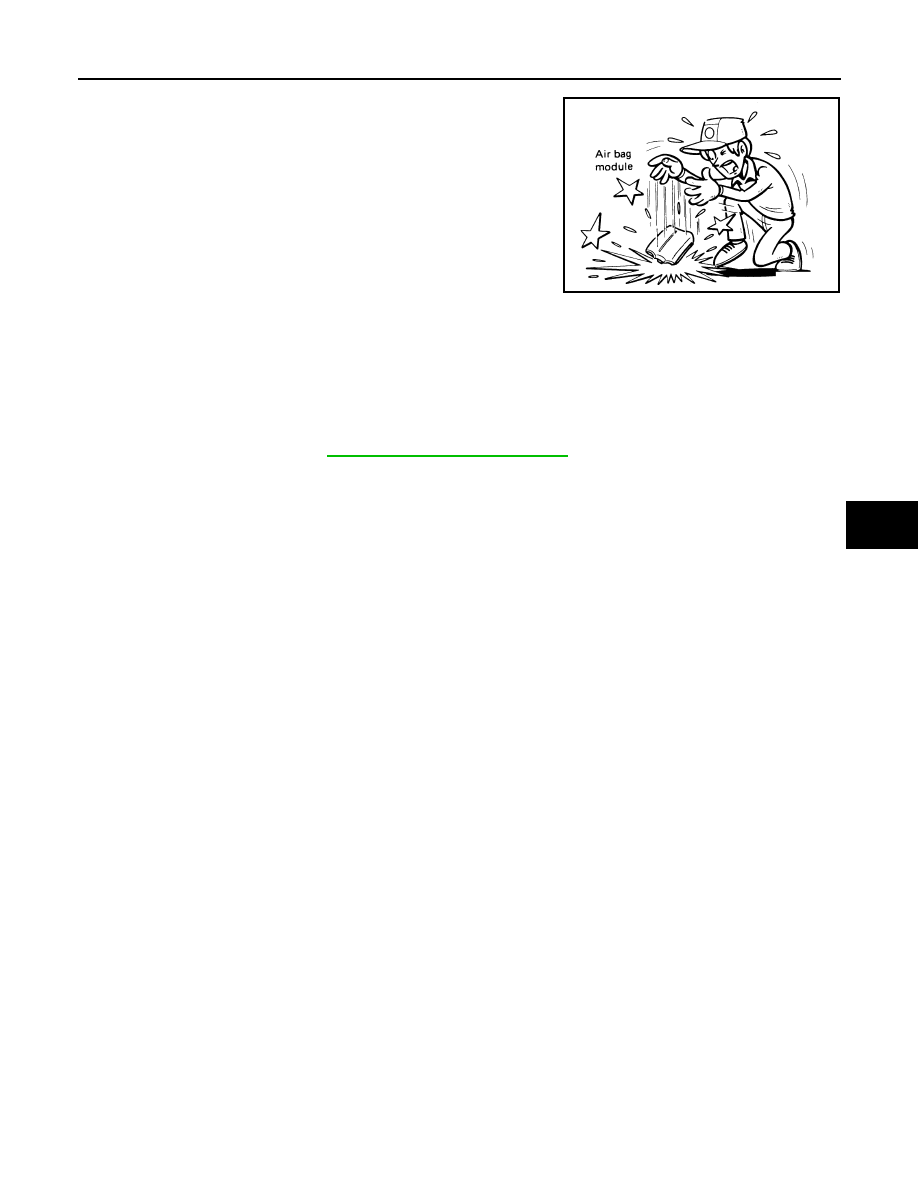

• Replace side curtain air bag module if it has been dropped or

sustained an impact.

• Do not expose the air bag module to temperatures exceeding

90

°

C (194

°

F).

• Do not allow oil, grease or water to come in contact with the

side curtain air bag module.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Be careful not to damage the air bag harness.
• After the work is completed, make sure no system malfunction is detected by air bag warning lamp.
• In case that malfunction is detected by the air bag warning lamp, reset by the self-diagnosis function

and delete the memory by CONSULT-III.

• In case that malfunction is still detected after the avove operation, perform self-diagnosis to repair

malfunctions. Refer to Refer to

SRS-23, "SRS Operation Check"

.

SBF814E
