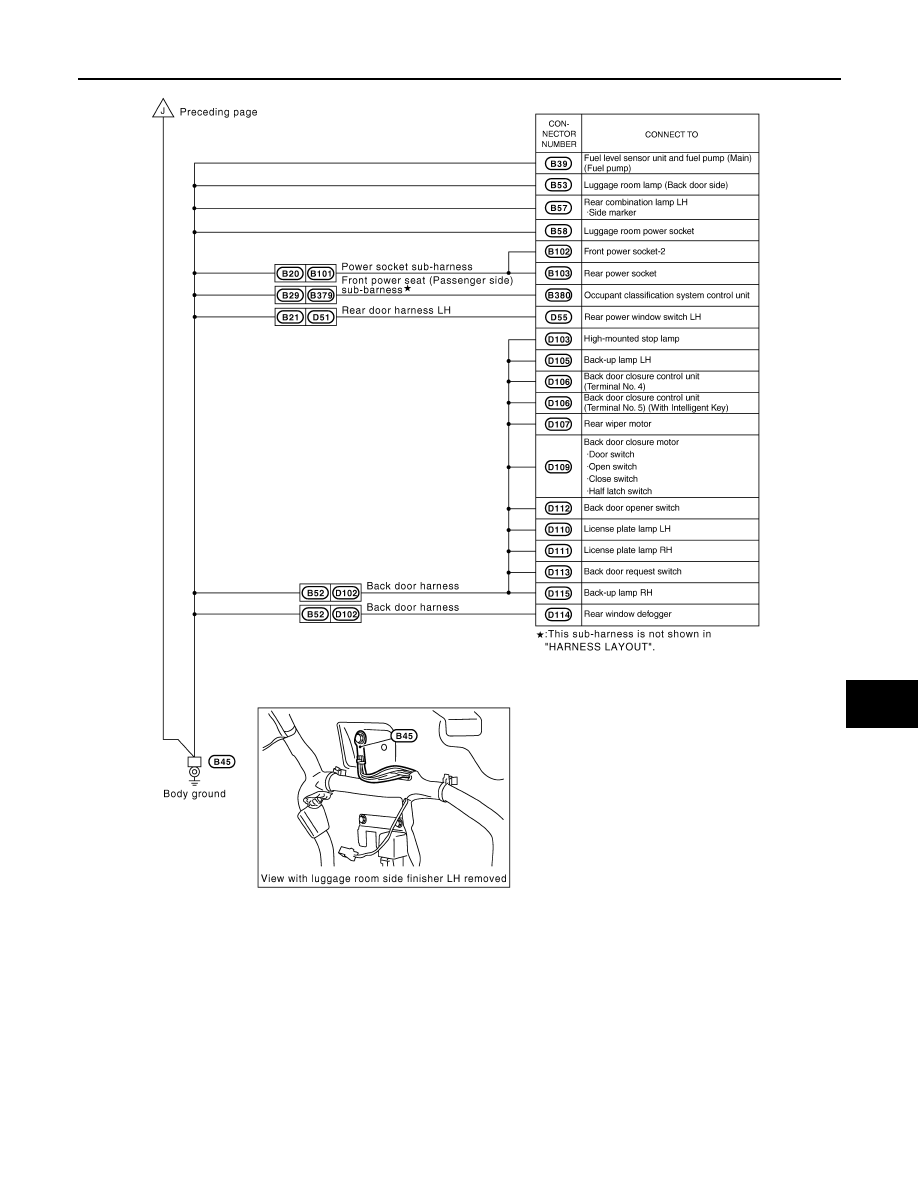

GROUND

PG-37

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

PG

N

O

P

CKIM0644E

PG-38

< SERVICE INFORMATION >

GROUND

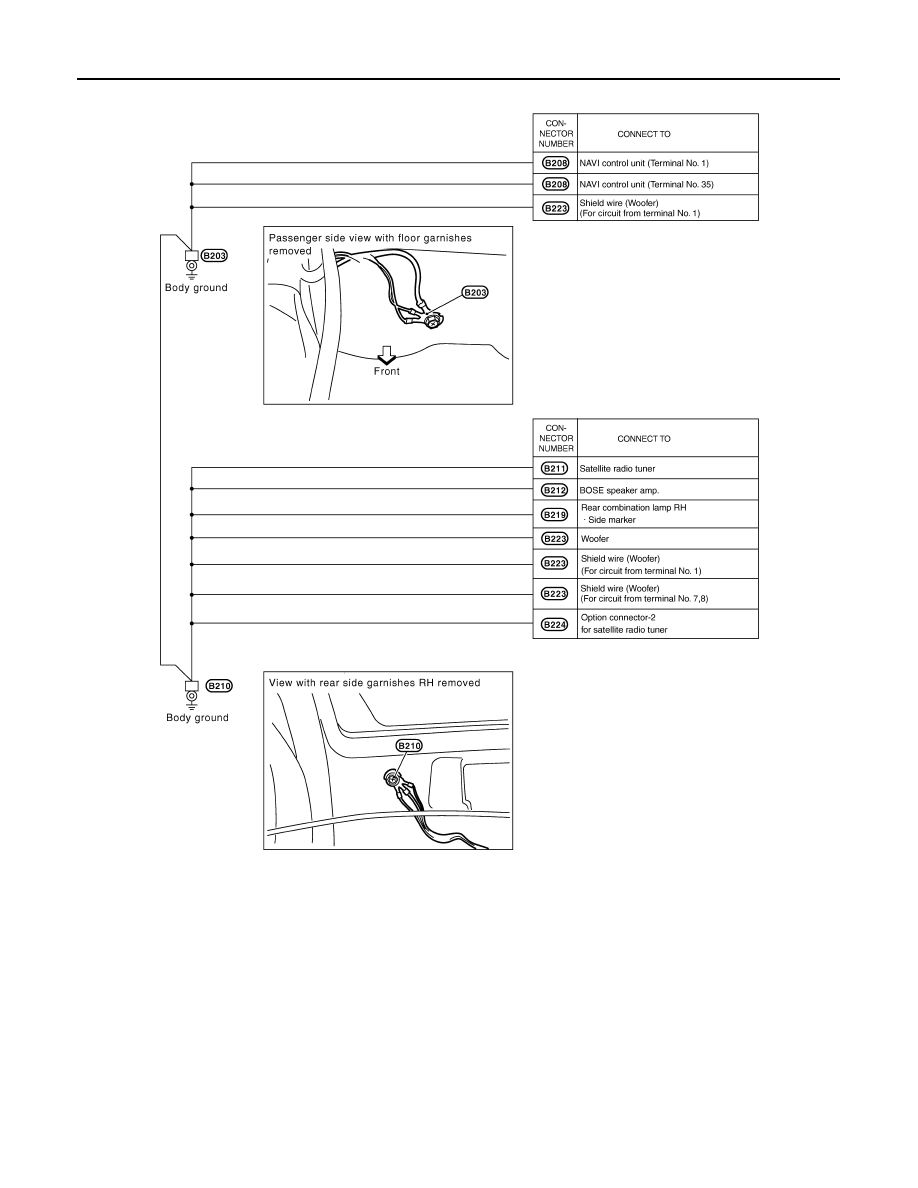

BODY NO. 2 HARNESS

CKIM0645E

GROUND

PG-39

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

PG

N

O

P

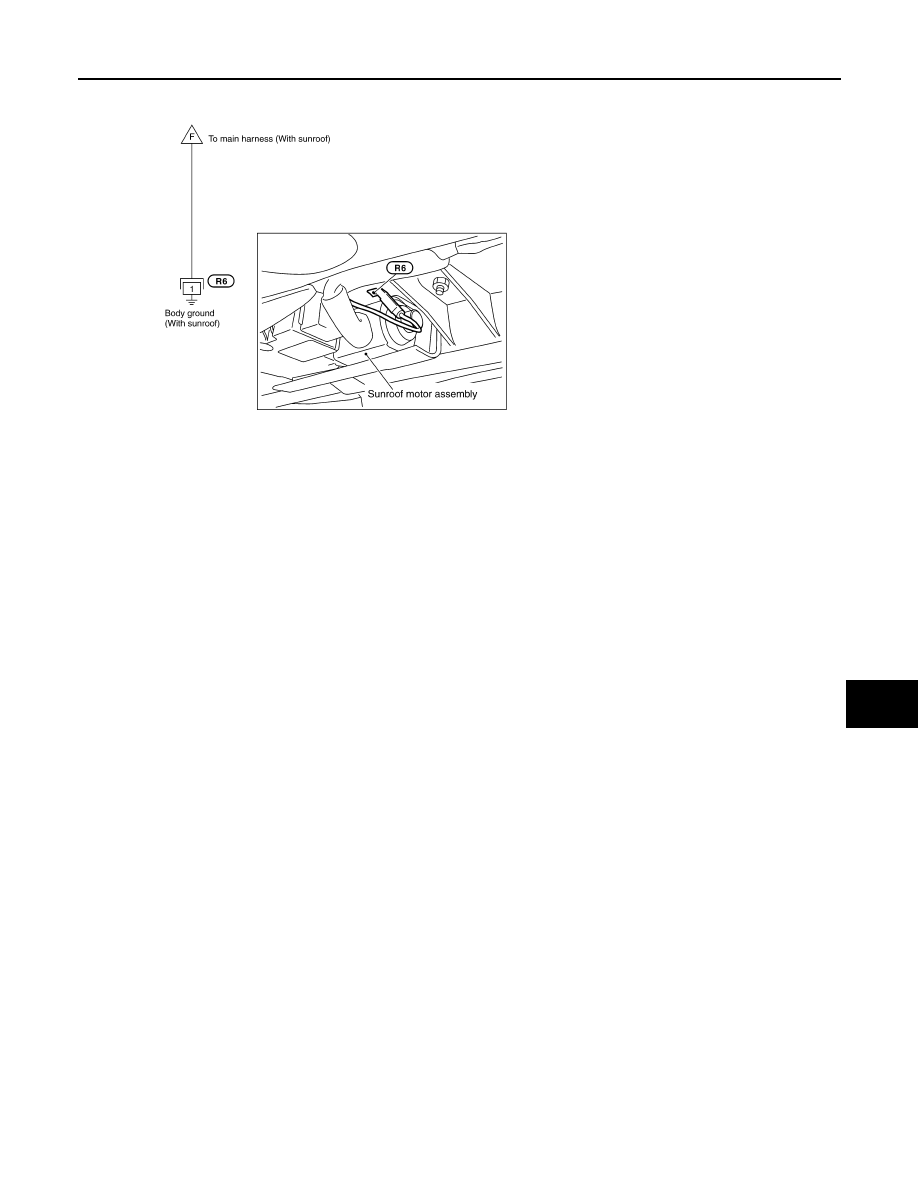

ROOM LAMP HARNESS

CKIM0211E

PG-40

< SERVICE INFORMATION >

HARNESS

HARNESS

Harness Layout

INFOID:0000000001328882

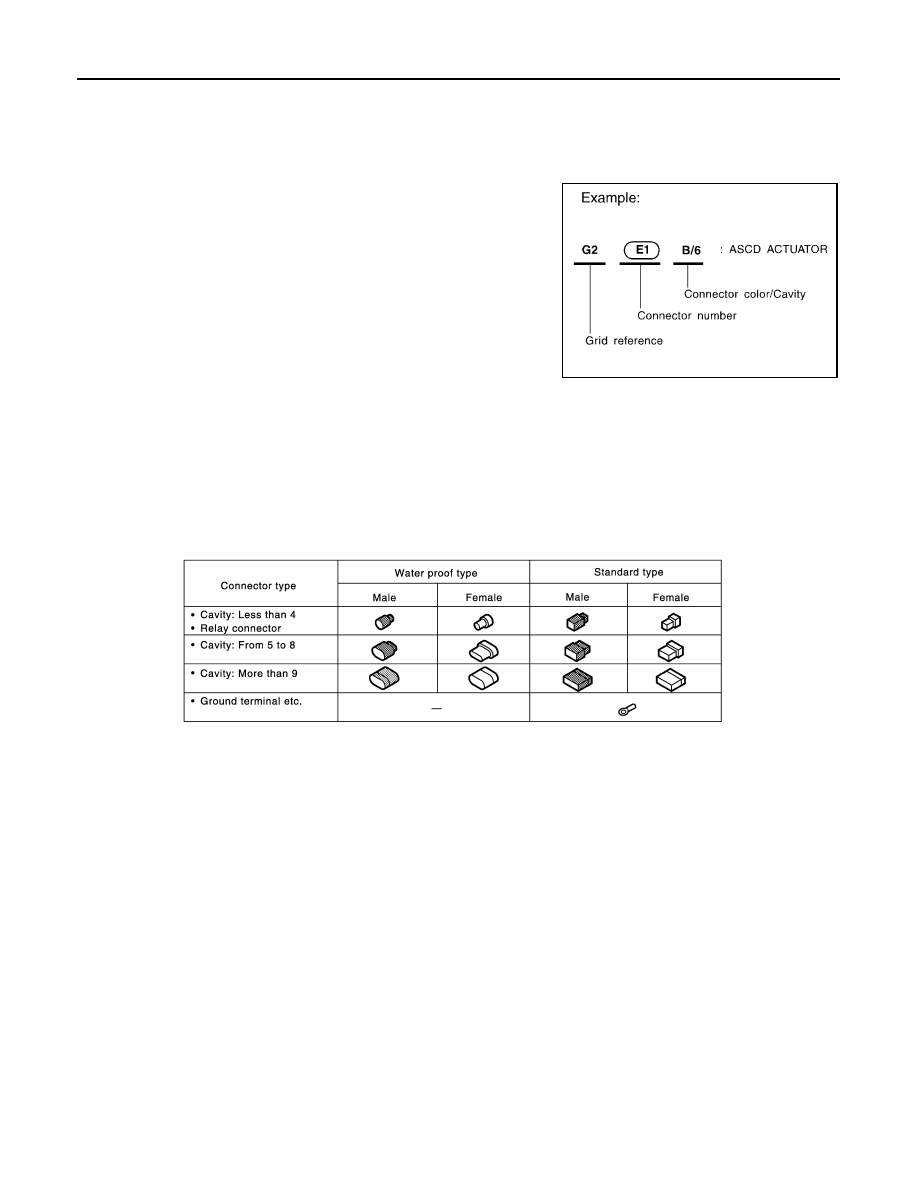

HOW TO READ HARNESS LAYOUT

The following Harness Layouts use a map style grid to help locate
connectors on the figures:
• Main Harness
• Engine Room Harness (Engine Compartment)
• Engine Control Harness
• Body Harness

To Use the Grid Reference

1.

Find the desired connector number on the connector list.

2.

Find the grid reference.

3.

On the figure, find the crossing of the grid reference letter column and number row.

4.

Find the connector number in the crossing zone.

5.

Follow the line (if used) to the connector.

CONNECTOR SYMBOL
Main symbols of connector (in Harness Layout) are indicated in the below.

SEL252V

CKIT0108E
