PB-2

< SERVICE INFORMATION >

PREPARATION

SERVICE INFORMATION

PREPARATION

Commercial Service Tool

INFOID:0000000001327645

Tool name

Description

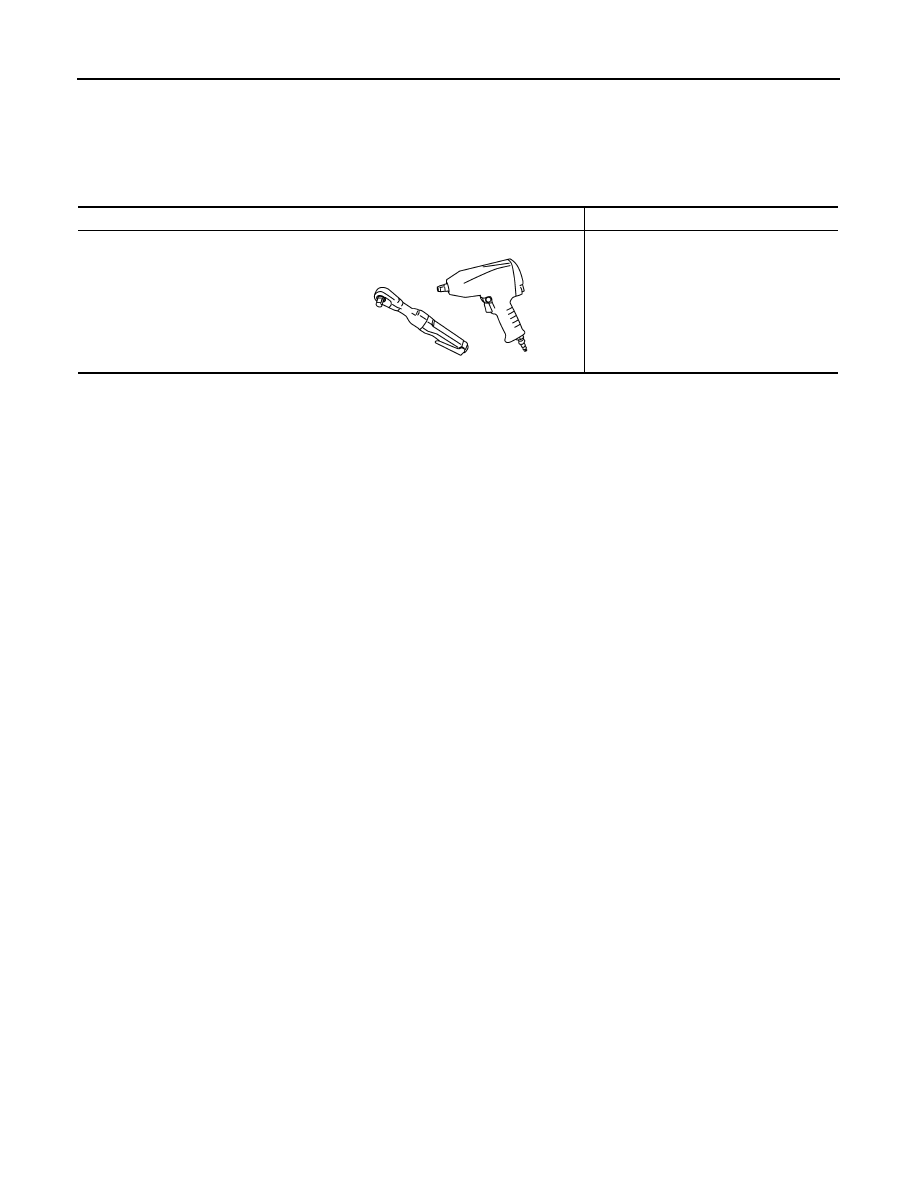

Power tool

Loosening bolts and nuts

PBIC0190E

PARKING BRAKE SYSTEM

PB-3

< SERVICE INFORMATION >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

PARKING BRAKE SYSTEM

On-Vehicle Inspection

INFOID:0000000001327646

PEDAL STROKE

• When parking brake pedal is operated with a force of 200 N (20.4 kg, 44.9 lb), make sure the parking brake

pedal stroke is within the specified number of notches. (Check it by listening and counting the ratchet clicks.)

• Make sure that brake warning lamp comes on when parking brake pedal is depressed with in one notch.

INSPECT COMPONENTS

• Make sure the components are installed properly (check for looseness, backlash, etc.).
• Check parking brake pedal assembly for bend, damage and cracks, and replace if necessary.
• Check cable for wear and damage, and replace if necessary.
• Check parking brake switch for malfunction, and replace if necessary.

ADJUSTMENT

1.

Insert a deep socket wrench to rotate adjusting nut and loosen
cable sufficiently. Then, return pedal.

2.

Remove tires from vehicle with power tool.

3.

Using wheel nuts, fix disc rotor to hub and prevent it from tilting.

4.

Remove adjusting hole plug installed on disc rotor. Using a flat-
bladed screwdriver, turn adjuster to clockwise in the figure until
disc rotor is locked. After locking, turn adjuster to opposite direc-
tion by 5 or 6 notches.

5.

Rotate disc rotor to make sure that there is no drag. Then install
adjusting hole plug.

6.

After adjusting the clearance of rear shoes, with no drag on rear
brake, adjuster cable as follows:

a.

Operate pedal 10 or more times with a force of 490 N (50 kg,
110 lb).

b.

Depress pedal until a deep socket wrench can be inserted.
Insert deep socket, and rotate adjusting nut to adjust pedal stroke.

CAUTION:

Do not reuse adjusting nut after removing it.

c.

When parking brake pedal is operated with a force of 200 N (20.4 kg, 44.9 lb), make sure the stroke is
within the specified number of notches. (Check it by listening and counting the ratchet clicks.)

d.

With parking brake pedal completely returned, make sure there is no drag on rear brake.

Pedal stroke

: 4

 5 notches

SFIA1139E

Pedal stroke

: 4

 5 notches

PFIA0295E

PB-4

< SERVICE INFORMATION >

PARKING BRAKE CONTROL

PARKING BRAKE CONTROL

Component

INFOID:0000000001327647

Removal and Installation

INFOID:0000000001327648

REMOVAL

1.

Remove front kicking plate (driver side). Refer to

IP-11, "Removal and Installation"

.

2.

Remove front body side welt (driver side). Refer to

EI-38

.

3.

Remove dash side finisher (driver side). Refer to

IP-10

4.

Remove instrument lower panel (driver side). Refer to

IP-10

.

5.

Remove adjusting nut.

6.

Remove front cable installation bolts, nuts, and lock plate, then remove front cable from the vehicle.

7.

Remove heat insulator between center muffler and rear propeller shaft.

8.

Remove exhaust center muffler. Refer to

EX-3

.

9.

Remove propeller shaft. Refer to

PR-9, "Removal and Installation"

10. Remove rear disc caliper and disc rotors. Refer to

BR-25, "Removal and Installation of Brake Caliper

Assembly"

.

11. Remove parking brake shoe, and remove rear cable from toggle lever. Refer to

PB-6

.

1.

Device assembly

2.

Spring insulator

3.

Return spring

4.

Lock plate

5.

Front cable

6.

Return spring

7.

Rear left cable

8.

Rear right cable

9.

Pin

10. Adjusting nut

SFIA1943E

PARKING BRAKE CONTROL

PB-5

< SERVICE INFORMATION >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

12. Remove right and left rear cables installation nuts, bolts, and remove right and left rear cable assembly

from the vehicle.

INSTALLATION

1.

Install in the reverse order of removal. Tighten the mounting bolts and nuts to the specified torque. Refer
to

PB-4, "Component"

.

CAUTION:

Do not reuse adjusting nut after removing it.

2.

Adjust parking brake. Refer to

PB-3, "On-Vehicle Inspection"

.
