PARKING, LICENSE PLATE AND TAIL LAMPS

LT-135

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

LT

N

O

P

Minutes)

INFOID:0000000001328397

1.

CHECK IPDM E/R

1.

Turn ignition switch ON. Turn combination switch (lighting switch) to the OFF position. Turn ignition switch
OFF.

2.

Verify that parking, license plate, and tail lamps turn on and off after approximately 10 minutes.

OK or NG

OK

>> Ignition relay malfunction. Refer to

PG-18, "Function of Detecting Ignition Relay Malfunction"

.

NG

>> INSPECTION END

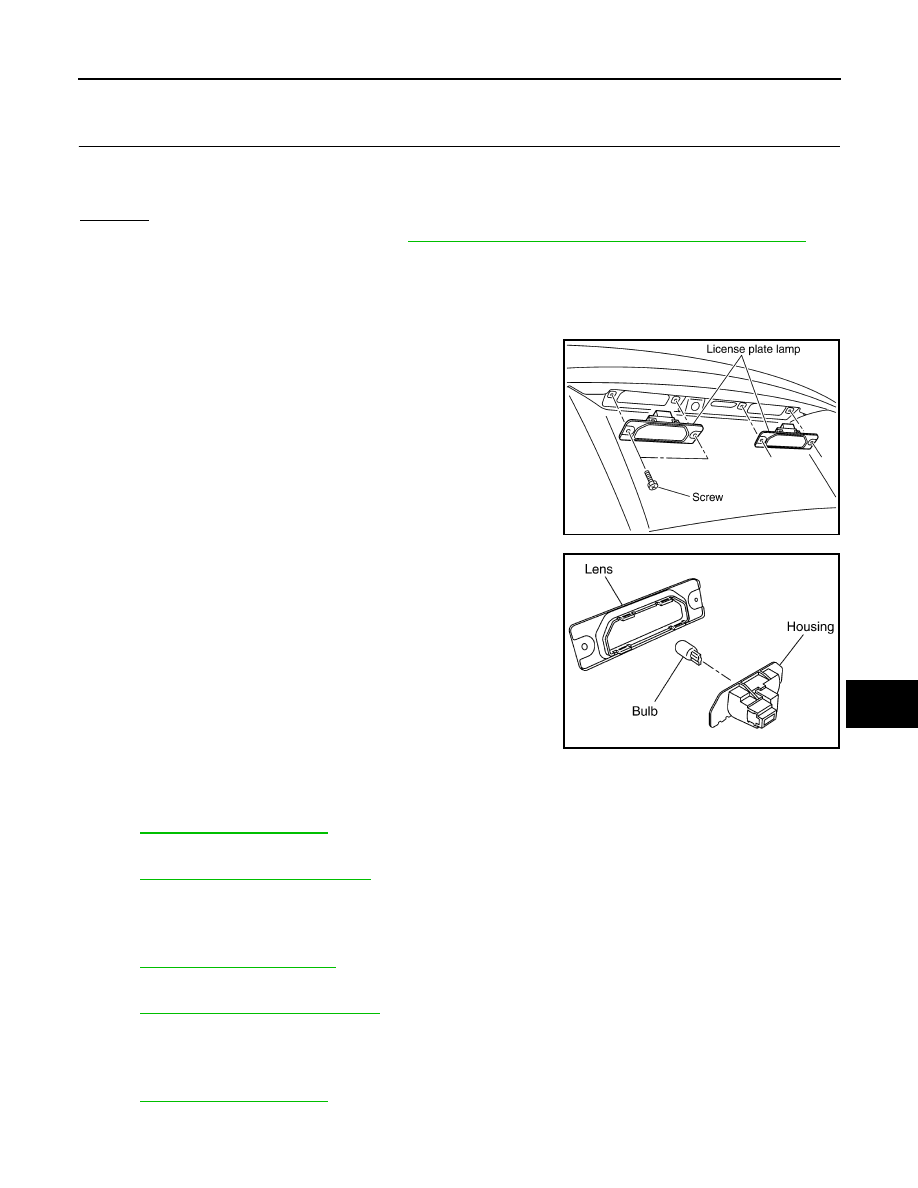

License Plate Lamp

INFOID:0000000001328398

BULB REPLACEMENT, REMOVAL AND INSTALLATION

1.

Remove screws and remove license plate lamp from back door.

2.

Disconnect license plate lamp connector.

3.

Insert a flat head or suitable tool and remove housing.

4.

Remove bulb from it's socket.

5.

Installation is the reverse order of removal.

Front Parking Lamp

INFOID:0000000001328399

BULB REPLACEMENT

Refer to

LT-28, "Bulb Replacement"

.

REMOVAL AND INSTALLATION

Refer to

LT-30, "Removal and Installation"

.

Tail Lamp

INFOID:0000000001328400

BULB REPLACEMENT

Refer to

LT-137, "Bulb Replacement"

.

REMOVAL AND INSTALLATION

Refer to

LT-137, "Removal and Installation"

.

Front Side Marker Lamp

INFOID:0000000001328401

BULB REPLACEMENT

Refer to

LT-28, "Bulb Replacement"

.

REMOVAL AND INSTALLATION

SKIA5567E

License plate lamp

: 12 V - 5 W

SKIA5568E

LT-136

< SERVICE INFORMATION >

PARKING, LICENSE PLATE AND TAIL LAMPS

Refer to

LT-30, "Removal and Installation"

.

Rear Side Marker Lamp

INFOID:0000000001328402

BULB REPLACEMENT

Refer to

LT-137, "Bulb Replacement"

.

REMOVAL AND INSTALLATION

Refer to

LT-137, "Removal and Installation"

.

Rear Combination Lamp Control Unit

INFOID:0000000001328403

REMOVAL AND INSTALLATION

Refer to

LT-95, "Removal and Installation of Rear Combination Lamp Control Unit"

.

REAR COMBINATION LAMP

LT-137

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

LT

N

O

P

REAR COMBINATION LAMP

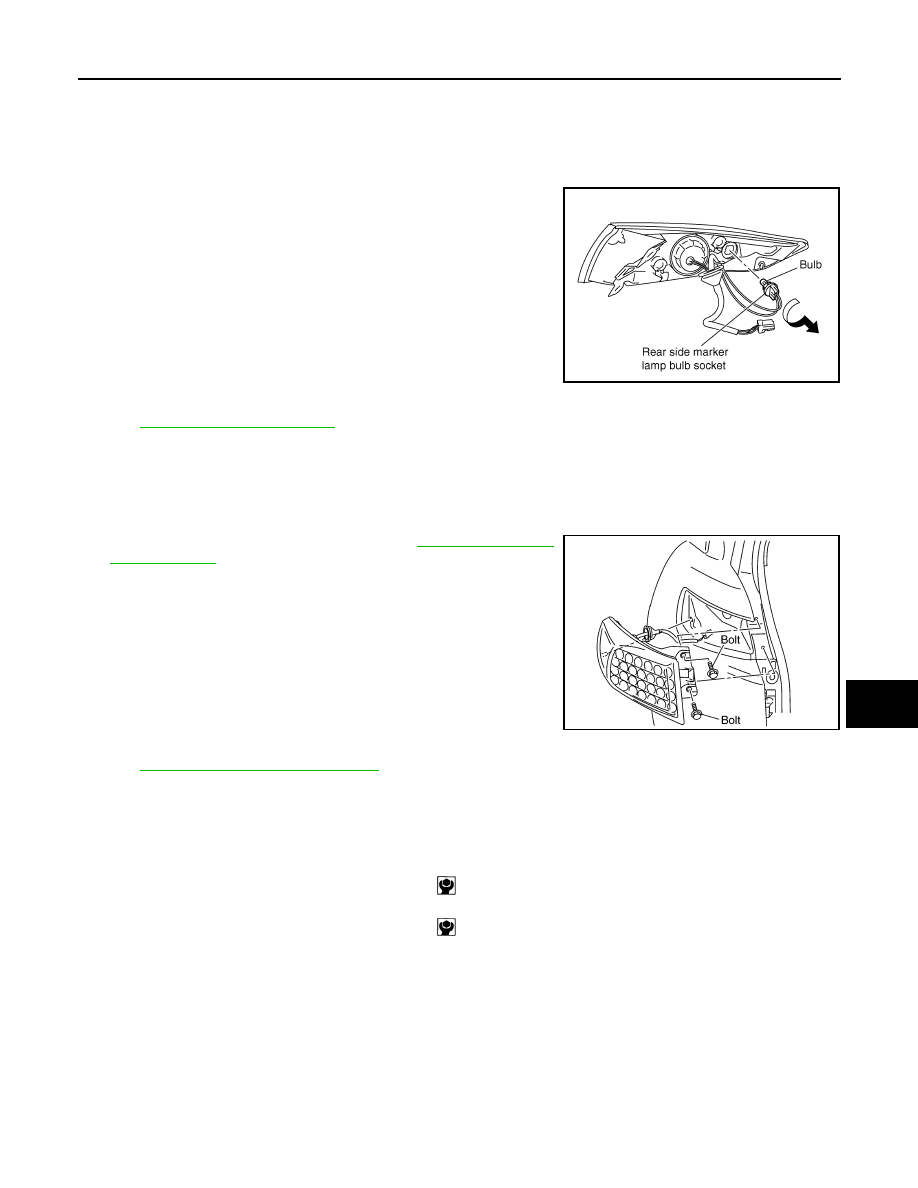

Bulb Replacement

INFOID:0000000001328404

REAR FENDER SIDE (REAR SIDE MARKER LAMP BULB)

1.

Remove rear combination lamp (rear fender side).

2.

Turn bulb socket counterclockwise and unlock it.

3.

Remove bulb.

BACK DOOR SIDE (BACK-UP LAMP)

Refer to

LT-117, "Bulb Replacement"

Removal and Installation

INFOID:0000000001328405

REMOVAL

Rear Fender Side

1.

Remove bumper side cover A. Refer to

EI-17, "Component

Parts Location"

.

2.

Disconnect rear combination lamp connector.

3.

Remove rear combination lamp mounting bolts.

4.

Pull rear combination lamp toward side of the vehicle and
remove from the vehicle.

Back Door Side

Refer to

LT-117, "Removal and Installation"

INSTALLATION

Installation is the reverse order of removal.

CAUTION:

Seal packing cannot be reused.

Stop/tail lamp and rear
turn signal lamp

: LED (Replace together with
rear combination lamp as-
sembly.)

Rear side marker lamp

: 12 V - 3.8 W

SKIA5569E

SKIA5571E

Rear combination lamp (rear fender
side) mounting nut

: 3.2 N·m (0.33 kg-m, 28 in-lb)

Rear combination lamp (Back Door
side) mounting nut

: 5.5 N·m (0.56 kg-m, 49 in-lb)

LT-138

< SERVICE INFORMATION >

INTERIOR ROOM LAMP

INTERIOR ROOM LAMP

Component Parts and Harness Connector Location

INFOID:0000000001328406

System Description

INFOID:0000000001328407

When the room lamp and personal lamp switch is in DOOR position, room lamp and personal lamp ON/OFF is
controlled by timer according to signals from switches including key switch, front door switch driver side,
unlock signal from keyfob, door lock and unlock switch, key cylinder lock and unlock switch, ignition switch.
When the room lamp and personal lamp turns ON, there is a gradual brightening over 1 second. When room
lamp and personal lamp turns OFF, there is a gradual dimming over 1 second.
The room lamp and personal lamp timer is controlled by the BCM (body control module).
Room lamp and personal lamp timer control settings can be changed with CONSULT-III.
