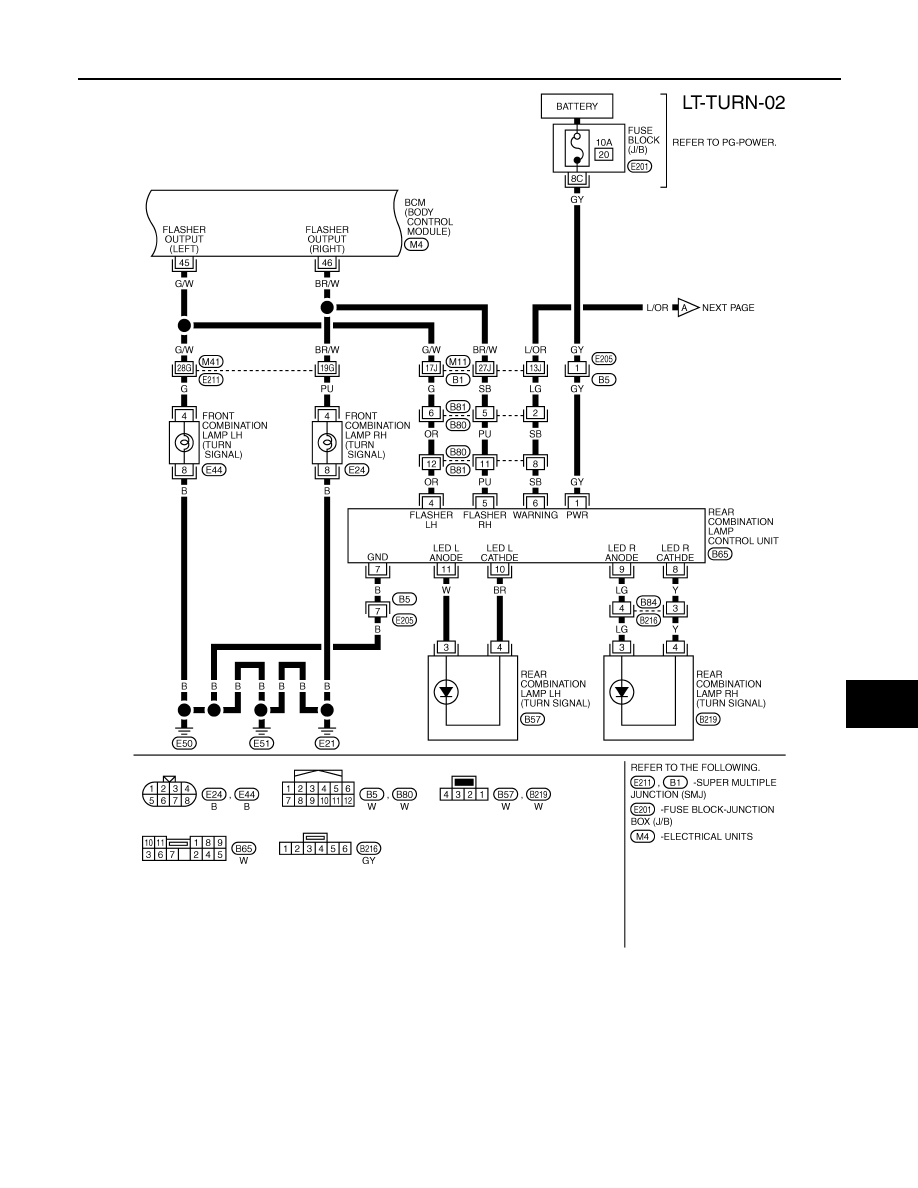

TURN SIGNAL AND HAZARD WARNING LAMPS

LT-83

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

LT

N

O

P

TKWM4307E

LT-84

< SERVICE INFORMATION >

TURN SIGNAL AND HAZARD WARNING LAMPS

Terminal and Reference Value for BCM

INFOID:0000000001328349

CAUTION:

• Check combination switch system terminal waveform under the loaded condition with lighting

switch, turn signal switch and wiper switch OFF not to be fluctuated by overloaded.

• Turn wiper intermittent dial position to 4 except when checking waveform or voltage of wiper inter-

mittent dial position. Wiper intermittent dial position can be confirmed on CONSULT-III. Refer to

LT-

103, "CONSULT-III Functions (BCM)"

.

TKWM4308E

TURN SIGNAL AND HAZARD WARNING LAMPS

LT-85

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

LT

N

O

P

Terminal

No.

Wire

color

Signal name

Measuring condition

Reference value

Ignition

switch

Operation or condition

2

GY

Combination
switch input 5

ON

Lighting, turn, wip-
er switch
(Wiper intermittent
dial position 4)

OFF

Approx. 0 V

Turn signal switch to right

Approx. 1.0 V

3

L/B

Combination
switch input 4

ON

Lighting, turn, wip-
er switch
(Wiper intermittent
dial position 4)

OFF

Approx. 0 V

Turn signal switch to left

Approx. 1.0 V

11

LG

Ignition switch
(ACC)

ACC

—

Battery voltage

29

G/Y

Hazard switch
signal

OFF

Hazard switch

ON

Approx. 0 V

OFF

Battery voltage

36

W/R

Combination
switch output 1

ON

Lighting, turn, wip-
er switch
(Wiper intermittent
dial position 4)

OFF

Approx. 7.2 V

Any of the conditions be-
low
• Turn signal switch to

right

• Turn signal switch to left

Approx. 1.2 V

38

W/L

Ignition switch
(ON)

ON

—

Battery voltage

39

L

CAN

−



H

—

—

—

40

P

CAN

−



L

—

—

—

42

L/R

Battery power
supply

OFF

—

Battery voltage

PKIB4959J

PKIB4959J

PKIB4960J

PKIB4958J

LT-86

< SERVICE INFORMATION >

TURN SIGNAL AND HAZARD WARNING LAMPS

Terminal and Reference Value for Rear Combination Lamp Control Unit

INFOID:0000000001328350

45

G/W

Flasher output
(left)

ON

Combination
switch

Turn left ON

46

BR/W

Flasher output
(right)

ON

Combination
switch

Turn right ON

49

B

Ground

ON

—

Approx. 0 V

52

B

Ground

ON

—

Approx. 0 V

55

G

Battery power
supply

OFF

—

Battery voltage

Terminal

No.

Wire

color

Signal name

Measuring condition

Reference value

Ignition

switch

Operation or condition

SKIA3009J

SKIA3009J

Termi-

nal

No.

Wire

color

Signal name

Measuring condition

Reference value

Ignition

switch

Operation or condition

1

GY

Ignition switch (ON)

ON

—

Battery voltage

2

R

Tail lamp signal

—

Lighting switch OFF

Approx. 0 V

Lighting switch 1ST

Battery voltage

3

P

Stop lamp signal

—

Brake pedal released
(stop lamp switch OFF)

Approx. 0 V

Brake pedal depressed
(stop lamp switch ON)

Battery voltage

4

OR

Turn signal lamp LH signal

ON

Turn signal switch OFF,
hazard switch OFF

Approx. 0 V

ON

Turn signal switch LH

Approx. 6.0 V

—

Hazard switch ON

PKIC6370E
