FRONT DOOR GLASS AND REGULATOR

Inspection after Removal

Check the regulator assembly for the following. If a malfunction is
detected, replace or grease it.
• Wire wear
• Regulator deformation
• Grease condition for each sliding part
The arrows in the figure show the application points of the body
grease.

Disassembly and assembly

INFOID:0000000001327991

REGULATOR ASSEMBLY

Disassembly

Remove the power window motor and guide rail from the module
assembly.

Assembly

Assemble in the reverse order of disassembly.

Inspection after Installation

INFOID:0000000001327992

SETTING OF LIMIT SWITCH

Setting of Limit Switch

Set the limit switch if any of the following work has been done (integrated in the motor).
• Removal and installation of the motor from the regulator.
• Operation of the regulators as a unit.
• Installation of the new glass.
• Installation of the new glass run.

Resetting

After installing each component to the vehicle, follow the steps below.
1.

Raise the glass to the top position.

2.

While pressing and holding the reset switch, lower the glass to
the lower position.

3.

Release the reset switch, and check the reset switch returns to
the original position, and then raise the glass to the top position.

CAUTION:

Do not operate the glass automatically to raise the glass to
the top position.

FITTING INSPECTION

• Check that the glass is securely fit into the glass run groove.

PIIA4730E

PIIA4731E

PIIA4732E

FRONT DOOR GLASS AND REGULATOR

GW-53

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

GW

N

O

P

• Lower the glass slightly [approx. 10 to 20 mm (0.39 to 0.79 in)] and make sure the clearance to the sash is

parallel. If the clearance between the glass and sash is not parallel, loosen the regulator mounting bolts,
guide rail mounting bolts, and glass and guide rail mounting bolts to correct the glass position.

GW-54

< SERVICE INFORMATION >

REAR DOOR GLASS AND REGULATOR

REAR DOOR GLASS AND REGULATOR

Removal and Installation

INFOID:0000000001327993

DOOR GLASS

Removal

1.

Remove the rear door finisher. Refer to

EI-36

.

2.

Remove the rear door outside molding. Refer to

EI-25

.

3.

Remove the sealing screen.

4.

Lower the door glass.

5.

Remove the corner piece screws and bolt.

6.

Remove the corner piece assembly.

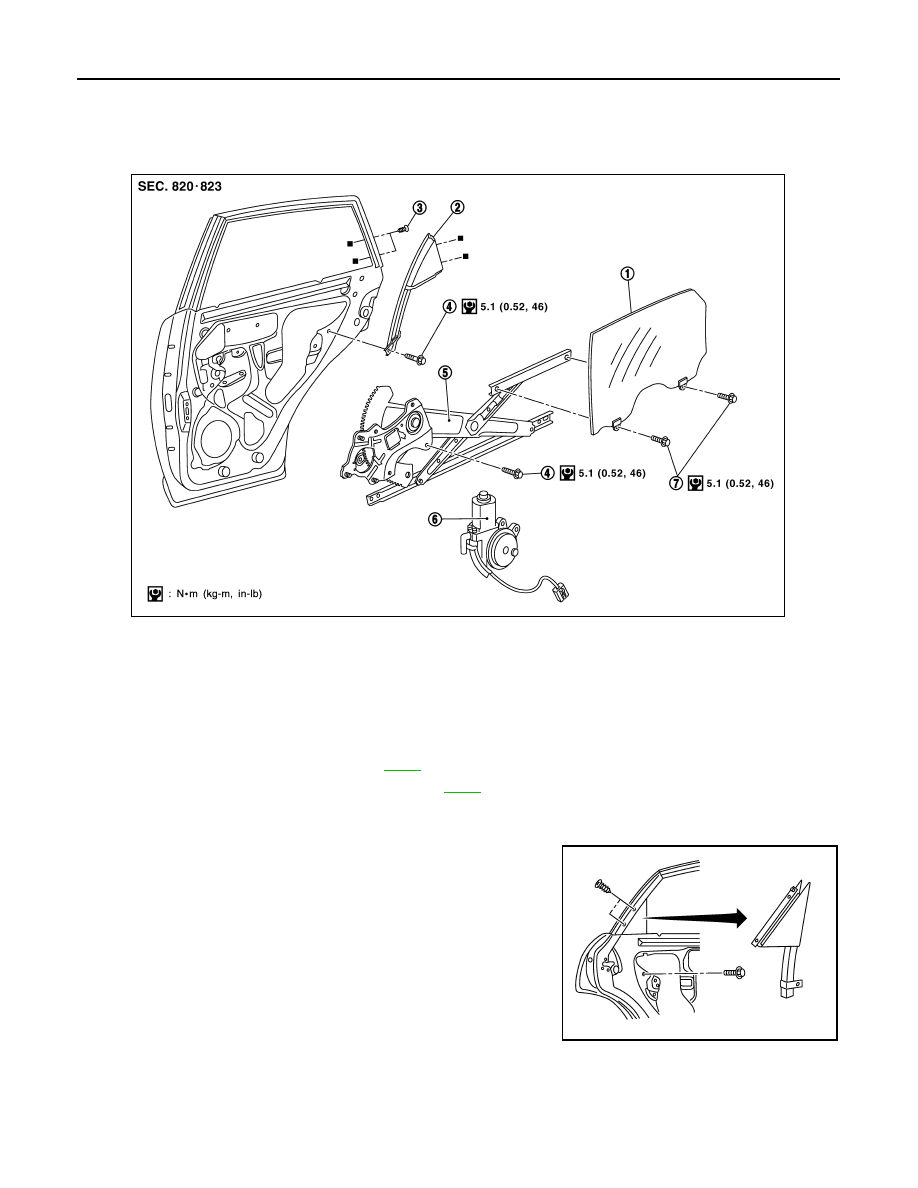

1.

Door glass

2.

Corner piece assembly

3.

Screw

4.

Bolt

5.

Regulator assembly

6.

Power window motor

7.

Bolt

PIIA4733E

PIIA4735E

REAR DOOR GLASS AND REGULATOR

GW-55

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

GW

N

O

P

7.

Operate the power window switch to raise/lower the door win-
dow until the glass mounting bolts can be seen.

8.

Remove the glass mounting bolts, and remove the glass from
the inside of the panel.

Installation

Install in the reverse order of removal.

REGULATOR ASSEMBLY

Removal

1.

Remove the rear door finisher. Refer to

EI-36

.

2.

Remove the rear door outside molding. Refer to

EI-25

.

3.

Remove the sealing screen.

4.

Lower the door glass.

5.

Remove the corner piece screws and bolt.

6.

Remove the corner piece assembly.

7.

Operate the power window switch to raise/lower the door win-
dow until the glass mounting bolts can be seen.

8.

Remove the glass mounting bolts.

9.

Raise up the door glass and hold with a suction lifter.

PIIA4734E

PIIA4735E

PIIA4734E

PIIB1817E
