HOW TO USE THIS MANUAL

GI-11

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

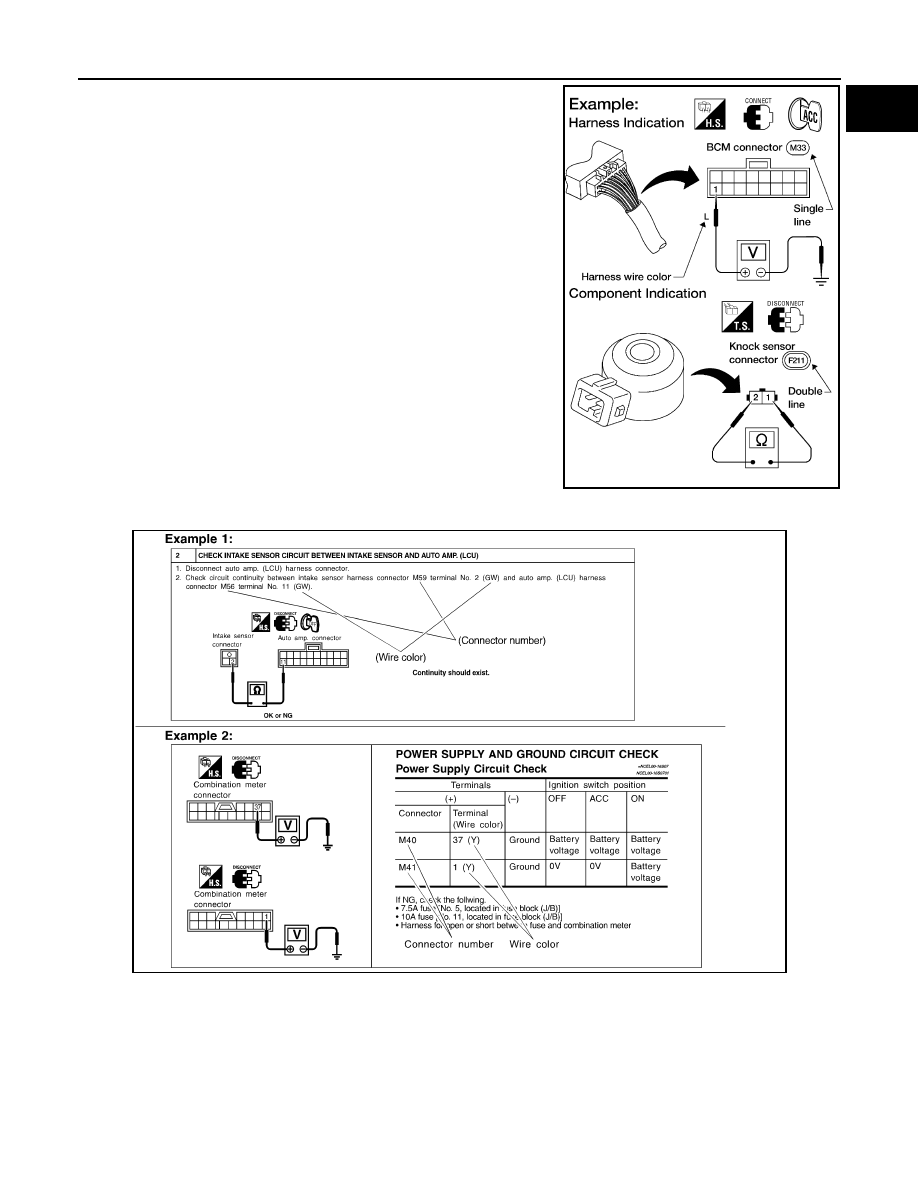

• Letter designations next to test meter probe indicate harness wire

color.

• Connector numbers in a single circle (e.g. M33) indicate harness

connectors.

• Connector numbers in a double circle (e.g. F211) indicate compo-

nent connectors.

TYPE 2: Harness Wire Color and Connector Number are Shown in Text

AGI070

SGI144A

GI-12

< SERVICE INFORMATION >

HOW TO USE THIS MANUAL

KEY TO SYMBOLS SIGNIFYING MEASUREMENTS OR PROCEDURES

SAIA1539E

HOW TO USE THIS MANUAL

GI-13

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

How to Read Wiring Diagram

INFOID:0000000001325669

CONNECTOR SYMBOLS

Most of connector symbols in wiring diagrams are shown from the terminal side.

SAIA1540E

GI-14

< SERVICE INFORMATION >

HOW TO USE THIS MANUAL

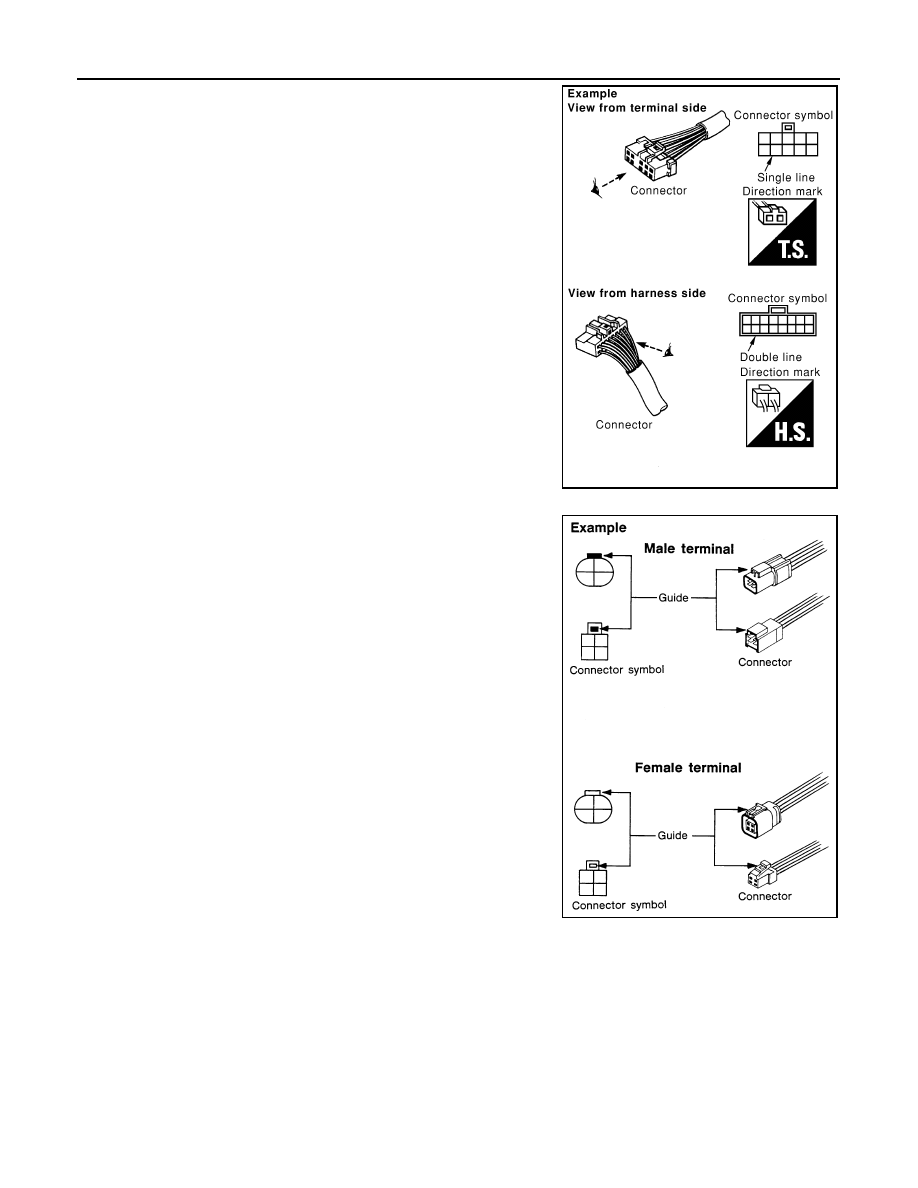

• Connector symbols shown from the terminal side are enclosed by

a single line and followed by the direction mark.

• Connector symbols shown from the harness side are enclosed by

a double line and followed by the direction mark.

• Certain systems and components, especially those related to

OBD, may use a new style slide-locking type harness connector.
For description and how to disconnect, refer to PG section,
“Description”, “HARNESS CONNECTOR”.

• Male and female terminals

Connector guides for male terminals are shown in black and
female terminals in white in wiring diagrams.

SAMPLE/WIRING DIAGRAM - EXAMPL -

SAIA0257E
