EXHAUST SYSTEM

EX-5

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

A

EX

N

P

O

• Tighten main muffler mounting bracket bolts in numerical order as

shown in the figure.

CAUTION:

• Always replace exhaust tube gaskets with new ones when reassembling.
• If heat insulator is badly deformed, repair or replace it. If deposits such as mud pile up on the heat

insulator, remove them.

• When installing heat insulator avoid large gaps or interference between heat insulator and each

exhaust pipe.

• Remove deposits from the sealing surface of each connection. Connect them securely to avoid

gases leakage.

• Temporarily tighten mounting nuts on the exhaust manifold side and mounting bolts on the vehicle

side. Check each part for unusual interference, and then tighten them to the specified torque.

• When installing each mounting rubber, avoid twisting or unusual extension in up/down and right/left

directions.

INSPECTION AFTER INSTALLATION

• Make sure clearance between tail tube and bumper is even.
• With engine running, check exhaust tube joints for gas leakage and unusual noises.
• Check to ensure that mounting brackets and mounting rubbers are installed properly and free from undue

stress. Improper installation could result in excessive noise and vibration.

PBIC1049E

FAX-1

DRIVELINE/AXLE

C

E

F

G

H

I

J

K

L

M

SECTION

FAX

A

B

FAX

N

O

P

CONTENTS

FRONT AXLE

2WD

SERVICE INFORMATION  ............................

2

PREPARATION ...................................................

2

Special Service Tool  .................................................

2

Commercial Service Tool  ..........................................

2

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

3

NVH Troubleshooting Chart  ......................................

3

FRONT WHEEL HUB AND KNUCKLE  ..............

4

On-Vehicle Inspection  ...............................................

4

Removal and Installation ...........................................

4

SERVICE DATA AND SPECIFICATIONS
(SDS) ...................................................................

6

Wheel Bearing ...........................................................

6

AWD

SERVICE INFORMATION  ............................

7

PRECAUTIONS ...................................................

7

Caution ......................................................................

7

PREPARATION ..................................................

8

Special Service Tool .................................................

8

Commercial Service Tool  .........................................

9

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  ...........................

10

NVH Troubleshooting Chart  ....................................

10

FRONT WHEEL HUB AND KNUCKLE  ............

11

On-Vehicle Inspection  .............................................

11

Removal and Installation  .........................................

11

FRONT DRIVE SHAFT  .....................................

13

On-Vehicle Inspection  .............................................

13

Removal and Installation (Left Side) ........................

15

Removal and Installation (Right Side)  .....................

16

Disassembly and Assembly (Left Side)  ...................

18

Disassembly and Assembly (Right Side) .................

21

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

26

Wheel Bearing  .........................................................

26

Drive Shaft ...............................................................

26

FAX-2

< SERVICE INFORMATION >

[2WD]

PREPARATION

SERVICE INFORMATION

PREPARATION

Special Service Tool

INFOID:0000000001327503

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000001327504

Tool number
(Kent-Moore No.)
Tool name

Description

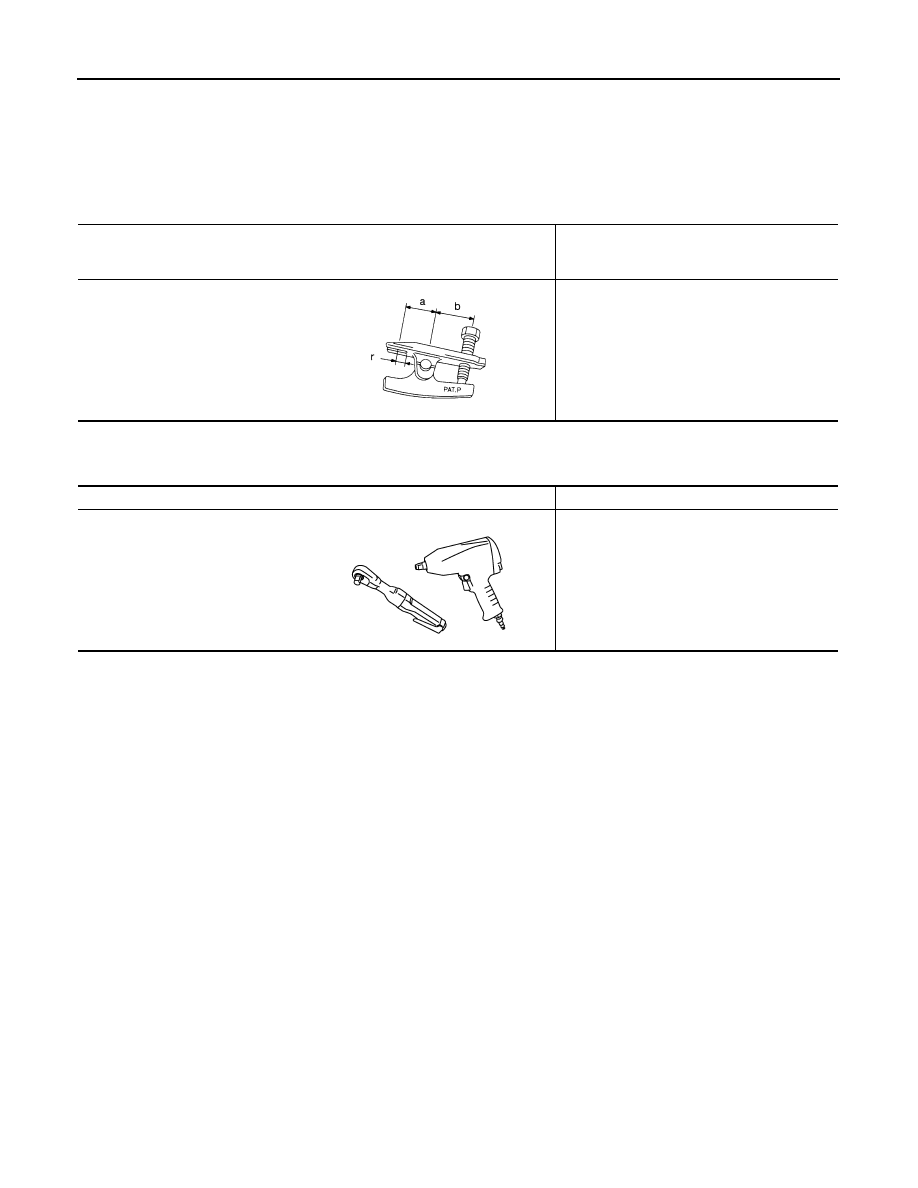

HT72520000
(J

25730-A)

Ball joint remover
 a: 33 mm (1.30 in)
 b: 50 mm (1.97 in)
 r: 11.5 mm (0.453 in)

• Removing steering outer socket
• Removing transverse link

NT546

Tool name

Description

Power tool

Loosening bolts and nuts

PBIC0190E

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

FAX-3

< SERVICE INFORMATION >

[2WD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000001327505

Use chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.

×

: Applicable

Reference page

F

AX-4

F

AX-4

NV

H

 in

 WT

se

cti

on

NV

H

 in

 WT

se

cti

on

N

V

H i

n

 PS se

ctio

n

Possible cause and SUSPECTED PARTS

Imp

rop

er i

nst

a

lla

ti

o

n,

 lo

os

en

es

s

Part

s interf

erence

Whe

e

l be

ari

n

g

 da

ma

ge

TI

RE

ROAD WHEE

L

ST

EERING

Symptom

FRONT AXLE

Noise

×

×

×

×

×

Shake

×

×

×

×

×

Vibration

×

×

×

×

Shimmy

×

×

×

×

×

Judder

×

×

×

×

Poor quality ride or handling

×

×

×

×

×
