Infiniti FX35 / FX45. Manual - part 676





CAMSHAFT

EM-221

< SERVICE INFORMATION >

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

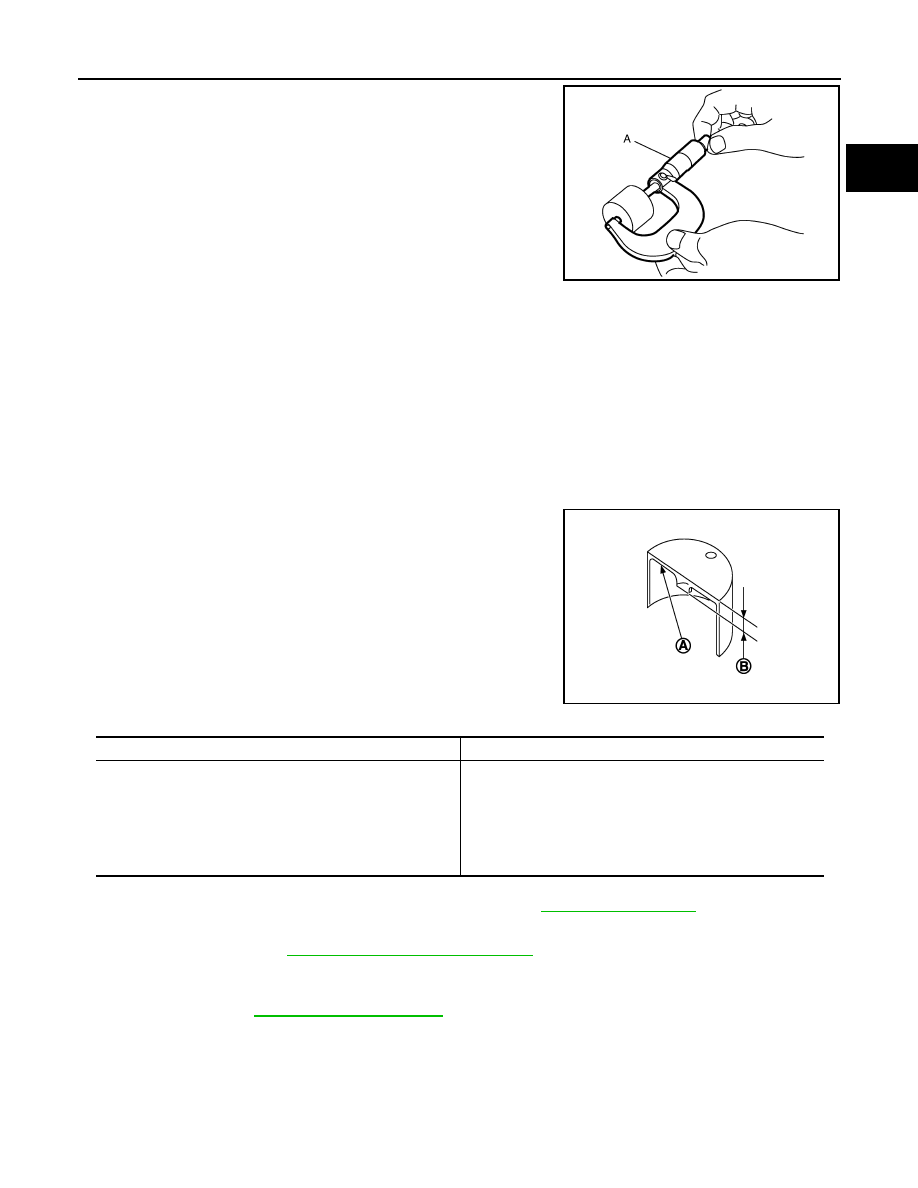

4.

Measure the center thickness of the removed valve lifters with a
micrometer (A).

5.

Use the equation below to calculate valve lifter thickness for replacement.

• Thickness of new valve lifter can be identified by stamp marks

on the reverse side (inside the cylinder).
Stamp mark 788U indicates 7.88 mm (0.3102 in) in thickness.

Available thickness of valve lifter: 53 sizes with range 7.88 to 8.40 mm (0.3102 to 0.3307 in) in steps of
0.01 mm (0.0004 in) (when manufactured at factory). Refer to

EM-211, "Component"

.

6.

Install selected valve lifter.

7.

Install camshaft. Refer to

EM-211, "Removal and Installation"

.

8.

Manually turn crankshaft pulley a few turns.

9.

Make sure that the valve clearances for cold engine are within the specifications by referring to the speci-
fied values. Refer to

EM-218, "Valve Clearance"

.

10. Install all removal parts in the reverse order of removal.

11. Warm up the engine, and check for unusual noise and vibration.

JPBIA0169ZZ

Valve lifter thickness calculation:

t = t

1

+ (C

– C

2

)

t

= Valve lifter thickness to be replaced

t

1

= Removed valve lifter thickness

C

1

= Measured valve clearance

C

2

= Standard valve clearance:

Intake

: 0.30 mm (0.012 in)

Exhaust

: 0.33 mm (0.013 in)

A

:  Stamp

B

: thickness of valve lifter

JPBIA0170ZZ

Stamp mark

Thickness

788U

7.88 mm

789U

7.89 mm

·

·

·

·

840U

8.40 mm

EM-222

< SERVICE INFORMATION >

[VK45DE]

OIL SEAL

OIL SEAL

Removal and Installation of Valve Oil Seal

INFOID:0000000001325793

REMOVAL

1.

Remove engine assembly from vehicle. Refer to

EM-237, "Component"

.

2.

Remove camshaft relating to valve oil seal to be removed. Refer to

EM-211, "Component"

.

3.

Remove valve lifters. Refer to

EM-211, "Component"

.

• Identify installation positions, and store them without mixing them up.

4.

Turn crankshaft until the cylinder requiring new oil seals is at TDC. This will prevent  valve from dropping
into cylinder.

5.

Remove valve collet.
• Compress valve spring with valve spring compressor, attach-

ment and adapter (SST). Remove valve collet with magnetic
hand.

CAUTION:

When working, take care not to damage valve lifter holes.

6.

Remove valve spring retainer and valve spring (with valve spring seat).

CAUTION:

Do not remove valve spring seat from valve spring.

7.

Remove valve oil seal using valve oil seal puller (SST).

INSTALLATION

1.

Apply new engine oil on new valve oil seal joint and seal lip.

2.

Install valve oil seal.
• Install with valve oil seal drift (SST) to match dimension in the

figure.

3.

Install in the reverse order of removal.

Removal and Installation of Front Oil Seal

INFOID:0000000001325794

REMOVAL

PBIC2360E

PBIC0072E

PBIC0073E

OIL SEAL

EM-223

< SERVICE INFORMATION >

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

1.

Remove the following parts:
• Front engine undercover
• Radiator: Refer to

CO-40, "Component"

.

• Drive belt: Refer to

EM-170, "Component"

.

• Cooling fan: Refer to

CO-48, "Component (Crankshaft Driven type)"

.

• Rear plate cover: Refer to

EM-183, "Component"

.

2.

Remove crankshaft pulley as follows:

a.

Set ring gear stopper (SST).

b.

Loosen crankshaft pulley bolt, and then pull crankshaft pulley
with both hands to remove it.

CAUTION:

• Do not remove crankshaft pulley bolt. Keep loosened

crankshaft pulley bolt in place to protect removed crank-
shaft pulley from dropping.

• Do not remove balance weight (inner hexagon bolt) at the

front of crankshaft pulley.

3.

Remove front oil seal using suitable tool.

CAUTION:

Be careful not to damage front cover and oil pump drive
spacer.

INSTALLATION

1.

Apply new engine oil to both oil seal lip and dust seal lip of new front oil seal.

2.

Install front oil seal.
• Install front oil seal so that each seal lip is oriented as shown in

the figure.

PBIC1656E

SBIA0358E

SBIA0359E

SEM715A

EM-224

< SERVICE INFORMATION >

[VK45DE]

OIL SEAL

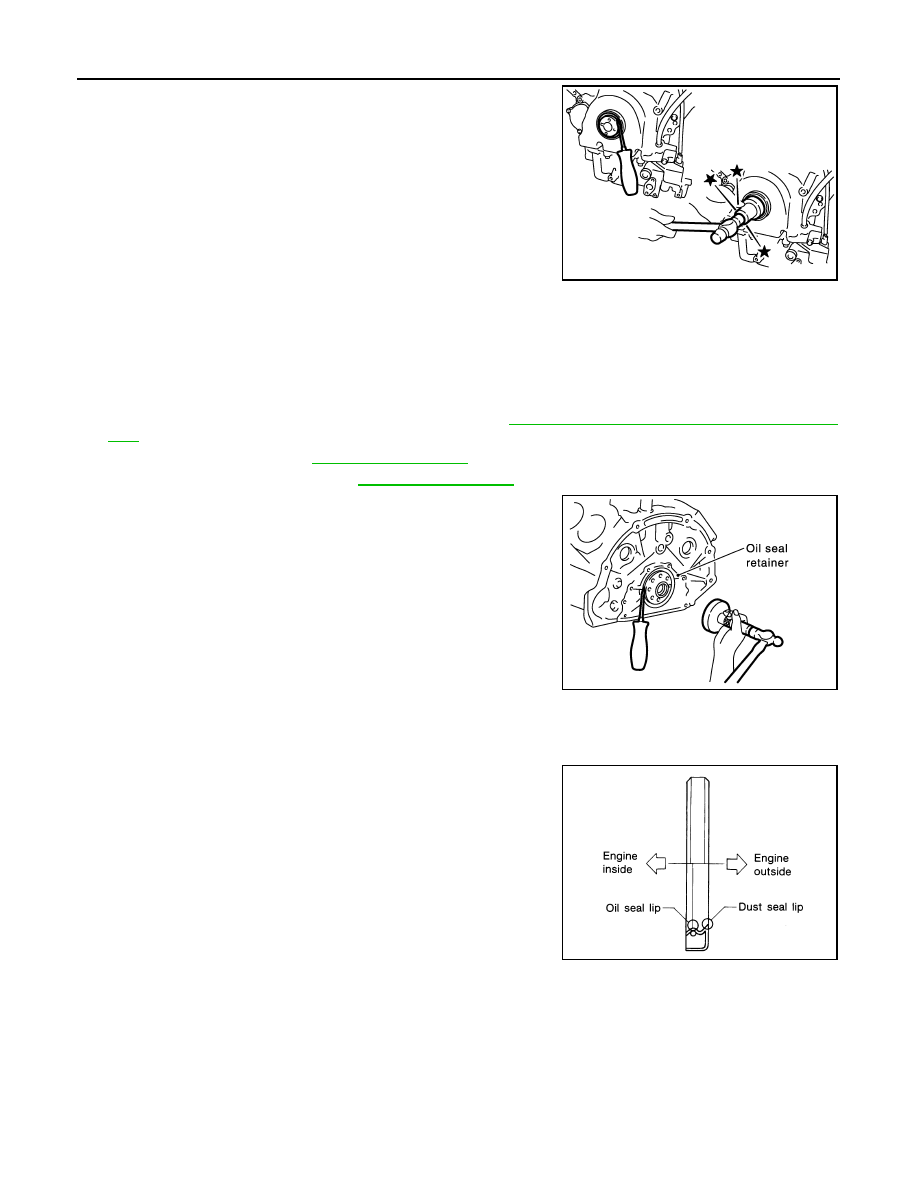

• Using front oil seal drift, press fit until the height of front oil seal

is level with the mounting surface.

• Make sure the garter spring is in position and seal lips not

inverted.

CAUTION:

• Be careful not to damage front cover and oil pump drive

spacer.

• Press fit straight and avoid causing burrs or tilting oil seal.

3.

Install in the reverse order of removal.

Removal and Installation of Rear Oil Seal

INFOID:0000000001325795

REMOVAL

1.

Remove transmission (with transfer) assembly. Refer to

AT-241, "Removal and Installation (2WD Mod-

els)"

.

a.

Remove drive plate. Refer to

EM-241, "Component"

.

b.

Remove engine rear plate. Refer to

EM-241, "Component"

.

2.

Remove rear oil seal using suitable tool.

CAUTION:

Be careful not to damage crankshaft and oil seal retainer
surface.

INSTALLATION

1.

Apply new engine oil to both oil seal lip and dust seal lip of new rear oil seal.

2.

Install rear oil seal.
• Install rear oil seal so that each seal lip is oriented as shown in

the figure.

Front oil seal drift

Outer diameter

: 56 mm (2.20 in)

Inner diameter

: 49 mm (1.93 in)

SBIA0359E

SBIA0360E

SEM715A
