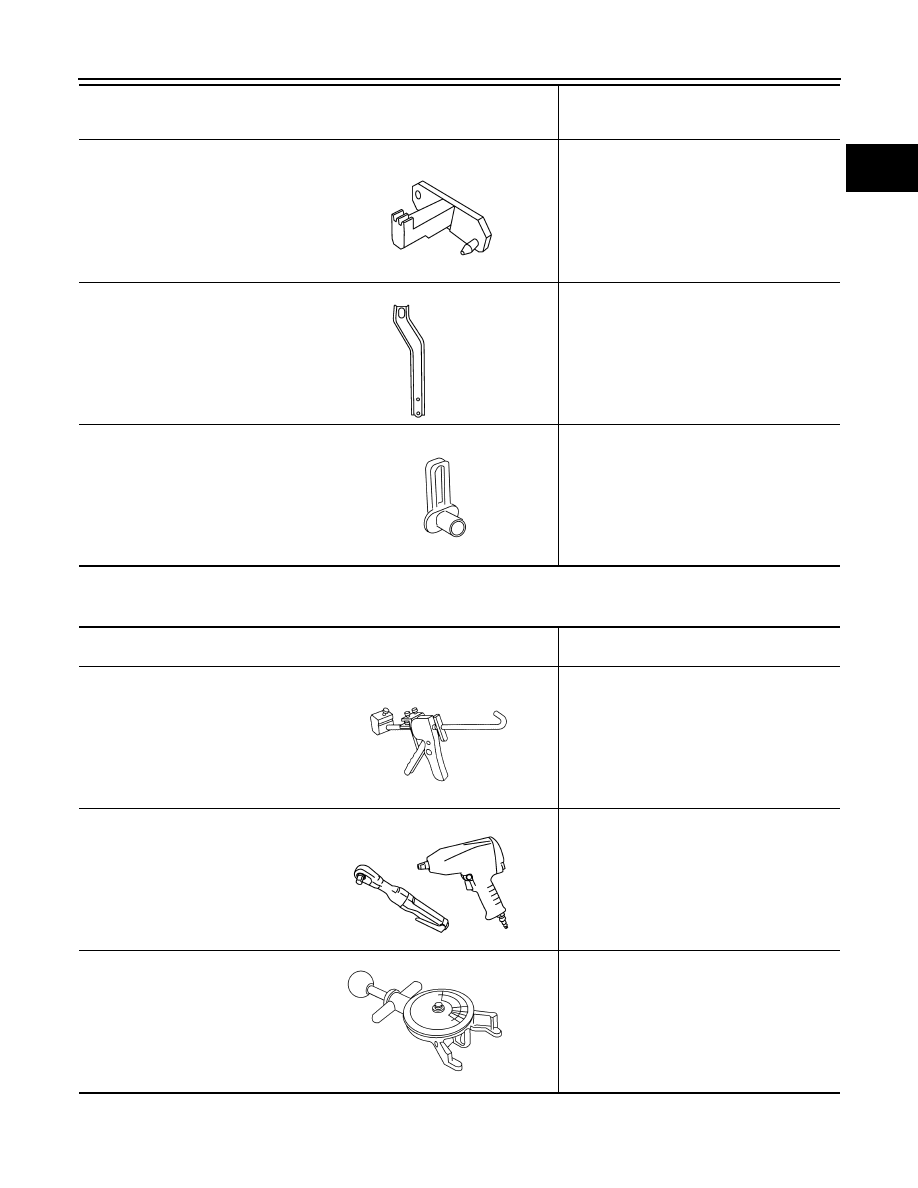

PREPARATION

EM-9

< SERVICE INFORMATION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Commercial Service Tool

INFOID:0000000001325701

KV10117700
(J44716)
Ring gear stopper

Removing and installing crankshaft pulley

10006 31U00
(

—

)

Engine rear slinger

Removing and installing oil pan (upper) for on
vehicle service

—

(J-45488)
Quick connector release

Removing fuel tube quick connectors in en-
gine room

Tool number
(Kent-Moore No.)
Tool name

Description

NT822

SBIA0530E

PBIC0198E

(Kent-Moore No.)
Tool name

Description

WS39930000
(

—

)

Tube presser

Pressing the tube of liquid gasket

(

—

)

Power tool

Loosening nuts and bolts

(BT3373-F)
Belt tension gauge

Checking drive belt tension

NT052

PBIC0190E

AMA126

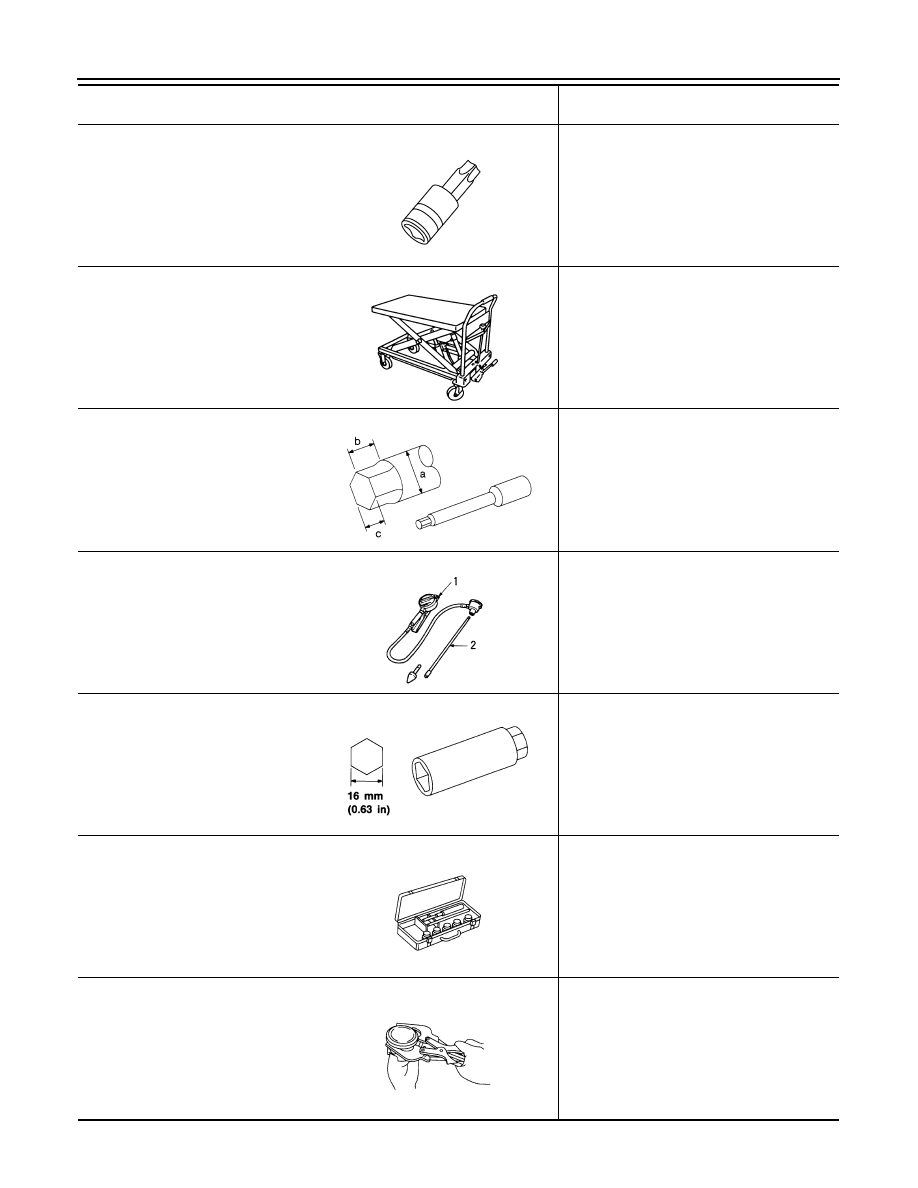

EM-10

< SERVICE INFORMATION >

[VQ35DE]

PREPARATION

(

—

)

TORX socket

Removing and installing flywheel
Size: T55

(

—

)

Manual lift table caddy

Removing and installing engine

(J24239-01)
Cylinder head bolt wrench

Loosening and tightening cylinder head bolt,
and used with the angle wrench [SST:
KV10112100 (BT8653-A)]
a: 13 (0.51) dia.
b: 12 (0.47)
c: 10 (0.39)
Unit: mm (in)

(

—

)

1.Compression tester
2.Adapter

Checking compression pressure

(

—

)

Spark plug wrench

Removing and installing spark plug

(

—

)

Valve seat cutter set

Finishing valve seat dimensions

(

—

)

Piston ring expander

Removing and installing piston ring

(Kent-Moore No.)
Tool name

Description

PBIC1113E

ZZA1210D

NT583

ZZA0008D

NT047

NT048

NT030

PREPARATION

EM-11

< SERVICE INFORMATION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

(

—

)

Valve guide drift

Removing and installing valve guide
Intake and Exhaust:
a: 9.5 mm (0.374 in) dia.
b: 5.5 mm (0.217 in) dia.

(

—

)

Valve guide reamer

(1): Reaming valve guide inner hole
(2): Reaming hole for oversize valve guide
Intake and Exhaust:
d

1

: 6.0 mm (0.236 in) dia.

d

2

: 10.2 mm (0.402 in) dia.

(J-43897-18)
(J-43897-12)
Oxygen sensor thread cleaner

Reconditioning the exhaust system threads
before installing a new air fuel ratio sensor and
heated oxygen sensor (Use with anti-seize lu-
bricant shown below.)
a: J-43897-18 [18 mm (0.71 in) dia.] for zir-
conia heated oxygen sensor and air fuel
ratio sensor
b: J-43897-12 [12 mm (0.47 in) dia.] for tita-
nia heated oxygen sensor

(

—

)

Anti-seize lubricant (Permatex 133AR
or equivalent meeting MIL specifica-
tion MIL-A-907)

Lubricating oxygen sensor thread cleaning
tool when reconditioning exhaust system
threads

(Kent-Moore No.)
Tool name

Description

NT015

NT016

AEM488

AEM489

EM-12

< SERVICE INFORMATION >

[VQ35DE]

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting - Engine Noise

INFOID:0000000001325702

Use the Chart Below to Help You Find the Cause of the Symptom

INFOID:0000000001325703

1.

Locate the area where noise occurs.

2.

Confirm the type of noise.

PBIC5324E
