Infiniti FX35 / FX45. Manual - part 620





EI-44

< SERVICE INFORMATION >

HEADLINING

Removal and Installation

INFOID:0000000001529412

REMOVAL

1.

Remove front pillar garnish. Refer to

EI-38, "Removal and Installation"

.

2.

Remove kicking plate (front/rear). Refer to

EI-38, "Removal and Installation"

.

3.

Remove body side welt. Refer to

EI-38, "Removal and Installation"

.

4.

Remove seat belt shoulder anchor (front/rear). Refer to

SB-3, "Removal and Installation of Front Seat

Belt"

 and

SB-5, "Removal and Installation of Rear Seat Belt"

.

5.

Remove center pillar garnish (lower/upper) and luggage side finisher assembly and rear pillar upper gar-
nish assembly. Refer to

EI-38, "Removal and Installation"

 and

EI-46, "Removal and Installation"

.

6.

Remove assist grip caps and screw. Remove assist grip.

7.

Remove sun-visor (RH/LH), and disconnect harness connector with lamp model.

8.

Remove sun-visor holder.

9.

Remove DVD display rear. Refer to

AV-156, "Removal and Installation for DVD Display Unit"

.

10. Remove roof console.
11. Remove LDW camera unit. Refer to

DI-91, "Removal and Installation for LDW Camera Unit"

.

12. Disconnect harness connector at front left side of headlining.

13. Put front seat to front most and recline seat back to backward.
14. Remove headlining, turn and take out from back door.

CAUTION:

• Always remove or install in a pair.
• Cover surroundings with waste to avoid scratches or damages.
• Do not bend headlining too hard.

15. Remove following parts after removing headlining.

• Room lamp
• Personal lamp

INSTALLATION

Install in the reverse order of removal.

7.

Roof console (without LDW
camera unit)

8.

Sun-visor (LH)

9.

Sun-visor cover (LH)

10. Sun-visor holder (LH)

11. Finisher

12. Room lamp

13. Personal lamp

14. Fastener

15. DVD display rear

16. Roof console (with LDW cam-

era unit)

PIIA4952E

LUGGAGE FLOOR TRIM

EI-45

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

EI

N

O

P

LUGGAGE FLOOR TRIM

Component Parts Location

INFOID:0000000001328078

PIIB8503E

EI-46

< SERVICE INFORMATION >

LUGGAGE FLOOR TRIM

Removal and Installation

INFOID:0000000001529413

REMOVAL

1.

Remove tonneau cover.

2.

Remove luggage side hook and remove net hook (RH/LH).

3.

Remove luggage floor board assembly. Remove bolt with power tool.

4.

Remove luggage floor side board assembly (RH/LH).

5.

Remove back door weather strip.

6.

Remove rear plate assembly.

7.

Remove roof rear garnish assembly.

8.

Remove luggage floor cover assembly (RH/LH).

9.

Remove rear door kicking plate (RH/LH).

10. Remove rear body side welt.

11. Remove rear seat cushion and seatback. Refer to

SE-95, "Removal and Installation"

12. Remove rear wheel house finisher assembly (RH/LH).

13. Remove luggage side finisher assembly bolt and remove luggage side finisher assembly (RH/LH).

14. Remove bolt, and then remove parcel shelf holder.
15. Remove rear parcel shelf cap.

16. Remove bolt, and then remove rear parcel hook.

17. Remove rear seat belt anchor (RH/LH). Refer to

SB-5, "Removal and Installation of Rear Seat Belt"

.

18. Remove rear pillar upper garnish assembly cap and bolt, then remove rear pillar upper garnish assembly

(RH/LH).

19. Remove spare tire clamp.
20. Remove sub-woofer box connector and remove sub-woofer box.

21. Remove spare tire.

22. Remove towing hook, wheel nut wrench, spanner, tire stopper, jack rod and jack complete.
23. Remove luggage side box bolt and luggage side box assembly (RH/LH).

INSTALLATION

Install in the reverse order of removal.

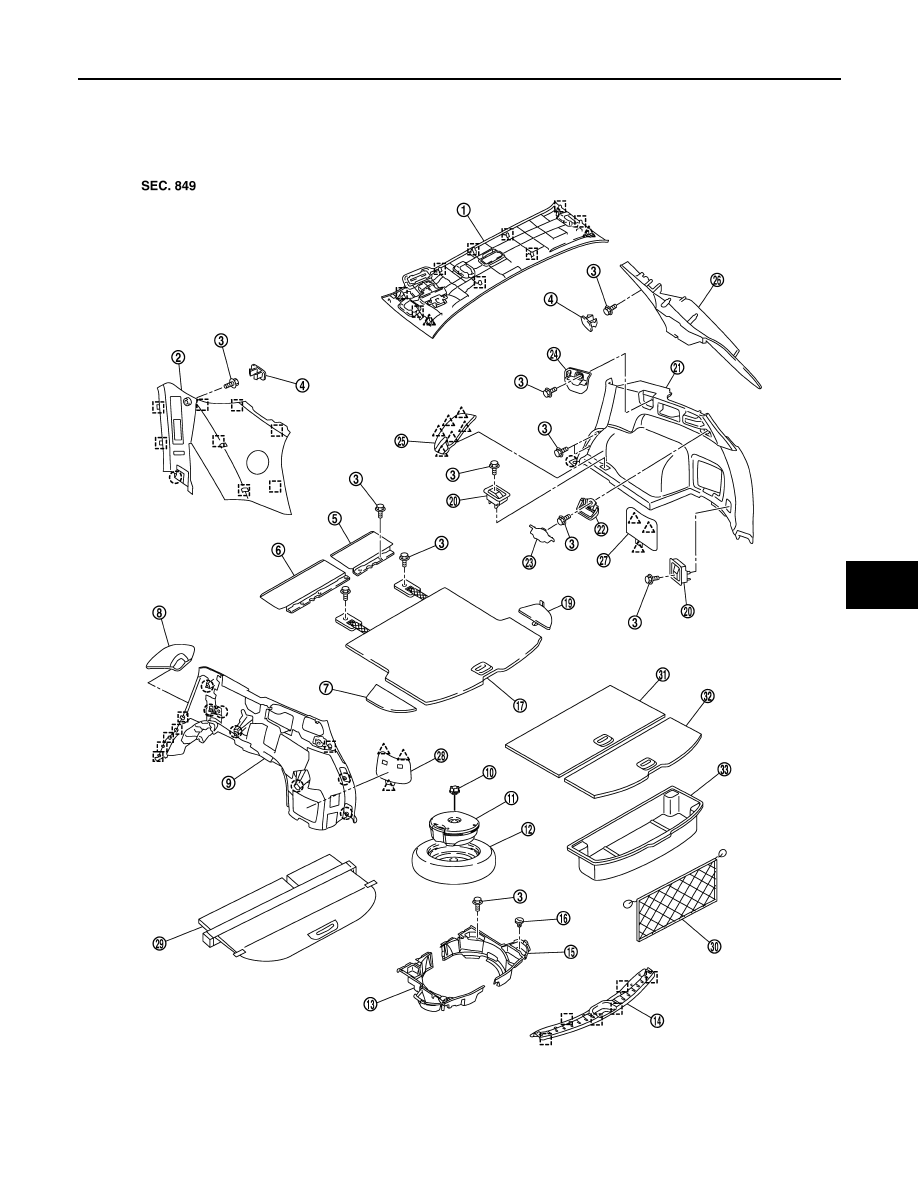

1.

Roof rear garnish assembly

2.

Rear pillar upper garnish assembly
(LH)

3.

Bolt

4.

Cap

5.

Luggage floor cover assembly (RH)

6.

Luggage floor cover assembly
(LH)

7.

Luggage floor side board assembly
(LH)

8.

Rear wheel house finisher assembly
(LH)

9.

Luggage side finisher assembly (LH)

10. Clamp

11.

Sub woofer box

12. Spare tire

13. Luggage side box (LH)

14. Rear plate assembly

15. Luggage side box (RH)

16. Cap

17. Luggage floor board assembly

18. Luggage floor board assembly (op-

tion for Canada)

19. Luggage floor side board assembly

(RH)

20. Net hook

21. Luggage side finisher assembly

(RH)

22. Rear parcel shelf hook

23. Rear parcel shelf cap

24. Rear parcel shelf holder

25. Rear wheel house finisher assembly

(RH)

26. Rear pillar upper garnish assembly

(RH)

27. Luggage finisher mask (RH)

28. Luggage finisher mask (LH)

29. Tonneau cover

30. Net

31. Luggage floor center front board

(Run flat type)

32. Luggage floor center rear board

(Run flat type)

33. Luggage floor box assembly

(Run flat type)

: Clip

: Pawl

: Metal clip

BACK DOOR TRIM

EI-47

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

EI

N

O

P

BACK DOOR TRIM

Component Parts Location

INFOID:0000000001328079

Removal and Installation

INFOID:0000000001529414

REMOVAL

1.

Remove pull handle.

2.

Remove back door finisher clips and remove back door finisher inner.

3.

Remove back door finisher cap.

INSTALLATION

Install in the reverse order of removal.

1.

Back door finisher inner

2.

Pull handle

3.

Back door upper cap

: Clip

PIIB8946E
