EI-28

< SERVICE INFORMATION >

DOOR PARTING SEAL

3.

Install rear door parting seal to rear door hem flange.

4.

Install rear door outside lower molding. Refer to

EI-26, "Removal and Installation"

.

CAUTION:

Rear door parting seal is not reusable. always use new rear door parting seal.

CENTER MUD GUARD

EI-29

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

EI

N

O

P

CENTER MUD GUARD

Component Parts Location

INFOID:0000000001328068

Removal and Installation

INFOID:0000000001529403

REMOVAL

1.

Remove bolts center mud-guard lower portion.

2.

Remove screws center mud-guard front and rear portion.

3.

Insert driver rolled with cloth or tapes between guard and body side sill, then pull it back to your side.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When installing center mud guard, make sure that clips are securely fitted in panel holes on body, and
then press them in.

1.

Center mud-guard

2.

Grommet

3.

Clip

4.

Bolt

5.

Screw

PIIA4328E

EI-30

< SERVICE INFORMATION >

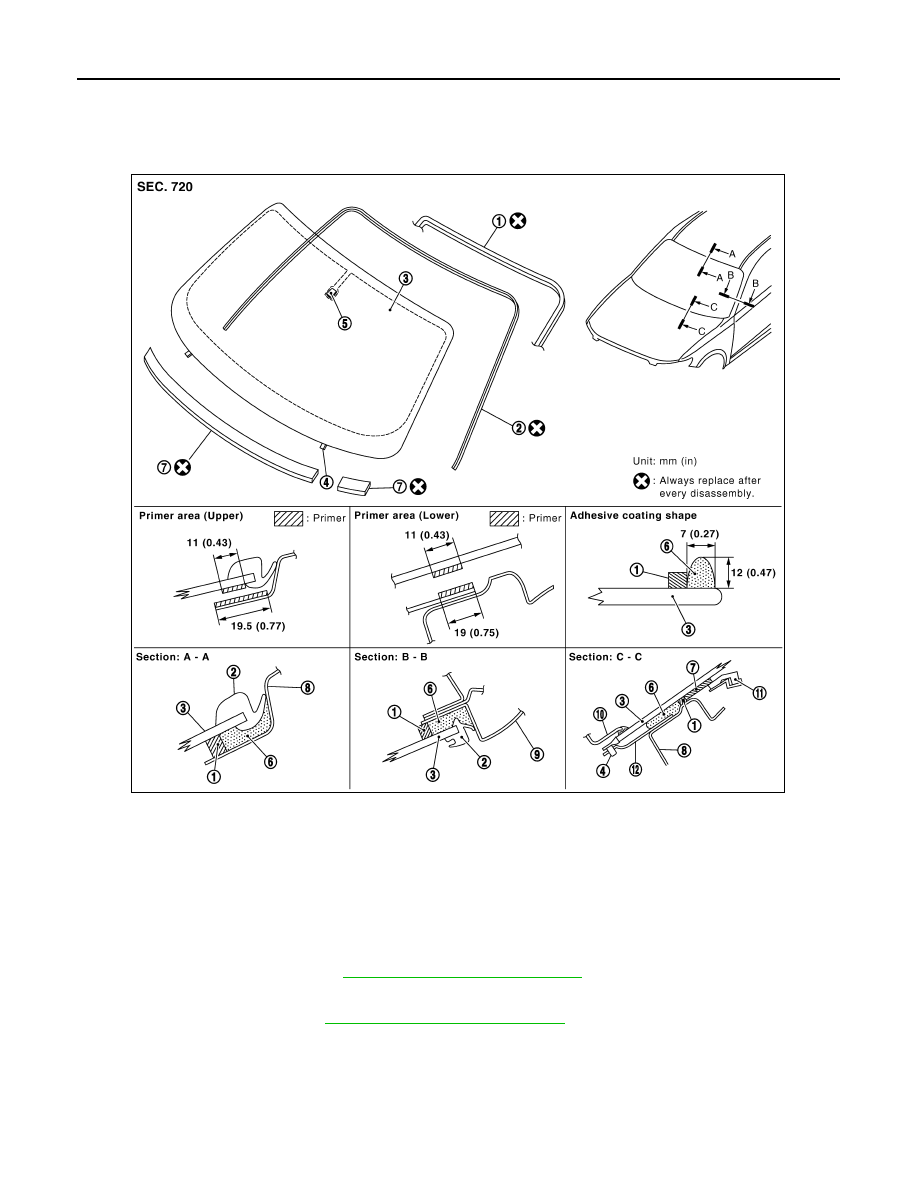

WINDSHIELD MOLDING

WINDSHIELD MOLDING

Component Parts Location

INFOID:0000000001328069

Removal and Installation

INFOID:0000000001529404

REMOVAL

Remove windshield molding. Refer to

GW-11, "Removal and Installation"

.

INSTALLATION

Install windshield molding. Refer to

GW-11, "Removal and Installation"

.

1.

Dam rubber

2.

Molding

3.

Windshield glass

4.

Spacer

5.

Mirror base

6.

Bond

7.

Insulator

8.

Panel

9.

Body side (outer)

10. Cowl top cover

11. Pad

12.

Bracket

PIIA9190E

BACK DOOR WINDOW MOLDING

EI-31

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

EI

N

O

P

BACK DOOR WINDOW MOLDING

Component Parts Location

INFOID:0000000001328070

Removal and Installation

INFOID:0000000001529405

REMOVAL

Remove back door window molding. Refer to

GW-13, "Removal and Installation"

.

NOTE:
Apply a strip of protective tape along the contour of back door window glass (molding) to prevent paint surface
from being damaged.

INSTALLATION

Install back door window molding. Refer to

GW-13, "Removal and Installation"

.

NOTE:
• Clean adhesive portion of back door window glass and around circumference with white gasoline.
• Apply dam rubber to upper and side surfaces of glass.
• Attach back door window molding to side face of glass.
• Back door window molding should not overlap on the surface of back door window glass.

1.

Dam rubber

2.

Back door window glass

3.

Bond

4.

Back door outer panel

5.

Back door inner panel

6.

Back door window molding

7.

Clip

8.

Back door panel

PIIA9191E
