DTC P0603 ECM POWER SUPPLY

EC-1005

< SERVICE INFORMATION >

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Diagnosis Procedure

INFOID:0000000001326863

1.

CHECK ECM POWER SUPPLY

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

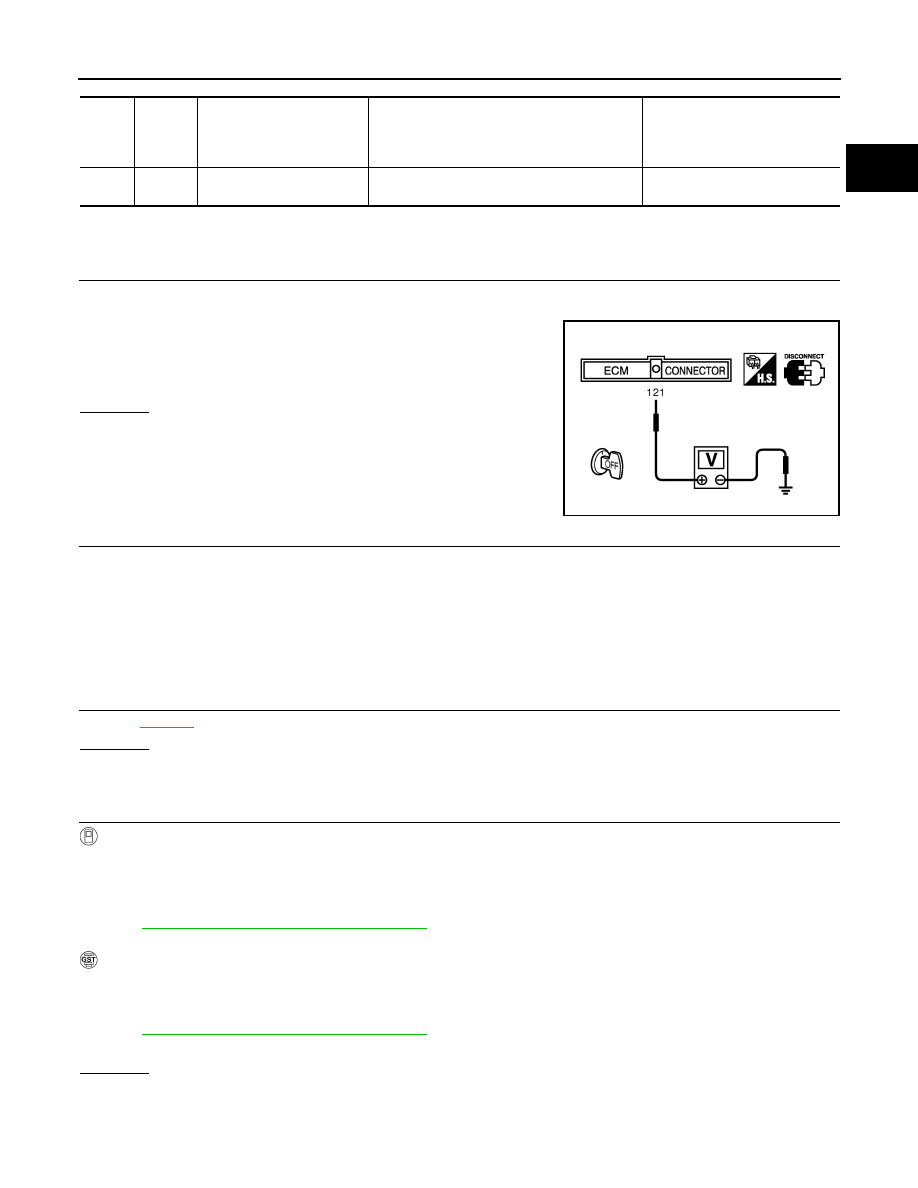

Check voltage between ECM terminal 121 and ground with
CONSULT-III or tester.

OK or NG

OK

>> GO TO 3.

NG

>> GO TO 2.

2.

DETECT MALFUNCTIONING PART

Check the following.
• Harness connectors E211, M41
• 20A fuse
• IPDM E/R harness connector E8
• Harness for open or short between ECM and battery

>> Repair or replace harness or connectors.

3.

CHECK INTERMITTENT INCIDENT

Refer to

EC-717

.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace harness or connectors.

4.

PERFORM DTC CONFIRMATION PROCEDURE

 With CONSULT-III

1.

Turn ignition switch ON.

2.

Select “SELF-DIAG RESULTS” mode with CONSULT-III.

3.

Touch “ERASE”.

4.

Perform DTC Confirmation Procedure.
See

EC-1003, "DTC Confirmation Procedure"

.

5.

Is the 1st trip DTC P0603 displayed again?

 With GST

1.

Turn ignition switch ON.

2.

Select “Service $04” with GST.

3.

Perform DTC Confirmation Procedure.
See

EC-1003, "DTC Confirmation Procedure"

.

4.

Is the 1st trip DTC P0603 displayed again?

Yes or No

Yes

>> GO TO 5.

No

>> INSPECTION END

TER-

MI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

121

R/W

Power supply for ECM
(Back-up)

[Ignition switch: OFF]

BATTERY VOLTAGE
(11 - 14V)

Voltage: Battery voltage

MBIB0026E

EC-1006

< SERVICE INFORMATION >

[VK45DE]

DTC P0603 ECM POWER SUPPLY

5.

REPLACE ECM

1.

Replace ECM.

2.

Perform initialization of IVIS (NATS) system and registration of all IVIS (NATS) ignition key IDs. Refer to

BL-187, "ECM Re-Communicating Function"

.

3.

Perform

EC-662, "VIN Registration"

.

4.

Perform

EC-662, "Accelerator Pedal Released Position Learning"

.

5.

Perform

EC-663, "Throttle Valve Closed Position Learning"

.

6.

Perform

EC-663, "Idle Air Volume Learning"

.

>> INSPECTION END

DTC P0605 ECM

EC-1007

< SERVICE INFORMATION >

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

DTC P0605 ECM

Component Description

INFOID:0000000001326864

The ECM consists of a microcomputer and connectors for signal
input and output and for power supply. The ECM controls the engine.

On Board Diagnosis Logic

INFOID:0000000001326865

This self-diagnosis has one or two trip detection logic.

FAIL-SAFE MODE

ECM enters fail-safe mode when the malfunction A is detected.

DTC Confirmation Procedure

INFOID:0000000001326866

Perform PROCEDURE FOR MALFUNCTION A first. If the 1st trip DTC cannot be confirmed, perform
PROCEDURE FOR MALFUNCTION B. If there is no malfunction on PROCEDURE FOR MALFUNCTION
B, perform PROCEDURE FOR MALFUNCTION C.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

PROCEDURE FOR MALFUNCTION A

1.

Turn ignition switch ON.

2.

Check 1st trip DTC.

3.

If 1st trip DTC is detected, go to

EC-1008, "Diagnosis Procedure"

.

PROCEDURE FOR MALFUNCTION B

1.

Turn ignition switch ON and wait at least 1 second.

2.

Turn ignition switch OFF, wait at least 10 seconds, and then turn ON.

3.

Check 1st trip DTC.

4.

If 1st trip DTC is detected, go to

EC-1008, "Diagnosis Procedure"

.

PROCEDURE FOR MALFUNCTION C

 With CONSULT-III

1.

Turn ignition switch ON and wait at least 1 second.

2.

Turn ignition switch OFF, wait at least 10 seconds, and then turn ON.

PBIB1164E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0605
0605

Engine control module

A)

ECM calculation function is malfunctioning.

• ECM

B)

ECM EEP-ROM system is malfunctioning.

C)

ECM self shut-off function is malfunctioning.

Detected items

Engine operation condition in fail-safe mode

Malfunction A

• ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5

degrees) by the return spring.

• ECM deactivates ASCD operation.

EC-1008

< SERVICE INFORMATION >

[VK45DE]

DTC P0605 ECM

3.

Repeat step 2 for 32 times.

4.

Check 1st trip DTC.

5.

If 1st trip DTC is detected, go to

EC-1008, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001326867

1.

INSPECTION START

 With CONSULT-III

1.

Turn ignition switch ON.

2.

Select “SELF-DIAG RESULTS” mode with CONSULT-III.

3.

Touch “ERASE”.

4.

Perform DTC Confirmation Procedure.
See

EC-1007, "DTC Confirmation Procedure"

.

5.

Is the 1st trip DTC P0605 displayed again?

 With GST

1.

Turn ignition switch ON.

2.

Select “Service $04” with GST.

3.

Perform DTC Confirmation Procedure.
See

EC-1007, "DTC Confirmation Procedure"

.

4.

Is the 1st trip DTC P0605 displayed again?

Yes or No

Yes

>> GO TO 2.

No

>> INSPECTION END

2.

REPLACE ECM

1.

Replace ECM.

2.

Perform initialization of IVIS (NATS) system and registration of all IVIS (NATS) ignition key IDs. Refer to

BL-187, "ECM Re-Communicating Function"

.

3.

Perform

EC-662, "VIN Registration"

.

4.

Perform

EC-662, "Accelerator Pedal Released Position Learning"

.

5.

Perform

EC-663, "Throttle Valve Closed Position Learning"

.

6.

Perform

EC-663, "Idle Air Volume Learning"

.

>> INSPECTION END
