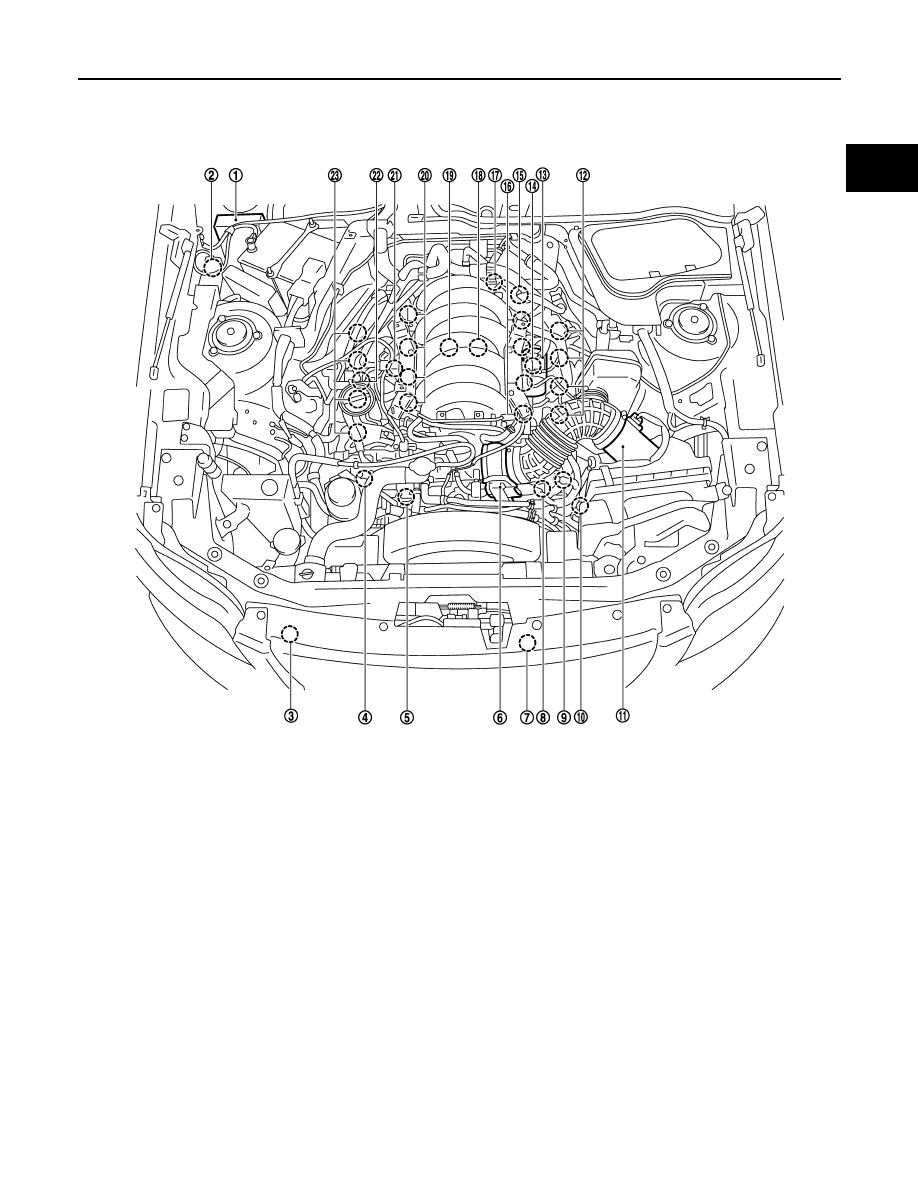

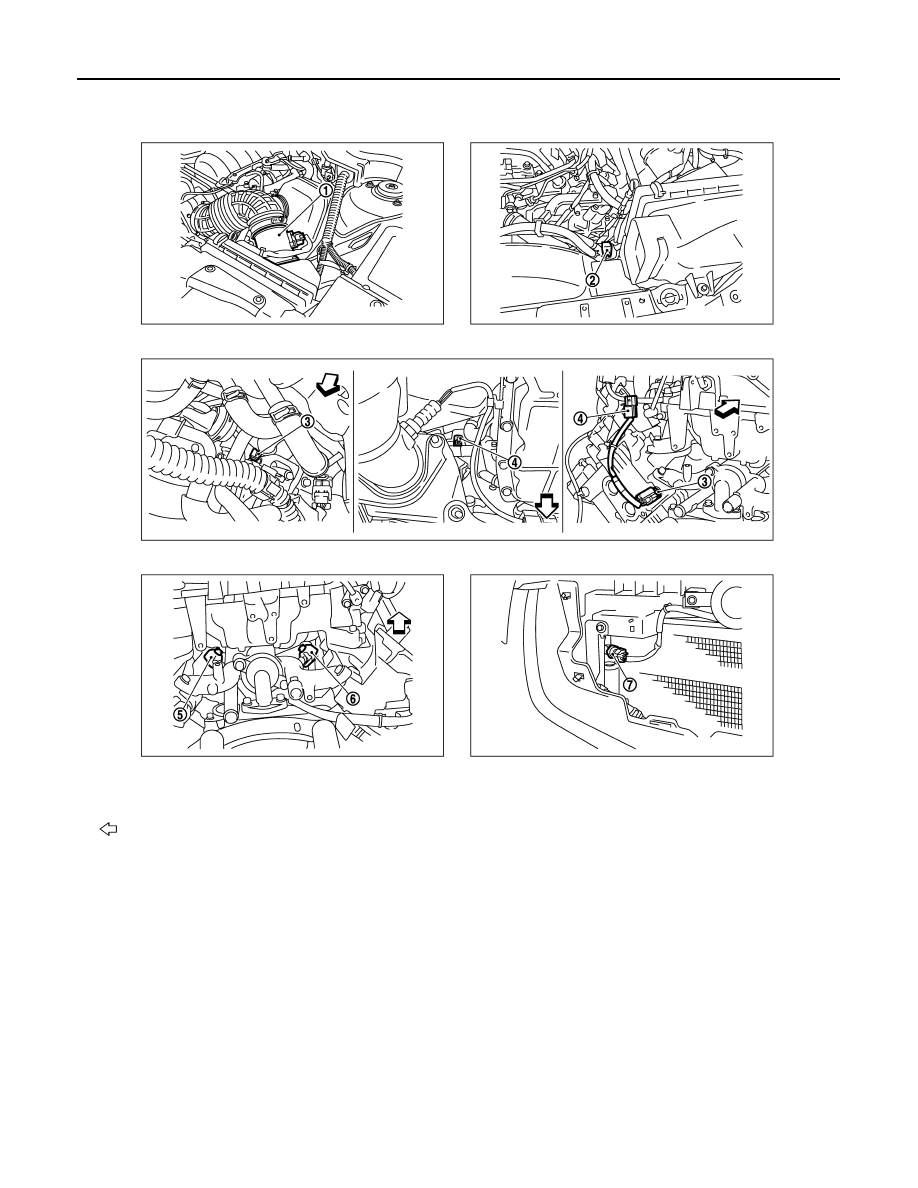

Engine Control Component Parts Location
INFOID:0000000001326527
1.
IPDM E/R
2.
ICC brake hold relay
(ICC models only)
3.
Refrigerant pressure sensor
4.
Intake valve timing control position
sensor (Bank 2)
5.
Intake valve timing control solenoid
valve (Bank 2)
6.
Electric throttle control actuator
7.
Cooling fan motor
8.
Intake valve timing control solenoid
valve (Bank 1)
9.
Intake valve timing control position
sensor (Bank 1)
10. Camshaft position sensor (PHASE)
11.
Mass air flow sensor
(with intake air temperature sensor)
12. Ignition coil (with power transistor)
and spark plug (Bank 1)
13. Vacuum tank
14.
VIAS control solenoid valve
15. Engine coolant temperature sensor
16. Fuel injector (Bank 1)
17.
Power valve actuator
18. Knock sensor (Bank 1)
19. Knock sensor (Bank 2)
20.
Fuel injector (Bank 2)
21. EVAP canister purge volume control
solenoid valve
22. EVAP service port
23.
Ignition coil (with power transistor)
and spark plug (Bank 2)
PBIB3224E
