<Driving Pattern A>

• The A counter will be cleared when the malfunction is detected regardless of (1) - (4).
• The A counter will be counted up when (1) - (4) are satisfied without the same malfunction.
• The DTC will not be displayed after the A counter reaches 40.

<Driving Pattern B>

Driving pattern B means the vehicle operation as follows:
All components and systems should be monitored at least once by the OBD system.
• The B counter will be cleared when the malfunction is detected once regardless of the driving pattern.
• The B counter will be counted up when driving pattern B is satisfied without any malfunctions.
• The MIL will go off when the B counter reaches 3 (*2 in OBD SYSTEM OPERATION CHART).

AEC574

EC-658

< SERVICE INFORMATION >

[VK45DE]

BASIC SERVICE PROCEDURE

BASIC SERVICE PROCEDURE

Basic Inspection

INFOID:0000000001326515

1.

INSPECTION START

1.

Check service records for any recent repairs that may indicate a related malfunction, or a current need for
scheduled maintenance.

2.

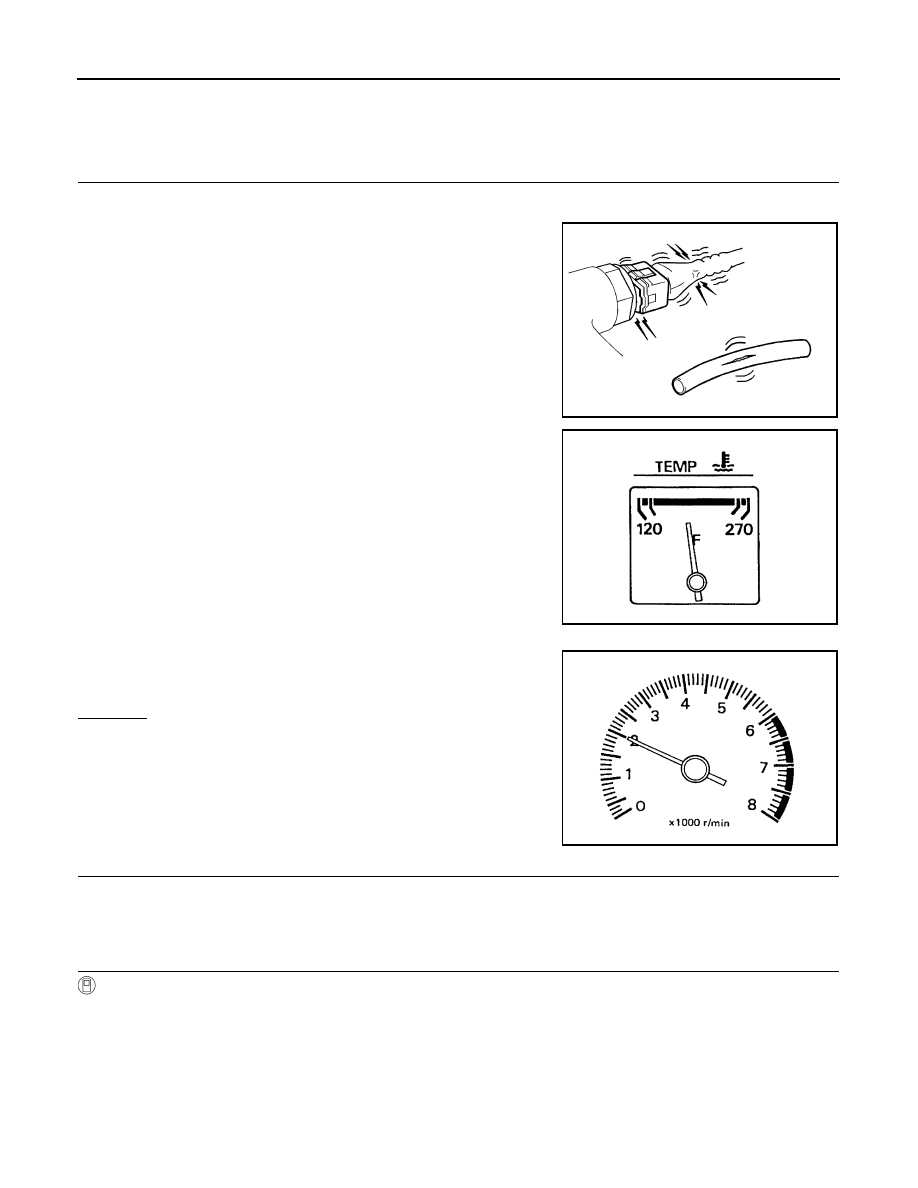

Open engine hood and check the following:

-

Harness connectors for improper connections

-

Wiring harness for improper connections, pinches and cut

-

Vacuum hoses for splits, kinks and improper connections

-

Hoses and ducts for leaks

-

Air cleaner clogging

-

Gasket

3.

Confirm that electrical or mechanical loads are not applied.

-

Headlamp switch is OFF.

-

Air conditioner switch is OFF.

-

Rear window defogger switch is OFF.

-

Steering wheel is in the straight-ahead position, etc.

4.

Start engine and warm it up until engine coolant temperature
indicator points the middle of gauge.
Ensure engine stays below 1,000 rpm.

5.

Run engine at about 2,000 rpm for about 2 minutes under no
load.

6.

Make sure that no DTC is displayed with CONSULT-III or GST.

OK or NG

OK

>> GO TO 3.

NG

>> GO TO 2.

2.

REPAIR OR REPLACE

Repair or replace components as necessary according to corresponding Diagnostic Procedure.

>> GO TO 3

3.

CHECK TARGET IDLE SPEED

 With CONSULT-III

1.

Run engine at about 2,000 rpm for about 2 minutes under no load.

SEF983U

SEF976U

SEF977U

BASIC SERVICE PROCEDURE

EC-659

< SERVICE INFORMATION >

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

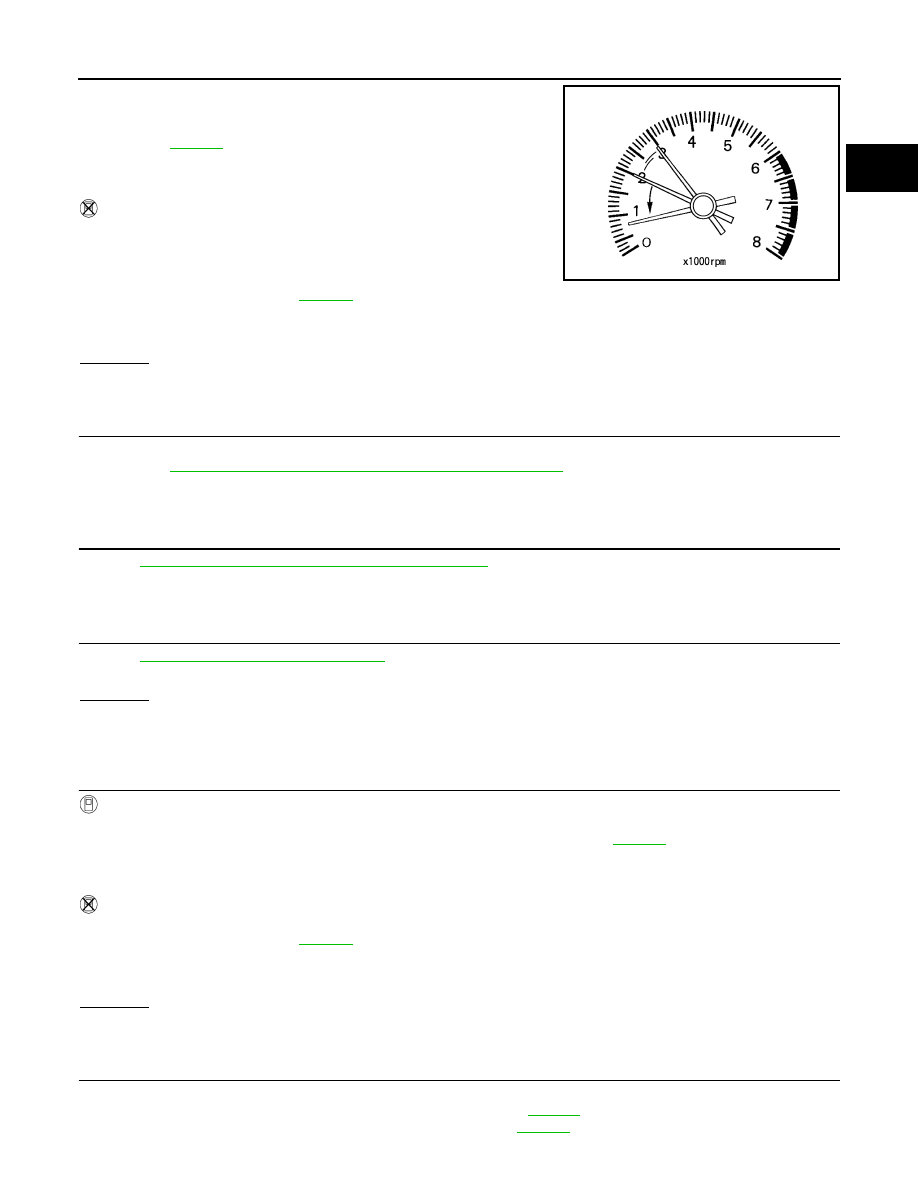

2.

Rev engine (2,000 to 3,000 rpm) two or three times under no
load, then run engine at idle speed for about 1 minute.

3.

Read idle speed in “DATA MONITOR” mode with CONSULT-III.
Refer to

EC-661

.

 Without CONSULT-III

1.

Run engine at about 2,000 rpm for about 2 minutes under no
load.

2.

Rev engine (2,000 to 3,000 rpm) two or three times under no
load, then run engine at idle speed for about 1 minute.

3.

Check idle speed. Refer to

EC-661

.

OK or NG

OK

>> GO TO 10.

NG

>> GO TO 4.

4.

PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING

1.

Stop engine.

2.

Perform

EC-662, "Accelerator Pedal Released Position Learning"

.

>> GO TO 5.

5.

PERFORM THROTTLE VALVE CLOSED POSITION LEARNING

Perform

EC-663, "Throttle Valve Closed Position Learning"

.

>> GO TO 6.

6.

PERFORM IDLE AIR VOLUME LEARNING

Refer to

EC-663, "Idle Air Volume Learning"

.

Is Idle Air Volume Learning carried out successfully?

Yes or No

Yes

>> GO TO 7.

No

>> 1.

Follow the instruction of Idle Air Volume Learning.

2.

GO TO 4.

7.

CHECK TARGET IDLE SPEED AGAIN

 With CONSULT-III

1.

Start engine and warm it up to normal operating temperature.

2.

Read idle speed in “DATA MONITOR” mode with CONSULT-III. Refer to

EC-661

.

 Without CONSULT-III

1.

Start engine and warm it up to normal operating temperature.

2.

Check idle speed. Refer to

EC-661

.

OK or NG

OK

>> GO TO 10.

NG

>> GO TO 8.

8.

DETECT MALFUNCTIONING PART

Check the Following.
• Check camshaft position sensor (PHASE) and circuit. Refer to

EC-911

.

• Check crankshaft position sensor (POS) and circuit. Refer to

EC-906

.

650

±

 50 rpm (in P or N position)

650

±

 50 rpm (in P or N position)

PBIA8513J

650

±

 50 rpm (in P or N position)

650

±

 50 rpm (in P or N position)

EC-660

< SERVICE INFORMATION >

[VK45DE]

BASIC SERVICE PROCEDURE

OK or NG

OK

>> GO TO 9.

NG

>> 1.

Repair or replace.

2.

GO TO 4.

9.

CHECK ECM FUNCTION

1.

Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but
this is a rare case.)

2.

Perform initialization of IVIS (NATS) system and registration of all IVIS (NATS) ignition key IDs. Refer to

BL-187, "ECM Re-Communicating Function"

.

>> GO TO 4.

10.

CHECK IGNITION TIMING

1.

Run engine at idle.

2.

Check ignition timing with a timing light. Refer to

EC-661

.

OK or NG

OK

>> GO TO 19.

NG

>> GO TO 11.

11.

PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING

1.

Stop engine.

2.

Perform

EC-662, "Accelerator Pedal Released Position Learning"

.

>> GO TO 12.

12.

PERFORM THROTTLE VALVE CLOSED POSITION LEARNING

Perform

EC-663, "Throttle Valve Closed Position Learning"

.

>> GO TO 13.

13.

PERFORM IDLE AIR VOLUME LEARNING

Refer to

EC-663, "Idle Air Volume Learning"

.

Is Idle Air Volume Learning carried out successfully?

Yes or No

Yes

>> GO TO 14.

No

>> 1.

Follow the instruction of Idle Air Volume Learning.

2.

GO TO 4.

14.

CHECK TARGET IDLE SPEED AGAIN

 With CONSULT-III

1.

Start engine and warm it up to normal operating temperature.

2.

Read idle speed in “DATA MONITOR” mode with CONSULT-III. Refer to

EC-661

.

 Without CONSULT-III

1.

Start engine and warm it up to normal operating temperature.

2.

Check idle speed. Refer to

EC-661

.

12

±

 5

°

 BTDC (in P or N position)

PBIB1487E

650

±

 50 rpm (in P or N position)

650

±

 50 rpm (in P or N position)
