WARNING CHIME

DI-55

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

DI

N

O

P

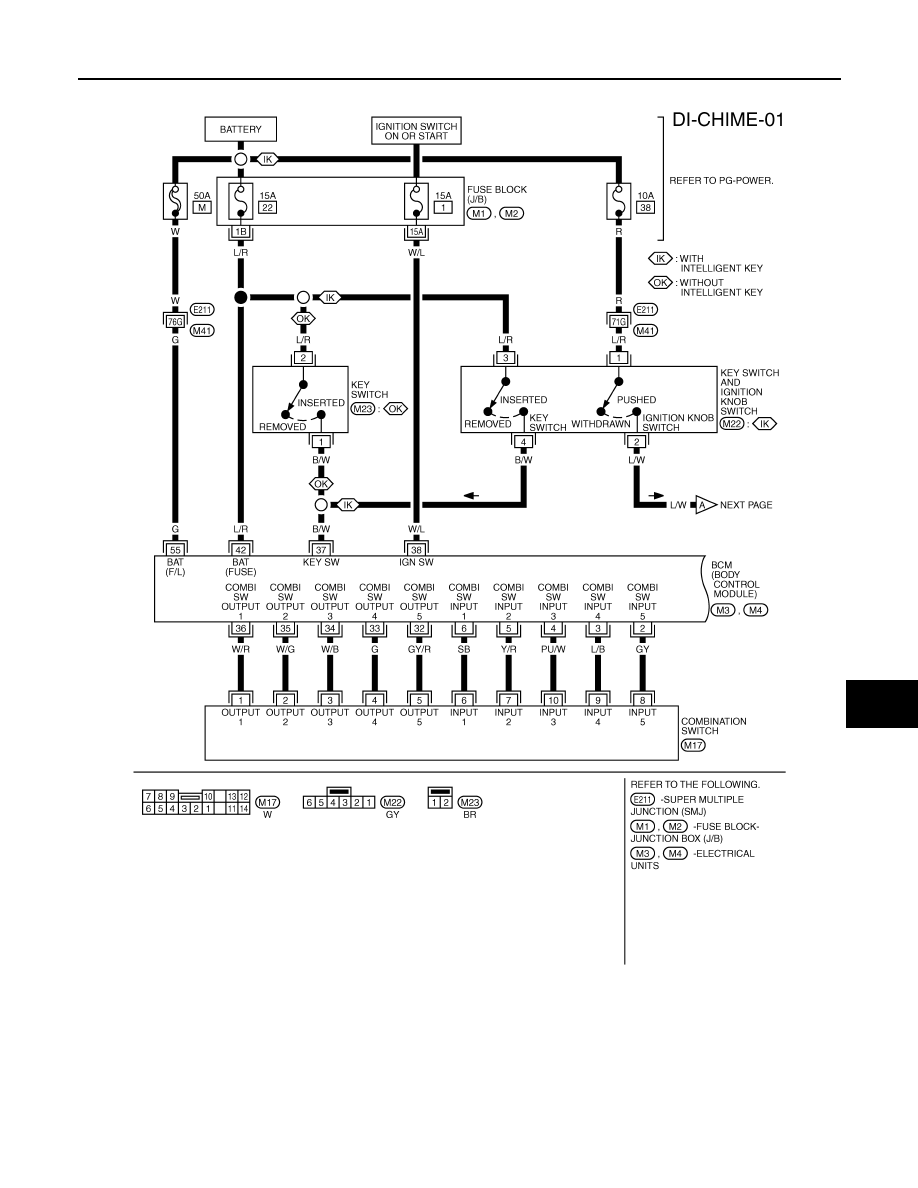

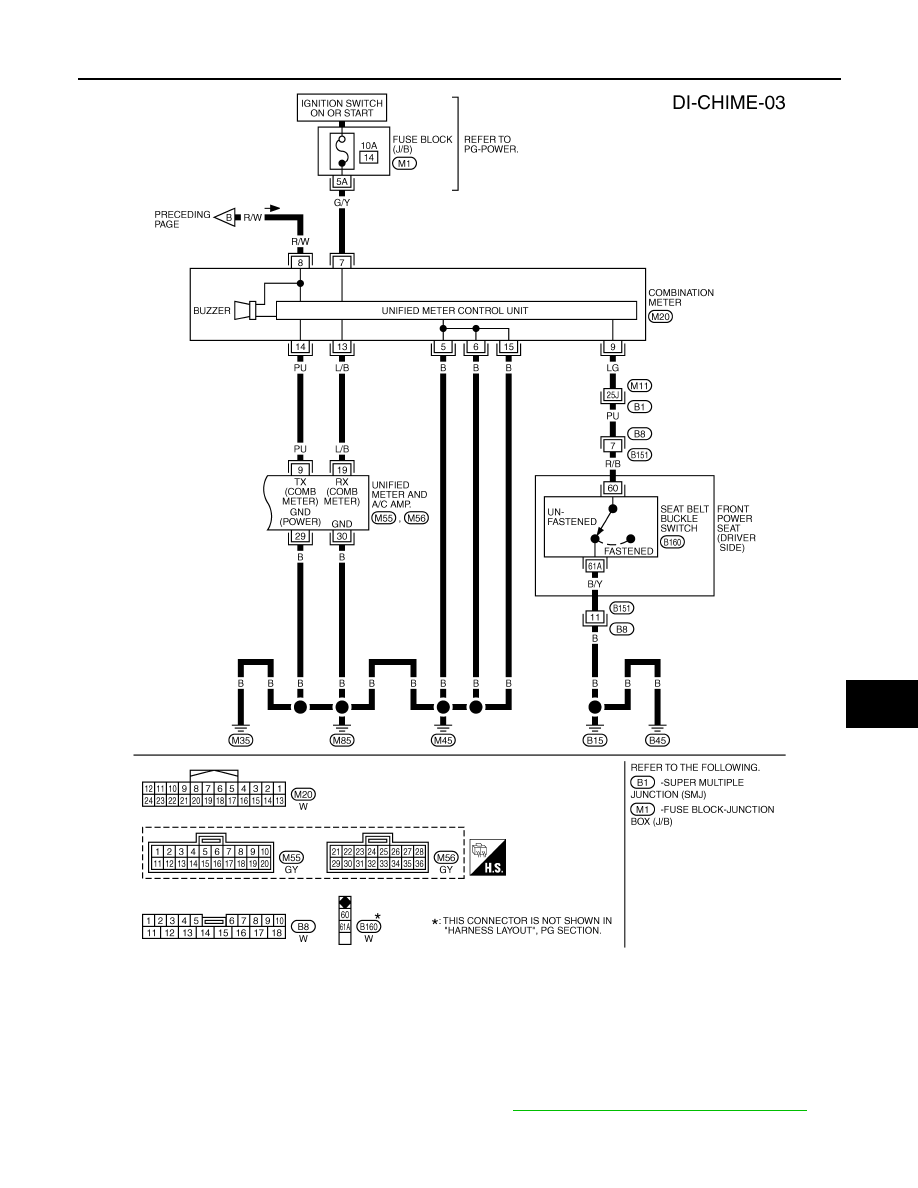

Wiring Diagram - CHIME -

INFOID:0000000001328476

TKWM4357E

DI-56

< SERVICE INFORMATION >

WARNING CHIME

TKWM4358E

WARNING CHIME

DI-57

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

DI

N

O

P

Terminal and Reference Value for BCM

INFOID:0000000001328477

CAUTION:

• Check combination switch system terminal waveform under the loaded condition with lighting

switch, turn signal and wiper switch OFF not to be fluctuated by overloaded.

• Turn wiper dial position to 4 except when checking waveform or voltage of wiper dial position. Wiper

dial position can be confirmed on CONSULT-III. Refer to

LT-103, "CONSULT-III Functions (BCM)"

.

TKWM4359E

DI-58

< SERVICE INFORMATION >

WARNING CHIME

Ter-

mi-
nal

No.

Wire

color

Item

Measuring condition

Reference value

Igni-

tion

switc

h

Operation or condition

2

G/Y

Combination switch
input 5

ON

Lighting, turn, wiper switch
(Wiper intermittent dial posi-
tion 4)

OFF

Approx. 0 V

Lighting switch
1ST

Approx. 1.0 V

33

G

Combination switch
output 4

ON

Lighting, turn, wiper switch
(Wiper intermittent dial posi-
tion 4)

OFF

Approx. 7.2 V

Lighting switch
1ST

Approx. 1.2 V

37

B/W

Key switch signal

OFF

When key is removed to ignition key cylinder.

Approx. 0 V

When key is inserted to ignition key cylinder.

Battery voltage

38

W/L

Ignition power supply

ON

—

Battery voltage

39

L

CAN-H

OFF

—

—

40

P

CAN-L

OFF

—

—

42

L/R

Battery power supply

OFF

—

Battery voltage

49

B

Ground

ON

—

Approx. 0 V

52

55

G

Battery power supply

OFF

—

Battery voltage

62

W

Front door switch DR
signal

OFF

Front door switch DR

ON (open)

Approx. 0 V

OFF (closed)

Approx. 7.0 - 7.5 V
