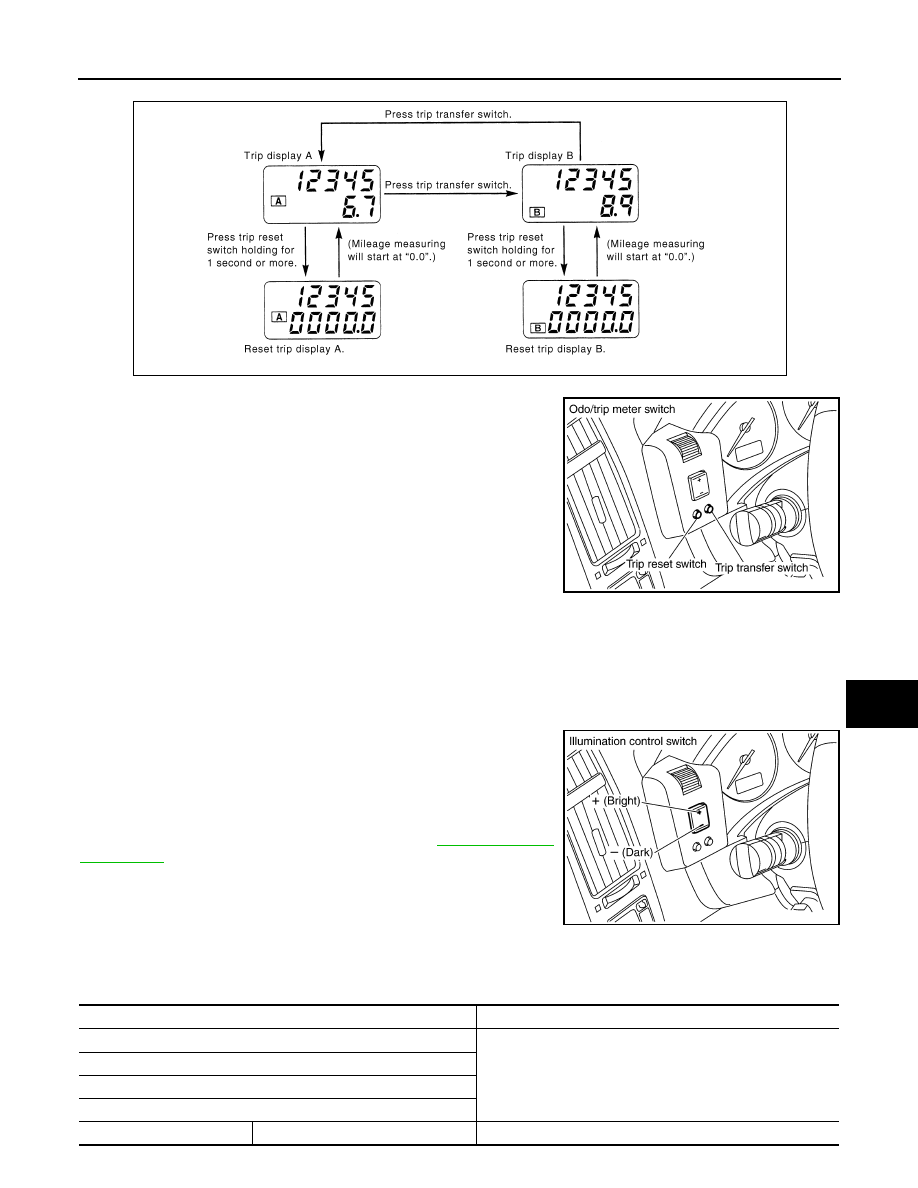

Switch modes with following procedure.
• When trip transfer switch is pressed, trip meter display changes.
• If trip reset switch is pressed for 1 second or more while “trip A” is
displayed, only “trip A” is reset.
NOTE:
The record of the odo meter is kept even if the battery cable is dis-
connected. The record of the trip meter is erased when the battery
cable is disconnected.

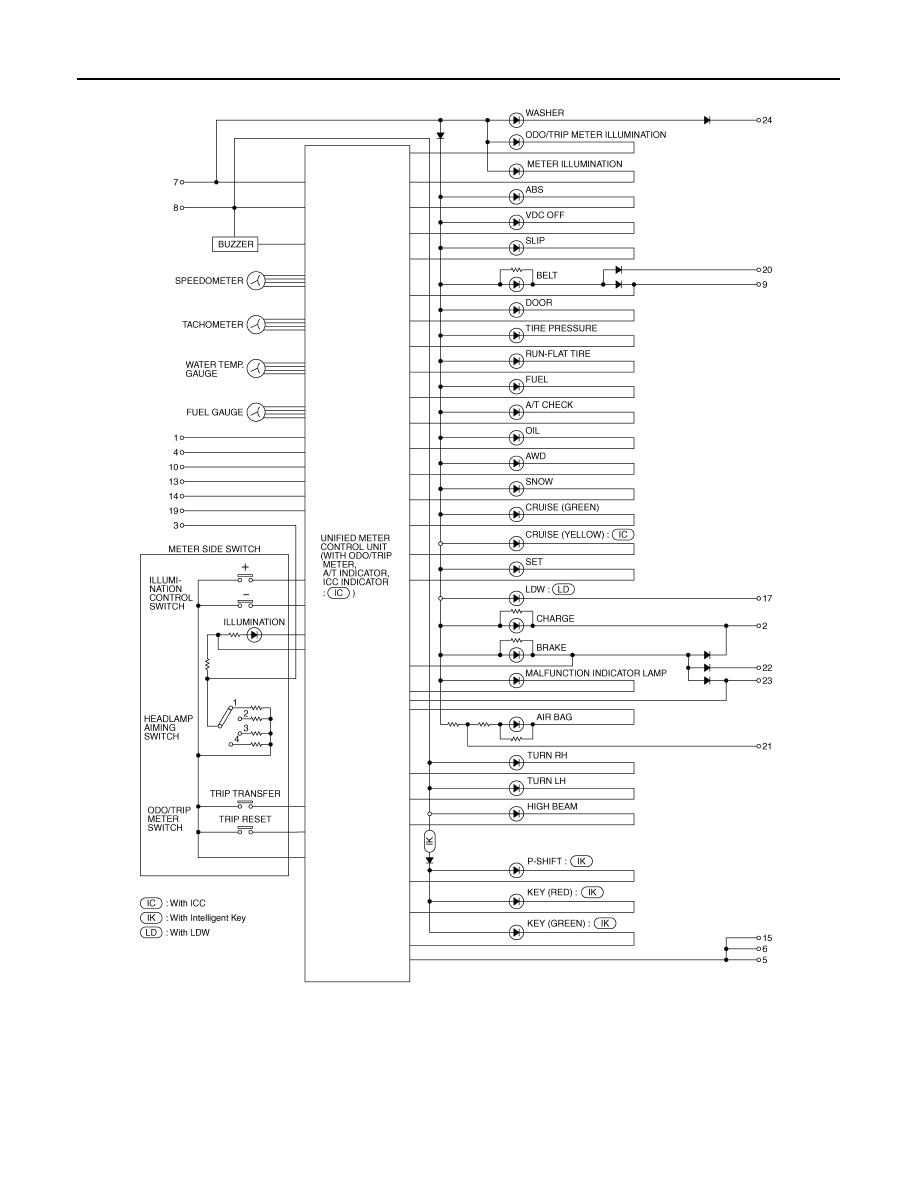

COMBINATION METER ILLUMINATION CONTROL
Daytime Mode
When ignition switch is turned ON, combination meter illumination is turned ON by unified meter control unit.
Nighttime Mode
• Unified meter control unit is transferred to nighttime mode, with ignition switch turned ON and position light
request signal from BCM with CAN communication.
• When nighttime mode, illumination control switch illumination turns
ON by unified meter control unit. Each illumination is controlled by
unified meter control unit.
• Each illumination can be adjusted to 16 step by illumination control
switch in nighttime mode.
NOTE:
For further details of illumination circuit, refer to
.
FAIL-SAFE

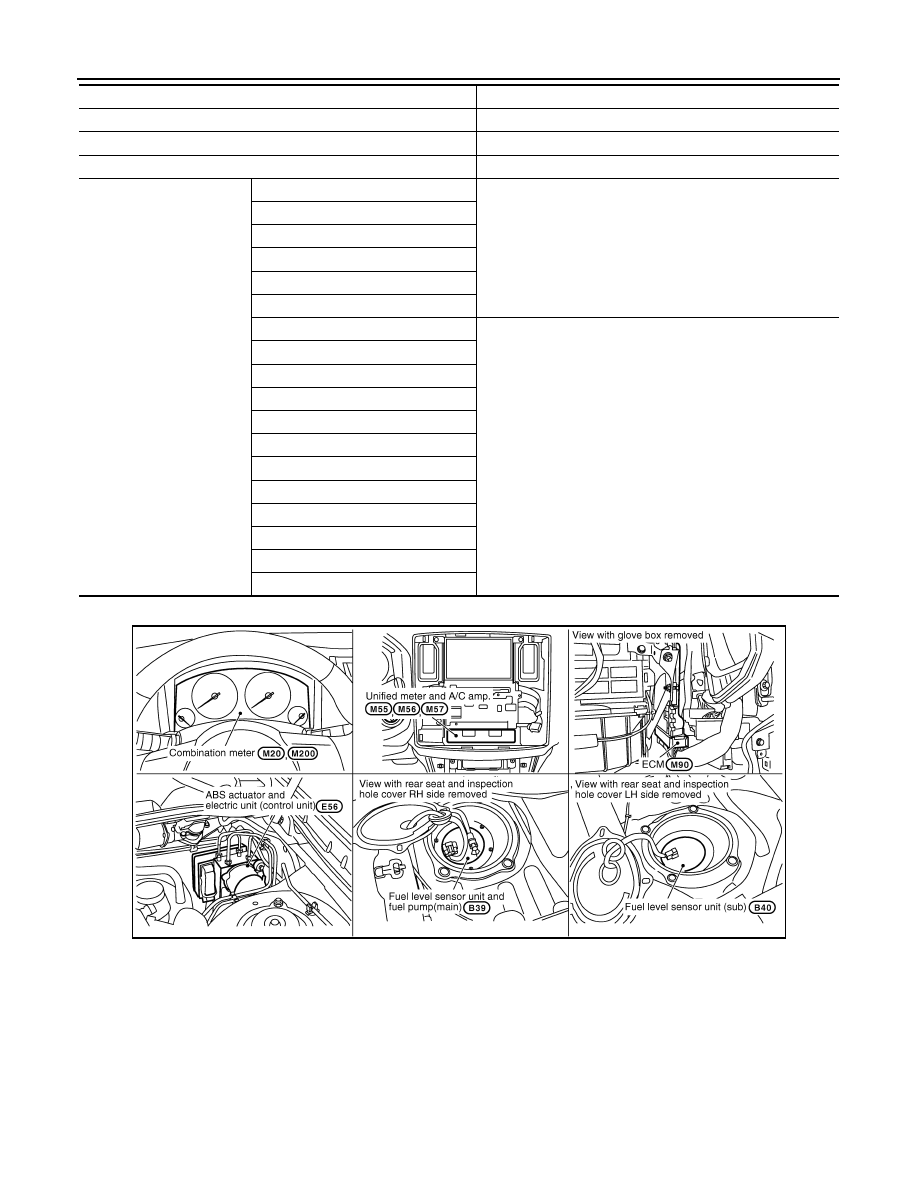

Combination meter performs fail-safe operation when unified meter and A/C amp. communication is malfunc-
tioning.
SKIB8760E
SKIA4817E
SKIA4795E
Function
Fail-safe operation
Speedometer
Return to zero.
Tachometer
Fuel gauge
Water temperature gauge
Illumination control
Combination meter illumination
Change to nighttime mode.
