BRC-34

< SERVICE INFORMATION >

[VDC/TCS/ABS]

TROUBLE DIAGNOSIS FOR SYSTEM

TROUBLE DIAGNOSIS FOR SYSTEM

DTC C1101 RR RH SENSOR-1

INFOID:0000000001327677

After using the CONSULT-III SELF-DIAG RESULTS to determine the location of the malfunctioning wheel sen-
sor, check all areas to determine the component to be replaced.

CAUTION:

• Do not measure the resistance value and also voltage between sensor terminal with tester etc.,

because sensor is an active sensor.

• Do not expand terminal of connector with a tester terminal stick, when it does the inspection with

tester.

INSPECTION PROCEDURE

1.

CHECK TIRE

Check air pressure, wear and size.

Are air pressure, wear, and size within the standard values?

YES

>> GO TO 2.

NO

>> Adjust air pressure, or replace tire.

2.

CHECK SENSOR AND SENSOR ROTOR

• Check condition of the sensor mount (for looseness, etc.).
• Check surface of front sensor rotor rubber for damage.
• Check rear sensor rotor for damage.
OK or NG

OK

>> GO TO 3.

NG

>> Repair sensor mount or replace sensor rotor.

3.

CHECK SELF-DIAGNOSTIC RESULTS

Check the self-diagnostic results.

Is the above displayed in the self-diagnosis display items?

YES

>> GO TO 4.

NO

>> INSPECTION END

4.

CHECK CONNECTOR

1.

Disconnect ABS actuator and electric unit (control unit) connector and malfunctioning wheel sensor con-
nector E46 (FR-LH), E33 (FR-RH) or B69 (RR). Check terminal for deformation, open circuit, poor con-
tact, etc., and repair or replace if any malfunctioning condition is found.

2.

Reconnect connectors, drive at a speed of approximately 30 km/h (19 MPH) or more for approximately 1
minute, and perform self-diagnosis.

OK or NG

OK

>> Connector terminal contact is loose, damaged, open or shorted.

NG

>> GO TO 5.

5.

CHECK WHEEL SENSOR HARNESS

Self-diagnostic results

FR RH SENSOR-1,-2

FR LH SENSOR- 1,-2

RR RH SENSOR-1,-2

RR LH SENSOR-1,- 2

ABS SENSOR [ABNORMAL SIGNAL]

TROUBLE DIAGNOSIS FOR SYSTEM

BRC-35

< SERVICE INFORMATION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

1.

Turn ignition switch OFF and disconnect malfunctioning wheel
sensor connector E46 (FR-LH), E33 (FR-RH) or B69 (RR) and
ABS actuator and electric unit (control unit) connector E56.

2.

Check continuity between terminals. (Also check the continuity
when steering wheel is turned right and left and when sensor
harness inside wheel well is moved.)

OK or NG

OK

>> GO TO 6.

NG

>> Repair or replace harness and connector that have malfunction.

6.

CHECK WHEEL SENSOR POWER SUPPLY CIRCUIT

1.

Disconnect malfunctioning wheel sensor connector.

2.

Turn ignition switch ON and check voltage between wheel sen-
sor harness connector power supply terminal and ground.

OK or NG?

OK

>> Replace wheel sensor.

NG

>> Replace ABS actuator and electric unit (control unit).

DTC C1102 RR LH SENSOR-1

INFOID:0000000001569691

Refer to

BRC-34, "DTC C1101 RR RH SENSOR-1"

.

DTC C1103 FR RH SENSOR-1

INFOID:0000000001569692

Refer to

BRC-34, "DTC C1101 RR RH SENSOR-1"

.

DTC C1104 FR LH SENSOR-1

INFOID:0000000001569693

Refer to

BRC-34, "DTC C1101 RR RH SENSOR-1"

.

SFIA1186E

Power supply circuit

Signal circuit

Ground circuit

Wheel

ABS actuator

and electric unit

(control unit)

Wheel sensor

ABS actuator

and electric unit

(control unit)

Wheel sensor

ABS actuator and elec-

tric unit (control unit)

(signal)

ABS actuator and elec-

tric unit (control unit)

(ground)

Front RH

34

1

33

2

33, 34

16, 47

Front LH

45

1

46

2

45, 46

Rear RH

43

1

42

2

43, 42

Rear LH

36

3

37

4

36, 37

Power supply circuit

: Continuity should exist.

Signal circuit

: Continuity should exist.

Ground circuit

: Continuity should not exist.

Wheel

Wheel sensor

Ground

Voltage

Front RH

1

8  V  or  more

Front LH

1

Rear RH

1

Rear LH

3

SFIA3364E

BRC-36

< SERVICE INFORMATION >

[VDC/TCS/ABS]

TROUBLE DIAGNOSIS FOR SYSTEM

DTC C1105 RR RH SENSOR-2

INFOID:0000000001569694

Refer to

BRC-34, "DTC C1101 RR RH SENSOR-1"

.

DTC C1106 RR LH SENSOR-2

INFOID:0000000001569695

Refer to

BRC-34, "DTC C1101 RR RH SENSOR-1"

.

DTC C1107 FR RH SENSOR-2

INFOID:0000000001569696

Refer to

BRC-34, "DTC C1101 RR RH SENSOR-1"

.

DTC C1108 FR LH SENSOR-2

INFOID:0000000001569697

Refer to

BRC-34, "DTC C1101 RR RH SENSOR-1"

.

DTC C1109 BATTERY VOLTAGE [ABNORMAL]

INFOID:0000000001327685

INSPECTION PROCEDURE

1.

CHECK SELF-DIAGNOSTIC RESULTS (1)

Check the self-diagnostic results.

Does “BATTERY VOLTAGE” appear in self-diagnostic results display?

YES

>> GO TO 2.

NO

>> INSPECTION END

2.

CHECK SELF-DIAGNOSTIC RESULTS (2)

1.

Disconnect ABS actuator and electric unit (control unit) connector. Then reconnect it securely.

2.

Perform self-diagnosis.

Do any self-diagnosis item appear?

YES

>> GO TO 3.

NO

>> Poor connection. Repair or replace connector.

3.

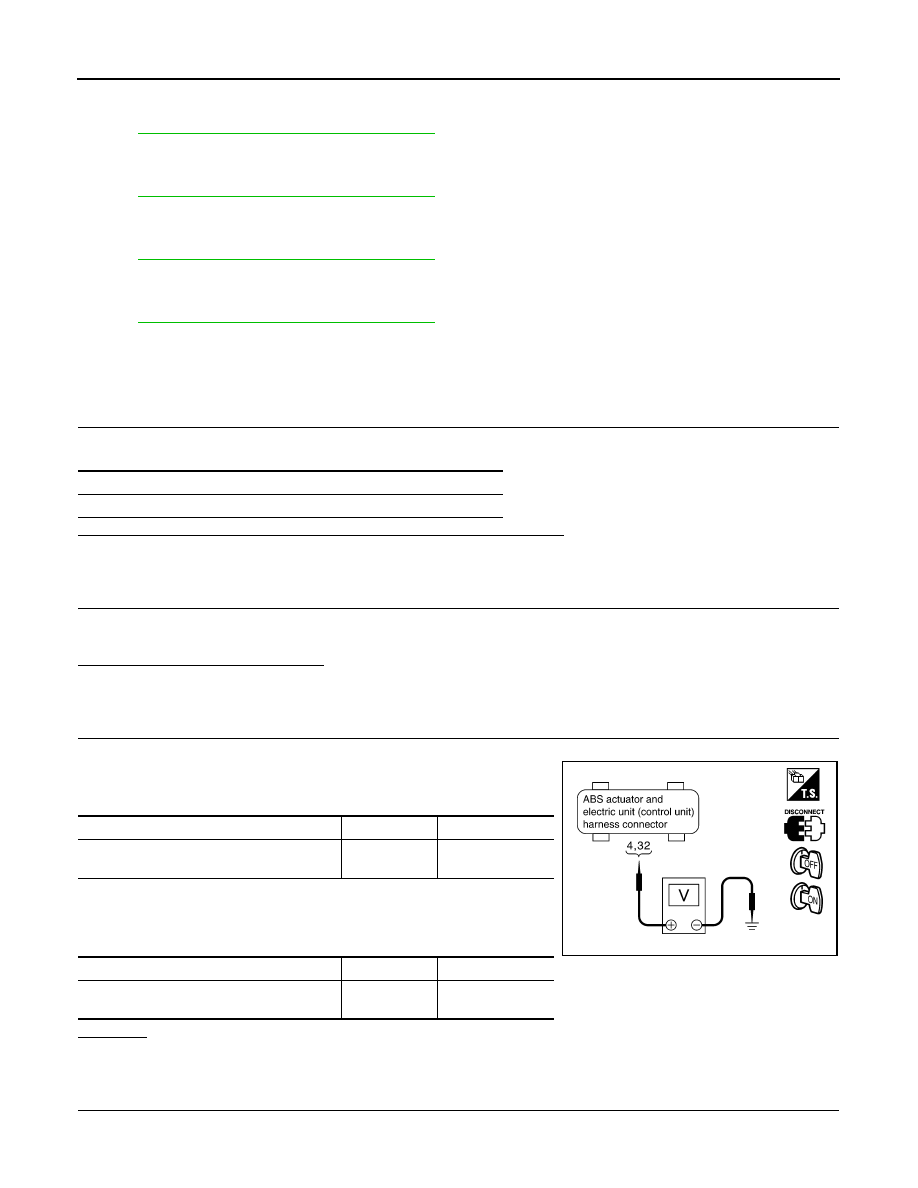

CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) POWER SUPPLY CIRCUIT (1)

1.

Disconnect ABS actuator and electric unit (control unit) connector E56.

2.

Turn ignition switch OFF. Check voltage between ABS actuator
and electric unit (control unit) harness connector and ground.

3.

Turn ignition switch ON (but do not start engine). Check voltage
between ABS actuator and electric unit (control unit) harness
connector and ground.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 5.

4.

CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) GROUND CIRCUIT

Self-diagnostic results

BATTERY VOLTAGE [ABNORMAL]

ABS actuator and electric unit (control unit)

Ground

Voltage

32

Battery voltage

(Approx. 12 V)

ABS actuator and electric unit (control unit)

Ground

Voltage

4

Battery voltage

(Approx. 12 V)

SFIA1200E

TROUBLE DIAGNOSIS FOR SYSTEM

BRC-37

< SERVICE INFORMATION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Check ABS actuator and electric unit (control unit) ground circuit.

OK or NG

OK

>> Perform ABS actuator and electric unit (control unit) self-

diagnosis again.

NG

>> Repair or replace harness or connectors.

5.

CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) POWER SUPPLY CIRCUIT (2)

1.

Check fuse 10 A (terminal 4) and 30 A (terminal 32).

2.

Turn ignition switch OFF and check continuity between battery
positive terminal and ABS actuator and electric unit (control unit)
harness connector E56.

OK or NG

OK

>> Check for non-standard conditions in battery (terminal

looseness, low voltage, etc.) and alternator.

NG

>> • Replace fuse 10 A or 30 A.

• Open or short in harness.

DTC C1110 CONTROLLER FAILURE

INFOID:0000000001327679

INSPECTION PROCEDURE

1.

CHECK SELF-DIAGNOSTIC RESULTS

Check the self-diagnostic results.

Is the above displayed in the self-diagnosis display items?

YES

>> Replace ABS actuator and electric unit (control unit). Perform the self-diagnosis again.

NO

>> INSPECTION END

DTC C1111 PUMP MOTOR

INFOID:0000000001327684

INSPECTION PROCEDURE

1.

CHECK SELF-DIAGNOSTIC RESULTS (1)

Check the self-diagnostic results.

Is the above displayed in the self-diagnostic display items?

YES

>> GO TO 2.

NO

>> Inspection is completed.

2.

CHECK SELF-DIAGNOSTIC RESULTS (2)

ABS actuator and electric unit (control unit)

Ground

Continuity

16

Yes

SFIA1434E

ABS actuator and electric unit

(control unit)

Battery positive terminal

Continuity

4, 32

Yes

SFIA1435E

Self-diagnostic results

 CONTROLLER FAILURE

 VARIANT CODING

Self-diagnostic results

PUMP MOTOR

ACTUATOR RLY
