Infiniti FX35 / FX45. Manual - part 237

BODY REPAIR

BL-215

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

BL

N

O

P

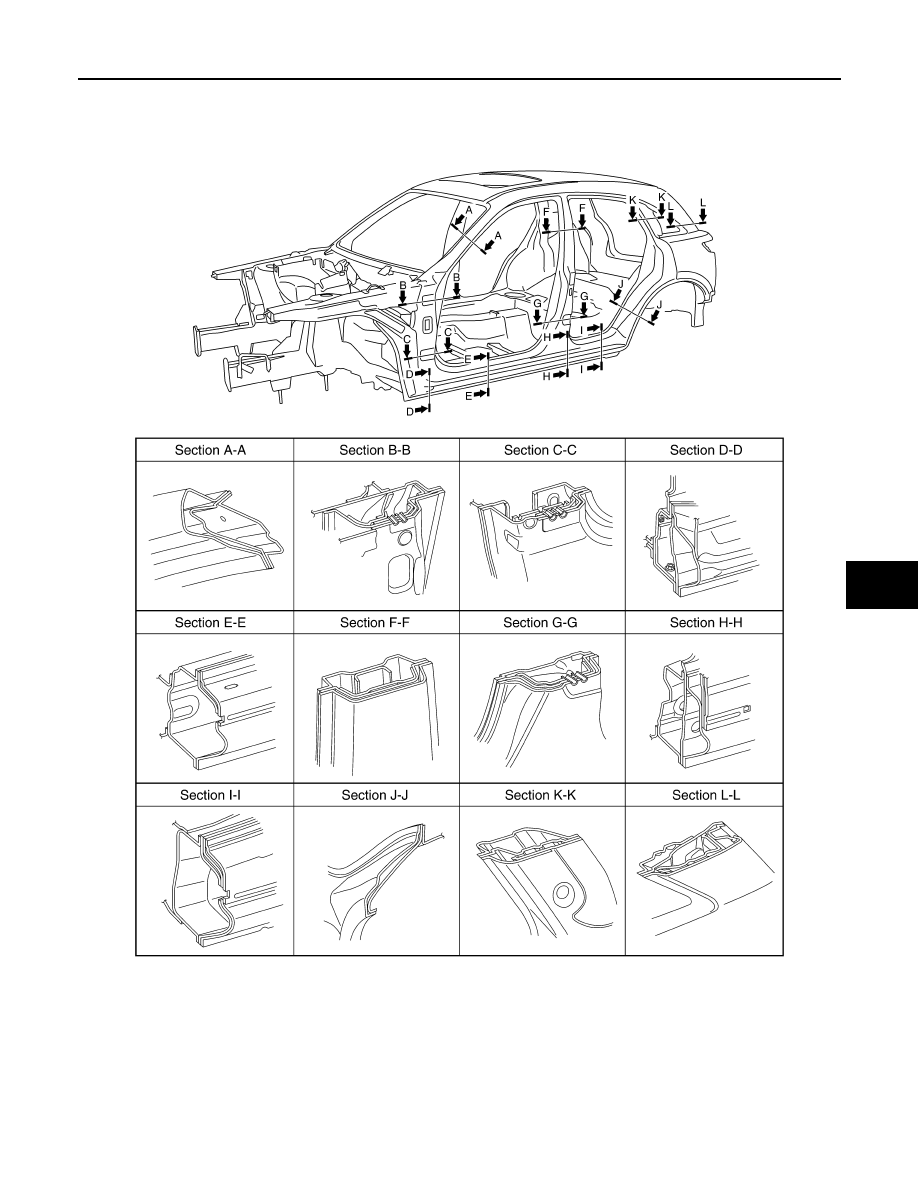

Body Construction

INFOID:0000000001327947

BODY CONSTRUCTION

Body Alignment

INFOID:0000000001327948

BODY CENTER MARKS

SIIA2257E

BL-216

< SERVICE INFORMATION >

BODY REPAIR

A mark has been placed on each part of the body to indicate the vehicle center. When repairing parts dam-
aged by an accident which might affect the vehicle frame (members, pillars, etc.), more accurate and effective
repair will be possible by using these marks together with body alignment specifications.

PANEL PARTS MATCHING MARKS

SIIA2258E

BODY REPAIR

BL-217

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

BL

N

O

P

A mark has been placed on each body panel to indicate the parts matching positions. When repairing parts
damaged by an accident which might affect the vehicle structure (members, pillars, etc.), more accurate and
effective repair will be possible by using these marks together with body alignment specifications.

DESCRIPTION

• All dimensions indicated in the figures are actual.
• When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself

to make sure there is no free play.

• When a measuring tape is used, check to be sure there is no elongation, twisting or bending.
• Measurements should be taken at the center of the mounting holes.
• An asterisk (*) following the value at the measuring point indicates that the measuring point on the other side

is symmetrically the same value.

• The coordinates of the measurement points are the distances measured from the standard line of

″

X

″

,

″

Y

″

and

″

Z

″

.

SIIA2259E

BL-218

< SERVICE INFORMATION >

BODY REPAIR

ENGINE COMPARTMENT

Measurement

PIIA0104E

SIIA2260E
