INTELLIGENT KEY SYSTEM

BL-83

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

BL

N

O

P

Intelligent Key remote controller button and door request switch operations change the engine startup function
settings (startup enabled/disabled) for each Intelligent Key independently.

Settings Change Procedure

1.

With the ignition switch is in the LOCK position (ignition knob not pressed), hold down both the LOCK and
UNLOCK remote control buttons on the Intelligent Key at the same time for at least 10 seconds (The yard-
stick is that the Intelligent Key LED flashes 20 times.)

2.

Within 5 seconds of releasing the Intelligent Key remote controller buttons, press the driver door request
switch.

3.

The KEY warning lamp in combination meter lights up for 3 seconds (engine starting enabled

 starting

disabled: lights up red, engine starting disabled

 flashes green). This completes the settings change.

Changing Settings Using CONSULT-III

The settings for the Intelligent Key system functions can be changed using CONSULT-III (WORK SUPPORT).
Refer to

BL-104, "CONSULT-III Application Item"

.

NOTE:
Once a function setting is changed, it will remain effective even if the battery is disconnected.

Changing Settings Using Display Unit

The settings of the Intelligent Key system can be changed, using CONSULT-III, display unit, Intelligent Key
and door request switch in the center of the instrument panel.

NOTE:
Once a function setting is changed, it will remain effective even if the battery is disconnected.

INTELLIGENT KEY REGISTRATION

Intelligent Key-ID registration is executed using the CONSULT-III. Up to 4 can be registered.

CAUTION:

• After a new Intelligent Key-ID is registered, be sure to check the function.
• When registering an additional Intelligent Key-ID, take any Intelligent Keys already registered and

Intelligent Keys for any other vehicles out of the vehicle before starting.

CONSULT-III can be used to check and delete Intelligent Key-IDs.
For future information, see the CONSULT-III Operation Manual NATS.

STEERING LOCK UNIT REGISTRATION

Steering Lock Unit ID Registration

CAUTION:

• The method for registering a steering lock unit ID depends on the status of the steering lock unit and

Intelligent Key unit (new or old unit).

• After registration is completed, press ignition knob with a portable unit in the vehicle so that it can

be rotated, and confirm that it cannot be rotated even when ignition switch is pressed without a por-
table unit in the vehicle.

For further information, see the CONSULT-III Operation Manual NATS.

CAN Communication System Description

INFOID:0000000001327838

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.

Setting item

Description

Intelligent Key Lock Response-Sound

The sound pattern of the Intelligent Key operation can be set as desired. (Setting value:
OFF, Beeper or Horn chirp)

Intelligent Key Unlock Response-Beep
Sound

The beep sound when unlocking door with the Intelligent Key operation can be turned ON
or OFF.

Intelligent Key Engine Start Function

This function can be performed to ON or OFF.

Intelligent Key Lock/Unlock Function

The door handle request switch lock/unlock operation with the Intelligent Key can be can-
celed or activated.

Return All Settings to Default

The all settings made by VEHICLE ELECTRONICS will return to default.

BL-84

< SERVICE INFORMATION >

INTELLIGENT KEY SYSTEM

CAN Communication Unit

INFOID:0000000001327839

Refer to

LAN-43, "CAN System Specification Chart"

.

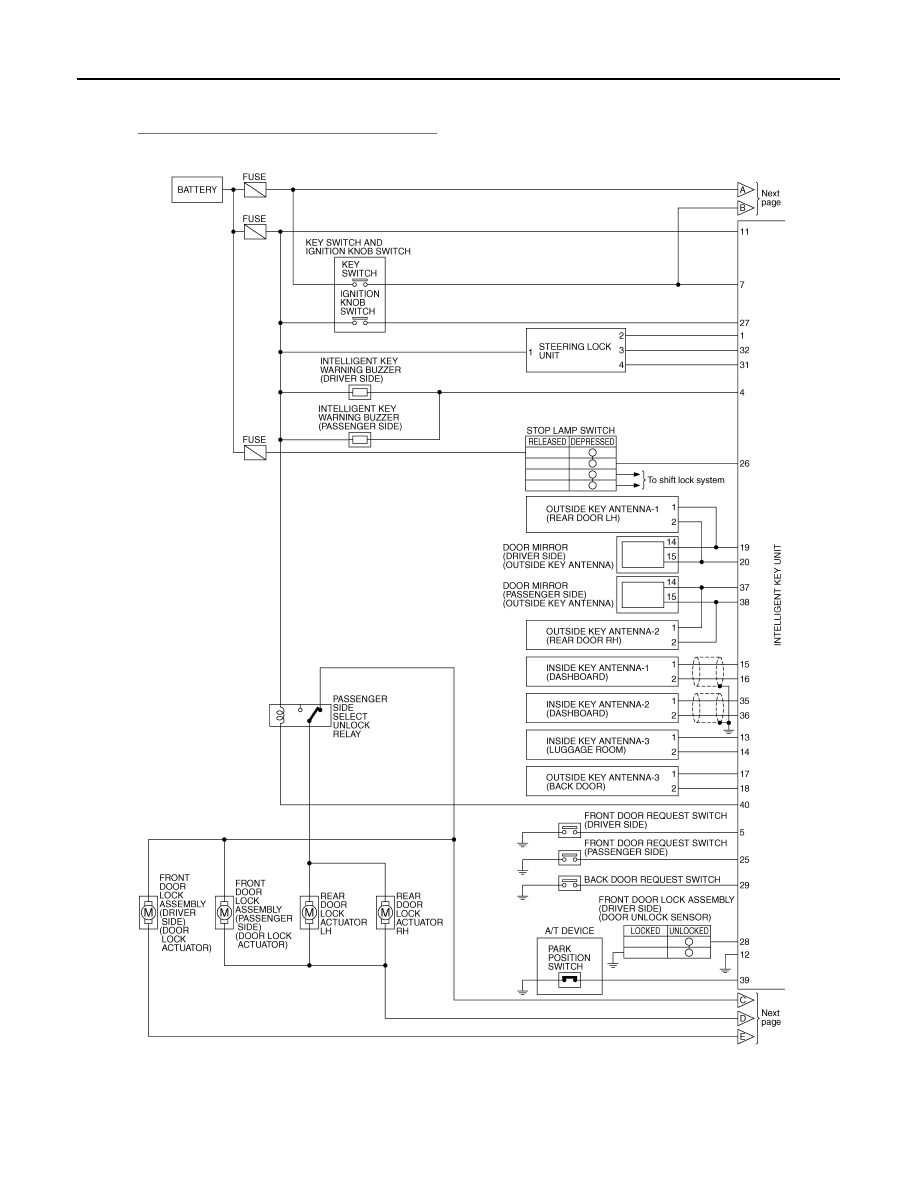

Schematic

INFOID:0000000001327840

TIWM1984E

INTELLIGENT KEY SYSTEM

BL-85

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

BL

N

O

P

TIWM1660E

BL-86

< SERVICE INFORMATION >

INTELLIGENT KEY SYSTEM

Wiring Diagram - I/KEY -

INFOID:0000000001327841

TIWM1661E
