TELEPHONE

TELEPHONE

System Description

INFOID:0000000001328789

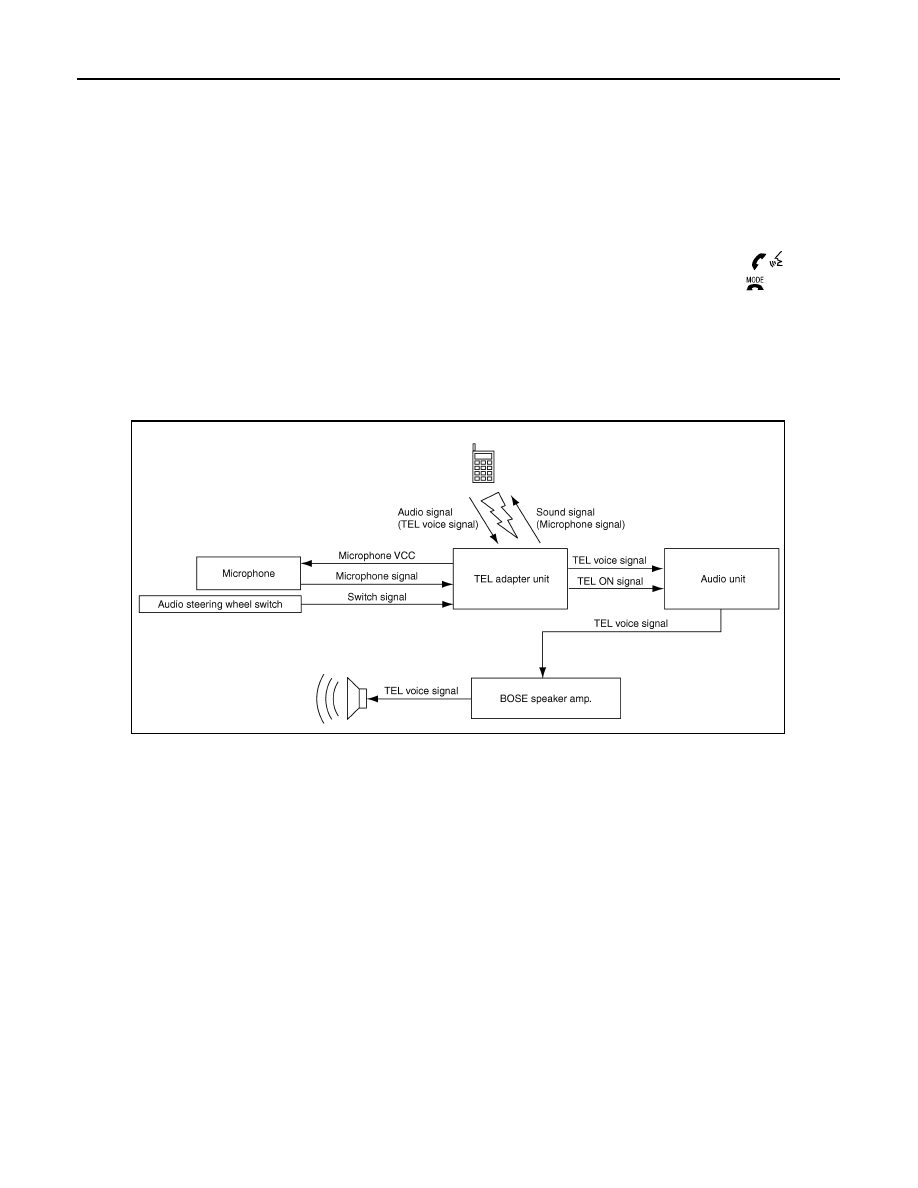

HANDS-FREE PHONE SYSTEM

• For Hands-free phone system operation information, refer to Owner's Manual.
• TEL adapter unit has Bluetooth module. It can perform wireless hands-free telephone calls using a  cellular

phone in vehicle compartment.

• 5 or less cellular phones can be registered into the TEL adapter unit.

• Hands-free phone mode starts by transmitting switch signal to TEL adapter unit when pressing

 button.

• Hands-free phone mode ends by transmitting switch signal to TEL adapter unit when pressing

 button.

• When uttering to the microphone, microphone signal (audio signal) is transmitted from the microphone to the

TEL adapter unit and transmitted to the cellular phone with the Bluetooth

®

  communication.

• Audio sound is muted when turning audio ON while hands-free phone system works.
• Sound signal transmits to receiver's telephone through microphone unit, TEL adapter unit, and TEL antenna

when sending voice.

• Sound signal outputs to front RH speakers through TEL antenna, TEL adapter unit, audio unit, and BOSE

speaker amp. when receiving voice.

SKIB8653E

TELEPHONE

AV-159

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

AV

N

O

P

Component Parts Location

INFOID:0000000001328790

SKIB8654E

AV-160

< SERVICE INFORMATION >

TELEPHONE

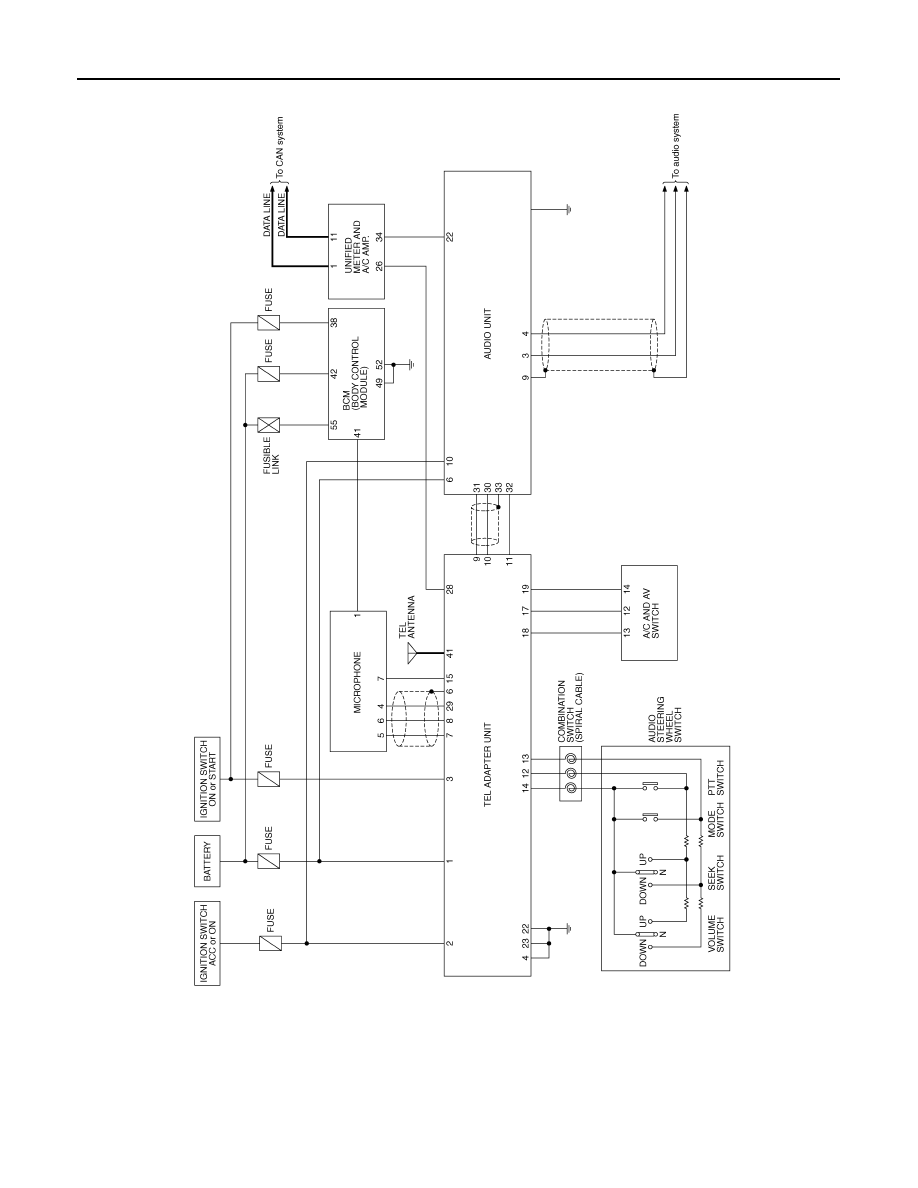

Schematic

INFOID:0000000001328791

TKWM4432E

TELEPHONE

AV-161

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

AV

N

O

P

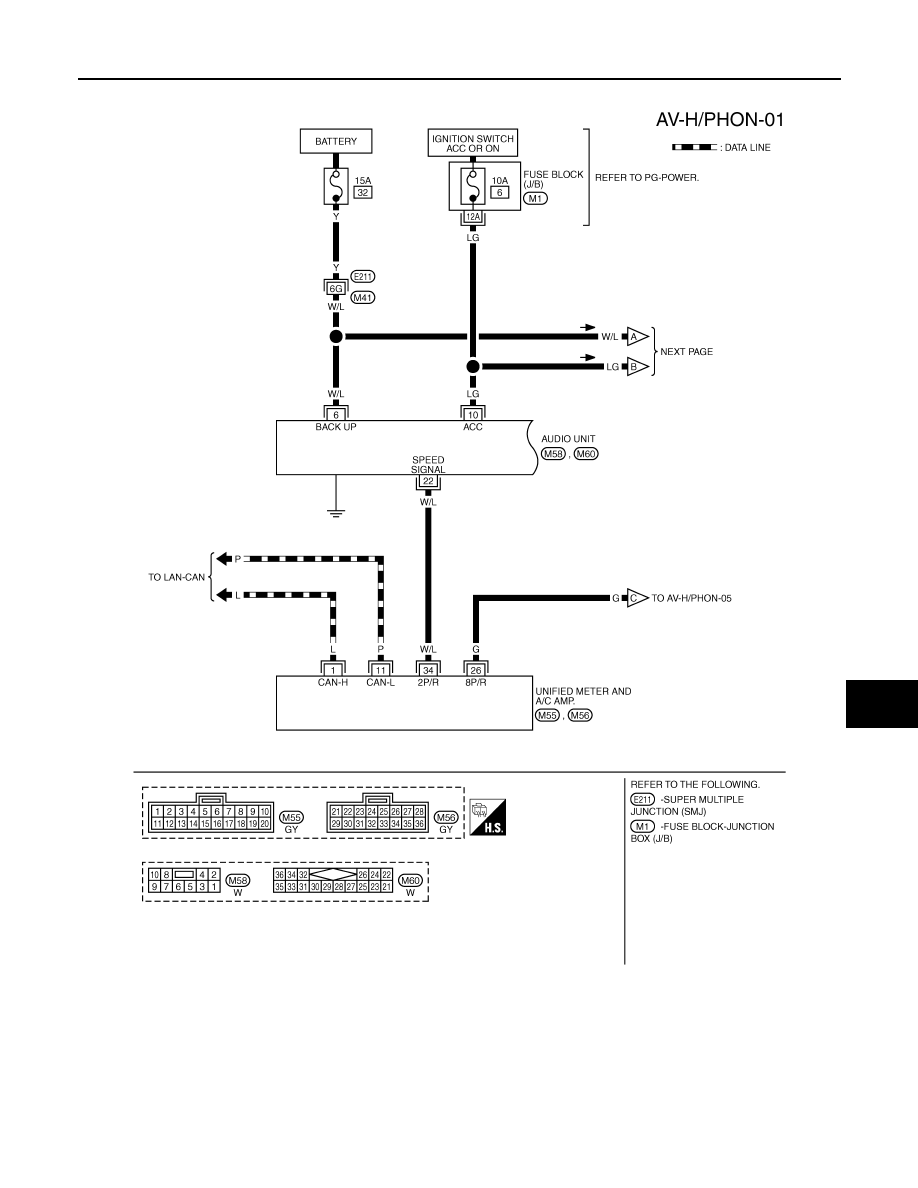

Wiring Diagram - H/PHON -

INFOID:0000000001328792

TKWM4433E
