AV-74
< SERVICE INFORMATION >
INTEGRATED DISPLAY SYSTEM
6.

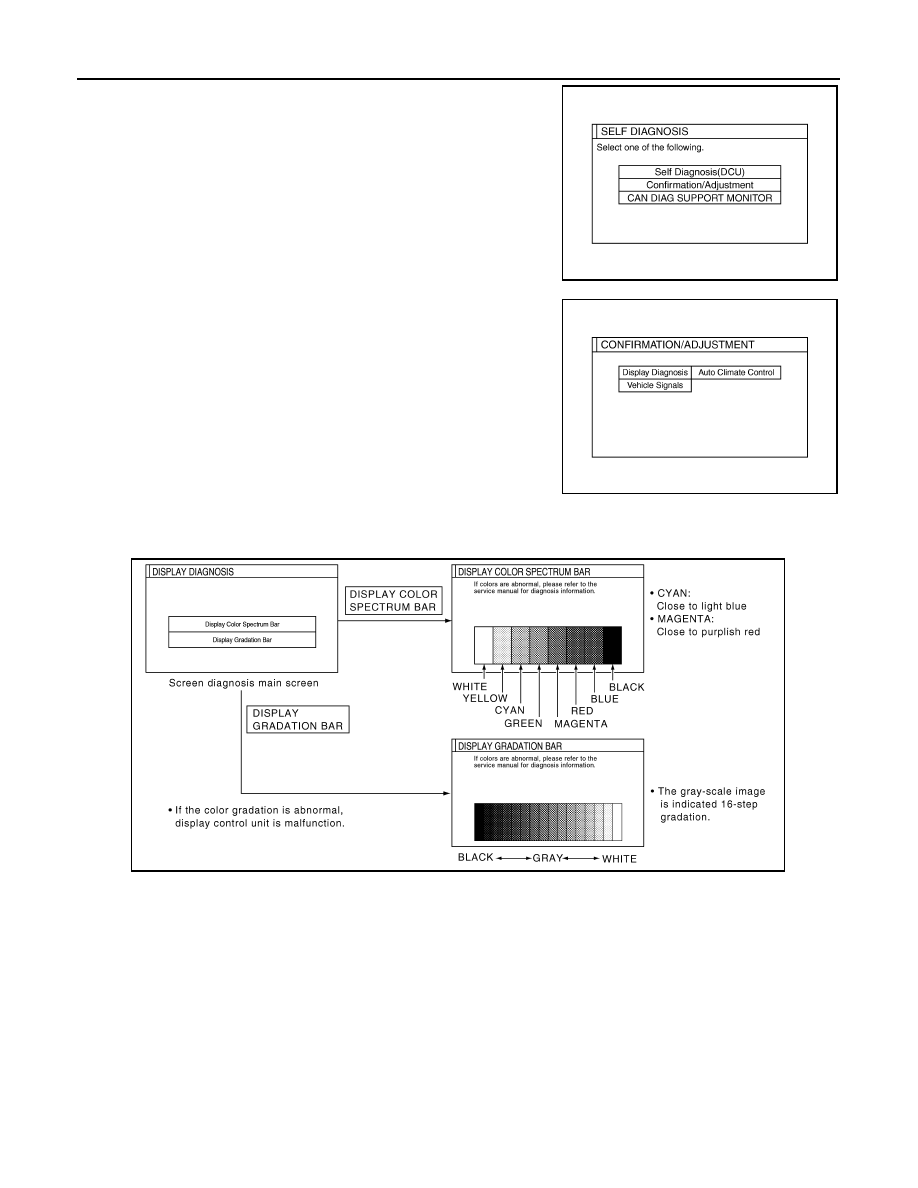

When the self-diagnosis completes, optional part confirmation
screen will be shown.
• When connection of an optional part is judged error, a screen
to check if the optional part is actually fitted on the vehicle or
not will be shown. When fitted, select the switch of the part on
the screen and press “End”. Then the “SELF DIAGNOSIS”
screen will be shown.
• When the optional part is connected normally, the switch for
the part will not appear on the screen.
7.
On the diagnosis results screen, each unit name and connection
line will be colored according to the diagnosis result, as follows.
NOTE:
• Satellite = Satellite radio tuner
• DCU = Display control unit
• Multifunction switch = A/C and AV switch
• If multiple malfunctions occur at the same time for a single
unit, the screen switch colors are determined according to the following order of priority: red > yellow >
gray.
8.
Select a switch on the diagnosis results screen, and comments
for the diagnosis results will be shown.
SELF-DIAGNOSIS RESULT
Quick Reference Table
1.
Select the applicable diagnosis number in the quick reference table of diagnosis result.
2.
Confirm the possible malfunction with the diagnosis table, and then perform inspection.
3.
Turn ignition switch OFF and perform self-diagnosis again.

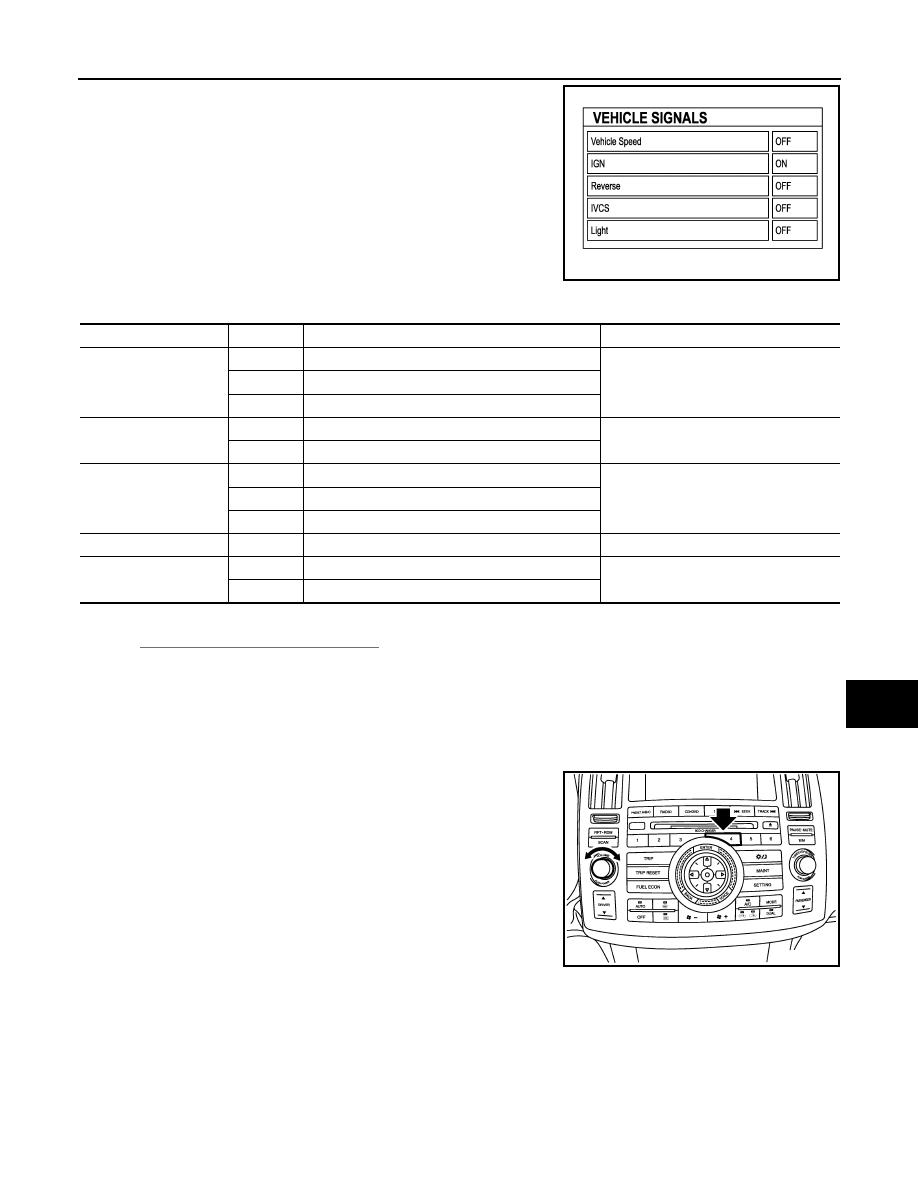

• When A/C and AV switch has a malfunction, the self-diagnosis cannot be started. Refer to
Operate System with A/C and AV Switch"
.
• When display has a malfunction, the self-diagnosis cannot be started. Refer to
Self-Diagnosis Codes
SKIB8673E
Green
: No malfunctioning.
Gray
: Cannot be judged by self-diagnosis results.
Red
: Unit is malfunctioning.
SKIB7872E
SKIA4211E
Switch color
Screen switch
Diagnosis No.
DCU
Display
Audio Unit
Satellite
Red
×
1
Gray
×
2
×
×
3
×
4
