ATC-112

< SERVICE INFORMATION >

HEATER & COOLING UNIT ASSEMBLY

25. Evaporator

26. Heater case (left)

27. Foot duct (left)

28. Center case

29. Max. cool door (left)

30. Ventilator door

31. Side link

32. Mode door motor

33. Defroster door

34. Max. cool door (right)

35. Defroster door lever

36. Defroster door link

: N·m (kg-m, in-lb)

: Always replace after every disassembly.

MODE DOOR MOTOR

ATC-113

< SERVICE INFORMATION >

C

D

E

F

G

H

I

K

L

M

A

B

ATC

N

O

P

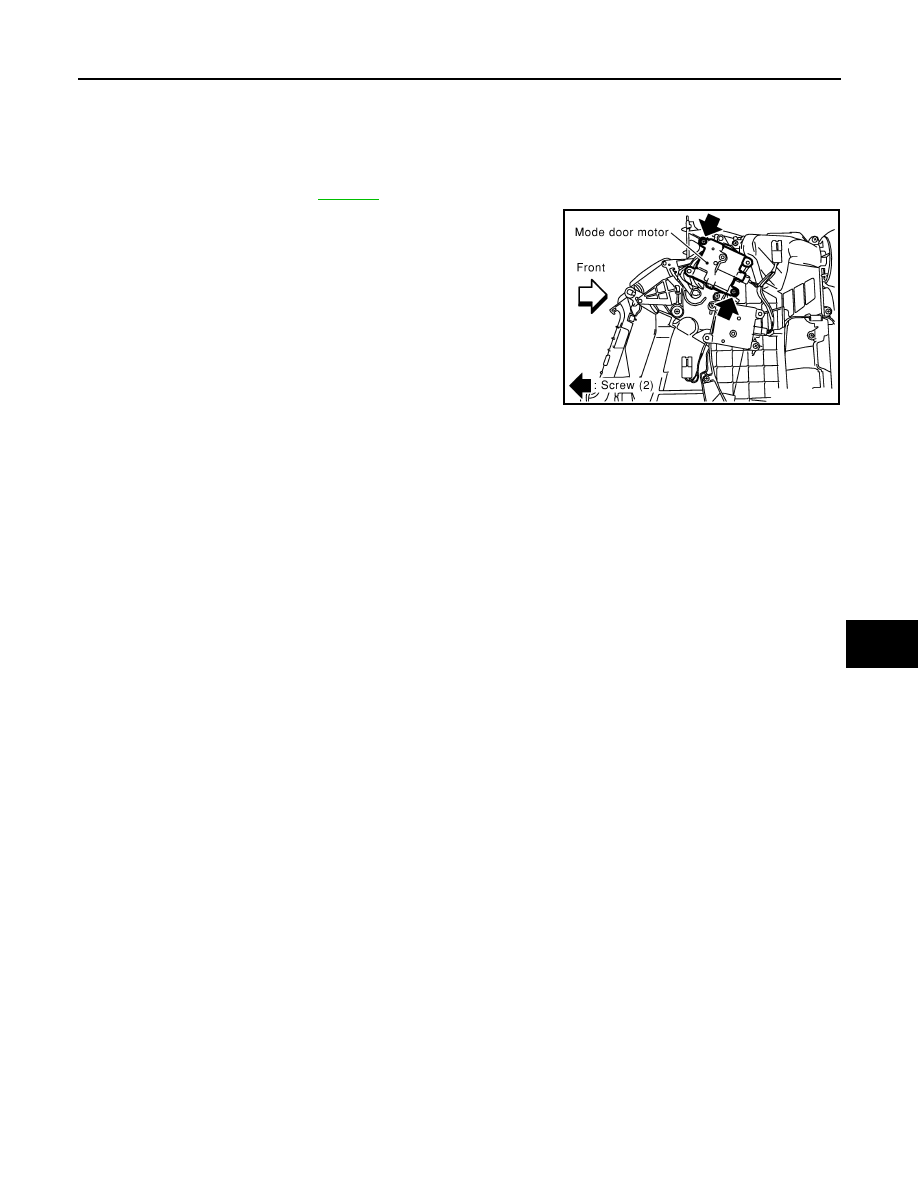

MODE DOOR MOTOR

Removal and Installation

INFOID:0000000001328213

REMOVAL

1.

Remove blower unit. Refer to

ATC-103

.

2.

Remove mounting screws, and then remove mode door motor.

3.

Disconnect mode door motor connector.

INSTALLATION

Installation is basically the reverse order of removal.

RJIA0954E

ATC-114

< SERVICE INFORMATION >

AIR MIX DOOR MOTOR

AIR MIX DOOR MOTOR

Removal and Installation

INFOID:0000000001328214

REMOVAL

Driver Side

1.

Set the temperature control switch (driver side) at 18

°

C (60

°

F), and then disconnect the battery cable from

the negative terminal.

2.

Remove instrument driver lower panel. Refer to

IP-10

.

3.

Remove mounting screws, and then remove air mix door motor.

4.

Disconnect air mix door motor connector.

Passenger Side

1.

Set the temperature control switch (passenger side) at 18

°

C (60

°

F), and then disconnect the battery cable

from the negative terminal.

2.

Remove blower unit. Refer to

ATC-103

.

3.

Remove mounting screws, and then remove air mix door motor.

4.

Disconnect air mix door motor connector.

INSTALLATION

Installation is basically the reverse order of removal.

RJIA0956E

RJIA0955E

HEATER CORE

ATC-115

< SERVICE INFORMATION >

C

D

E

F

G

H

I

K

L

M

A

B

ATC

N

O

P

HEATER CORE

Removal and Installation

INFOID:0000000001328215

REMOVAL

1.

Remove heater & cooling unit assembly. Refer to

ATC-108

.

2.

Remove foot duct (left). Refer to

ATC-116, "Removal and Installation"

.

3.

Remove mounting screws, and then remove heater pipe cover.

4.

Remove heater pipe bracket.

5.

Slide heater core (shown in the figure) to driver side.

INSTALLATION

Installation is basically the reverse order of removal.

RJIA2046E
