Infiniti FX35 / FX45. Manual - part 126





ATC-100

< SERVICE INFORMATION >

IN-VEHICLE SENSOR

IN-VEHICLE SENSOR

Removal and Installation

INFOID:0000000001328203

REMOVAL

1.

Remove instrument driver lower panel. Refer to

IP-10

.

2.

Remove mounting screw, and then remove in-vehicle sensor.

INSTALLATION

Installation is basically the reverse order of removal.

RJIA2036E

SUNLOAD SENSOR

ATC-101

< SERVICE INFORMATION >

C

D

E

F

G

H

I

K

L

M

A

B

ATC

N

O

P

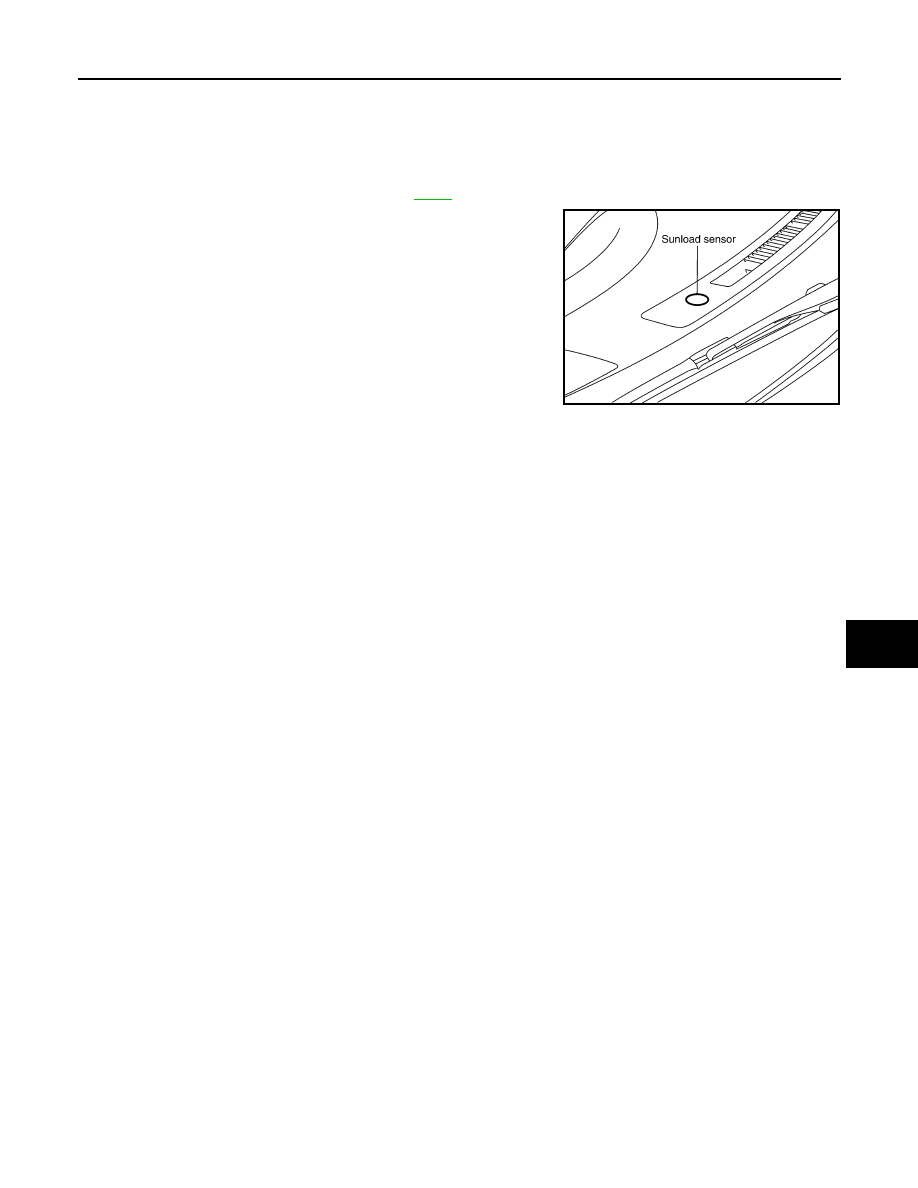

SUNLOAD SENSOR

Removal and Installation

INFOID:0000000001328204

REMOVAL

1.

Remove front defroster grille (RH). Refer to

IP-10

.

2.

Disconnect sunload sensor connector, and then remove the
sunload sensor.

INSTALLATION

Installation is basically the reverse order of removal.

RJIA2026E

ATC-102

< SERVICE INFORMATION >

INTAKE SENSOR

INTAKE SENSOR

Removal and Installation

INFOID:0000000001328205

REMOVAL

1.

Remove low-pressure pipe 2 and high-pressure pipe 3. Refer to

ATC-133, "Removal and Installation of

Low-Pressure Pipe 2 and High-pressure Pipe 3"

.

CAUTION:

Cap or wrap the joint of evaporator, low-pressure pipe 1 and high-pressure pipe 2 with suitable
material such as vinyl tape to avoid the entry of air.

2.

Slide evaporator to passenger side, and then remove intake
sensor.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• Replace O-rings of low-pressure pipe 1, 2 and high-pressure pipe 2, 3 with new ones, and then apply

compressor oil to it when installing it.

• Mark the mounting position of intake sensor bracket prior to removal so that the reinstalled sensor

can be located in the same position.

• Female-side piping connection is thin and easy to deform. Slowly insert the male-side piping

straight in axial direction.

• Insert piping securely until a click is heard.
• After piping connection is completed, pull male-side piping by hand to make sure that connection

does not come loose.

• When recharging refrigerant, check for leaks.

RJIA0928E

BLOWER UNIT

ATC-103

< SERVICE INFORMATION >

C

D

E

F

G

H

I

K

L

M

A

B

ATC

N

O

P

BLOWER UNIT

Removal and Installation

INFOID:0000000001328206

REMOVAL

1.

Remove instrument passenger lower panel. Refer to

IP-10

.

2.

Remove mounting nut, and then remove ECM with bracket
attached.

3.

Disconnect intake door motor connector and blower fan motor
connector.

4.

Remove harness clip from blower unit.

5.

Remove mounting bolt and screws from blower unit.

CAUTION:

Move blower unit rightward, and remove locating pin (1
part) and joint. Then remove blower unit downward.

6.

Remove blower unit.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

Make sure locating pin (1 part) and joint are securely inserted.

RJIA2039E

RJIA0943E
