ATC-72

< SERVICE INFORMATION >

TROUBLE DIAGNOSIS

3.

Check continuity between BCM harness connector M3 terminal
27 and unified meter and A/C amp. harness connector M57 ter-
minal 42.

OK or NG

OK

>> GO TO 7.

NG

>> Repair harness or connector.

7.

CHECK VOLTAGE FOR UNIFIED METER AND A/C AMP. (COMPRESSOR ON SIGNAL)

1.

Reconnect BCM connector and unified meter and A/C amp. connector.

2.

Turn ignition switch ON.

3.

Check voltage between unified meter and A/C amp. harness
connector M57 terminal 42 and ground using an oscilloscope.

OK or NG

OK

>> GO TO 8.

NG-1

>> If the voltage is approx. 5 V when A/C switch is ON: Replace unified meter and A/C amp.

NG-2

>> If the voltage is approx. 0 V when A/C switch is OFF: Replace BCM.

8.

CHECK REFRIGERANT PRESSURE SENSOR

WITH CONSULT-III

1.

Start the engine.

2.

Check voltage of refrigerant pressure sensor in “Data monitor”. Refer to

EC-127, "CONSULT-III Reference

Value in Data Monitor Mode"

 (VQ35DE) or

EC-705, "CONSULT-III Reference Value in Data Monitor

Mode"

 (VK45DE).

WITHOUT CONSULT-III

1.

Start the engine.

27 – 42

: Continuity should exist.

RJIA2006E

RJIA2007E

Terminals

Condition

Voltage

(+)

(

)

Unified meter

and A/C amp.

connector

Terminal

No.

M57

42

Ground

A/C switch: ON
(Blower motor operates.)

Approx. 0 V

OFF switch: ON
(A/C system: OFF)

SJIA1423J

TROUBLE DIAGNOSIS

ATC-73

< SERVICE INFORMATION >

C

D

E

F

G

H

I

K

L

M

A

B

ATC

N

O

P

2.

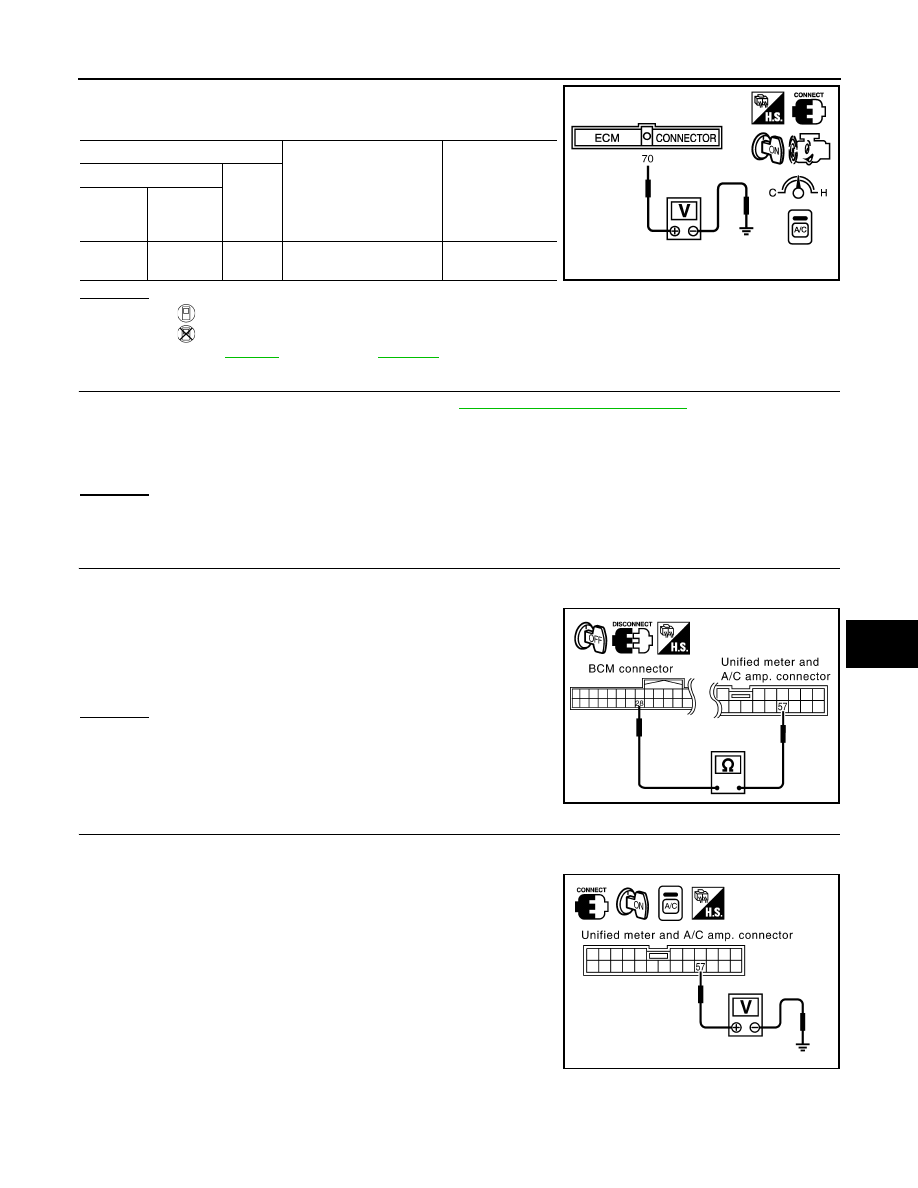

Check voltage between ECM harness connector F101 terminal
70 and ground.

OK or NG

OK

>> •

WITH CONSULT-III: GO TO 9.

WITHOUT CONSULT-III: GO TO 10.

NG

>> Refer to

EC-581

 (VQ35DE) or

EC-1177

 (VK45DE).

9.

CHECK BCM INPUT (FAN ON) SIGNAL

Check FAN ON/OFF signal in “Data monitor”. Refer to

ATC-32, "CONSULT-III Function"

.

OK or NG

OK

>> GO TO 12.

NG

>> GO TO 10.

10.

CHECK CIRCUIT CONTINUITY BETWEEN BCM AND UNIFIED METER AND A/C AMP.

1.

Turn ignition switch OFF.

2.

Disconnect BCM connector and unified meter and A/C amp. connector.

3.

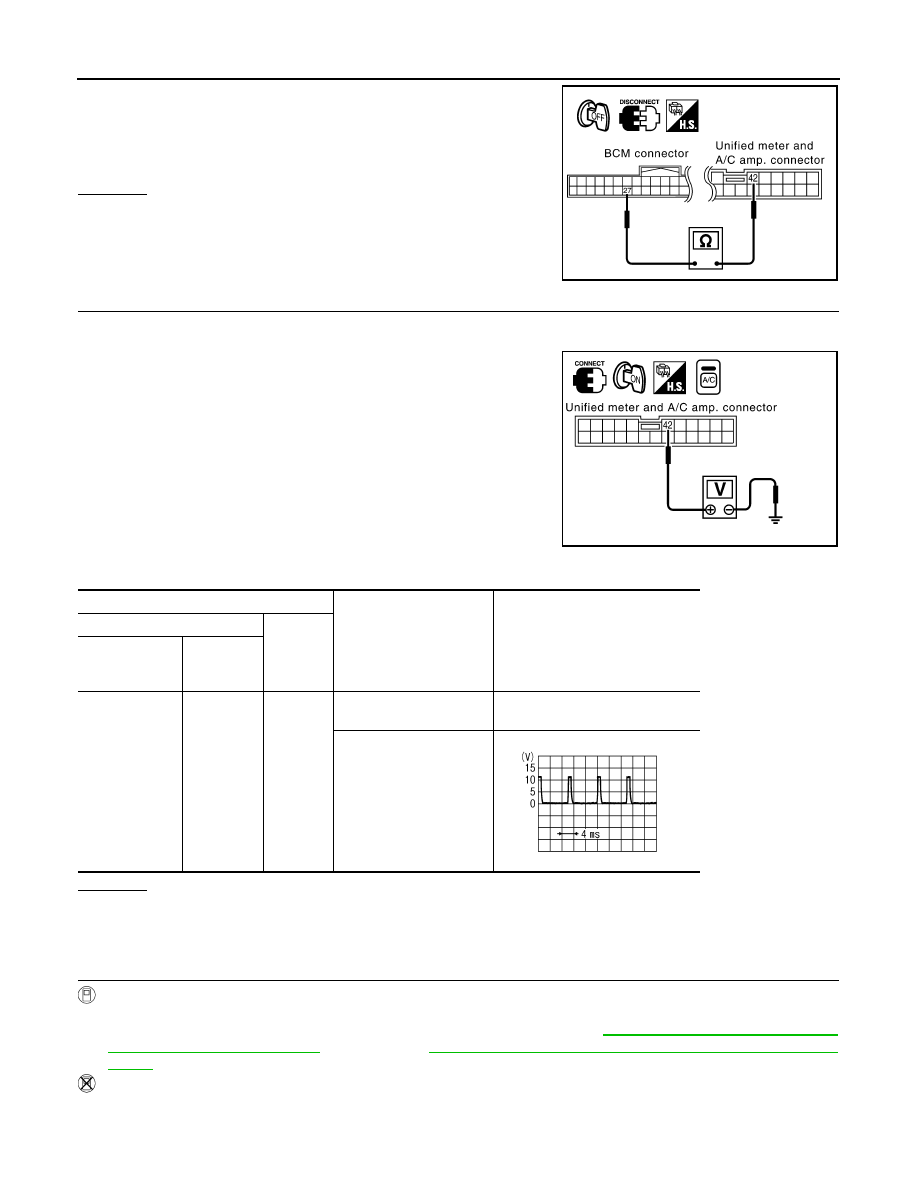

Check continuity between BCM harness connector M3 terminal
28 and unified meter and A/C amp. harness connector M57 ter-
minal 57.

OK or NG

OK

>> GO TO 11.

NG

>> Repair harness or connector.

11.

CHECK VOLTAGE FOR UNIFIED METER AND A/C AMP. (FAN ON SIGNAL)

1.

Reconnect BCM connector and unified meter and A/C amp. connector.

2.

Turn ignition switch ON.

3.

Check voltage between unified meter and A/C amp. harness
connector M57 terminal 57 and ground using an oscilloscope.

Terminals

Condition

Voltage

(+)

(

)

ECM

 connec-

tor

Terminal

No.

F101

70

Ground

A/C switch: ON
(Blower motor operates.)

Approx. 1.0 - 4.0

V

PBIB1188E

FAN SW ON

: FAN ON SIG ON

FAN SW OFF

: FAN ON SIG OFF

28 – 57

: Continuity should exist.

RJIA2009E

RJIA2010E

ATC-74

< SERVICE INFORMATION >

TROUBLE DIAGNOSIS

OK or NG

OK

>> GO TO 12.

NG-1

>> If the voltage is approx. 5 V when blower motor is ON: Replace unified meter and A/C amp.

NG-2

>> If the voltage is approx. 0 V when blower motor is OFF: Replace BCM.

12.

CHECK CAN COMMUNICATION

Check CAN communication. Refer to

BCS-13, "U1000 CAN Communication Circuit"

.

• BCM  –  ECM
• ECM – IPDM E/R
• ECM – Unified meter and A/C amp.
OK or NG

OK

>> Replace ECM

NG

>> Repair or replace malfunctioning part(s).

COMPONENT INSPECTION

Refrigerant Pressure Sensor

The refrigerant pressure sensor is attached to the condenser.
Make sure that the A/C refrigerant pressure and the sensor output
voltage are within the specified range as shown in the A/C operating
condition figure. Refer to

EC-581

 (VQ35DE) or

EC-1177

 (VK45DE).

Terminals

Condition

Voltage

(+)

(

)

Unified meter

and A/C amp.

connector

Terminal No.

M57

57

Ground

A/C switch: ON
(Blower motor operates.)

Approx. 0 V

OFF switch: ON
(A/C system: OFF)

SJIA1474J

RJIA2011E

RJIA2954E

TROUBLE DIAGNOSIS

ATC-75

< SERVICE INFORMATION >

C

D

E

F

G

H

I

K

L

M

A

B

ATC

N

O

P

Insufficient Cooling

INFOID:0000000001328191

SYMPTOM: Insufficient cooling

INSPECTION FLOW

*1

ATC-43, "Self-Diagnosis Function"

see No. 4 to 6.

*2

ATC-59, "Air Mix Door Motor Circuit"

*3

"Test Reading"

*4

ATC-43, "Self-Diagnosis Function"

*5

ATC-43, "Self-Diagnosis Function"

see No. 13.

*6

ATC-54, "LAN System Circuit"

*7

ATC-64, "Blower Motor Circuit"

*8

ATC-69, "Magnet Clutch Circuit"

*9

"PERFORMANCE TEST DIAGNO-
SIS"

SJIA1592E
